SPECIFICATIONS

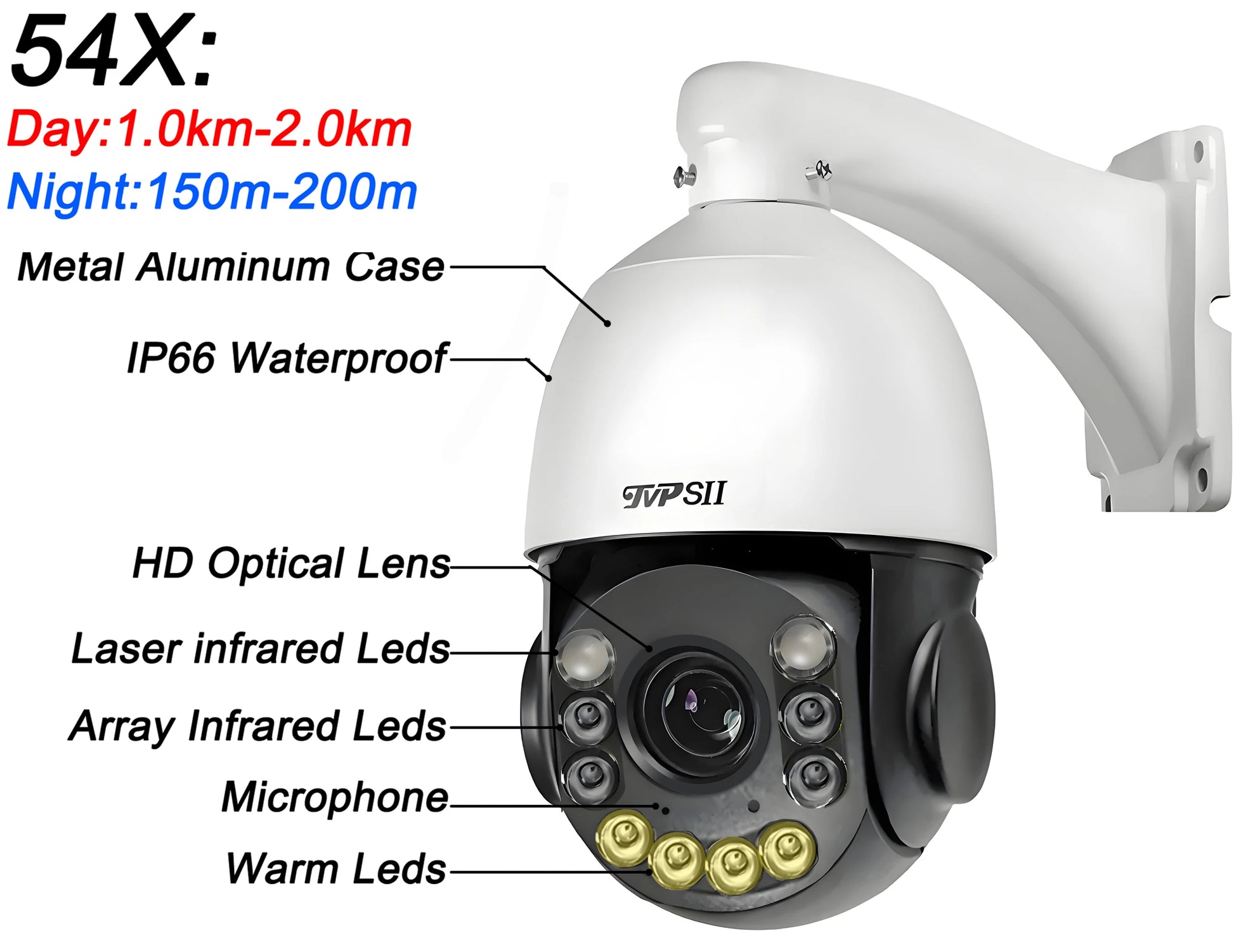

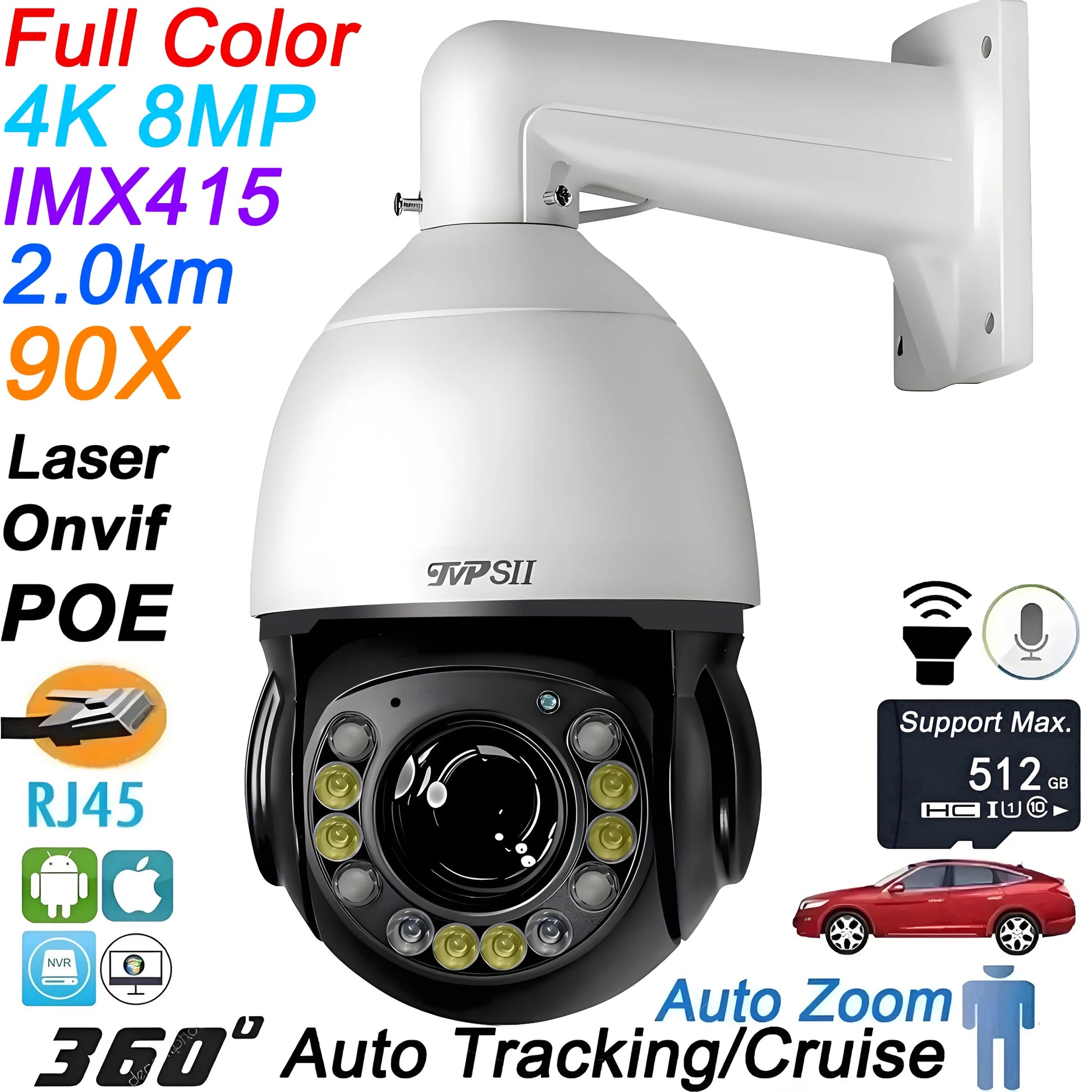

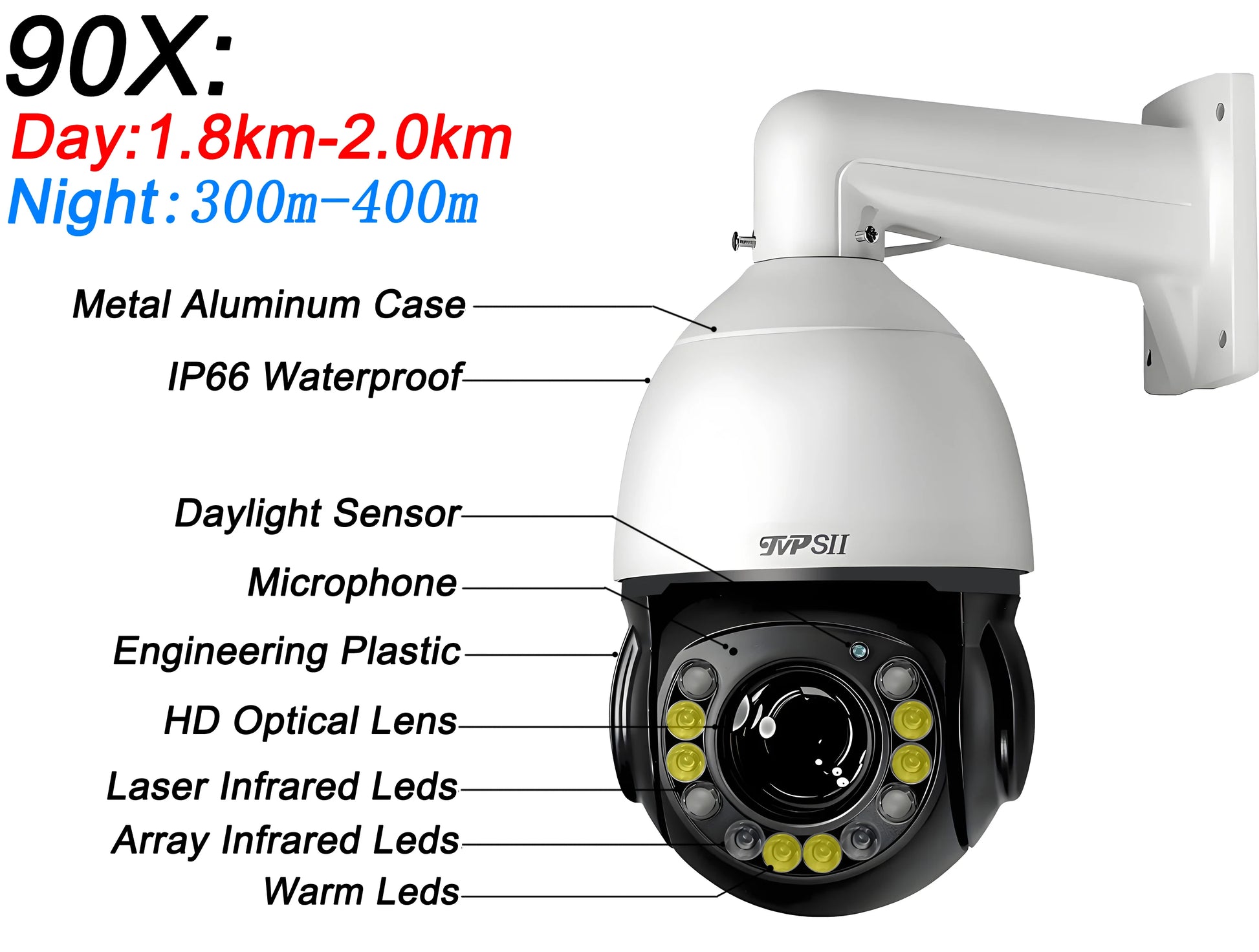

The TVPSii PTZ Speed Dome Camera is a high-zoom professional-style IP surveillance camera designed for large-area monitoring such as yards, parking lots, farms, warehouses, and perimeter security. It combines 8MP 4K resolution, motorized PTZ control, very high optical zoom (up to 90X depending on variant), and AI auto-tracking with infrared + laser night vision support.

It is part of a class of POE ONVIF PTZ cameras commonly sold under multiple rebranded listings, often sharing similar hardware across different sellers.

---

🔍 Key Features

• Resolution: 8MP (4K Ultra HD)
• Zoom: Up to 90X optical zoom (model variant dependent; some listings show 50X–54X)
• Rotation: 360° pan + tilt (PTZ dome system)
• Night Vision: Infrared + laser-assisted illumination (long-range visibility)
• AI Functions:
  • Auto tracking (human/motion tracking)
  • Cruise patrol modes
• Connectivity: ONVIF compatible (works with many NVR systems)
• Power: POE (Power over Ethernet) + optional DC power
• Weatherproof: Outdoor-rated metal housing (typically IP66–IP67 range depending on batch)

---

🎥 Imaging & Sensor

Most versions use:

• 8MP Sony IMX sensor (commonly IMX415 or similar)
• 4K video output (3840×2160)
• H.265 compression for bandwidth efficiency

This allows clearer detail for:

• Face recognition at distance
• Vehicle monitoring
• License plate visibility (at closer ranges with proper setup)

---

🔭 Zoom & PTZ Capability

This is the main selling point of this camera.

PTZ movement:

• Full 360° horizontal rotation
• Tilt movement for vertical coverage
• Preset patrol routes (auto cruise)

Optical zoom:

• Advertised up to 90X in some variants
• More common real-world versions: 32X–54X optical zoom range

High zoom allows:

• Long-distance object tracking
• Zooming into gates, driveways, or entrances

---

🌙 Night Vision System

These cameras typically combine multiple light sources:

• Infrared LEDs (black & white night vision)
• Laser illumination (long-range enhancement)
• Some versions add white LED “full color night mode”

Result:

• Clear visibility at night over long distances (often 150–300m claims depending on model)

---

🤖 Smart Tracking & Cruise Modes

AI features typically include:

• Human detection tracking
• Motion-triggered auto-follow
• Preset patrol routes (cruise between points)
• Automatic zoom during tracking

These functions help reduce manual control in large surveillance setups.

---

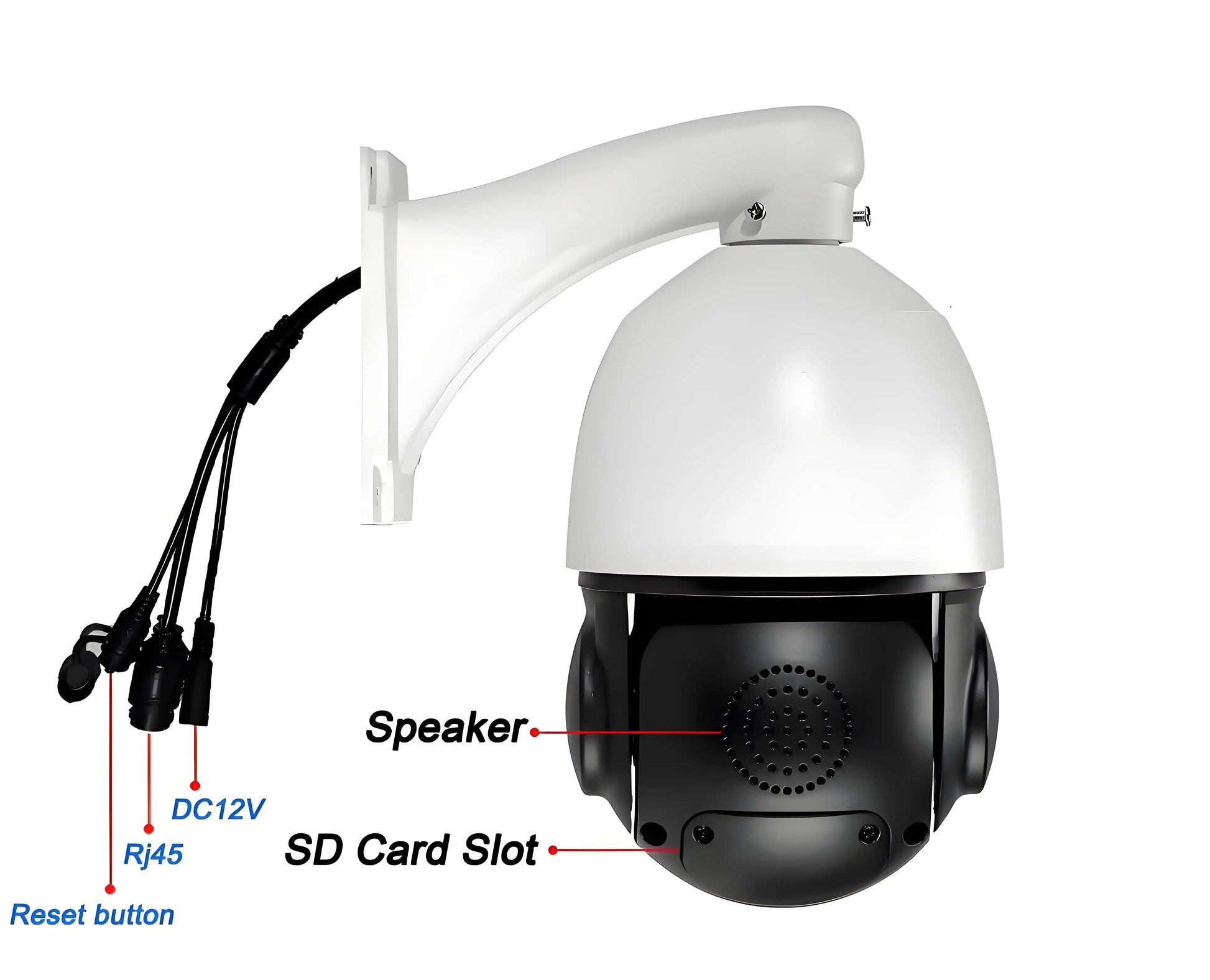

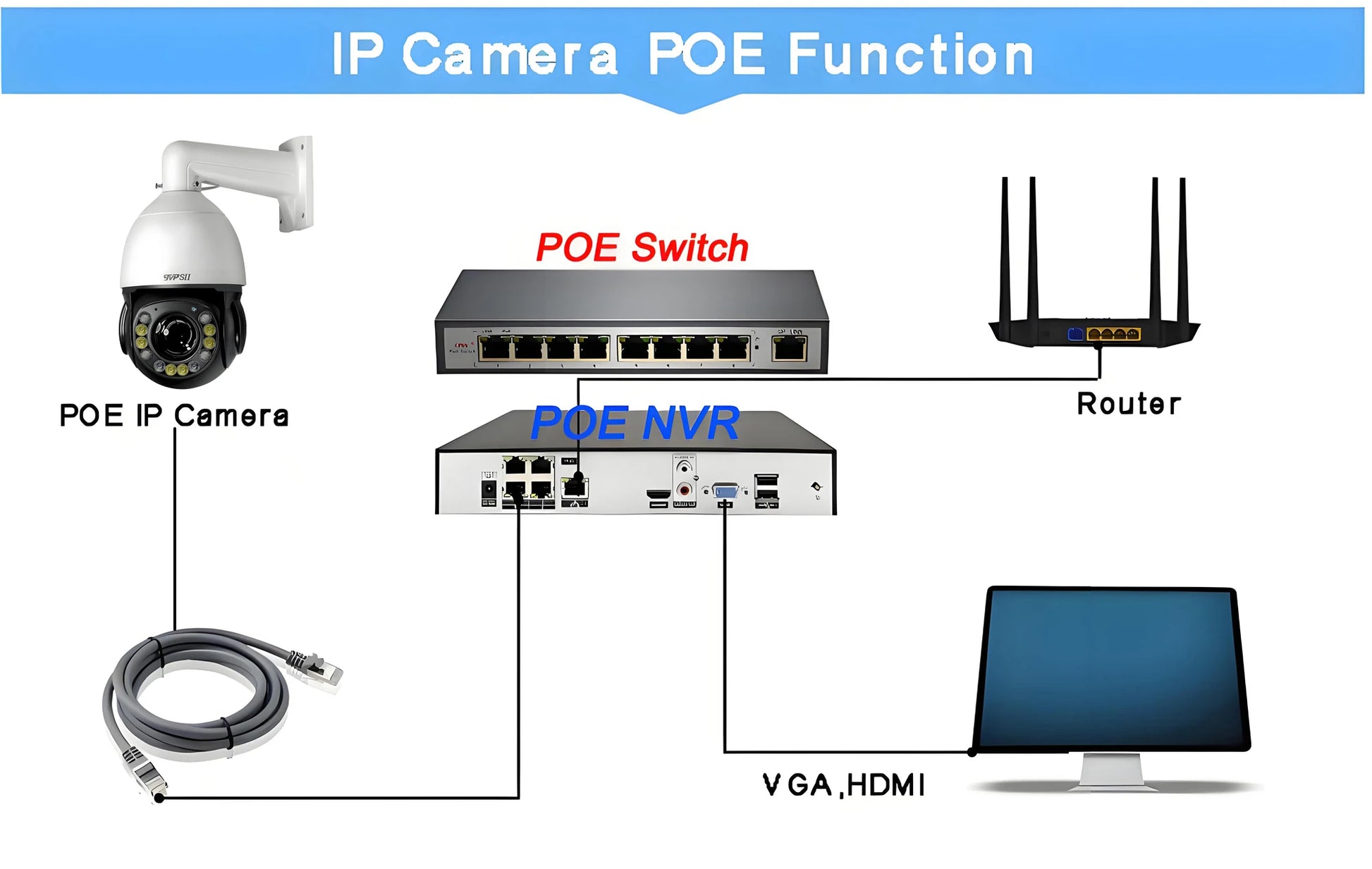

🔌 POE & Network Features

• POE (Power over Ethernet) for single-cable installation
• Works with:
  • Hikvision NVR
  • Dahua NVR
  • XMeye systems
  • ONVIF-compatible recorders
• Remote viewing via:
  • Mobile apps
  • PC software
  • Web interface

---

⚙️ Typical Specifications

Feature	Details
Resolution	8MP (4K)
Optical Zoom	50X–90X (varies by version)
Rotation	360° PTZ
Night Vision	IR + Laser
Compression	H.265 / H.265+
Connectivity	ONVIF IP
Power	POE (48V) / DC optional
Tracking	Auto human tracking
Storage	MicroSD support (up to 512GB on many versions)

---

👍 Advantages

• ✔ Extremely long-range zoom capability
• ✔ 4K resolution for detailed monitoring
• ✔ POE simplifies installation (one cable)
• ✔ Auto tracking reduces manual control
• ✔ Works with many NVR systems (ONVIF)
• ✔ Strong night vision range (IR + laser combo)

AI Functions: Smart Tracking

Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo

App: Videolink

App name: Other

Audio Output: Two Way Audio

Auto Zoom: support

Auto tracking/Cruise: support

Brand Name: TVPSii

Certification: CE,FCC,RoHS

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 150m-200m/400m-500m

Installation: Wall Mounted

Internal Storage: 512GB

Lens (mm): 2MM

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.01LUX-0.0001LUX

Model Number: TP-PTZ08W-54XS/90XS

Movement Range(Pan): 0°-360°

Movement Range(Tilt): Other

Operating Temperature: -50°- +60°

Optical Zoom: Other

Power Consumption(W): <30W

Power Mode: Mains Electricity

Power Source: With Poe

Power Supply: With POE

Power Supply(V): 12V/48V(POE)

Protocol: Hikvision,Dahua,Onvif

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP

TF Card: None

Video Compression Format: H.265

Viewing Angle : 360°

Warratty: 3 years

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 50x

Zoom type: Optical zoom

is_customized: Yes
