SPECIFICATIONS

🛠️ Core System: 4×360° Multi-Plane Laser (4D Layout)

This tool projects four full 360° laser planes:

• 2 horizontal planes
  • Upper: standard leveling
  • Lower: near-floor alignment
• 2 vertical planes crossing at 90°

👉 This allows full-room coverage:

• Floor, walls, and ceiling alignment at once
• Square layout for framing, tiling, and installation

---

💡 “16 Lines” — What It Really Means

• The “16 lines” label comes from segments of the 4 planes
• You are actually getting 4 continuous 360° laser planes, not 16 independent beams

👉 Practical takeaway:

• It’s a 4-plane professional-style layout tool, not 16 separate lasers

---

💚 Green Laser Technology

• High-visibility green beam (≈520nm)
• Brighter than red lasers—especially indoors

👉 Benefits:

• Easier to see across large rooms
• Better for detailed alignment work

---

⚙️ Self-Leveling & Manual Mode

• Self-leveling range: ~±3° to ±4°
• Automatic leveling in seconds
• Out-of-level warning (flashing beam)
• Manual mode (tilt lock):
  • Allows angled lines (stairs, rails, slopes)

👉 This gives both:

• Precision leveling
• Flexible layout capability

---

📏 Accuracy & Range

Typical performance for this class:

• Accuracy: ~±1–2 mm at 7–10 m
• Working range: ~20–30 m (65–100 ft indoors)

👉 Ideal for:

• Indoor renovation
• Medium-size construction projects

---

🔋 Battery System

• Usually includes 2 rechargeable lithium batteries
• Combined runtime:
  • ~8–12+ hours depending on usage

👉 Designed for:

• Full-day DIY or jobsite work

---

🧲 Mounting & Tripod Setup

Included Tripod

• Adjustable height (~1m / 39")
• Provides stable positioning
• Essential for accurate alignment

Mounting Options

• 1/4" tripod thread
• Magnetic bracket (on many kits)
• Wall/clamp mounts

👉 Enables:

• Hands-free operation
• Precise height control

---

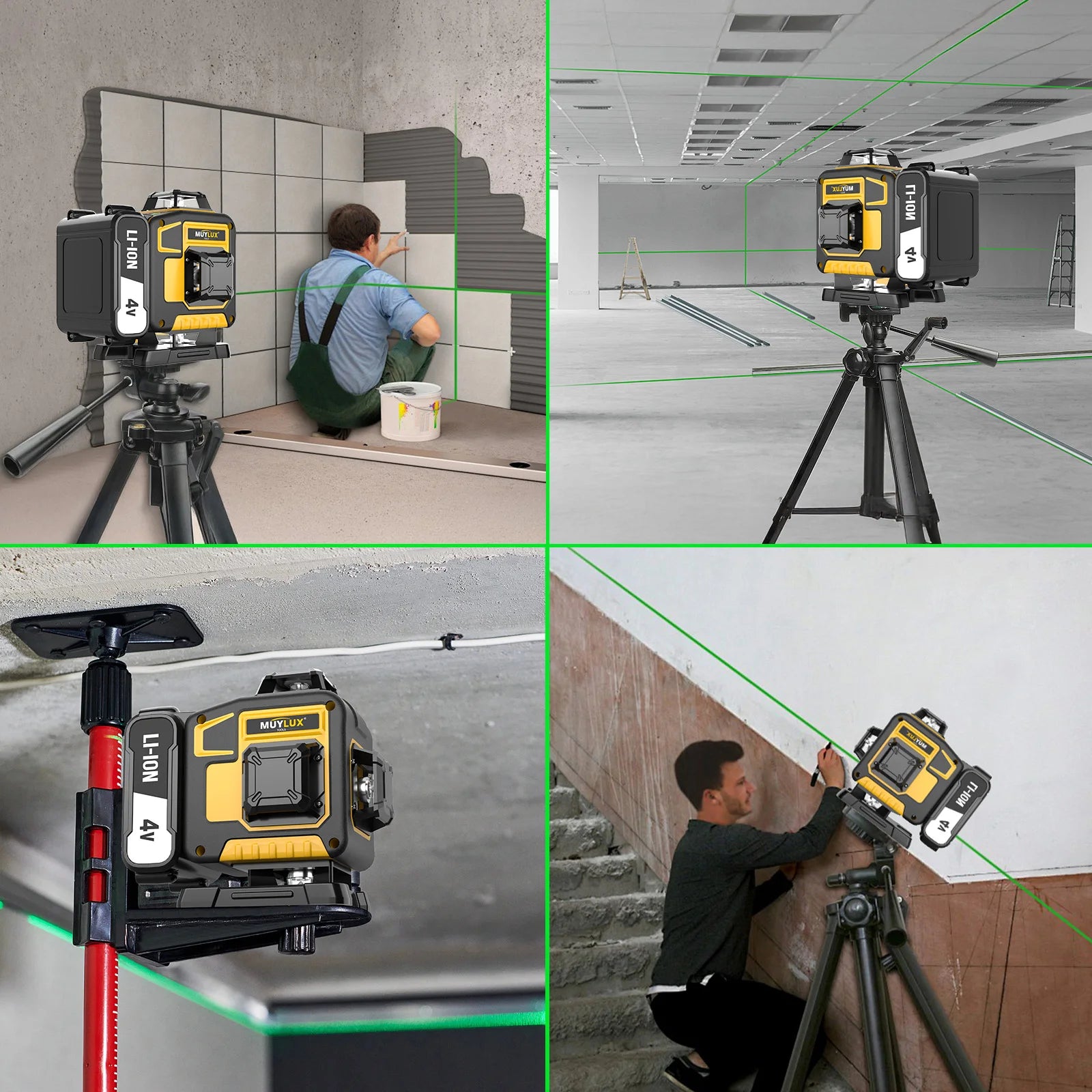

🧰 Applications (Where It Excels)

This type of laser level is ideal for:

• Tile installation
• Floor leveling
• Cabinet and shelf alignment
• Ceiling grid layout
• Wall framing
• Full-room renovation

👉 The 4×360° system eliminates constant repositioning, saving time.

---

🌧️ Durability & Build

• Typically IP54 rated (dust & splash resistant)
• Shock-resistant housing
• Designed for:
  • Indoor work
  • Light construction environments

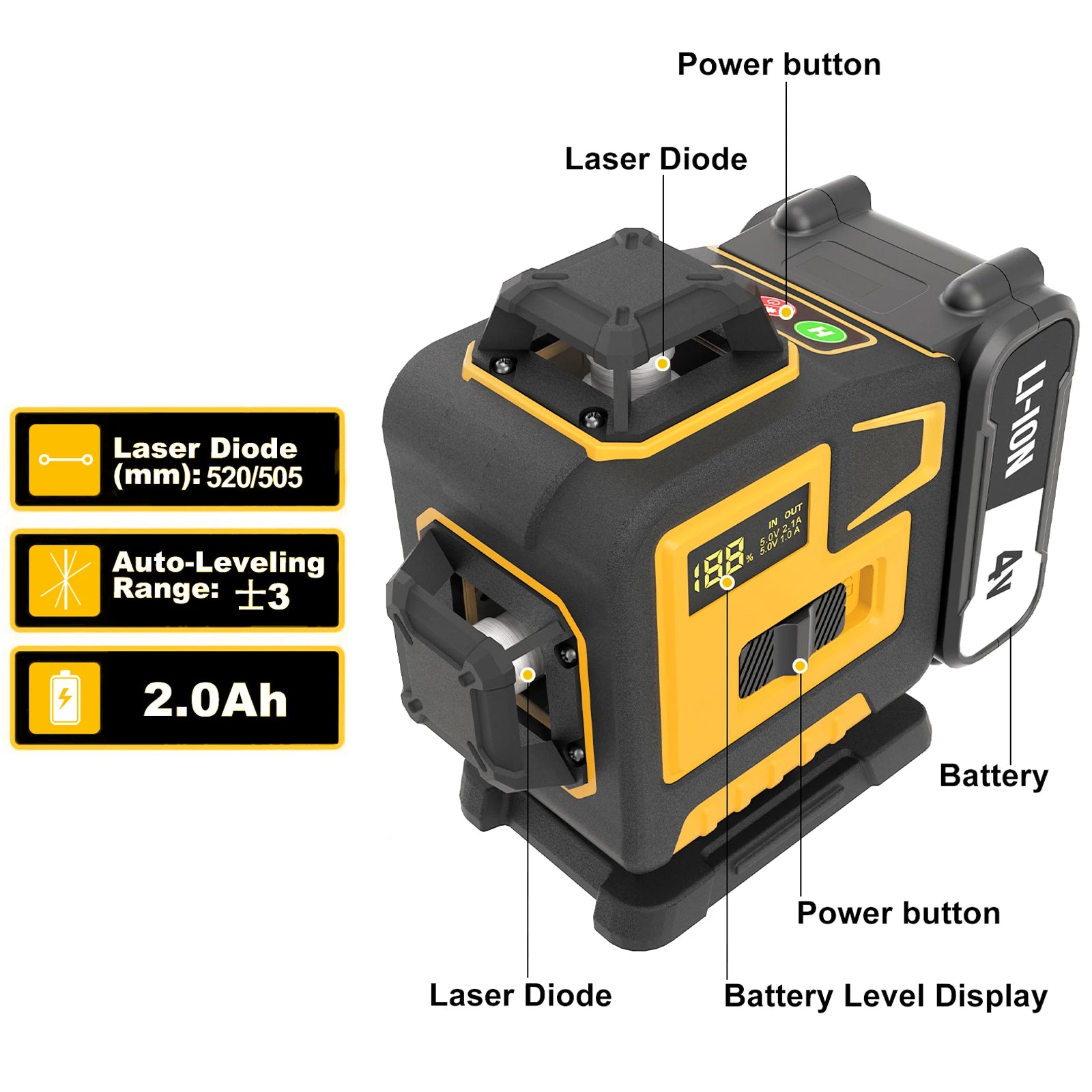

Auto-Leveling Range(): ±3

Battery Included: Yes

Battery Specification: Li-on

Brand Name: TEGATOK

Charging: USB

Electronic: Yes

Function Code: 12V4H

High-concerned chemical: None

Is Smart Device: No

Laser Diode(mm): 520/505

Measurement Model: 16 Lines

Model Number: LL-16AM

Size: 448 * 130 * 353mm

Type: Vertical & Horizontal Lasers

Vertical Accuragy/Leveling Accuracy: +1cm/5cm

Weight: 3.7kg
