SPECIFICATIONS

The SucceBuy Level 1 & Level 2 Portable EV Charger 16A is a versatile portable charging solution designed for home and travel use. It supports both 120V Level 1 and 240V Level 2 charging, features a 28-foot charging cable, and is compatible with most electric vehicles and plug-in hybrids equipped with an SAE J1772 charging port. Products sold under the SucceBuy name closely match the specifications of comparable 16A dual-voltage portable chargers.

Dual-Voltage Level 1 & Level 2 Charging

The charger works with both standard household and higher-voltage outlets.

Charging Options

• Level 1: 120V using a NEMA 5-15 outlet
• Level 2: 240V using a NEMA 6-20 outlet

Benefits

• Charge at home or while traveling
• No need for separate Level 1 and Level 2 chargers
• Convenient for apartments, garages, and vacation properties

Maximum charging power is approximately 3.5–3.8 kW at 16A, depending on the supply voltage and your vehicle's onboard charger.

---

16-Amp Fast Charging

The charger delivers up to 16 amps, providing faster charging than a standard Level 1 charger.

Advantages

✔ Ideal for overnight charging
✔ Suitable for daily commuting
✔ Reliable charging performance
✔ Compatible with most home electrical systems using the proper outlet

---

Extra-Long 28-Foot Charging Cable

The 28-foot (8.6 m) cable offers excellent flexibility.

Benefits

✔ Easily reaches vehicles in larger garages
✔ More convenient driveway charging
✔ Less need to reposition your vehicle
✔ Durable insulated cable for indoor and outdoor use

---

Universal SAE J1772 Compatibility

Compatible with nearly all North American EVs and plug-in hybrids using the SAE J1772 connector.

Compatible Brands

• Chevrolet
• Ford
• Hyundai
• Kia
• Honda
• Nissan
• BMW
• Mercedes-Benz
• Volkswagen
• Rivian
• Lucid

Tesla vehicles can also use this charger with a compatible J1772-to-NACS adapter.

---

Adjustable Charging Current

Many versions allow users to select different charging currents.

Typical Settings

• 8A
• 10A
• 13A
• 16A

This flexibility lets you match the charger to different circuits and charging needs.

---

Comprehensive Safety Protection

Built-in protection systems help safeguard both your vehicle and the charger.

Safety Features

✔ Over-voltage protection
✔ Under-voltage protection
✔ Over-current protection
✔ Ground fault (leakage) protection
✔ Over-temperature protection
✔ Short-circuit protection
✔ Lightning protection

These protections automatically monitor charging conditions and help prevent unsafe operation.

---

Weather-Resistant Construction

The charger is designed for indoor and outdoor use.

Features

• Weather-resistant enclosure
• Dust-resistant construction
• Durable charging connector
• Suitable for garages, carports, and driveways

Many comparable models carry an IP66 environmental rating.

---

Portable & Plug-and-Play Design

No permanent installation is required.

Advantages

✔ Easy to transport
✔ Ideal for travel and emergencies
✔ Can also serve as a home charging station with an included mounting bracket (on some versions)
✔ Simple operation without complicated setup

---

Typical Specifications

Feature	Specification
Product Type	Portable Level 1 & Level 2 EV Charger
Maximum Output	3.5–3.8 kW
Maximum Current	16A
Input Voltage	120V / 240V AC
Charging Connector	SAE J1772
Cable Length	28 ft (8.6 m)

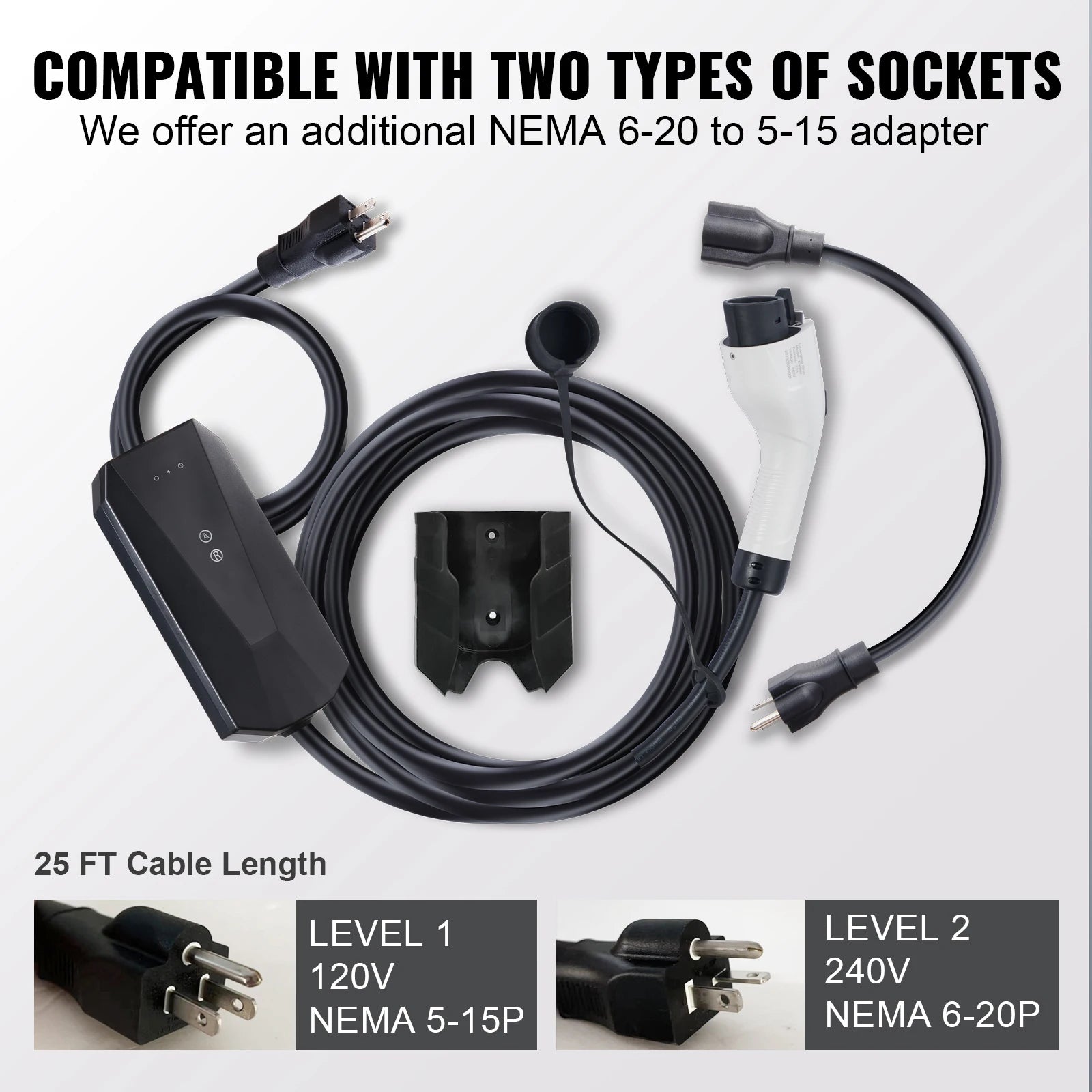

Plug Types	NEMA 6-20 with NEMA 5-15 Adapter
Water Resistance	Weather-resistant (IP66 on comparable models)
Installation	Portable / Plug-and-Play

---

Key Advantages

• ✔ Dual-voltage 120V/240V compatibility
• ✔ Up to 16A charging current
• ✔ Fast Level 2 charging capability
• ✔ Long 28-foot charging cable
• ✔ Universal SAE J1772 compatibility
• ✔ Adjustable charging current
• ✔ Comprehensive electrical safety protections
• ✔ Portable for home or travel

---

Best For

• Home EV charging
• Apartment residents
• Daily commuters
• Road trips
• Plug-in hybrid owners
• Backup charging solution
• Owners of J1772-compatible electric vehicles

---

Summary

The SucceBuy Level 1 & Level 2 Portable EV Charger offers a practical and flexible charging solution for EV owners who need both home and portable charging capabilities. With 16A output, 120V/240V compatibility, a 28-foot cable, SAE J1772 support, and multiple built-in safety protections, it provides dependable charging for a wide range of electric vehicles and plug-in hybrids while remaining compact enough for travel. Its dual-voltage operation makes it an excellent option for users who want the convenience of charging from either a standard household outlet or a faster 240V circuit.

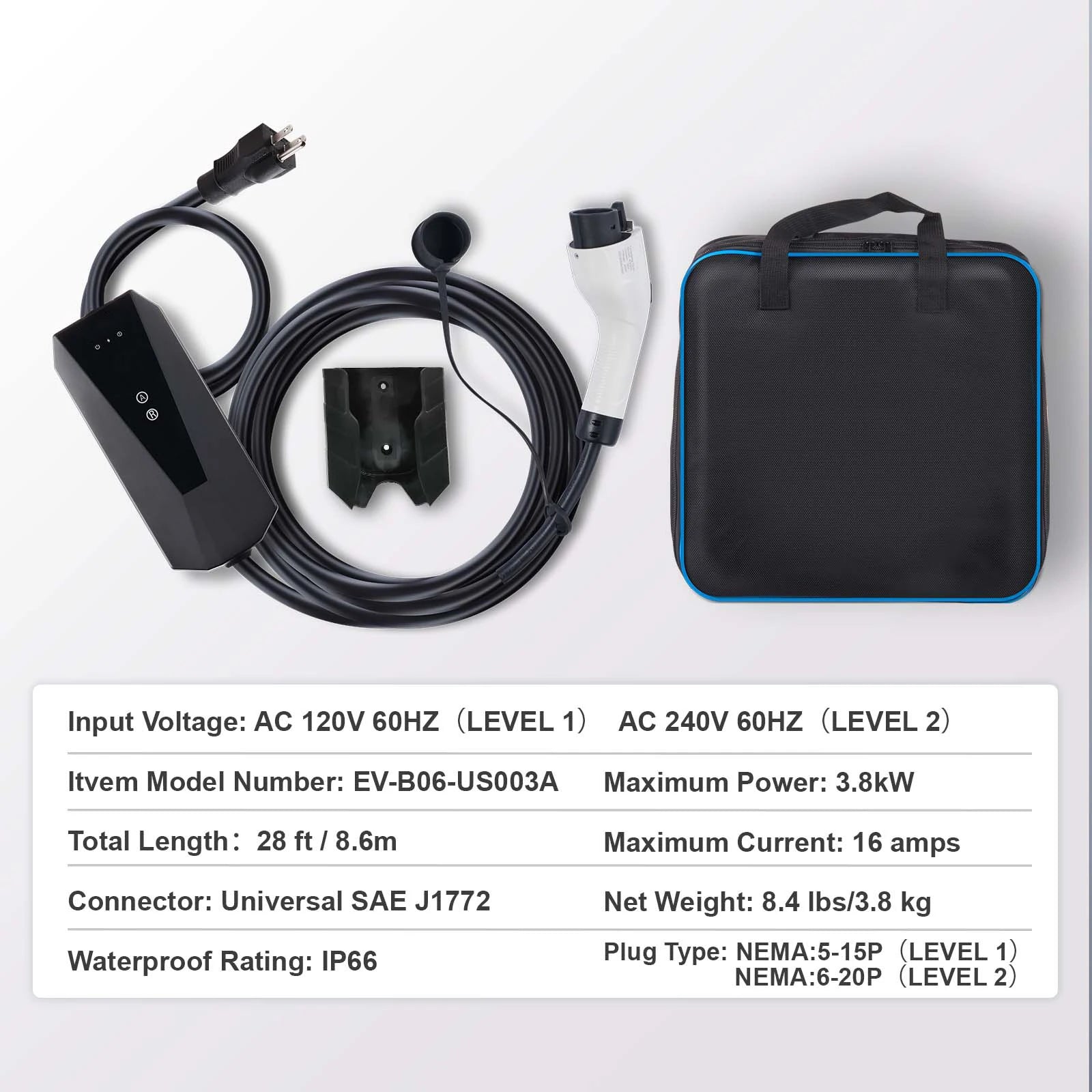

Brand Name: SucceBuy

Cable Length: 28 ft / 8.6 m

Connector: Universal SAE J1772

High-concerned chemical: None

Input Voltage: AC 120V 60 Hz (Level 1) / AC 240V 60 Hz (Level 2)

Item Model Number: EV-B06-US003A

Maximum Current: 16A

Maximum Power: 3.8 kW

Net Weight: 8.4 lbs / 3.8 kg

Plug Type: NEMA 5-15P(Level 1) / NEMA 6-20P(Level 2)

Touchscreen: No

Waterproof Rating: IP66

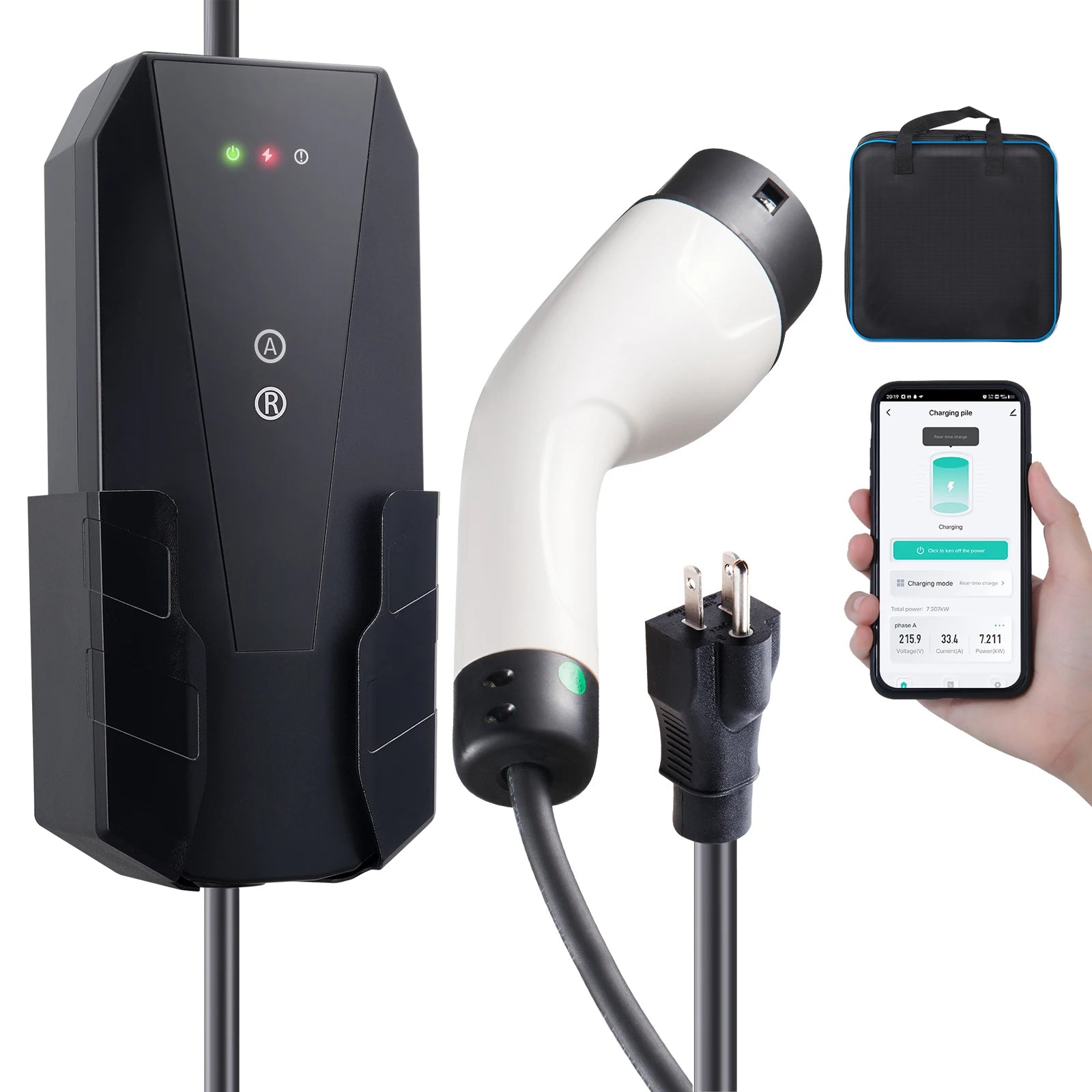

Wireless Support: Wifi
