SPECIFICATIONS

The SucceBuy Horizontal Bag Band Sealing Machine is a commercial continuous band sealer designed for sealing plastic bags quickly and consistently in food processing, retail packaging, e-commerce fulfillment, laboratories, and light manufacturing. Unlike handheld or countertop vacuum sealers, this machine does not remove air from bags—its purpose is to create a continuous heat seal on pre-filled bags as they pass through the conveyor. It supports plastic films with a single-layer thickness of 0.02–0.8 mm and is well suited for medium- to high-volume packaging.

Key Features

Continuous Automatic Sealing

• Automatically pulls bags through the sealing mechanism.
• Eliminates the need to seal one bag at a time.
• Ideal for repetitive packaging tasks and production lines.
• Unlimited sealing length (limited only by bag size).

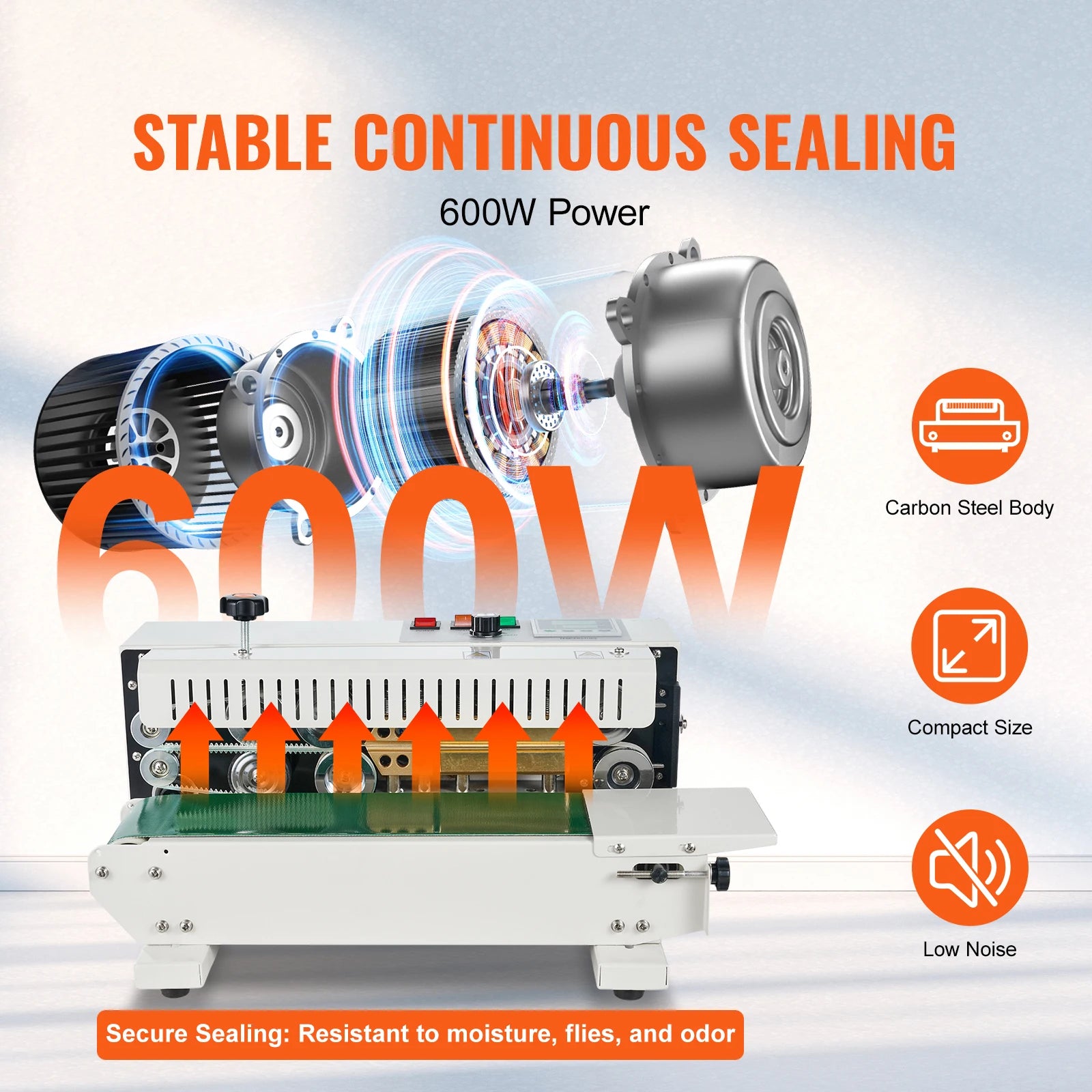

600W Heating System

• Equipped with a 600W heating element for fast, consistent sealing.

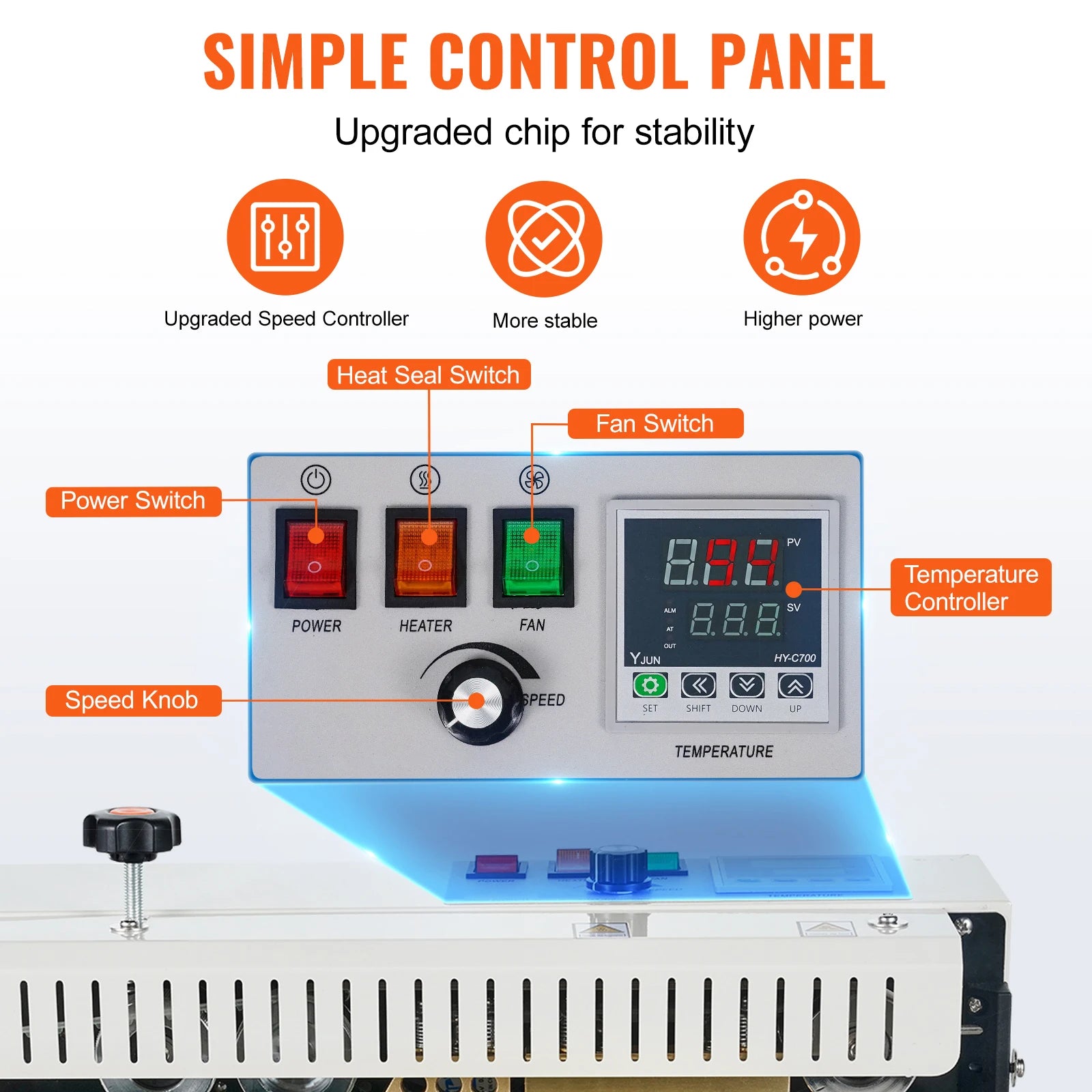

• Adjustable digital temperature control from 0–300°C (32–572°F) accommodates a variety of packaging materials.

Adjustable Conveyor Speed

• Variable conveyor speed up to approximately 16 m/min (52.5 ft/min).
• Lets users balance production speed with seal quality based on bag material and thickness.

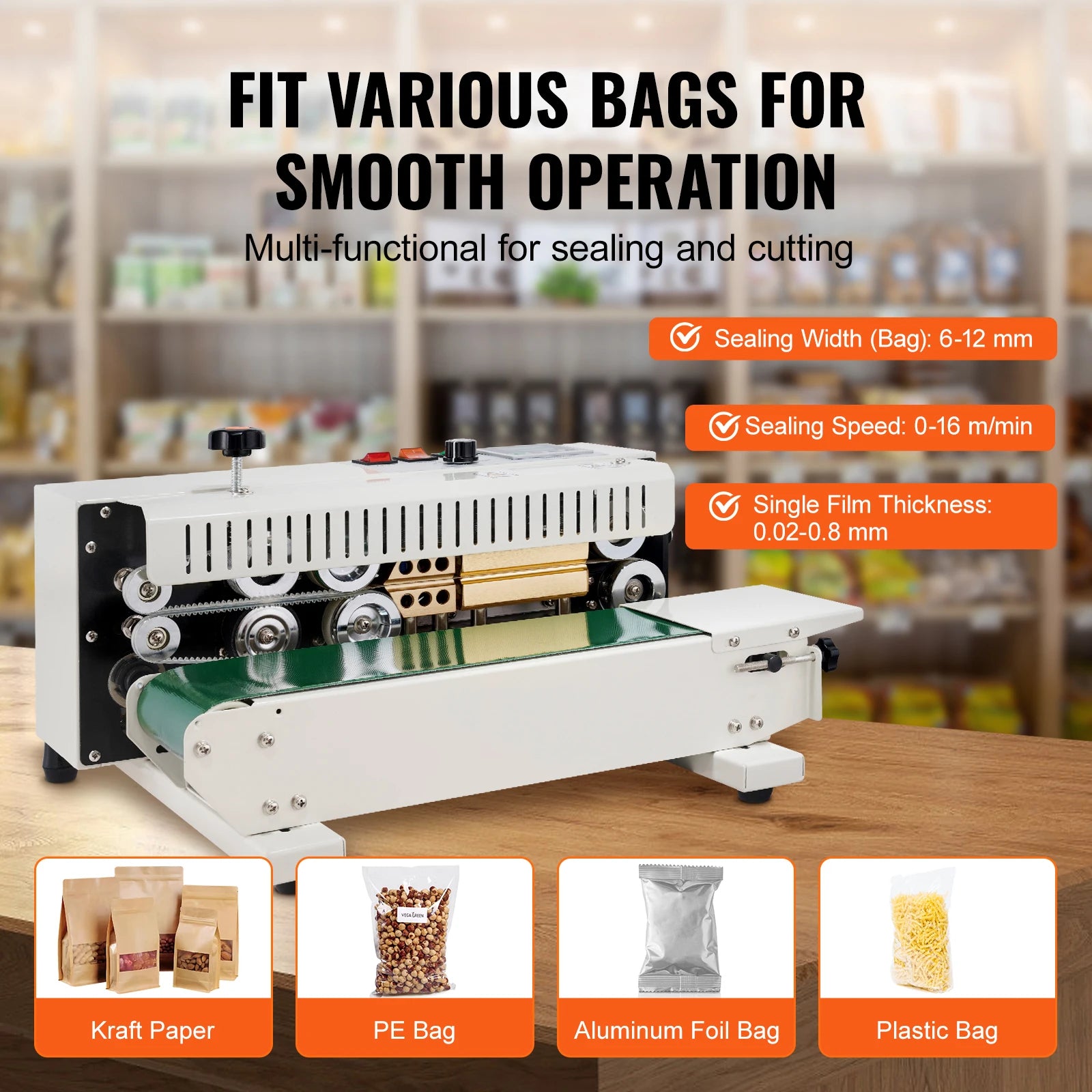

Wide Bag Compatibility

Compatible with many heat-sealable materials, including:

• Polyethylene (PE)
• Polypropylene (PP)
• Laminated plastic films
• Mylar bags
• Aluminum foil pouches (with heat-sealable inner layer)
• Kraft paper bags with plastic liners

Supports 0.02–0.8 mm single-layer film thickness and 6–12 mm adjustable seal widths.

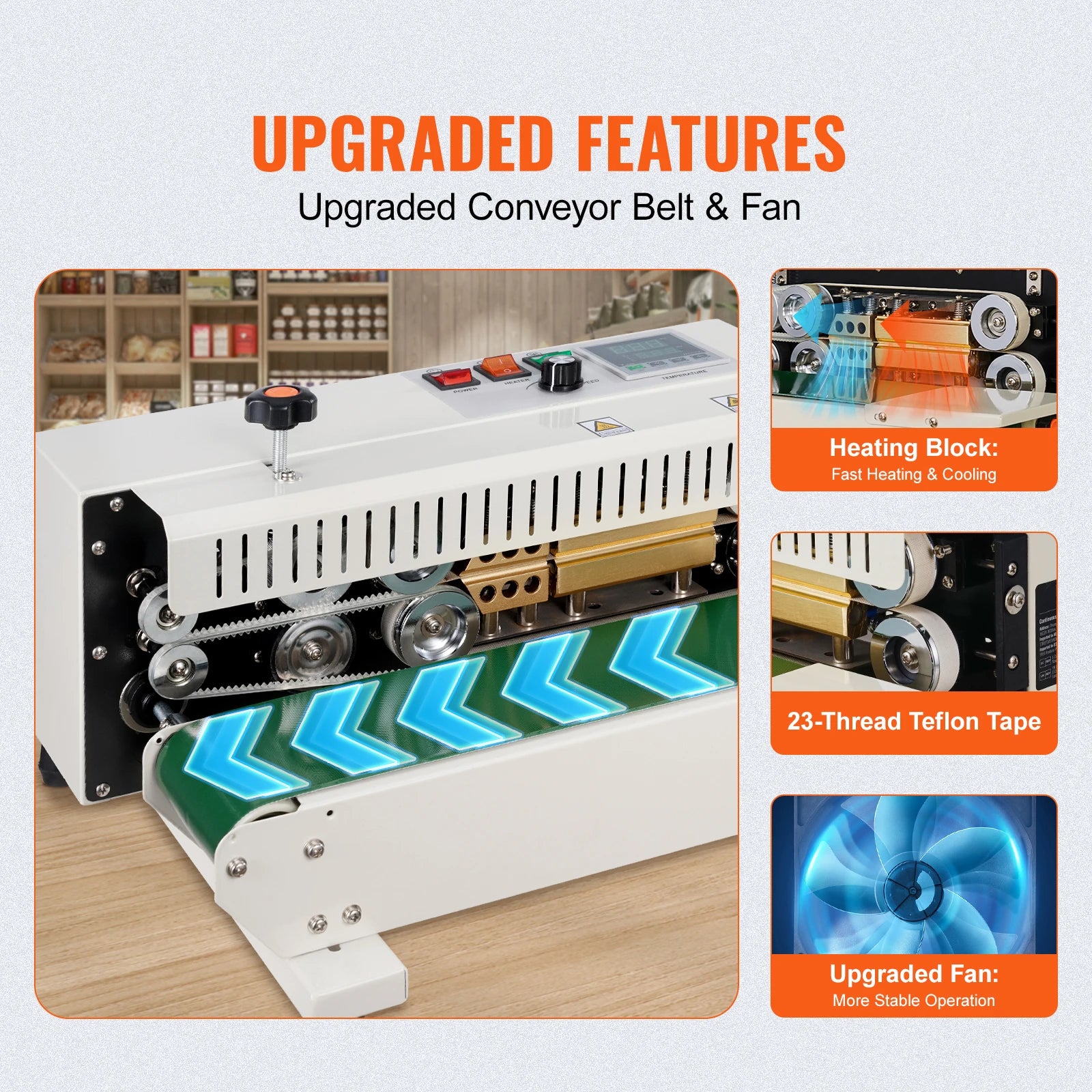

Carbon Steel Construction

• Durable carbon steel frame for long-term use.
• Teflon conveyor belt helps bags move smoothly through the sealing area.
• Built for commercial environments with frequent operation.

Optional Printing Function

Some versions include embossing or date/lot-number printing wheels, allowing expiration dates or batch codes to be applied during sealing. Verify the specific model before purchasing, as not every version includes this feature.

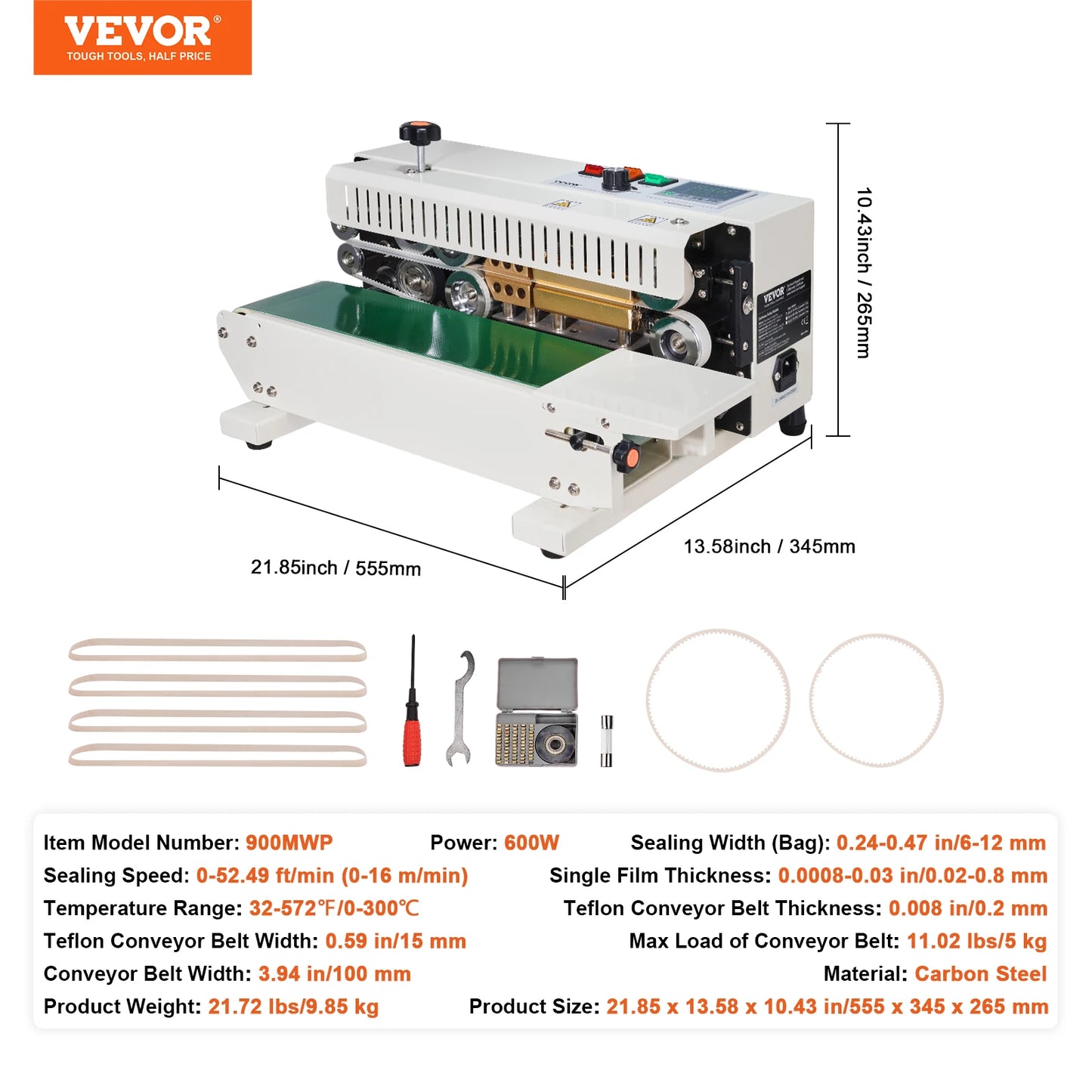

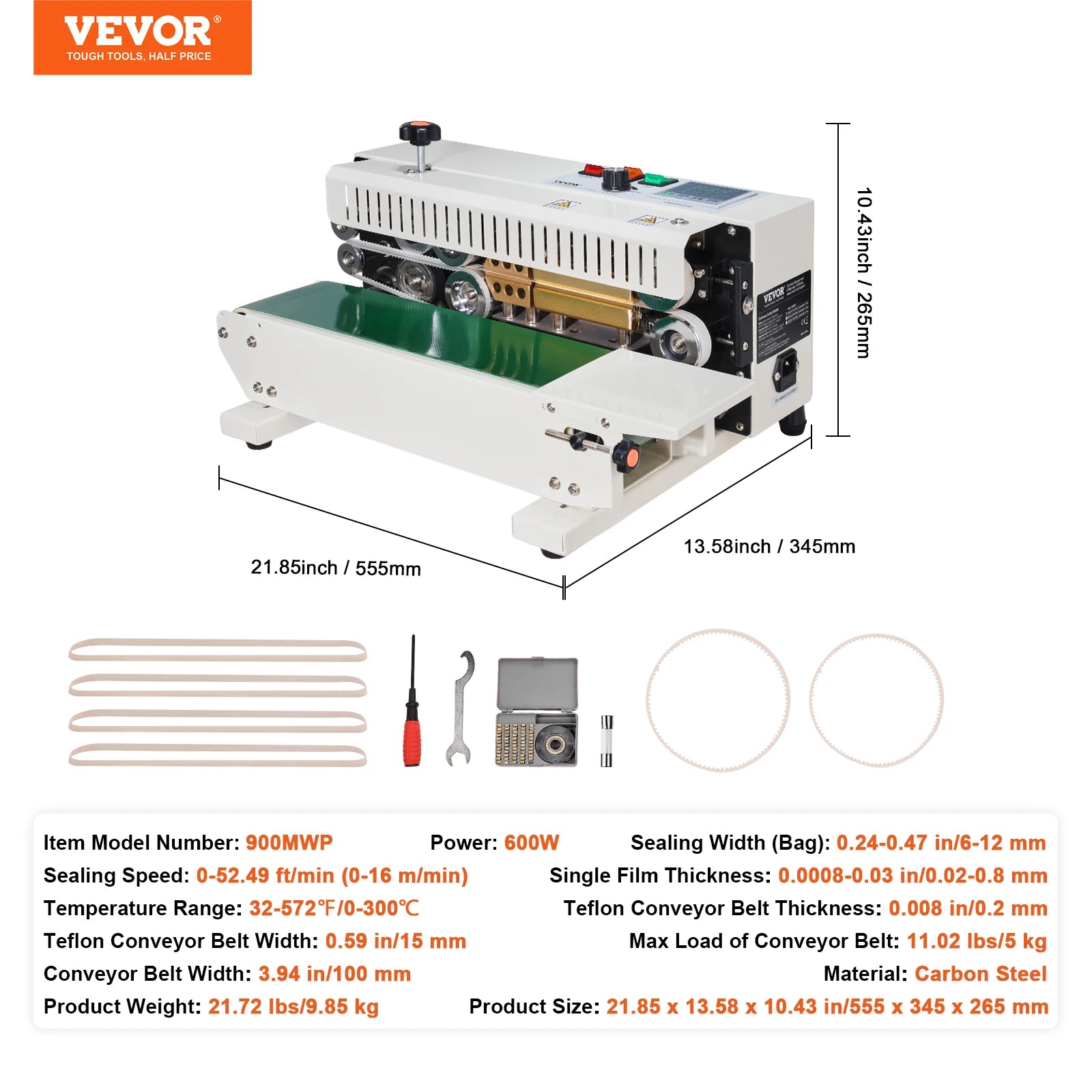

Technical Specifications

Feature	Specification
Machine Type	Horizontal Continuous Band Sealer
Power	600W
Voltage	110V AC (US models)
Temperature Range	0–300°C (32–572°F)
Sealing Speed	Up to 16 m/min (52.5 ft/min)
Seal Width	6–12 mm
Film Thickness	0.02–0.8 mm
Conveyor	Adjustable Speed Teflon Belt
Construction	Carbon Steel
Operation	Continuous Automatic

Ideal Applications

• Coffee bean packaging
• Tea and spice pouches
• Snacks and candy
• Dried fruit and nuts
• Pet treats
• Hardware and small parts
• Cosmetics
• Pharmaceuticals
• Laboratory samples

Advantages

• ✅ Continuous sealing greatly increases productivity
• ✅ Adjustable temperature and conveyor speed
• ✅ Compatible with many bag materials
• ✅ Strong, consistent commercial-quality seals
• ✅ Durable carbon steel construction
• ✅ Suitable for small businesses and light industrial production
• ✅ Can seal dozens of bags per minute under ideal conditions

Brand Name: succebuy

Certification: CE

High-concerned chemical: None

Power: 600W

Sealing Length: <20cm

Sealing Width (Bag): 0.24-0.47 in/6-12 mm

Single Film Thickness: 0.0008-0.03 in/0.02-0.8 mm

Teflon Conveyor Belt Width: 0.59 in/15 mm

Temperature Range: 32-572℉/0-300℃

Type: Horizontal Band Sealer

With Vacuum Bag: No
