SPECIFICATIONS

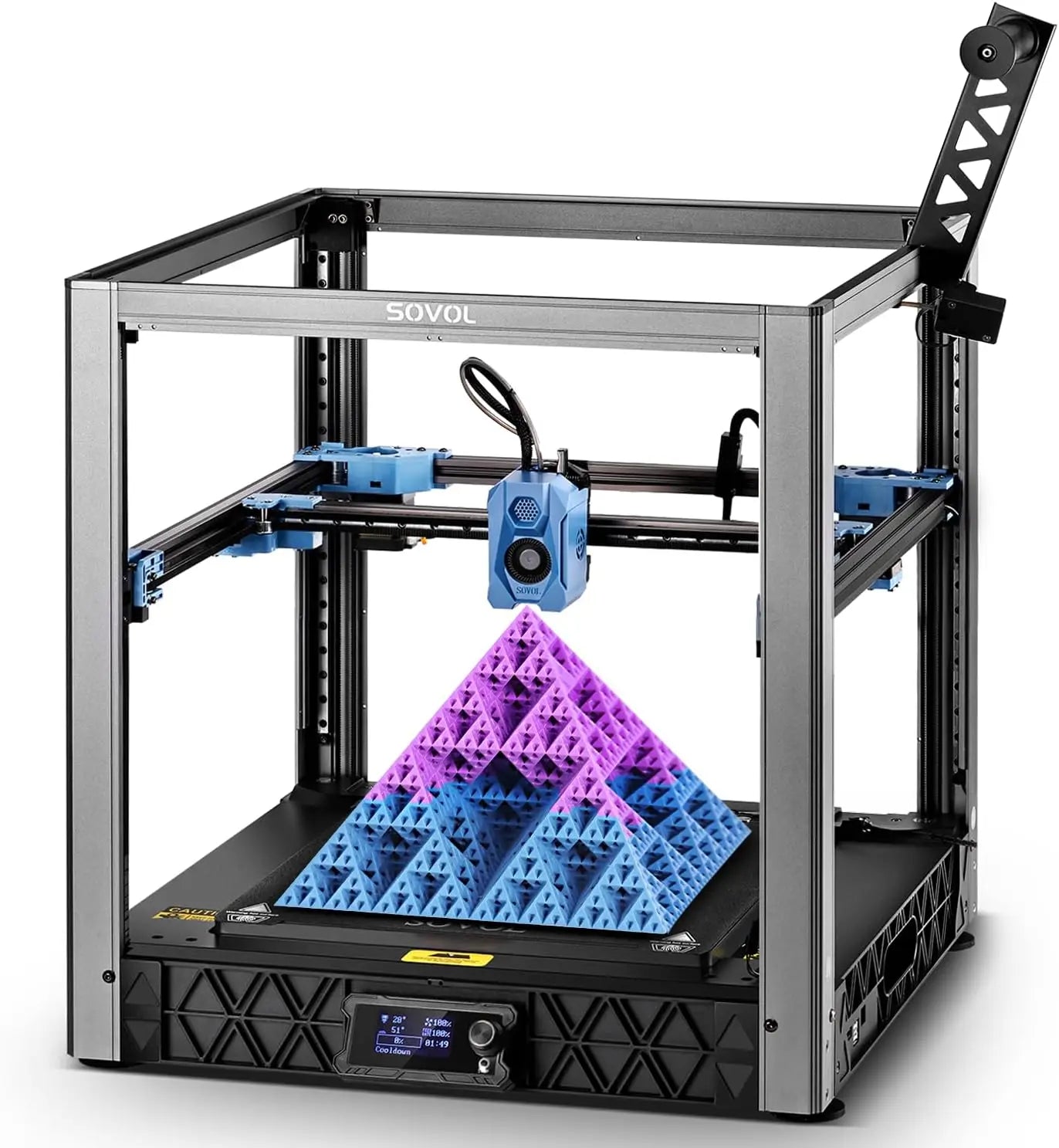

The Sovol SV08 Core-XY 3D Printer is a high-performance, open-source FDM 3D printer inspired by the Voron 2.4 design philosophy. Built for makers who want speed, a large build area, upgrade flexibility, and professional-level control, the SV08 combines a CoreXY motion system, Klipper firmware, 700 mm/s maximum speed, automatic gantry leveling, a 300°C high-flow hotend, and built-in camera monitoring.

Key Features

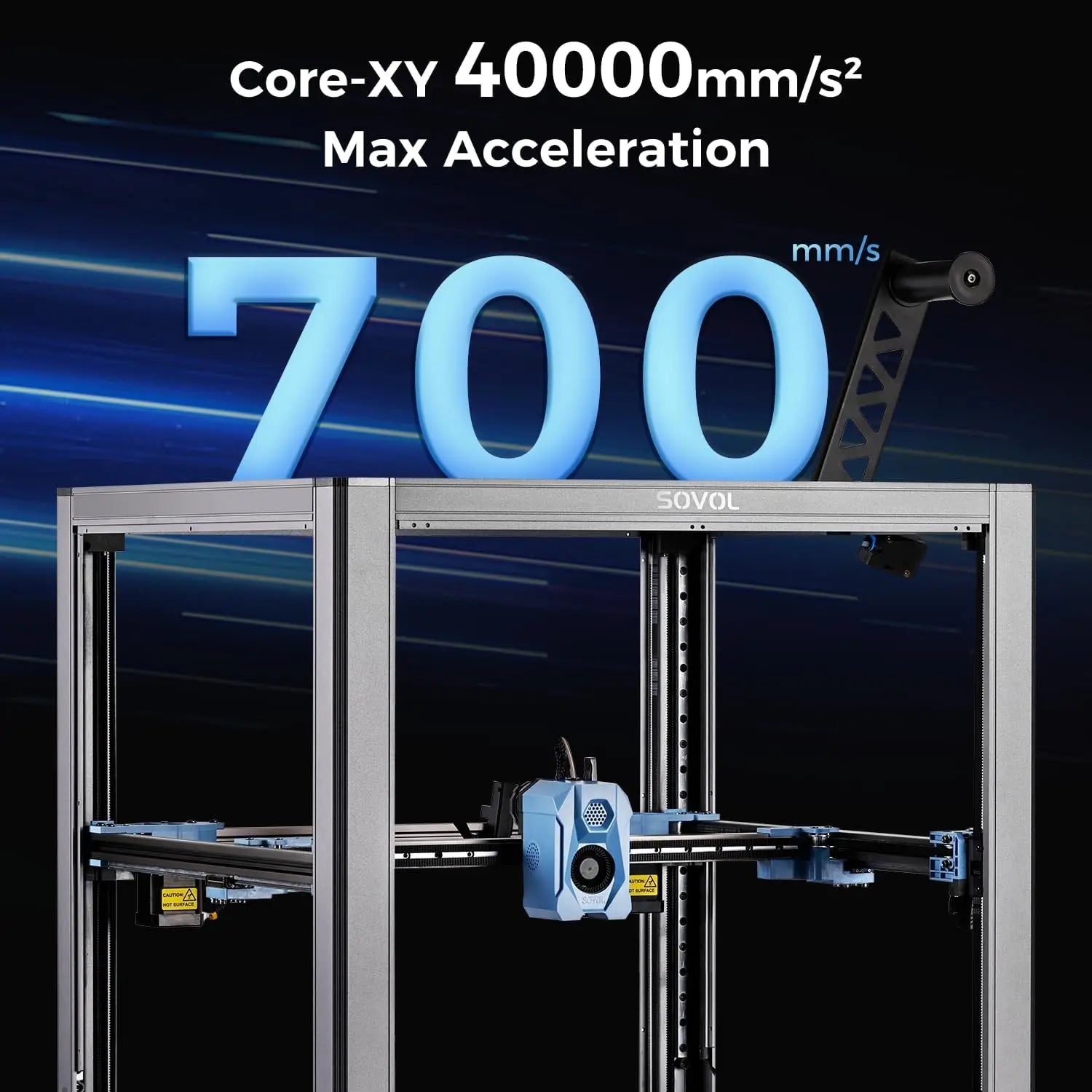

High-Speed CoreXY Printing

• Advanced CoreXY motion system reduces moving mass for faster and more stable movement.
• Maximum print speed: 700 mm/s
• Maximum acceleration: 40,000 mm/s²
• Designed for fast prototyping, large models, and production-style workflows.

Large Build Volume

• Generous print area:
  • 350 × 350 × 345 mm
• Provides significantly more space than many standard desktop printers.
• Ideal for:
  • Large prototypes
  • Cosplay parts
  • Functional components
  • Engineering models
  • Multiple smaller parts in one print.

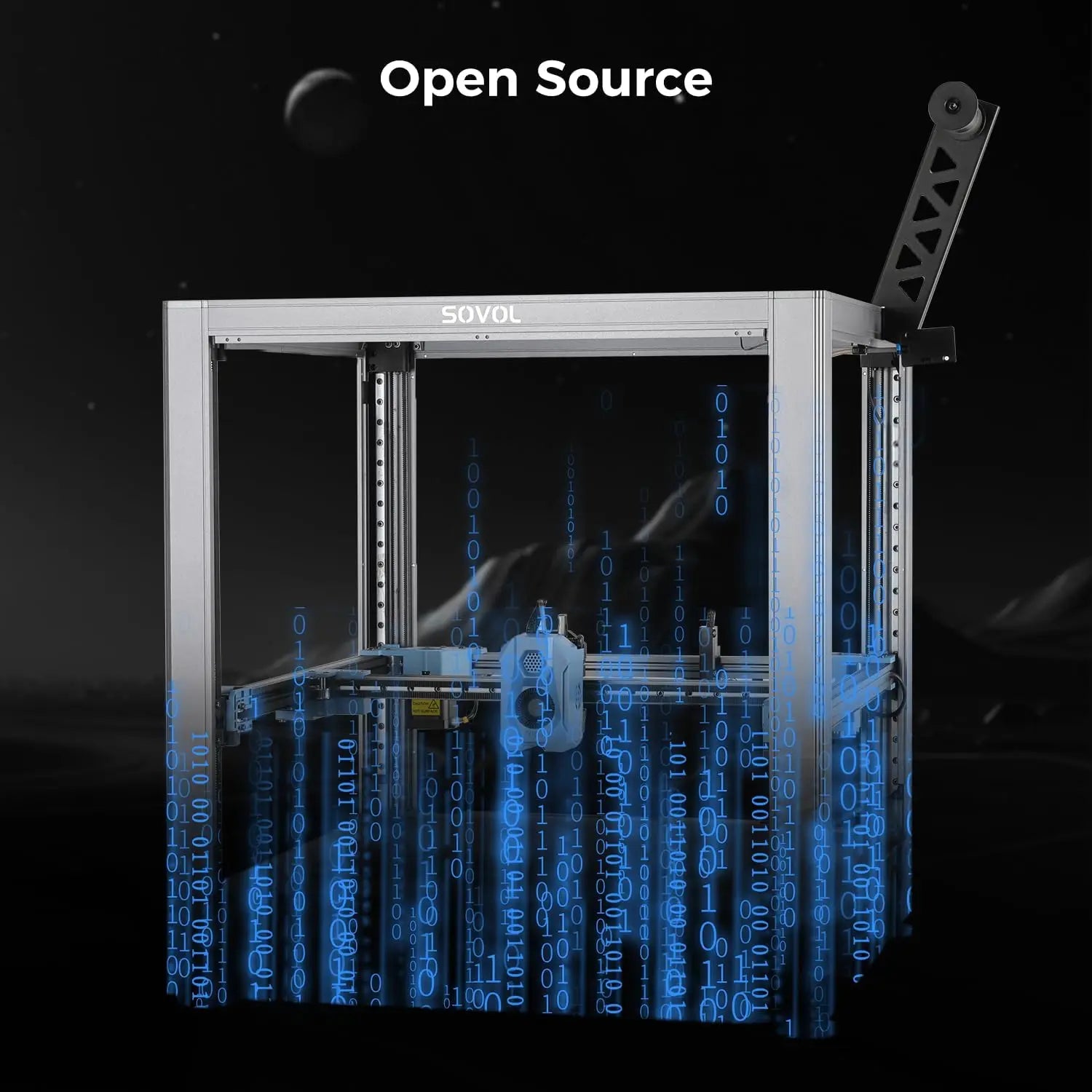

Open-Source Design

• Fully open-source hardware, firmware, and configuration.
• Based on the Voron-style approach, allowing advanced users to:
  • Modify firmware
  • Add upgrades
  • Customize hardware
  • Create community improvements
• Compatible with popular slicers including OrcaSlicer, Cura, PrusaSlicer, and Simplify3D.

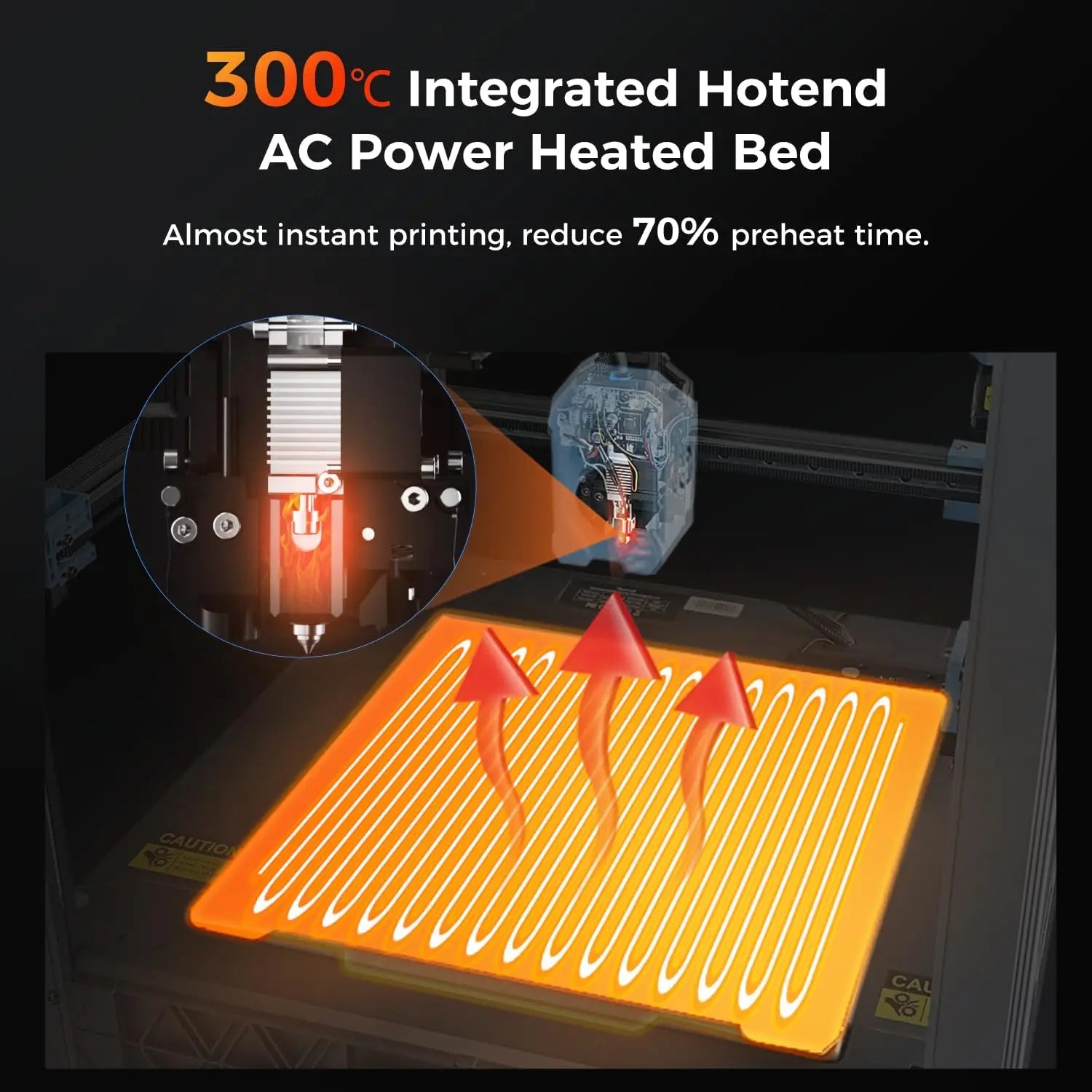

300°C High-Flow Hotend

• High-temperature hotend reaches up to 300°C.
• Designed for fast extrusion at high speeds.
• Supports a wide range of materials including:
  • PLA
  • PETG
  • TPU
  • ABS
  • Carbon-fiber reinforced filaments (with proper nozzle setup).

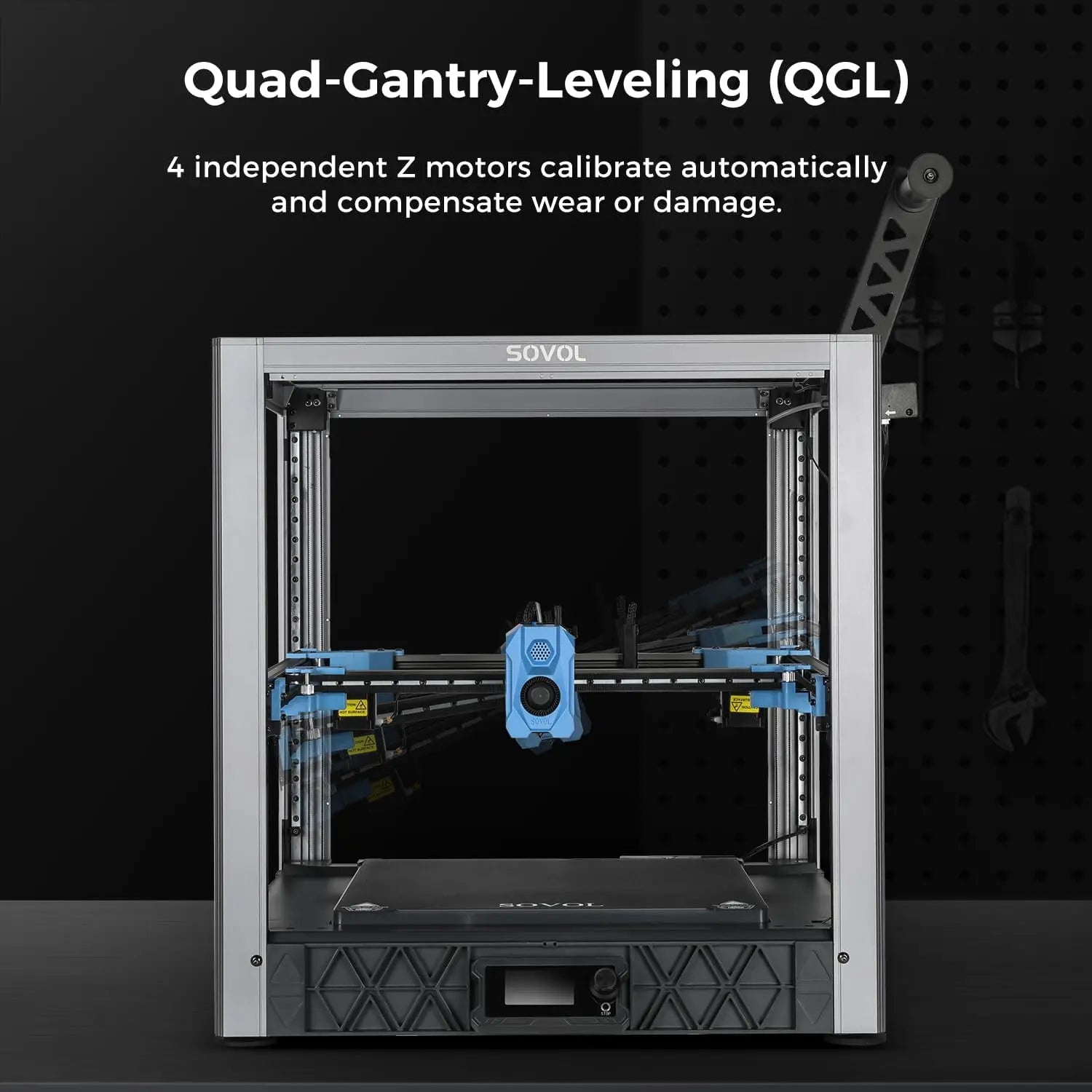

Automatic Leveling System

• Uses:
  • Inductive bed sensor
  • Pressure sensor
  • Quad Gantry Leveling (QGL)
• Four independent Z motors help maintain accurate gantry alignment.
• Improves first-layer consistency and reduces manual adjustment.

Built-In Camera & Remote Monitoring

• Integrated camera allows:
  • Print monitoring
  • Remote viewing
  • Time-lapse recording
• Connects through Wi-Fi or Ethernet for network control.

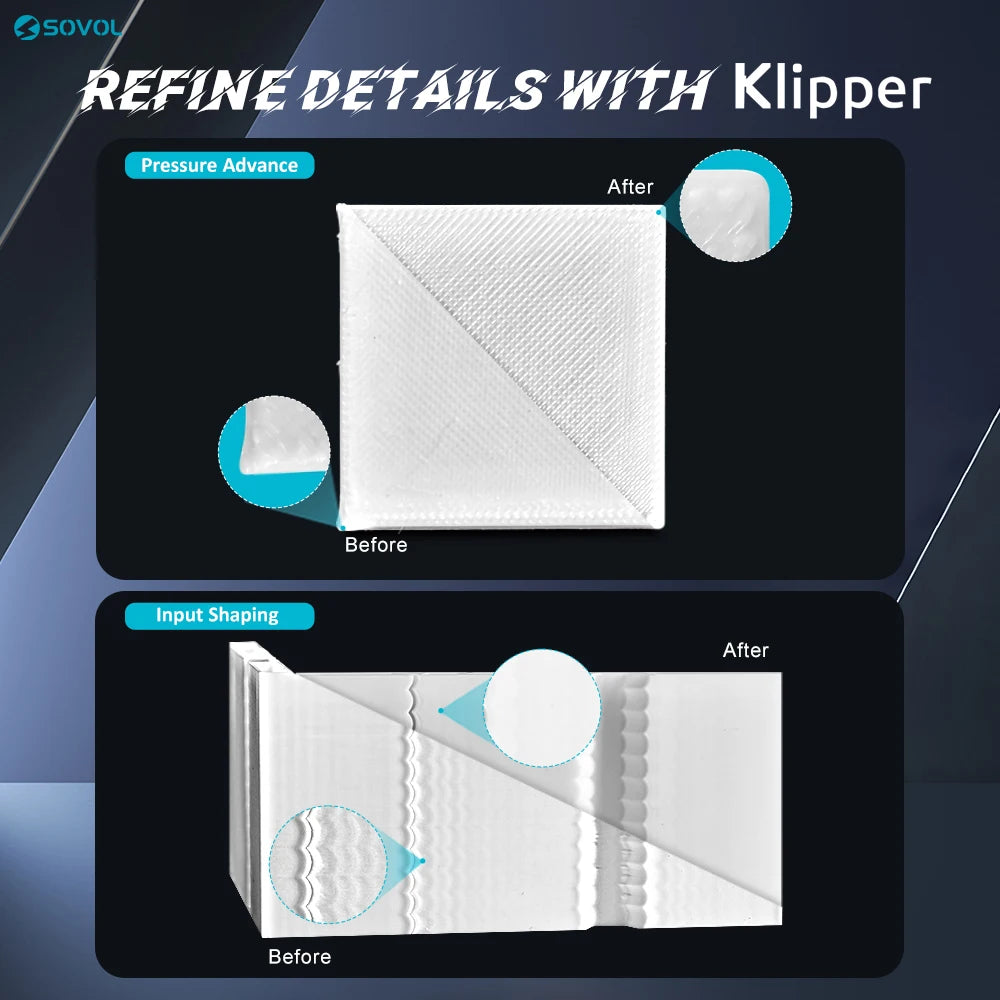

Klipper Firmware

• Powered by Klipper-based control architecture.
• Enables advanced features:
  • Input shaping
  • Pressure advance
  • Faster motion control
  • Remote management
  • Custom tuning options

Technical Specifications

Feature	Specification
Printer Type	CoreXY FDM
Build Volume	350 × 350 × 345 mm
Maximum Speed	700 mm/s
Maximum Acceleration	40,000 mm/s²
Firmware	Klipper
Nozzle Temperature	Up to 300°C
Build Plate	PEI Steel Plate
Leveling	Auto Leveling + Quad Gantry Leveling
Extruder	Planetary Gear Extruder
Camera	Built-In
Connectivity	Wi-Fi, Ethernet, USB
Filament Diameter	1.75 mm
Layer Height	0.08–0.36 mm
Accuracy	Approximately ±0.1 mm

Supported Materials

The SV08 supports many common and advanced filaments:

✅ PLA
✅ PLA+
✅ PETG
✅ TPU
✅ ABS
✅ ASA
✅ PETG-CF
✅ Other engineering filaments with proper tuning and hardware upgrades

Advantages

✅ Very large 350 mm build area
✅ Extremely fast 700 mm/s CoreXY performance
✅ Open-source for customization and upgrades
✅ Professional-style Klipper control
✅ Automatic gantry leveling
✅ Built-in camera monitoring
✅ High-temperature hotend
✅ Excellent platform for advanced makers and enthusiasts

Ideal For

• Advanced hobbyists
• Engineers and designers
• Makerspaces
• Small manufacturing operations
• Cosplay creators
• Users who want a customizable alternative to closed ecosystem printers

Auto Leveling: Yes

Bed Temp: ≤100℃

Brand Name: Sovol

CE Certification: Yes

Certification: CE

Color Print Speed: 300mm/s

Consumables Diameter: 1.75 mm

Diameter Temp: 300℃

File Format: G-code

Fliament: PLA/TPU/PETG/ABS/ASA/PA/PC

High-concerned chemical: None

Interface Type: USB

IsWi-Fi/BluetoothSupport: Yes

Language: English

Maximum Print Size: 350 * 350 * 345 mm³

Maximum Printing Speed: 700mm/s

Maximum Working Speed: 700mm/s

Molding Technology: FDM

Nozzle Diameter: 0.4 mm

Operating System: MacOS/Windows

Power Supply: 100-240 VAC

Precision: ±0.1mm

Printing Speed: 300mm/s

SOVOL Model: SV08

Slice Software: Cura/Simplify 3D /Sovol Cura

Slice Thickness: 0.1-0.4mm

Voltage: 110-220V

Wireless Connectivity: Wi-Fi
