SPECIFICATIONS

Lighting & Optical Capabilities

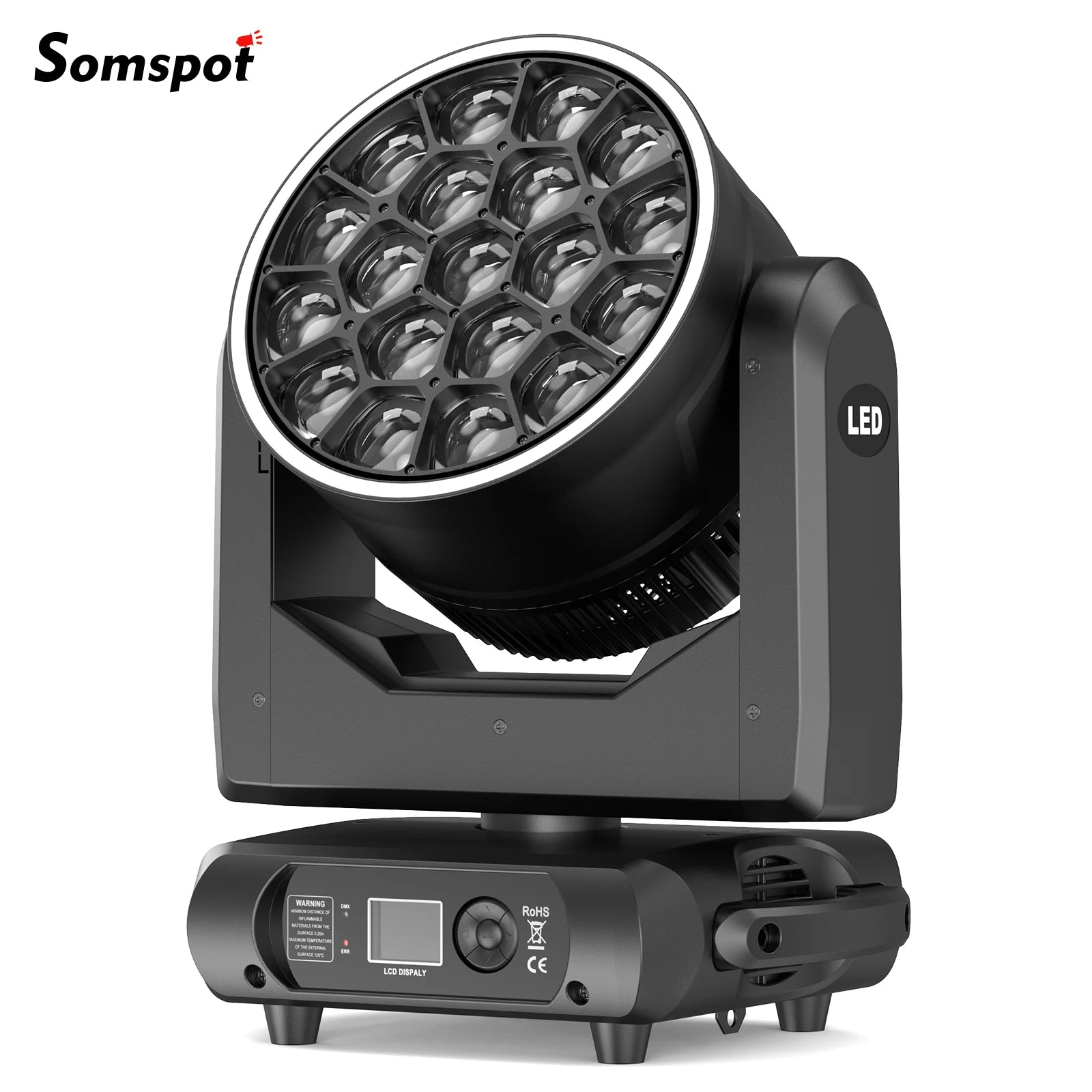

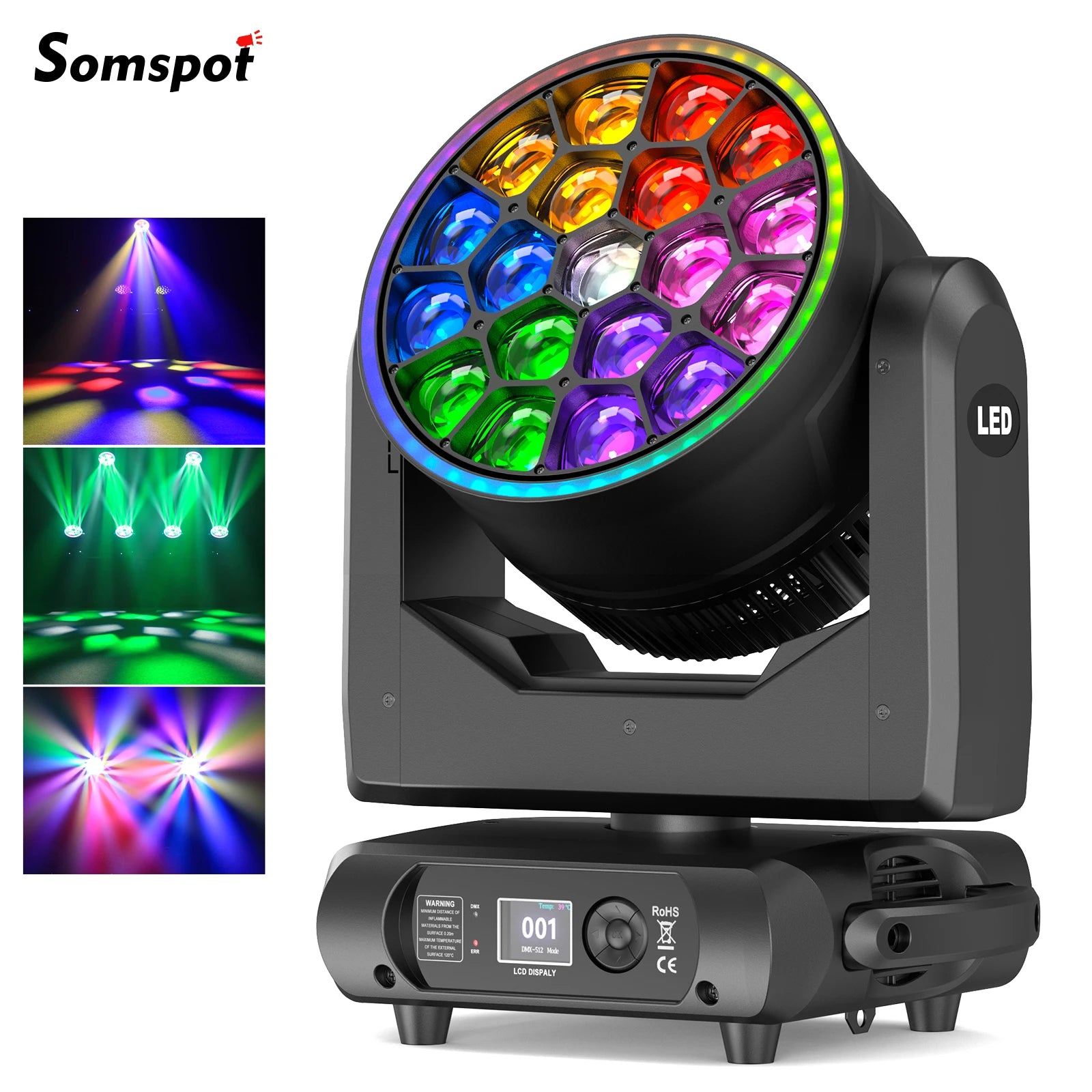

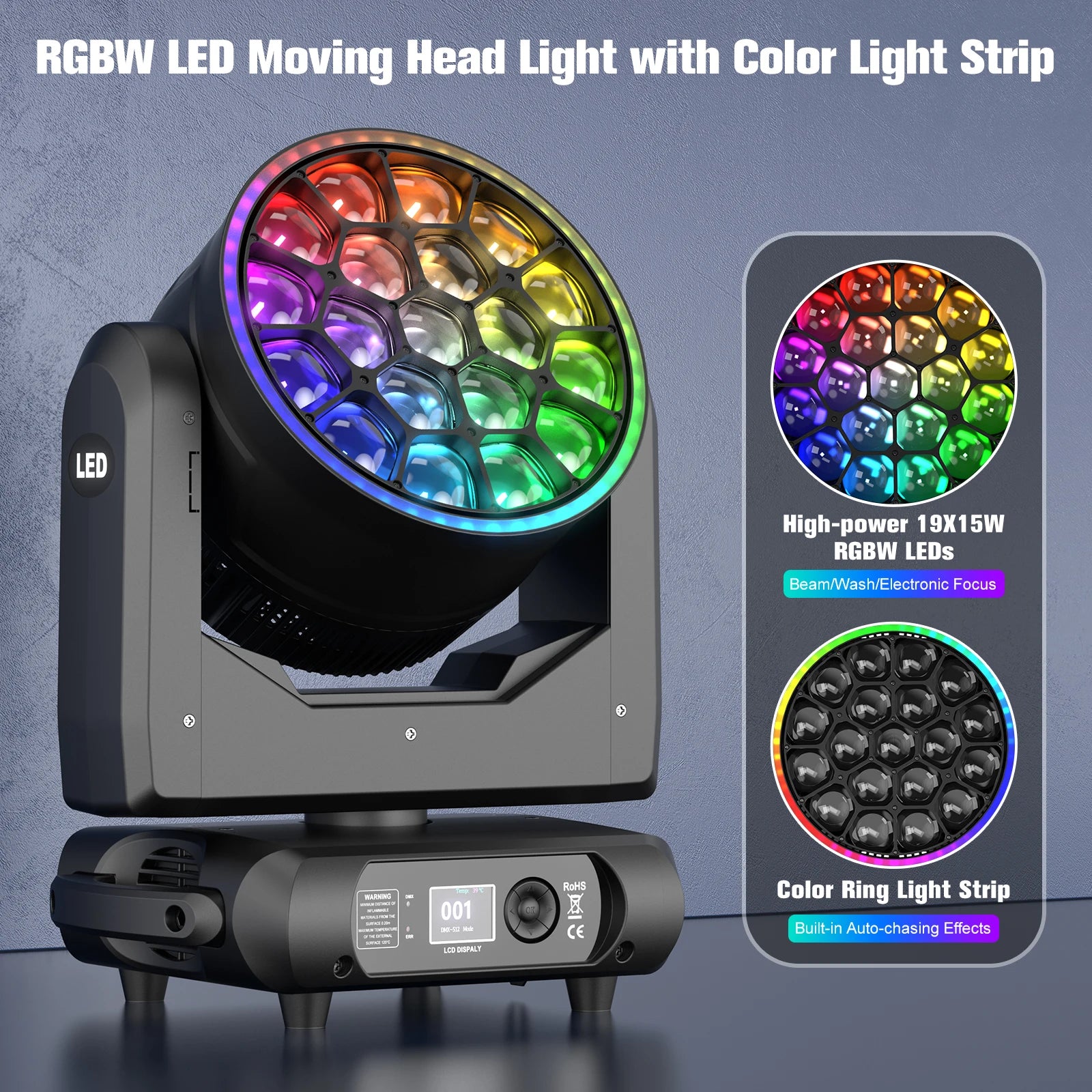

• LED Configuration: 19 high-power 15W RGBW (4‑in‑1) LEDs deliver bright, vibrant, and smooth color mixing.

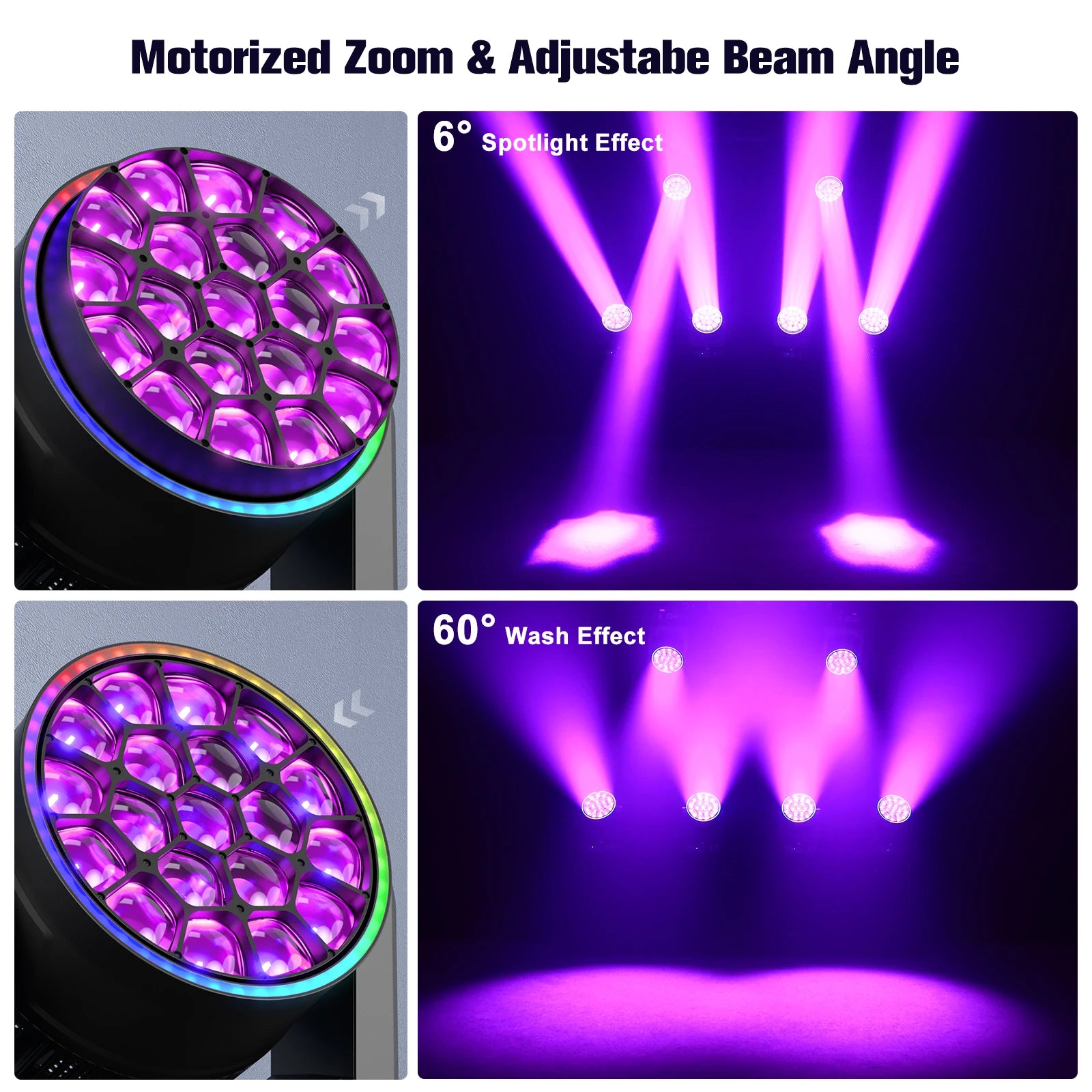

• Zoom Range: Variable beam control from approximately 5 (or 8)° to 60°, offering focused beams or wide wash coverage.

• Movement: Typically features 540° pan and 270–280° tilt for dynamic positioning.

Control & Effects

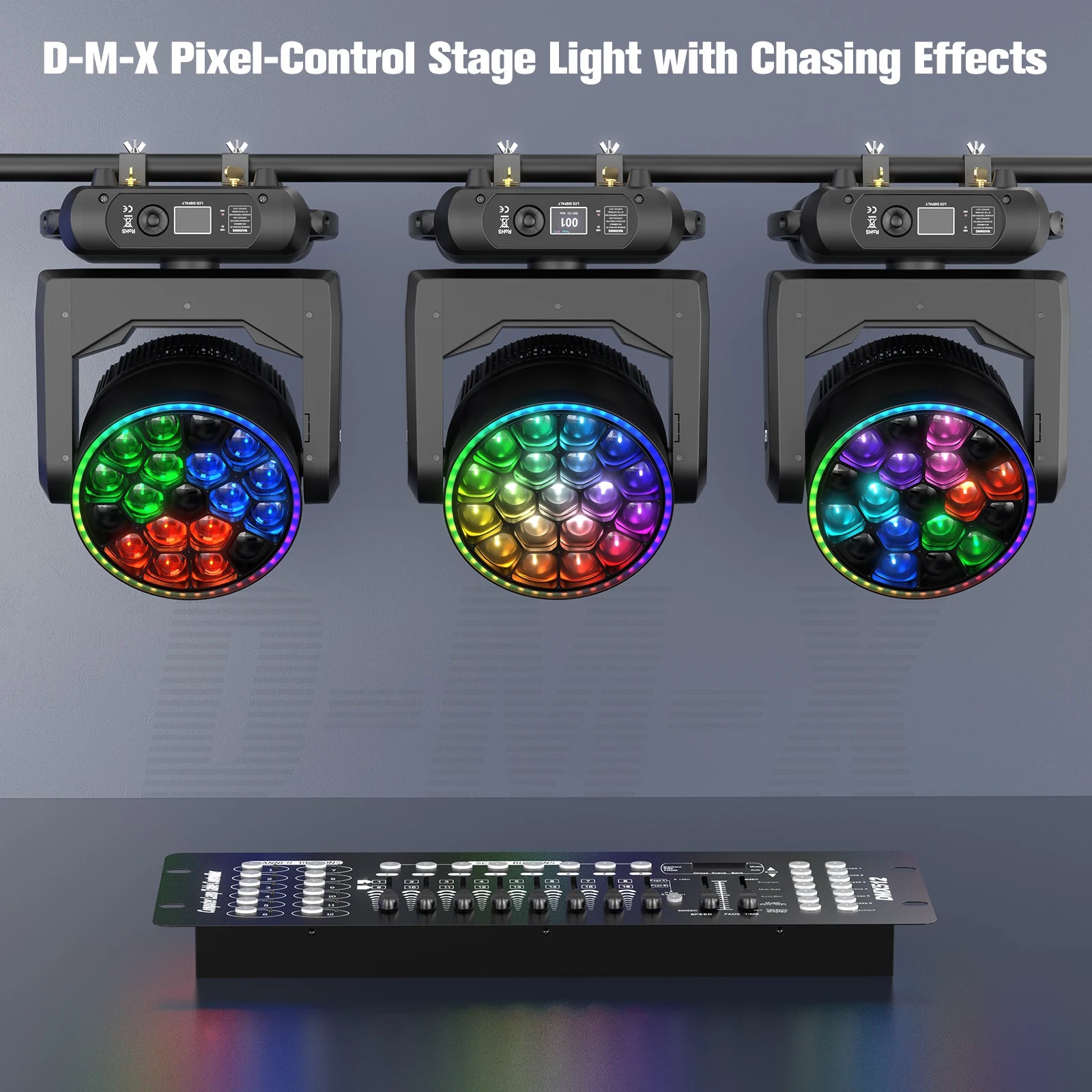

• Operating Modes: Supports DMX512 control, plus auto-run, sound-active, and master/slave setups for easy synchronization and flexibility.

• DMX Channels: Multiple modes, commonly 16/24/32 CH or 15/23 CH, catering to both simplified and advanced control.

• Dimming & Strobe:

  • Smooth 0–100% electronic dimming.

  • Strobe speeds often range 1 to 25 flashes per second.

• Additional Features: Some models include LCD control panels, China/English interfaces, intelligent fan control, temperature monitoring, and circle-focus functions.

Performance & Build

• Power Usage: Average power consumption spans 300–320W, suitable for mains supply.

• LED Lifespan: Many claim up to 50,000 hours, with some quoting 60,000 hours.

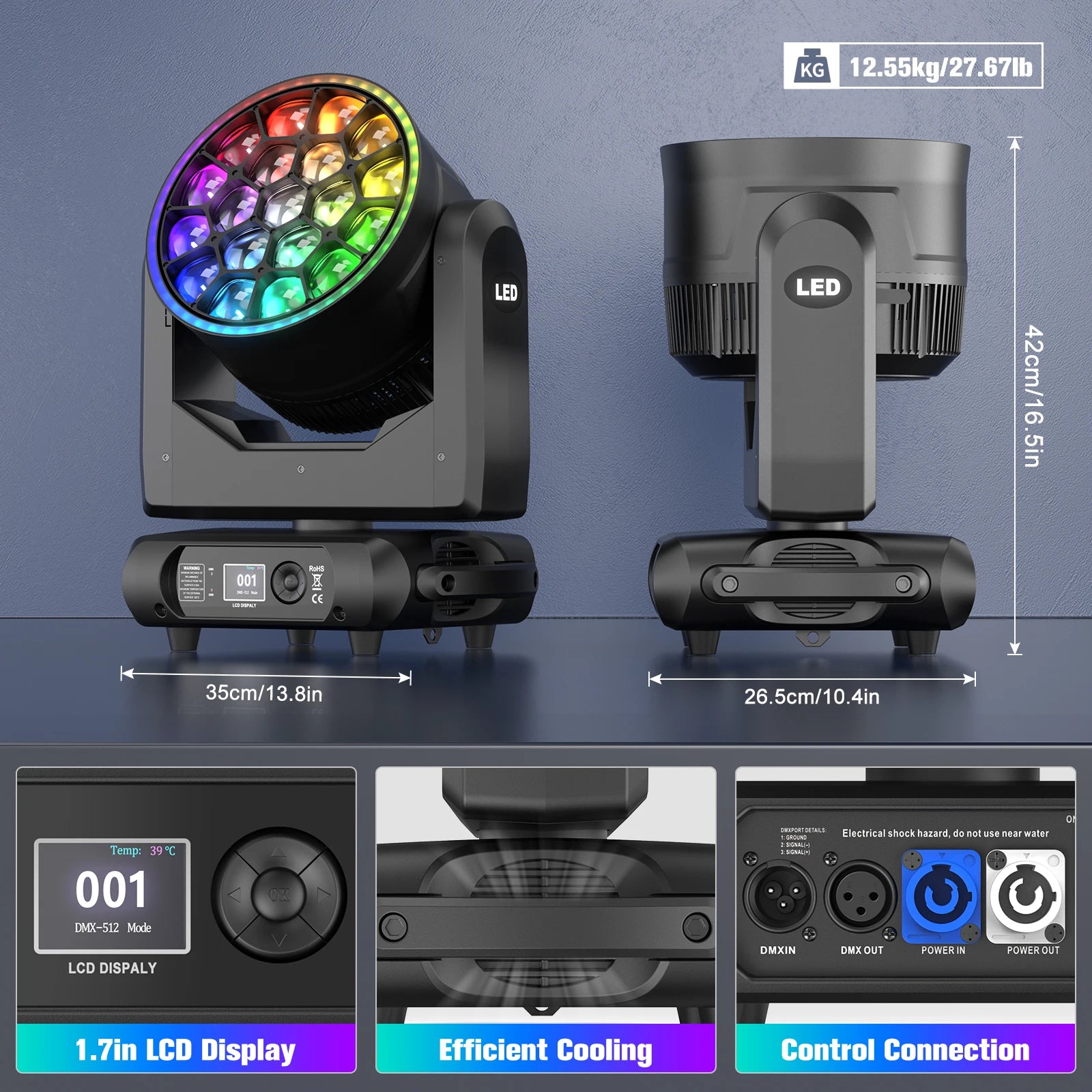

• Weight & Size: Net weights range from ~7.8 kg to ~11 kg, with dimensions varying by manufacturer.

• Design: Typically constructed from robust plastic and metal alloys, suitable for indoor stage applications (IP20).
