SPECIFICATIONS

Key Features

5MP Super HD Video Resolution

Equipped with a 5MP image sensor, the camera captures clear and detailed footage significantly sharper than standard 1080p cameras. The higher resolution allows improved identification of faces, vehicles, and important details in surveillance footage.

2.8mm Wide-Angle Lens

The camera includes a 2.8mm fixed lens providing a wide viewing angle of approximately 95° horizontal field of view, allowing broader area coverage with fewer cameras.

Smart AI Human & Vehicle Detection

Built-in AI analytics distinguish human and vehicle movement from other motion, reducing false alerts caused by animals, rain, or moving objects. This intelligent detection helps users quickly identify important events in recorded footage.

Built-in Microphone with Audio Recording

The integrated microphone captures real-time audio along with video, allowing users to hear activity around the monitored area. The microphone pickup range can reach around 5 meters, depending on environment conditions.

Infrared Night Vision

Advanced Smart IR LEDs automatically activate in low-light conditions, enabling clear night monitoring up to 100 ft (30 m) even in total darkness.

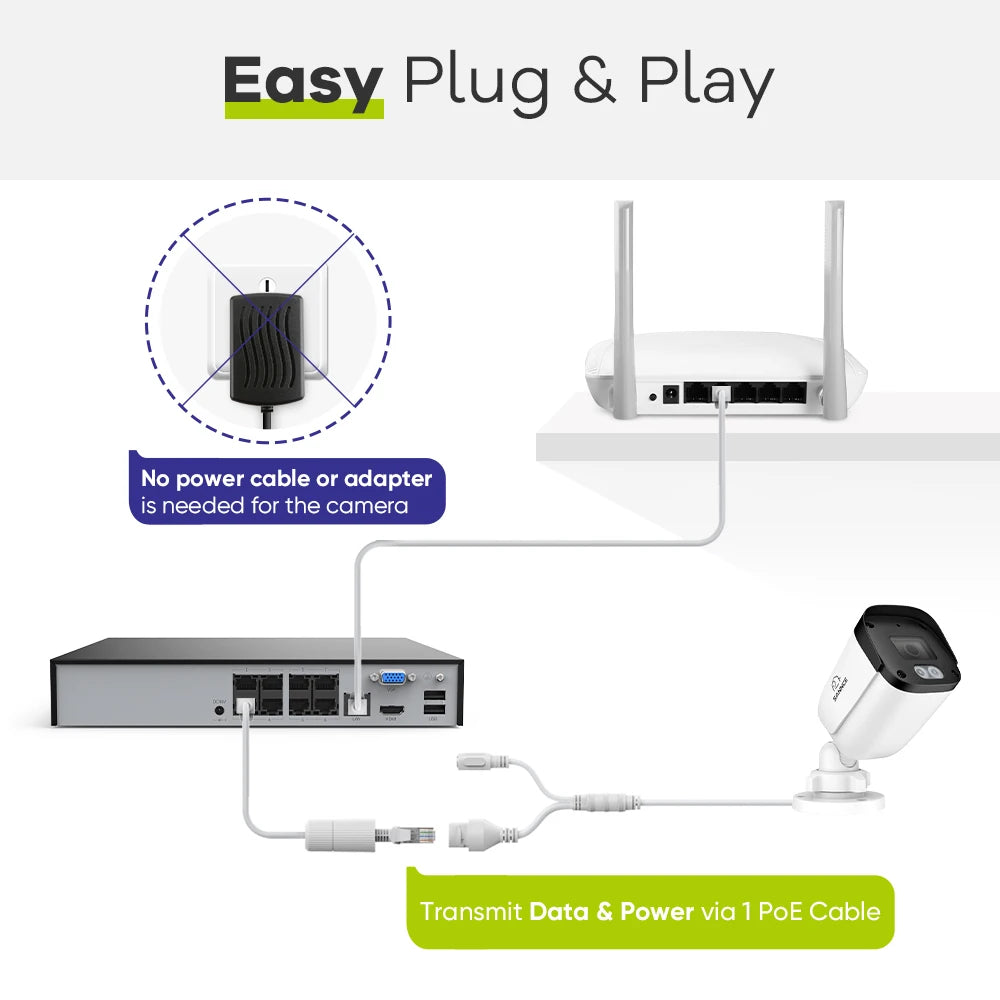

Power over Ethernet (PoE)

The camera supports PoE (IEEE 802.3af), allowing both power and data transmission through a single Ethernet cable. This simplifies installation and reduces cable clutter while providing stable network connectivity.

NVR & ONVIF Compatibility

It works with SANNCE PoE NVR systems and other ONVIF-compatible recorders, allowing centralized video management, recording, playback, and remote monitoring through compatible software or mobile apps.

Durable Outdoor Design

The camera features an IP67 waterproof housing with lightning and surge protection, making it suitable for harsh outdoor environments such as rain, snow, and extreme temperatures.

---

Technical Specifications

• Resolution: 5MP (2592 × 1944)

• Lens: 2.8mm fixed lens

• Field of View: ~95° horizontal

• Night Vision: Up to 100 ft / 30 m

• Smart Detection: Human & vehicle detection

• Audio: Built-in microphone

• Video Compression: S+265 / H.265 / H.264

• Network Port: RJ45 10/100 Mbps Ethernet

• Power Supply: PoE (802.3af) or DC 12V

• Operating Temperature: −22°F to 140°F (−30°C to 60°C)

• Waterproof Rating: IP67 weatherproof

• Storage: NVR recording or microSD support (model dependent)

• Protocols: ONVIF, RTSP, TCP/IP, HTTP, FTP, DHCP, DNS

---

Applications

This camera is suitable for multiple surveillance scenarios:

• Home security monitoring

• Office and warehouse surveillance

• Retail store monitoring

• Parking lot and driveway security

• Industrial or commercial property protection

Brand Name: SANNCE

High-concerned chemical: None

Model Number: N98PBM-I51EP

PCS of Camera: 8PCS

Resolution: 5 MP

TV System: NTSC,PAL

Video Input: 8 Channel
