SPECIFICATIONS



Brand Name: Reolink

High Definition: 8.0 Megapixels

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 10

Lens (mm): 2.7-13.5mm

Style: PT Camera

Connectivity: RJ45

Installation: Normal

Installation: Wall Mounted

Installation: Pendant Mount

Minimum Illumination(Lux): 100

Scene: Indoor and outdoor

Color Night Vision: YES

Megapixels: 8MP

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 30M(100ft)

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Dimensions (L x W x D)(mm): 195*103*56cm

Color: WHITE

Alarm Action: FTP Photo

Alarm Action: telefon Alarm

Alarm Action: Email Photo

Alarm Action: Local Alarm

Movement Range(Tilt): -10°-180°

Model Number: RLC-823S1

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: Alexa

Smart home platform: Google Assistant

AI Functions: Pet Detection

IP Rating: IP66

Special Features: Waterproof / Weatherproof

Power Supply(V): DC12V/2A & PoE (IEEE 802.3at)

Audio Output: Two Way Audio

Power Consumption(W): <24W

Sensor: CMOS

Sensor Brand: Omnivision

Operating Temperature: -10°-60°

Shell Material: Metal

Power Supply: With POE

Viewing Angle : 100°

Movement Range(Pan): 0°-360°

Image Sensor: 1/2.8" CMOS sensor

Resolution: 3840x2160(8 Megapixels)@25FPS

Lens of 823S1: f=2.7-13.5mm/Max F1.6

Lens of 823S2: f=5.3-86mm/Max F1.6

Video Compression: H.265/H.264

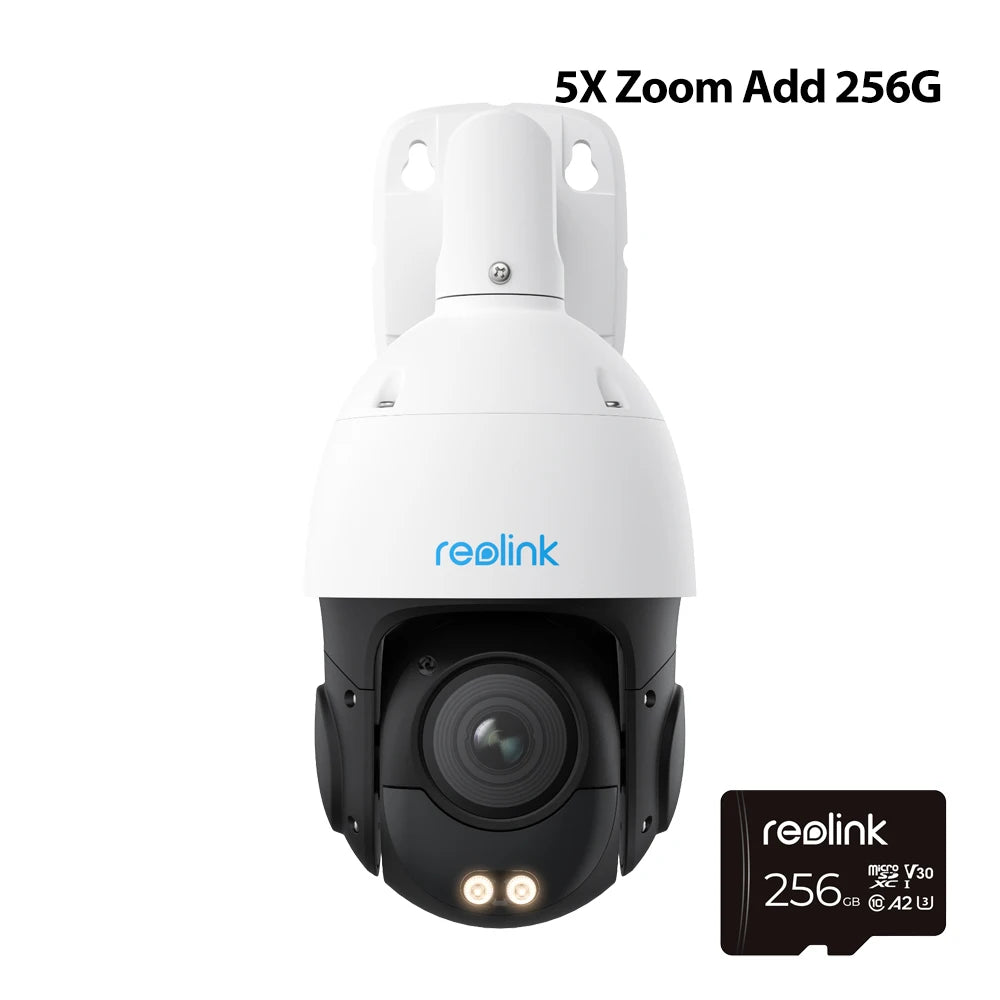

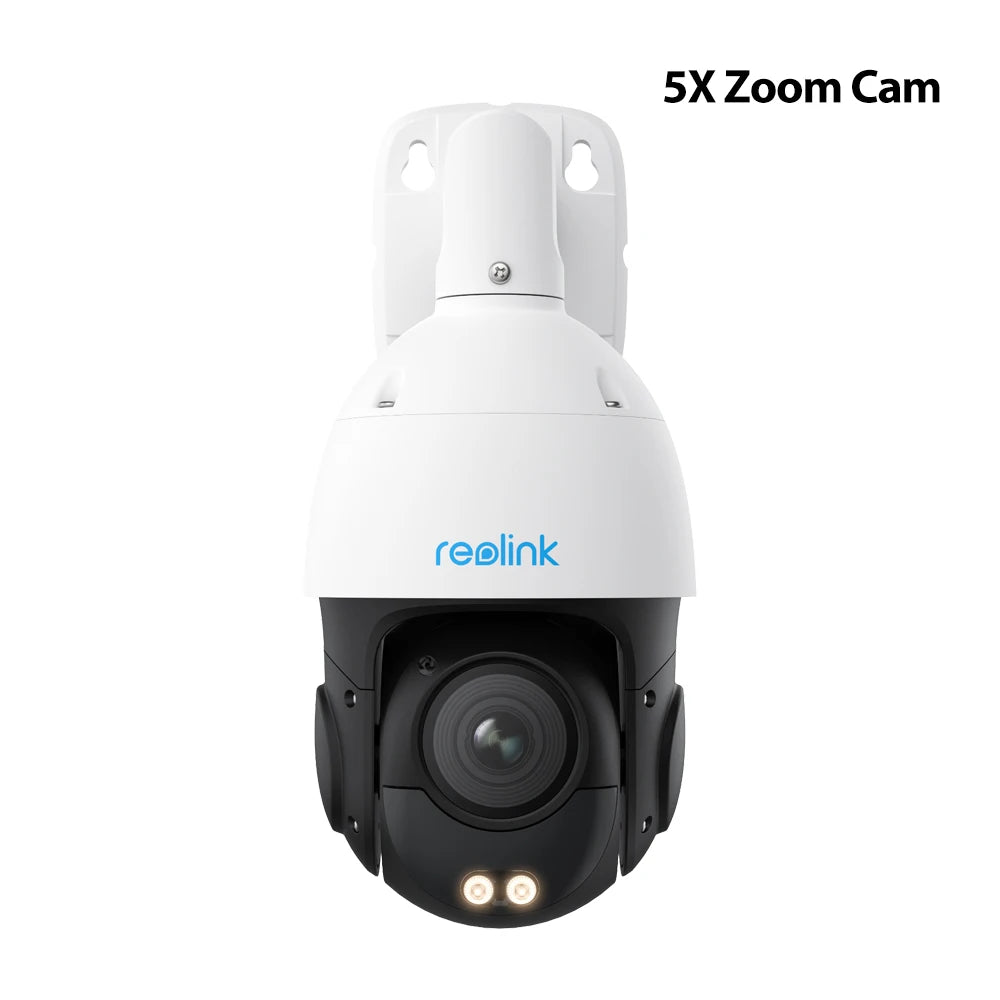

Zoom of 823S1: 5X optical zoom & digital zoom

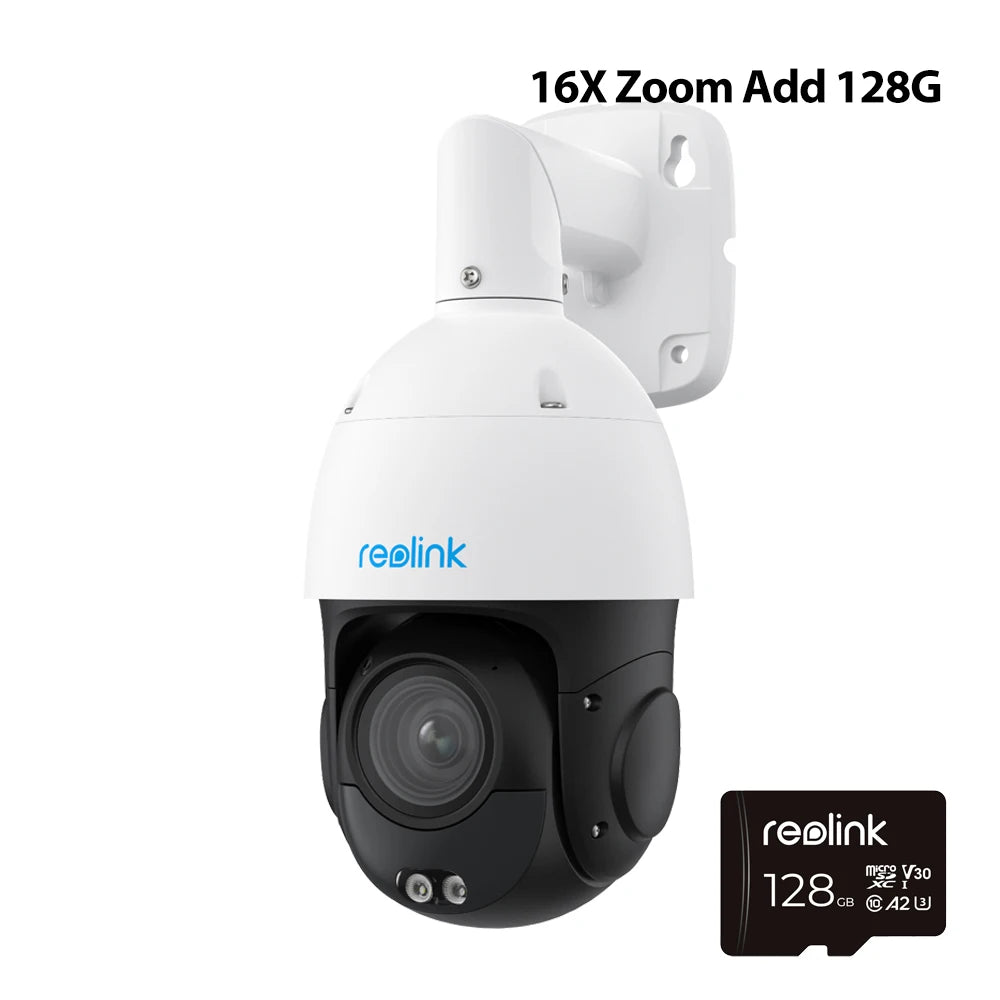

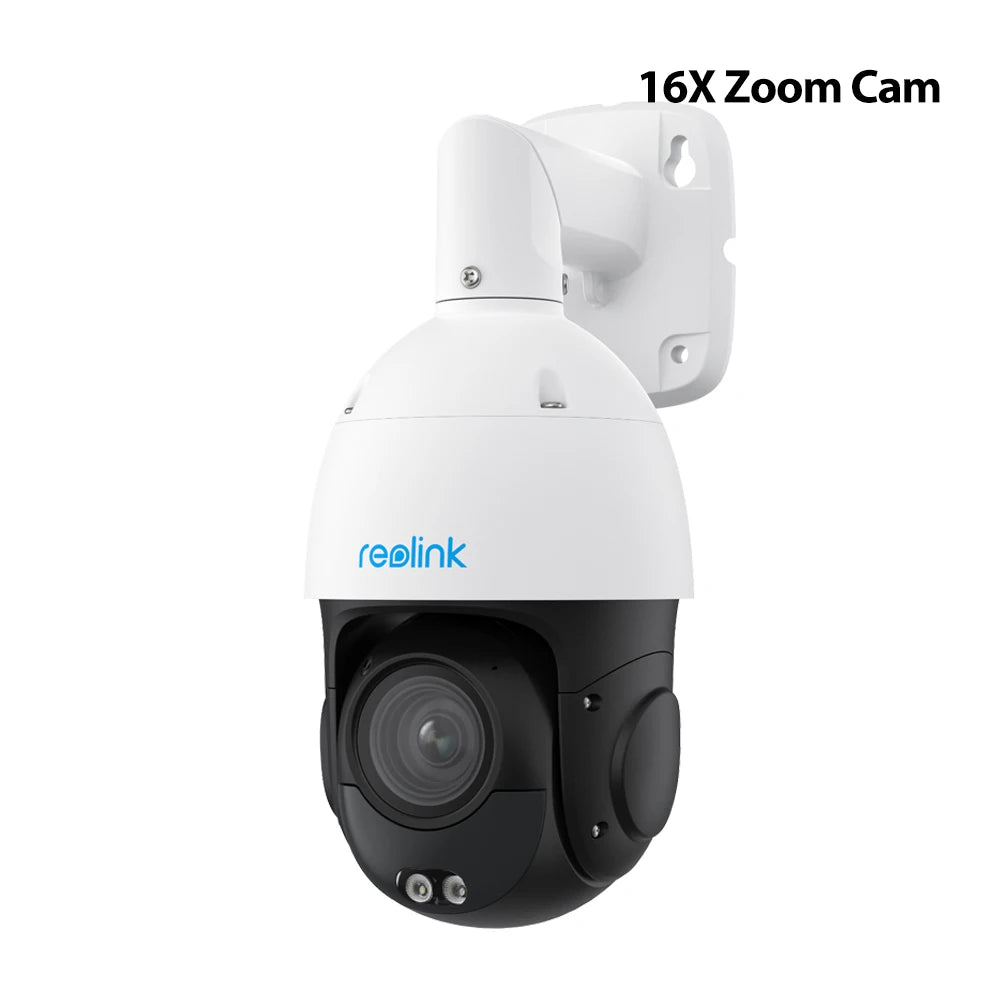

Zoom of 823S2: 16X optical zoom & digital zoom

Smart Alarm: Motion detection; person/vehicle/animal detection

POE: IEEE 802.3at, 48V, active

Network: One 10M/100Mbps RJ45

Color Night Vision: Yes

Infrared Night Vision: 823S1 up tp 60 meters(196ft);823S2 up tp 80 meters(260ft)

DC Power: DC 12V/2A, <24W

Audio In/Out: Built-in microphone and speaker

Local storage: Max. 256 GB (Micro SD card)

PT Angle (Max.): Pan: 360°, Tilt: 90°

Pan Speed: 1.4°-180°/s (configurable)

Tilt Speed: 1.4°-56°/s (configurable)

Record Mode: Motion-triggered recording (default); scheduled recording, 24/7 recording

Smart Home: Google Assistant; Alexa

Auto Tracking: Yes

Time Lapse: Yes

ONVIF: Yes

FTP: Yes

Operating Temperature: -10°C~+55°C (14°F~131°F)

Operating Humidity: 10% ~ 90%

Dimensions: 373x177x140mm (Ceiling Mount)

Weight: 2.34kg

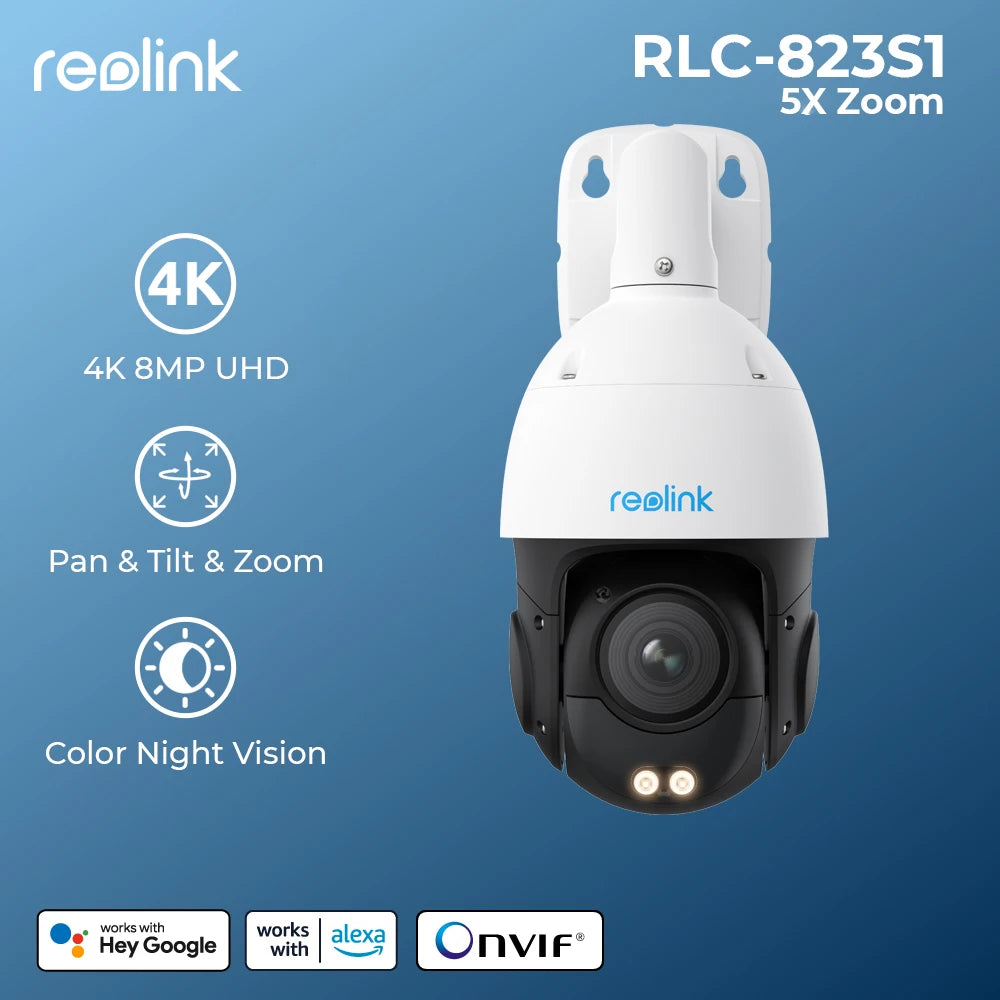

The REOLINK 4K 8MP Dome PoE Security Camera is a robust and feature-rich surveillance camera designed for comprehensive monitoring with advanced capabilities.

1. 4K Ultra HD Resolution (8MP): With 8MP resolution, this camera provides crisp, high-definition 4K video, capturing intricate details and delivering high clarity for better identification of people, vehicles, and objects in the scene.

2. Power over Ethernet (PoE): PoE technology simplifies installation by using a single Ethernet cable for both power and data transfer. This feature makes setup easier and is especially useful in large areas, as it maintains stable connections over long distances.

3. 5X 3D Optical Zoom: Equipped with 5X 3D optical zoom, the camera allows you to zoom in on specific areas without compromising image quality, perfect for monitoring details such as license plates or faces from a distance.

4. Pan & Tilt Capability: This model offers full PTZ (pan-tilt-zoom) functionality, allowing remote control to adjust the camera’s viewing angle horizontally (pan) and vertically (tilt). This flexibility enables the camera to cover a wider area and adapt to changing security needs.

5. Auto-Tracking: The auto-tracking feature automatically follows any detected person or object, keeping them in the frame as they move. This dynamic tracking capability ensures important movement isn’t missed, making it ideal for busy areas or properties with multiple points of entry.

6. Smart Detection: The camera uses advanced algorithms to differentiate between people and vehicles, minimizing false alarms caused by animals or other irrelevant movements. This feature is especially useful for improving the accuracy of alerts and notifications.

7. ONVIF Compatibility: As an ONVIF-compliant camera, it’s compatible with third-party security systems and network video recorders (NVRs), providing flexibility for integrating with existing systems.

8. Weatherproof Design: Designed for outdoor use, this camera has a weatherproof rating that ensures durability in various climates, from rain to extreme temperatures.

9. Remote Access and Alerts: The Reolink app allows you to view live footage, review past recordings, and receive instant alerts on your smartphone, so you can monitor your property from anywhere with ease.

10. Infrared Night Vision: With IR LEDs, this camera captures clear images even in complete darkness, extending visibility up to 100 feet at night.

The REOLINK 4K Dome PoE Security Camera combines powerful zoom, flexible pan-and-tilt movement, and intelligent tracking and detection, making it a top choice for anyone needing reliable and versatile security coverage.
