SPECIFICATIONS

🔑 Key Features (confirmed specs)

⚡ PWM Speed Control (4-pin)

• 4-pin PWM connector for motherboard control

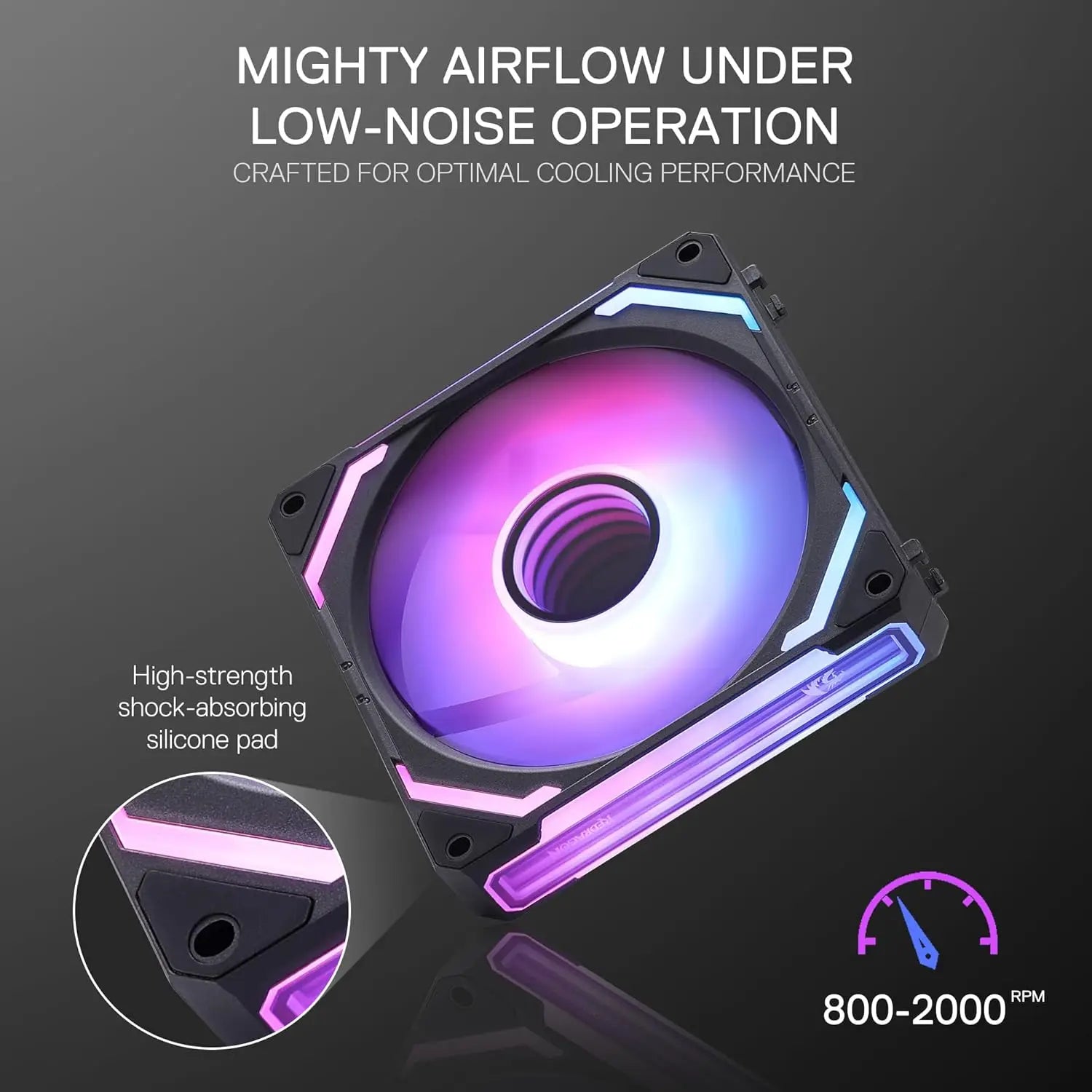

• Speed range: ~800–2000 RPM (up to ~2200 RPM peak)
• Allows automatic fan curve control (silent at idle, faster under load)

---

🌈 5V 3-Pin ARGB Lighting

• Standard addressable RGB (5V 3-pin)

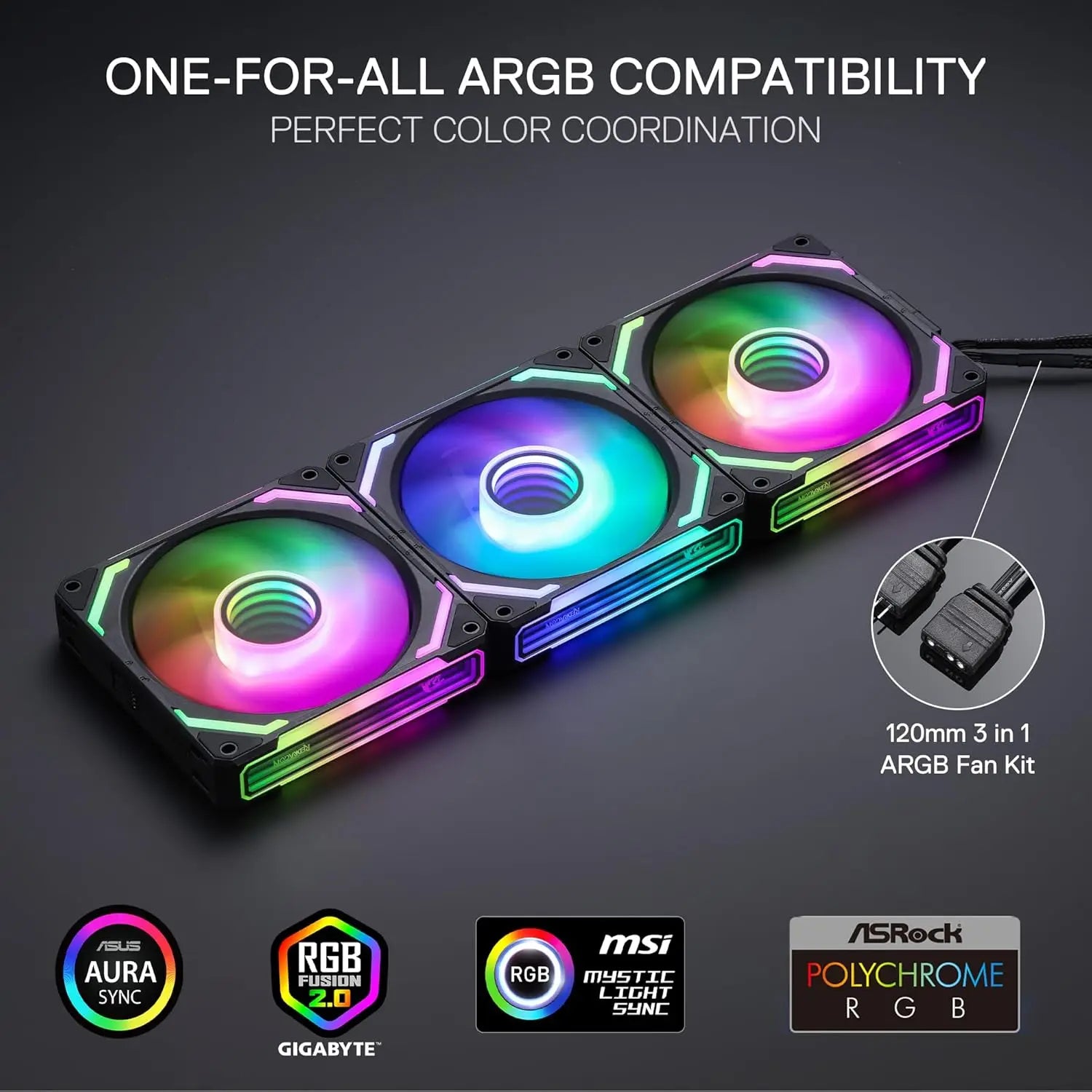

• Syncs with:
  • ASUS Aura Sync
  • MSI Mystic Light
  • Gigabyte RGB Fusion
  • ASRock Polychrome

Lighting features:

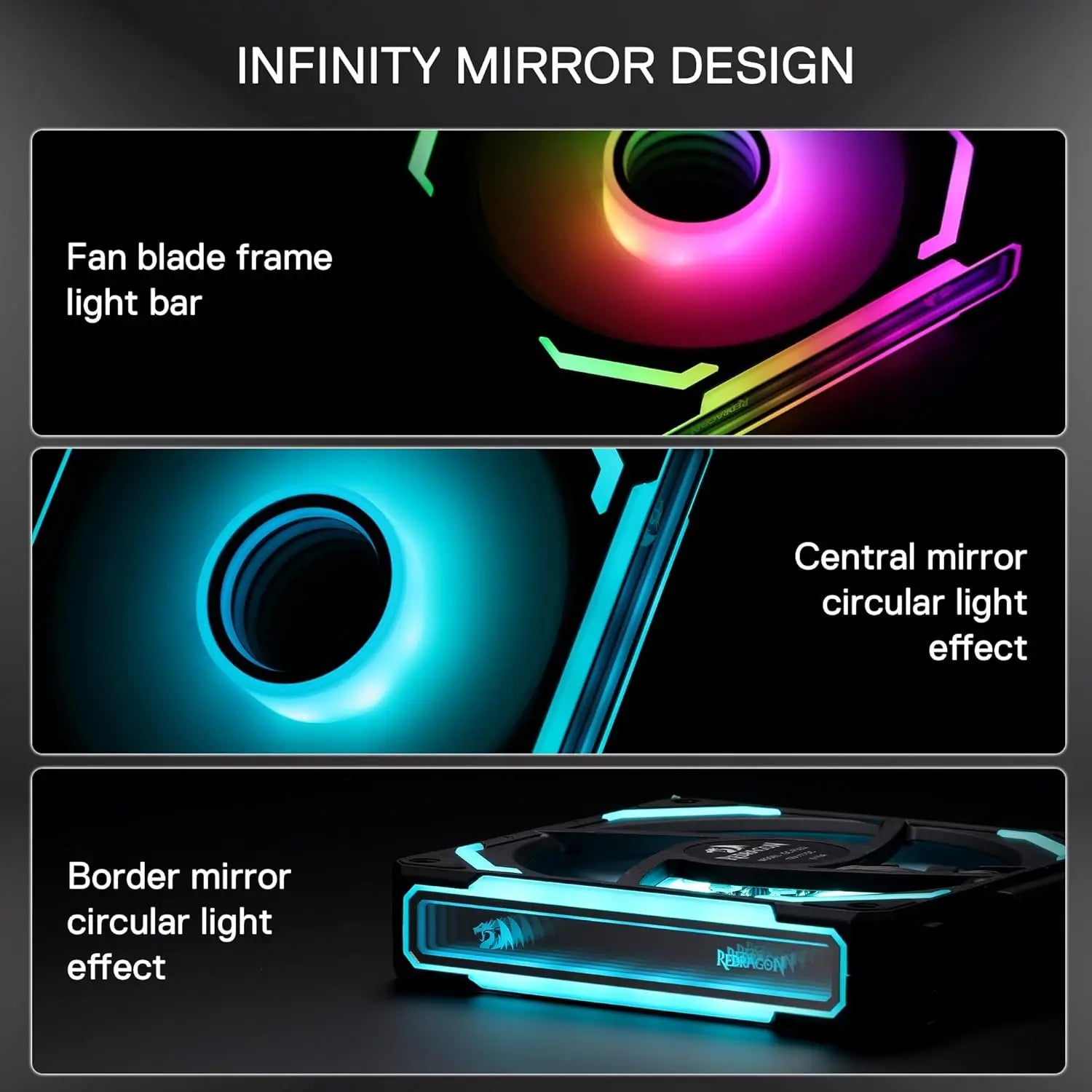

• Infinity mirror effect (on some versions)
• Side + center illumination zones
• Multiple RGB modes via controller or motherboard sync

---

🌬️ Airflow Performance

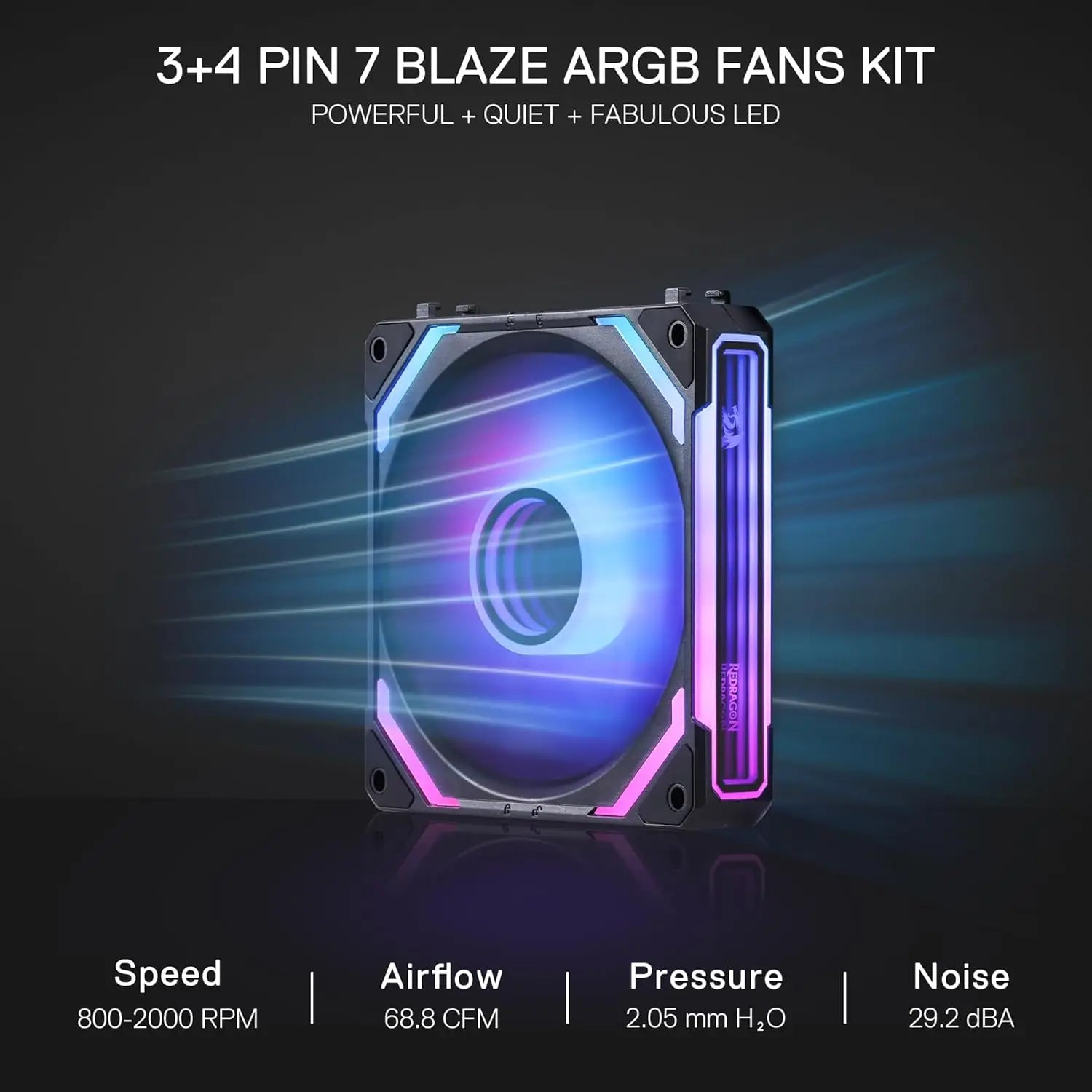

• Airflow: up to ~68–76 CFM (varies by listing)
• Static pressure: ~2.05 mmH₂O

👉 Translation:

• Good for case airflow
• Decent for radiators, but not premium-level pressure fans

---

🔇 Noise Level

• Around ~29 dBA max
• Includes rubber anti-vibration pads
• Rifle bearing design for longer lifespan

👉 Real-world:

• Quiet at low RPM
• Audible at full speed (typical RGB fan behavior)

---

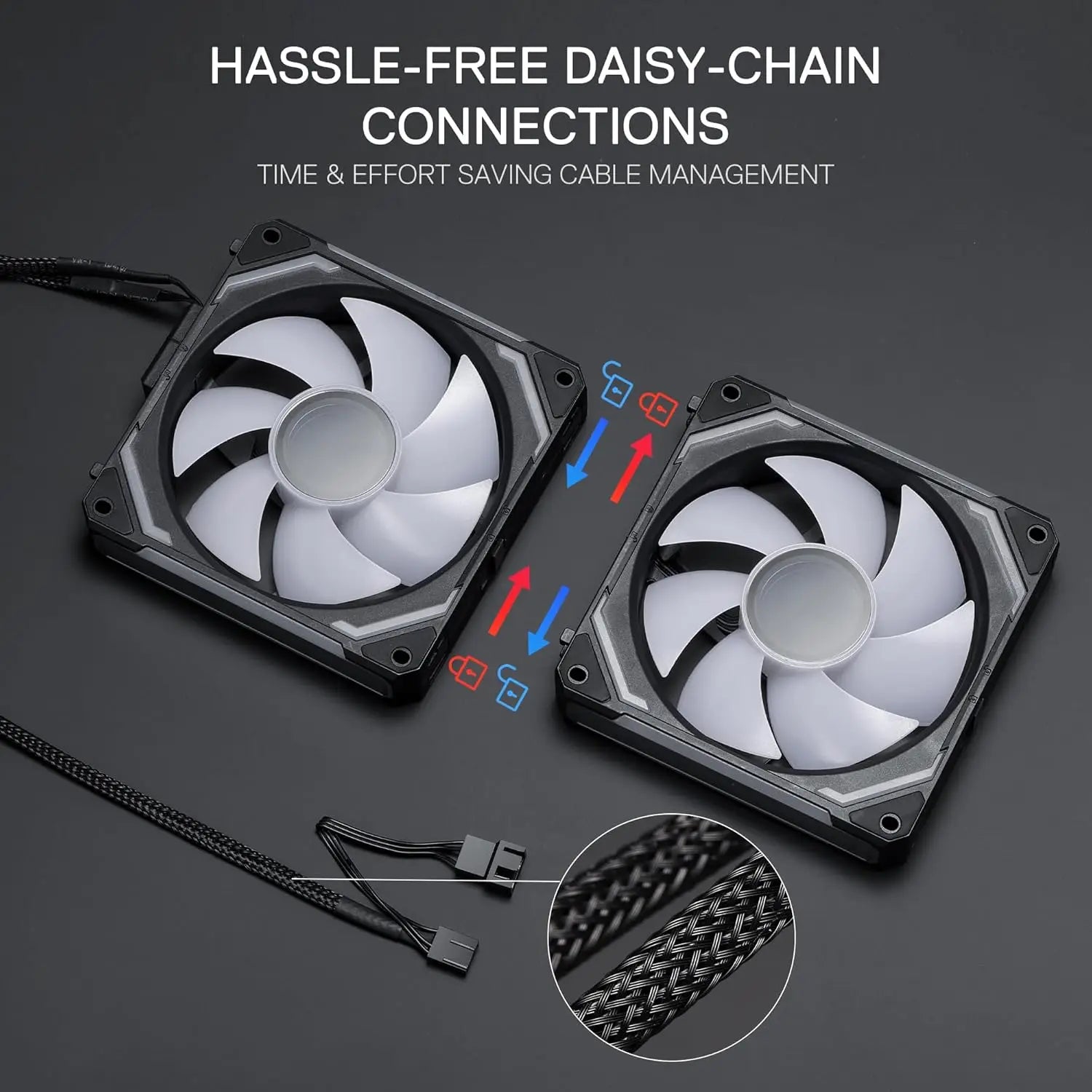

🔗 Daisy-Chain + Hub Support

• Modular “snap connect” design (some versions)
• Often includes hub/controller depending on bundle
• Helps reduce cable clutter in RGB builds

---

👍 Strenghts

• Cheap 120mm ARGB PWM fan option
• Easy installation (daisy-chain or hub)
• Strong RGB visuals for the price
• Good airflow for gaming PCs
• Works with standard motherboard RGB sync

🎯 Best For

• Budget gaming PC builds
• RGB showcase cases (like panoramic glass builds)
• General case airflow intake/exhaust
• Entry-level radiator setups (240mm AIO light use)

Blade Quantity: 3

Brand Name: REDRAGON

Fan Size: 120mm

High-concerned chemical: None

Model Number: RED-WCF-F012

Package: Yes

Power (W): 5

Used For: Case

Voltage: 5V
