SPECIFICATIONS

Why These Cameras Stand Out

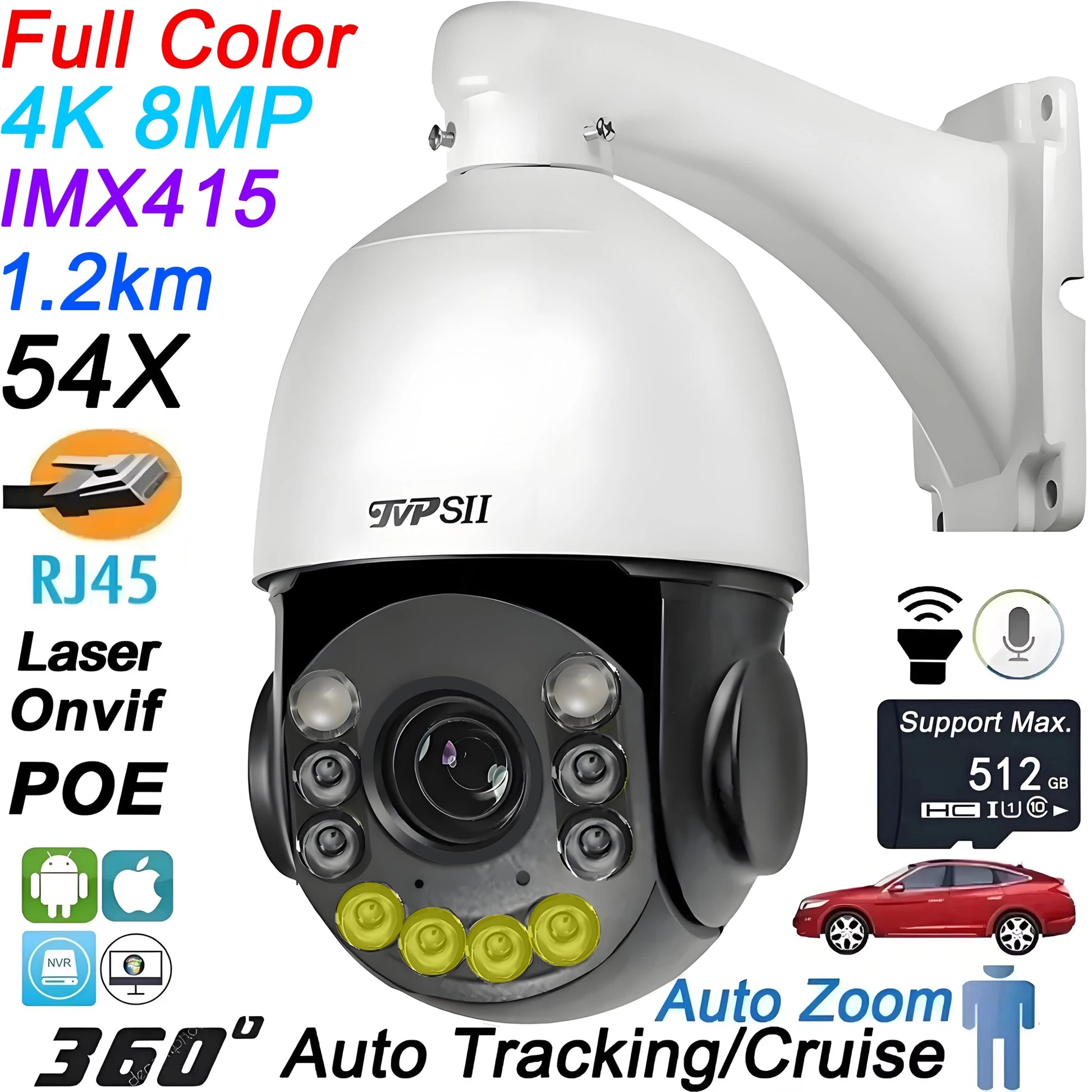

📷 8 MP 4K Resolution

• Ultra-high-definition video (3840×2160), great for recognizing faces, license plates, or incidents on large properties.

🎯 Auto Tracking & Cruise Patrol

• These units support auto–tracking of moving subjects (people/vehicles) and preset cruise routes (fixed-point, multi-point, 360° touring), so the camera can automatically follow action or systematically patrol.

🔄 360° Coverage

• Continuous pan (horizontal) and tilt (vertical) rotation lets the camera cover wide areas without blind spots — critical for outdoor security on parking lots, warehouses, or perimeters.

🌙 Full Color & Night Vision

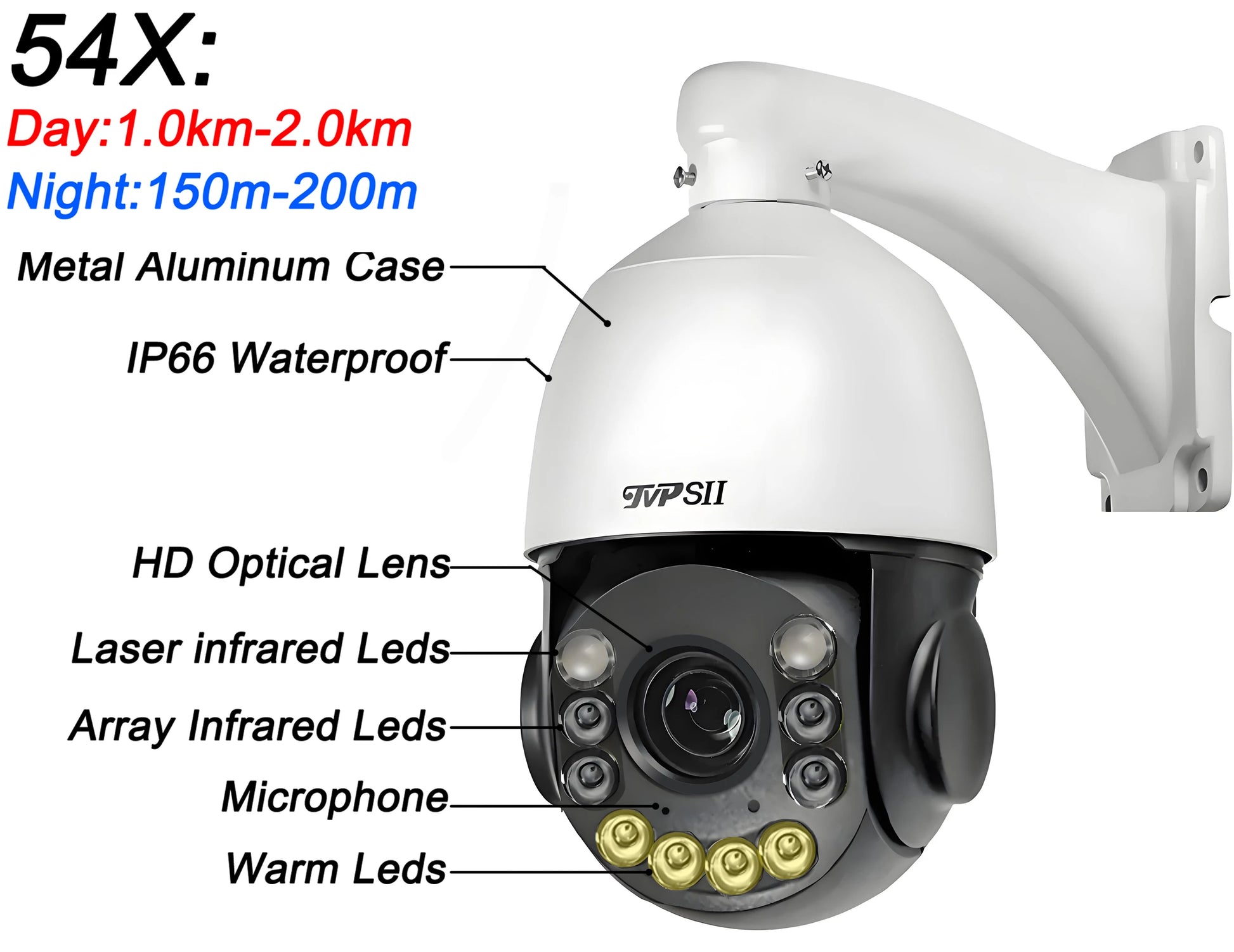

• Dual LED/IR light systems let the camera record full-color footage even at night, or switch to infrared for deep darkness. Expect ranges up to ~150–200 m depending on LEDs and zoom.

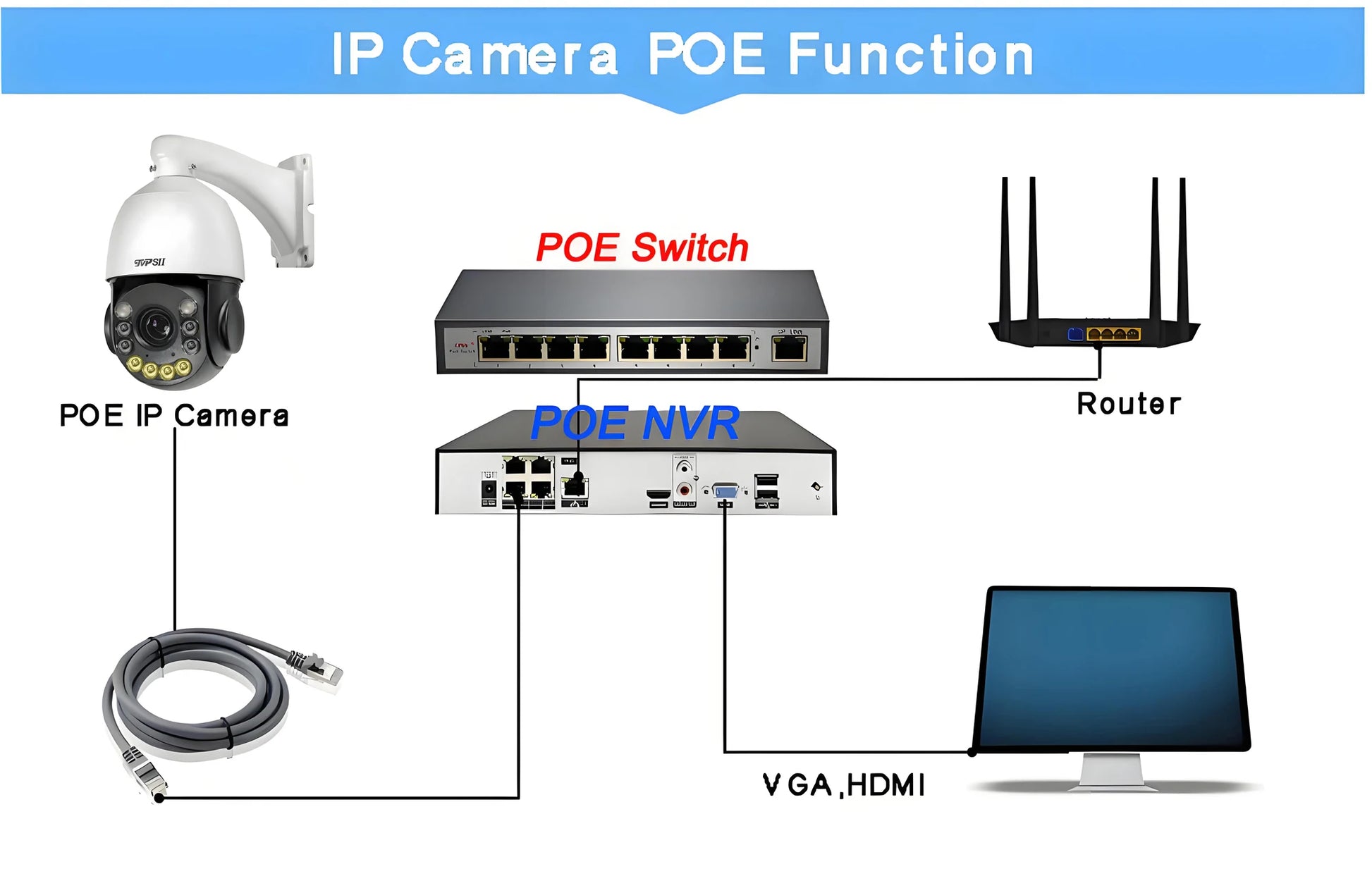

⚡ PoE (Power over Ethernet)

• One RJ45 network cable delivers both power and video/data, simplifying installation and reducing cable clutter.

🌐 ONVIF Compatibility

• Works with most network video recorders (NVRs) and third-party systems that support the ONVIF standard (e.g., Dahua, Hikvision, Milestone, Blue Iris).

💾 Local & Network Recording

• Many support on-camera SD cards, plus compatibility with NVRs and cloud/NAS setups.

---

📍 Installation & Use Cases

Ideal environments:

• Outdoor commercial or industrial premises

• Large parking lots or campus perimeters

• Warehouse entrances / high-value assets

• Anywhere you need active monitoring with smart tracking and patrol routes

Typical setup:

1. Connect camera to a PoE switch/NVR using CAT5e/CAT6.

2. Add camera to your ONVIF-compatible NVR or surveillance software.

3. Configure preset points, cruise routes, auto-tracking motion zones (from NVR/software).

4. Set day/night modes, IR/LED usage, and storage preferences.

AI Functions: Smart Tracking

APP: Videolink

Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo

App name: Other

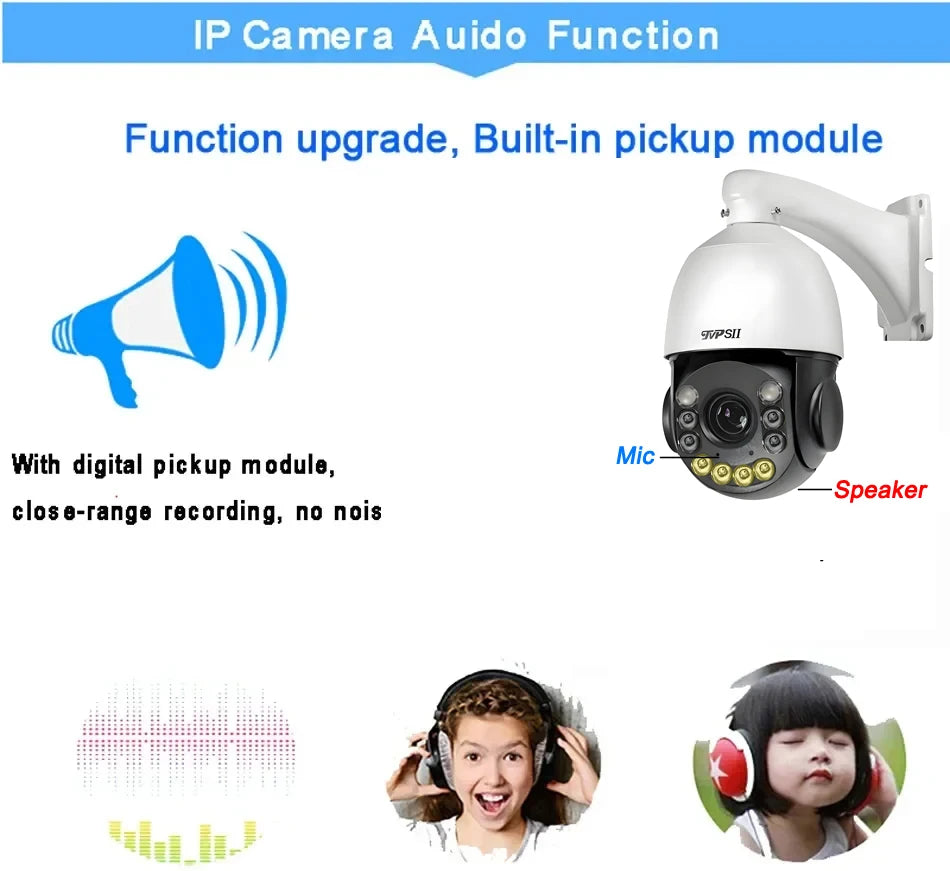

Audio Output: Two Way Audio

Auto Tracking/Cruise: support

Auto Zoom: support

Brand Name: TVPSii

Certification: CE,FCC

Color: WHITE,black

Color Night Vision: Yes

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): 150m-200m

Installation: Wall Mounted

Internal Storage: Max.512GB

Led Mode: Smart Daul Led light

Lens (mm): 2mm

Lens Quantity: Single Lens

Minimum Illumination(Lux): 0.001LUX

Model Number: TP-PTZ08B-54XS/TP-PTZ08W-54XS

Movement Range(Pan): Other

Movement Range(Tilt): Other

Operating Temperature: -50°- +60°

Optical Zoom: Other

Pixel: 8MP

Power Consumption(W): 0-30W

Power Mode: Mains Electricity

Power Source: With Poe

Power Supply: With POE

Power Supply(V): 12V

Protocol: onvif/Dahua/Hikvision

Rechargeable Battery: None

Rechargeable Battery Capability: Other

Rotation: Horizontal: 360 degrees, Vertical: 90 degrees

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP

TF Card: None

Video Compression Format: H.265

Viewing Angle : 360°

Warranty: 3 years

Waterproof: yes

Zoom: 50x

Zoom type: Optical zoom

is_customized: Yes
