SPECIFICATIONS

Frame & Build

• Constructed with a 6061 aluminum alloy frame—light yet durable—for reliable everyday riding.

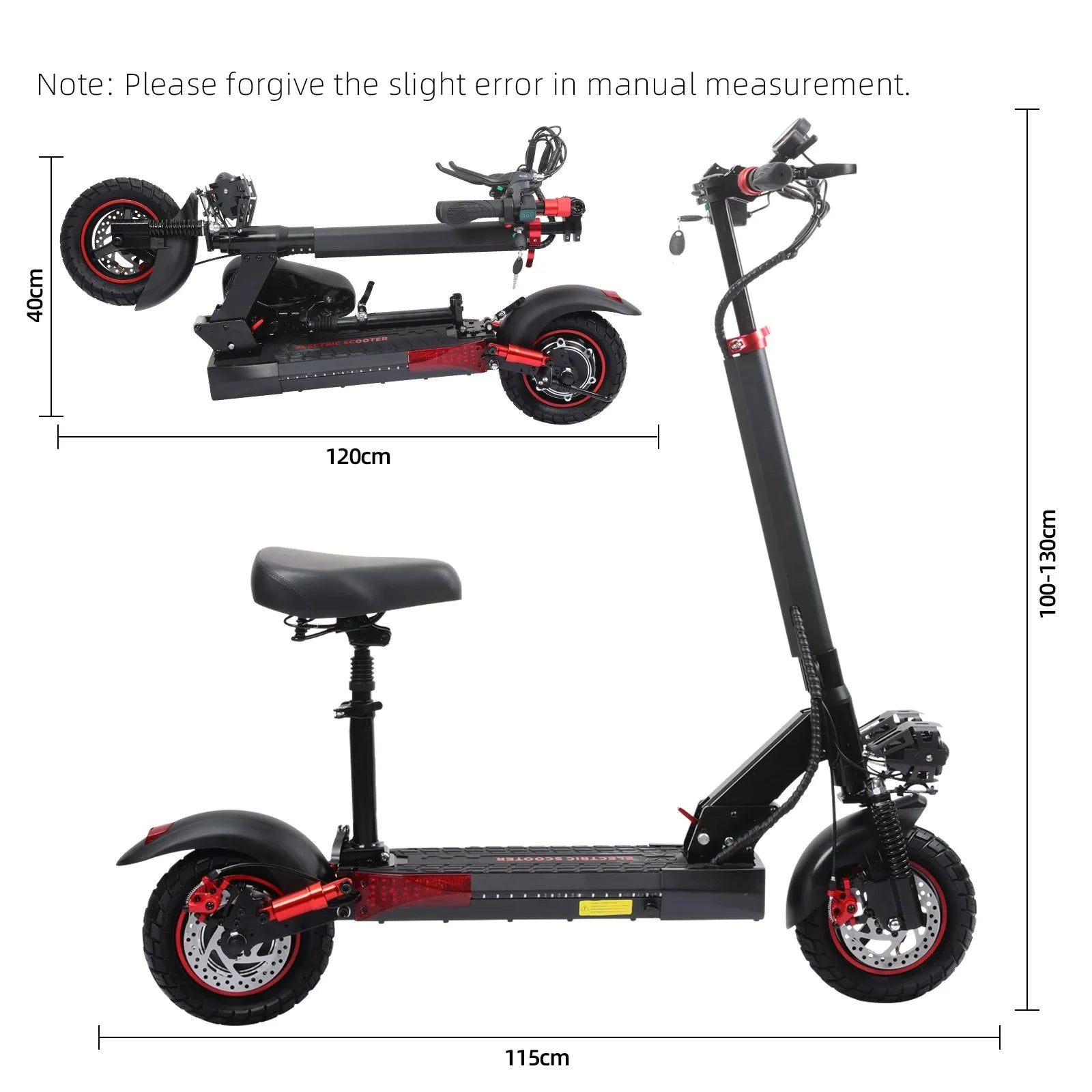

• Foldable design, compact when collapsed (roughly 1180 × 260 × 485 mm), suitable for storage and transport.

Motor, Battery & Performance

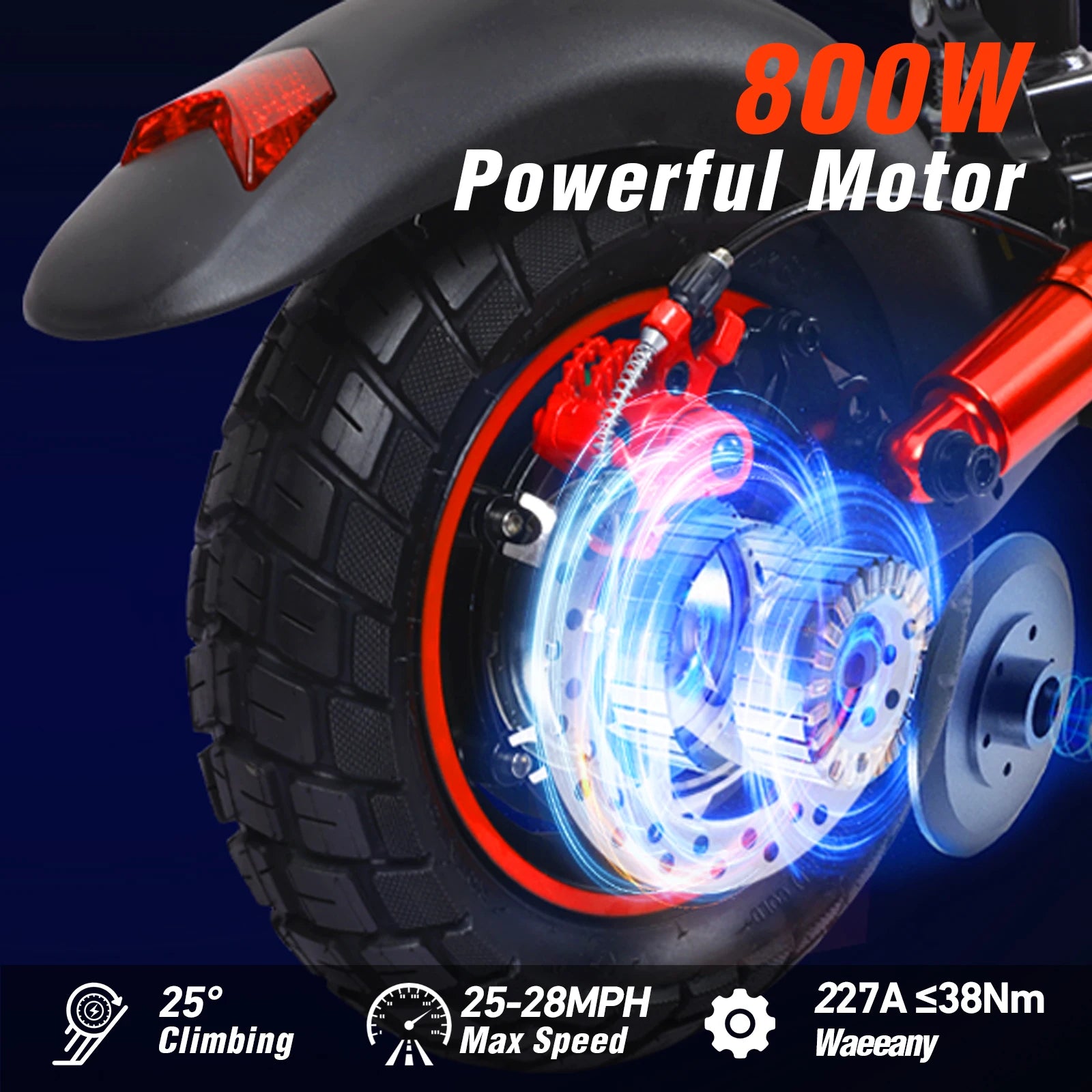

• Equipped with a brushless 800 W motor, providing substantial torque for both urban and rough terrain.

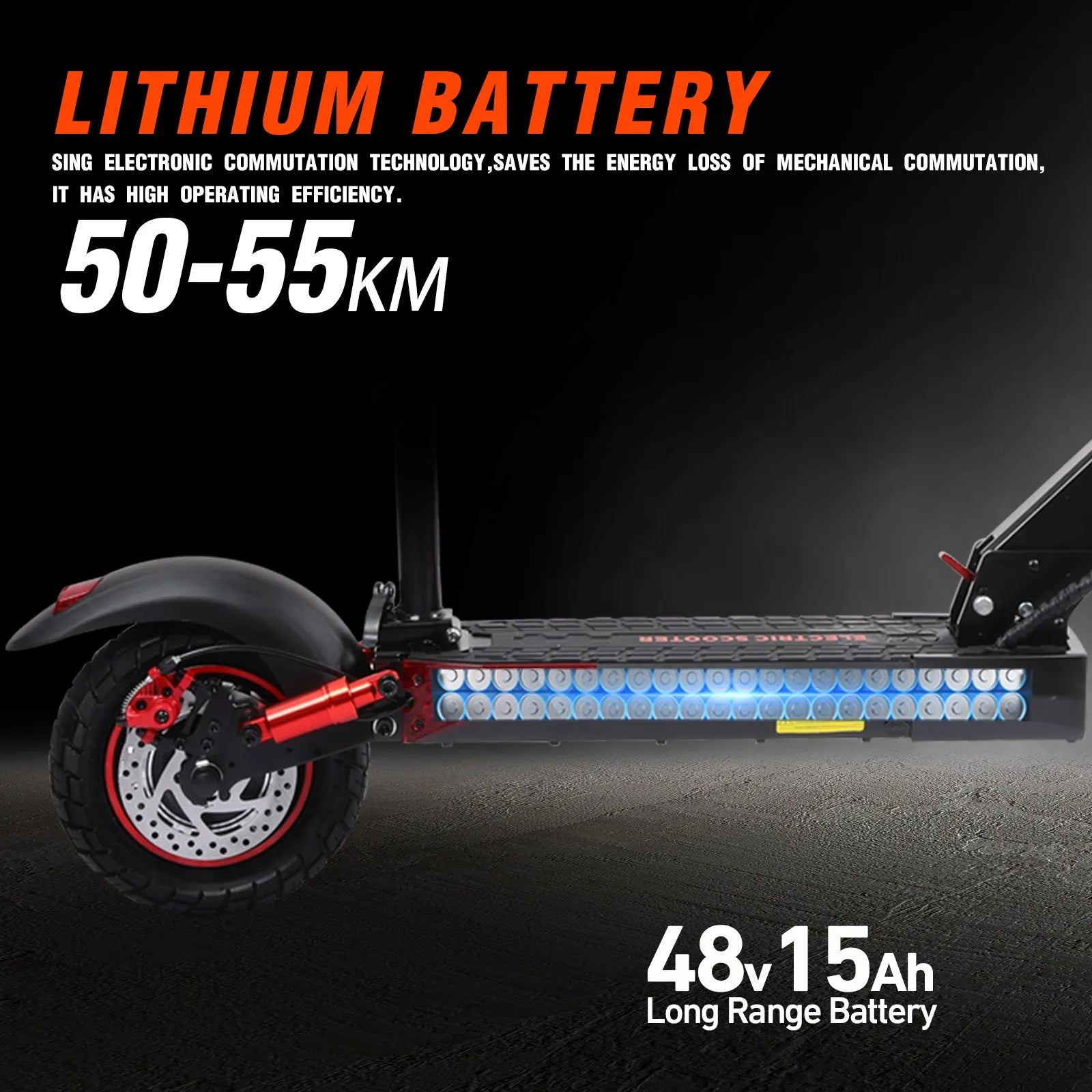

• Powered by a 48 V battery—typically 15 Ah, though some variants may go up to 18 Ah.

• Estimated range: around 50–55 km (approximately 30–34 miles) under moderate riding conditions.

• Typical top speed: 25–28 mph (~40–45 km/h).

• Charging time: anywhere from 5 to 8 hours depending on battery size and charger.

Tires & Suspension

• Fitted with 10‑inch off-road pneumatic tires, excellent for mixed surfaces—gravel, grass, or city streets.

• Includes dual suspension, both front and rear, which smoothens rides on rougher terrain.

Braking & Safety

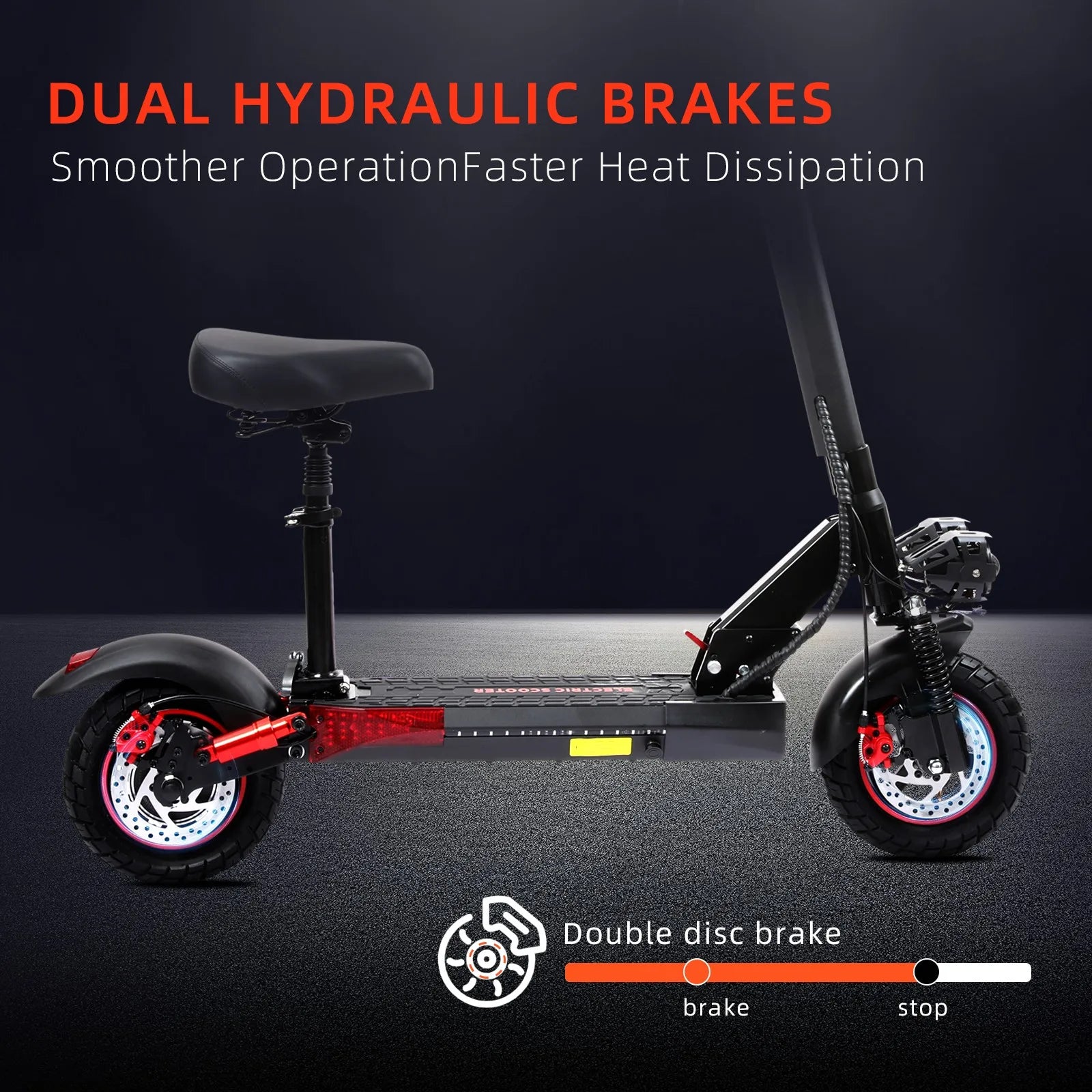

• Dual disc brakes—one on each wheel—for confident and responsive stopping power.

• IPX5 water resistance rating, meaning it can handle splashes or light rain—but is not waterproof for puddles or heavy downpours.

Load & Climbing

• Supports a maximum load of around 150 kg (≈ 330 lb).

• Capable of climbing inclines between 20–30°, depending on weight and terrain.

Additional Features

• LED lighting system (front and rear) for nighttime visibility. E

• Some product listings include adjustable handlebars, digital displays, three riding modes, and even a removable seat for added comfort.

Weight & Portability

• The scooter weighs around 23.6 kg (≈ 52 lb)—heavy but still relatively portable when folded.

Quick Specs Table

The J‑01 Electric Scooter is a rugged, off-road-capable, foldable commuter with a strong motor, decent range, solid braking, and a user-friendly design. It specializes in mixed-surface travel and is well-suited for riders who value both performance and versatility.
