SPECIFICATIONS

Key Specifications & Features



• Display size: 15.6″ (diagonal) pen-display monitor.

• Resolution: 4K-series version (UHD) for the “Pro 16 (4K)”. The base Pro 16 (1080p) is separate. The 4K version gives about 3840×2160 resolution. (From store listing: “Kamvas Pro 16 4K Series”.)

• Panel type: IPS LCD, full-laminated (glass + panel), anti-glare etched-glass surface for a textured “paper-feel” drawing experience.

• Color gamut: Reviewers measured ~96% sRGB on the non-4K version, and manufacturer claims for Pro series higher gamut (for the 4K variant it may be advertised at e.g., 98% AdobeRGB / high gamut) though exact number for the 4K version varies.

• Pen & input: Battery-free stylus with 8192 levels of pressure sensitivity, tilt support. Good draw responsiveness.

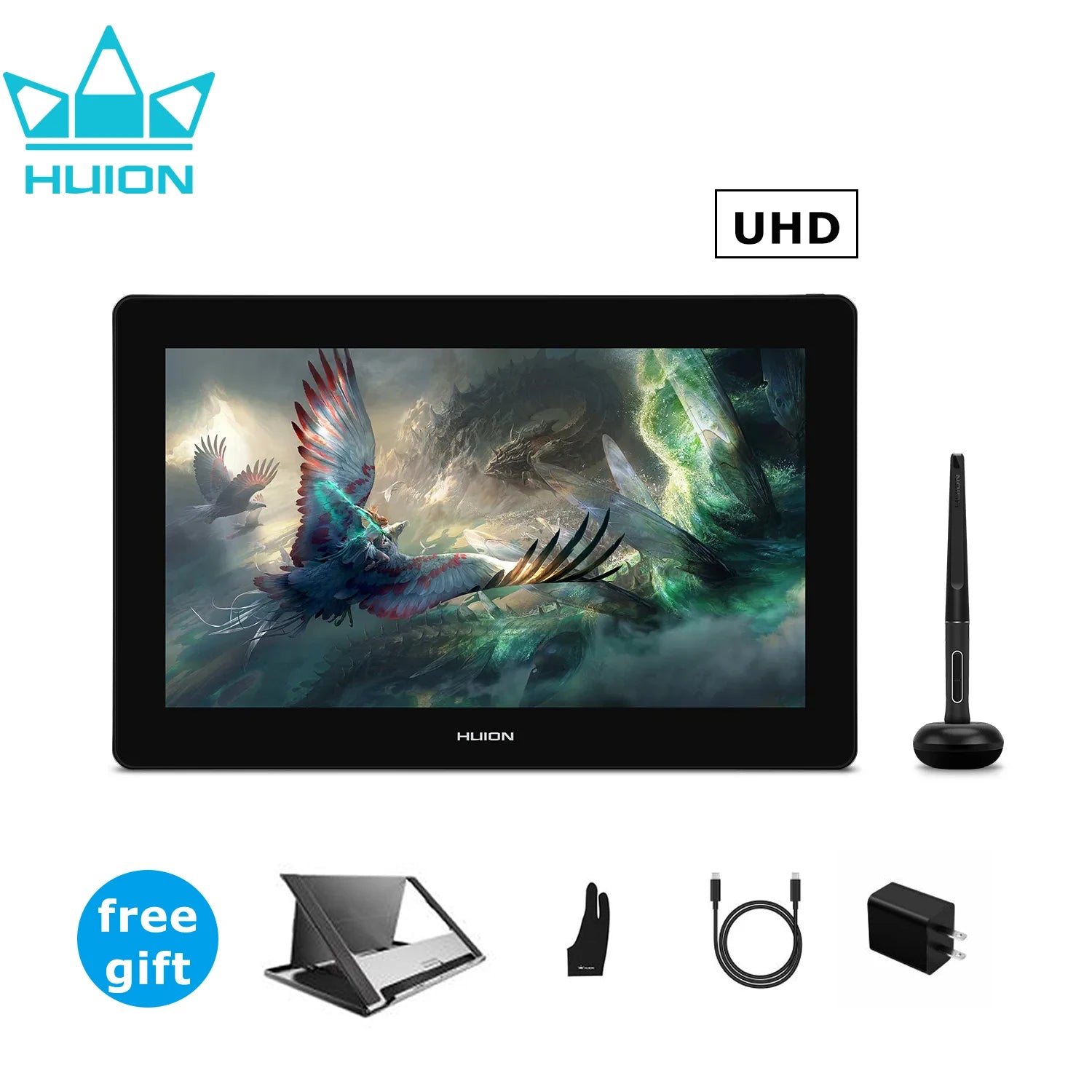

• Connectivity & accessories: Usually comes with cables (3-in-1 or USB-C depending on variant), stand (on some kits), pen stand, replacement nibs, drawing glove, etc. One review lists: “Pen, adjustable stand, 3-in-1 cable, power supply, pen holder, replacement nibs, glove, cleaning cloth”.

• Build & ergonomics: Slim body (~11.5mm thick in one review for non-4K variant), good build quality.

---

🎨 What it Works Well For

• Digital art / illustration / concept work — The high resolution (4K) in a 15.6″ size means you get very fine detail, suitable for professional work.

• Graphic design / photo retouching — The good color gamut + laminated display mean better accuracy and less parallax (cursor appears right under the pen tip).

• Studio use / desk setup — Since it is a display tablet, you can draw directly on the screen which is intuitive vs drawing on a separate pad.

• Upgrading from simpler tablets — If you’re moving from a non-display tablet (e.g., Wacom Intuos) this gives a big step up in experience.

Battery-Free Pen: PW517

Brand Name: HUION

Certification: CE

Dimension: 402.7 x 257.4 x 13mm

Gamut: Kamvas Pro 16 (4K):120% sRGB; Kamvas Pro 16 Plus (4K):145% sRGB

HUION Product Name: Kamvas Pro 16 (4K) Series

High-concerned chemical: None

Interface Type: USB

Material: Plastics

OS Compatibility: Windows/macOS/Android(USB3.1 DP1.2)

Output Voltage: 5V 3A

Package: Yes

Power Consumption: 15W

Pressure Levels: 8192

Resolution Ratio: 5080lpi

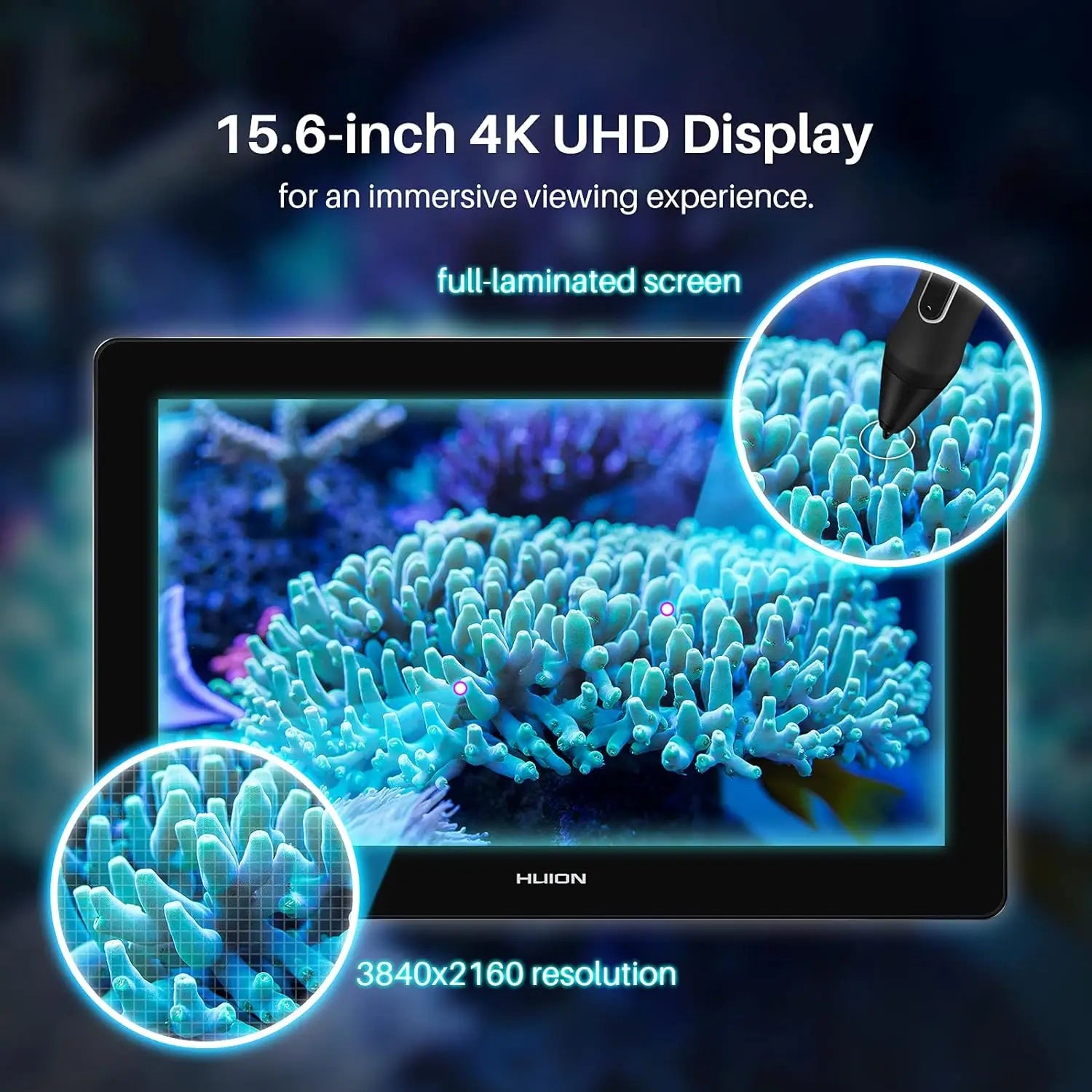

Screen Resolution: 3840x2160

Screen Size(diagonal): 15.6"

Stand: Included

Tablet Width: 295mm

Tablet length: 422mm

Type: Pen Tablet Monitor,Digital Tablets

Video Interface: USB-C, Full-Featured USB-C

Workspace: 345.6 x 194.4mm
