HUION Kamvas 16 Graphics Drawing Tablet
HUION Kamvas 16 Graphics Drawing Tablet
Couldn't load pickup availability
SPECIFICATIONS
| Spec | Detail |
|---|---|

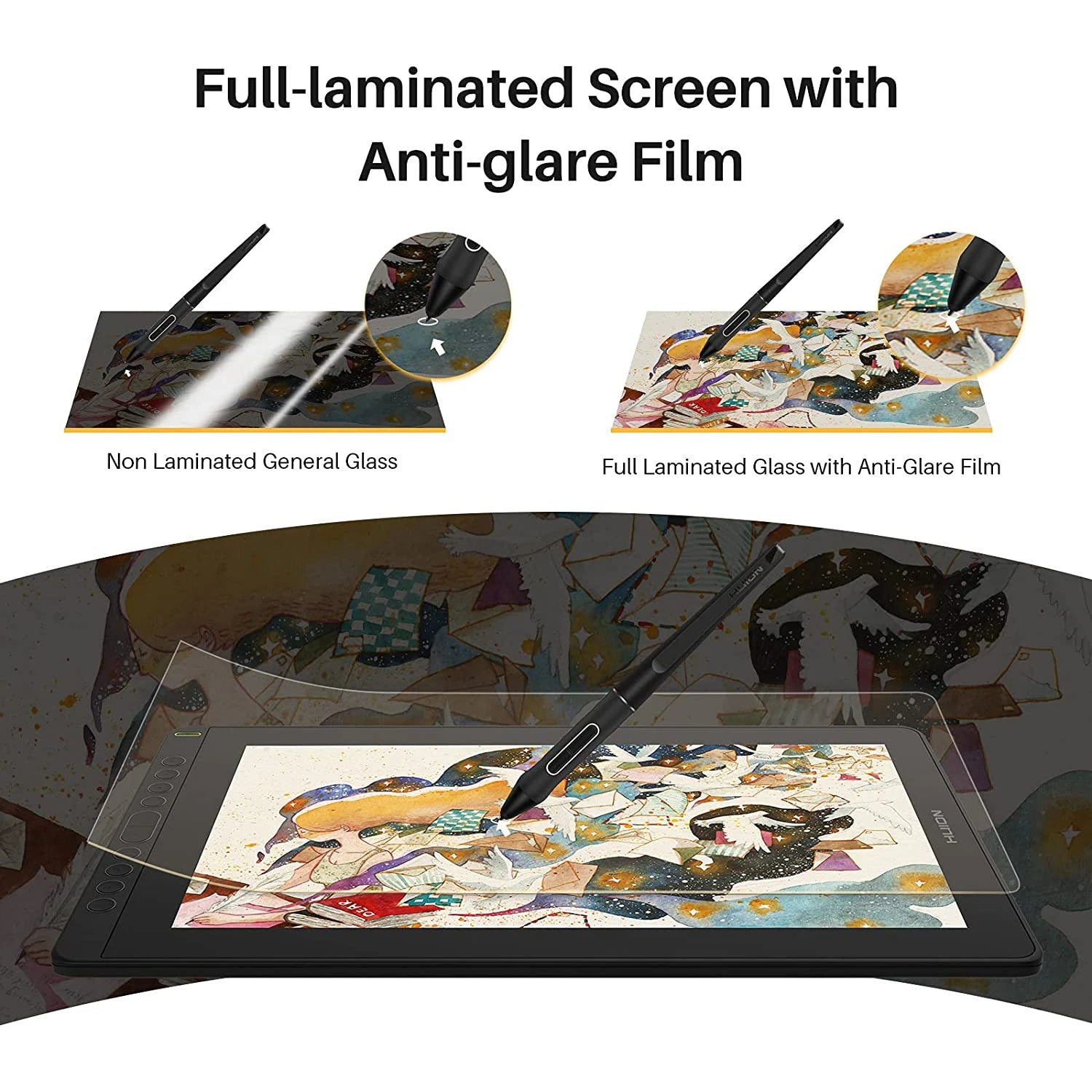

| Display Panel | 15.6‑inch IPS LCD; full‑laminated (screen + glass close together to reduce parallax) in the 2021 version. |
| Resolution | 1920 × 1080 (Full HD) in the 2021 version. The Gen 3 version improves resolution (≈ 2560×1440 QHD) in some variants. |

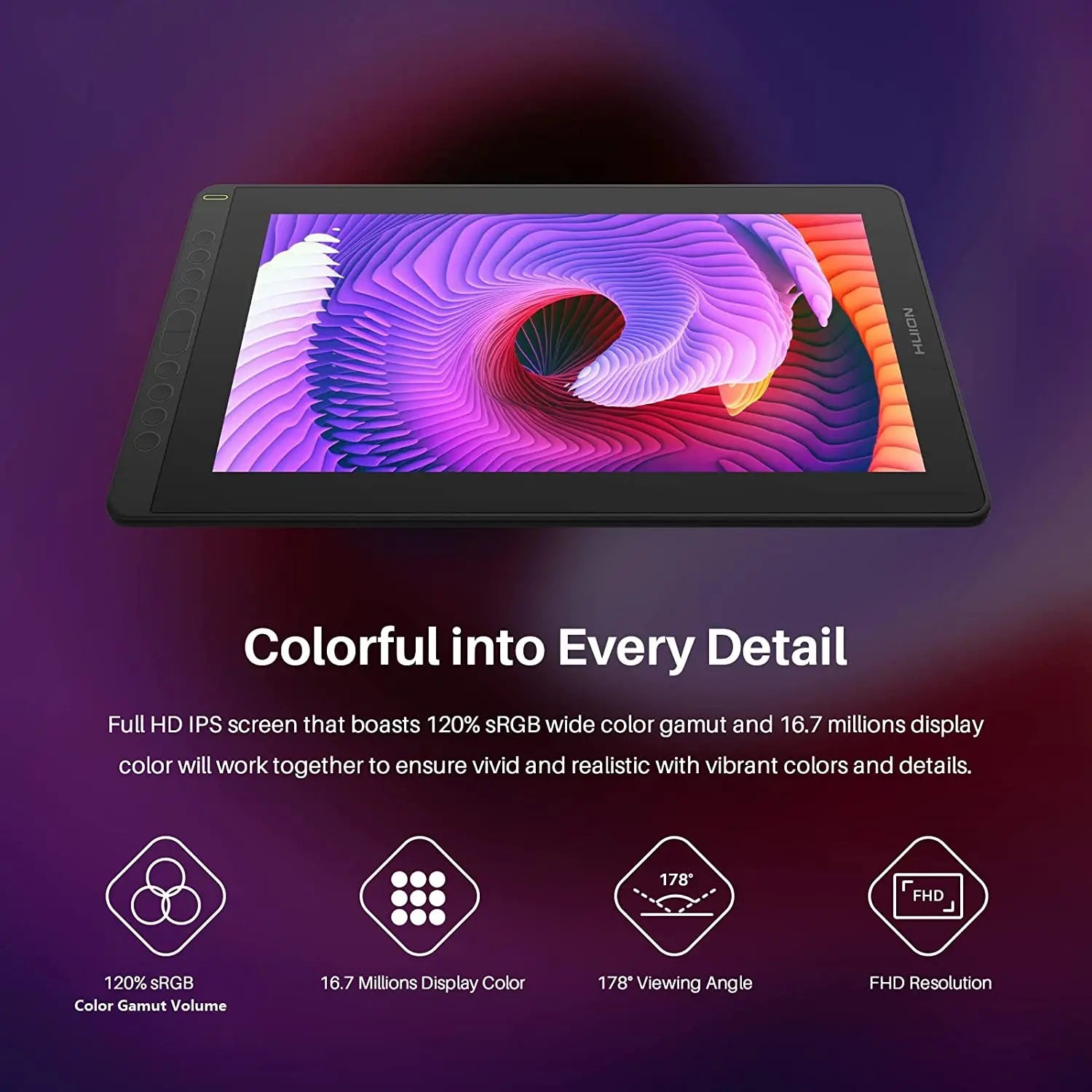

| Color Gamut / Brightness / Color Depth | ~120% sRGB, 16.7 million colors (8‑bit). Viewing angles ~178°. Brightness ~220 nits for the 2021 version. |
| Stylus / Pen | Battery‑free stylus (PW517 for 2021), PenTech 3.0; 8,192 pressure sensitivity levels; ±60° tilt support. Report rate ~266 PPS in 2021. Gen 3 uses updated pen (PW600L) and PenTech 4.0. |

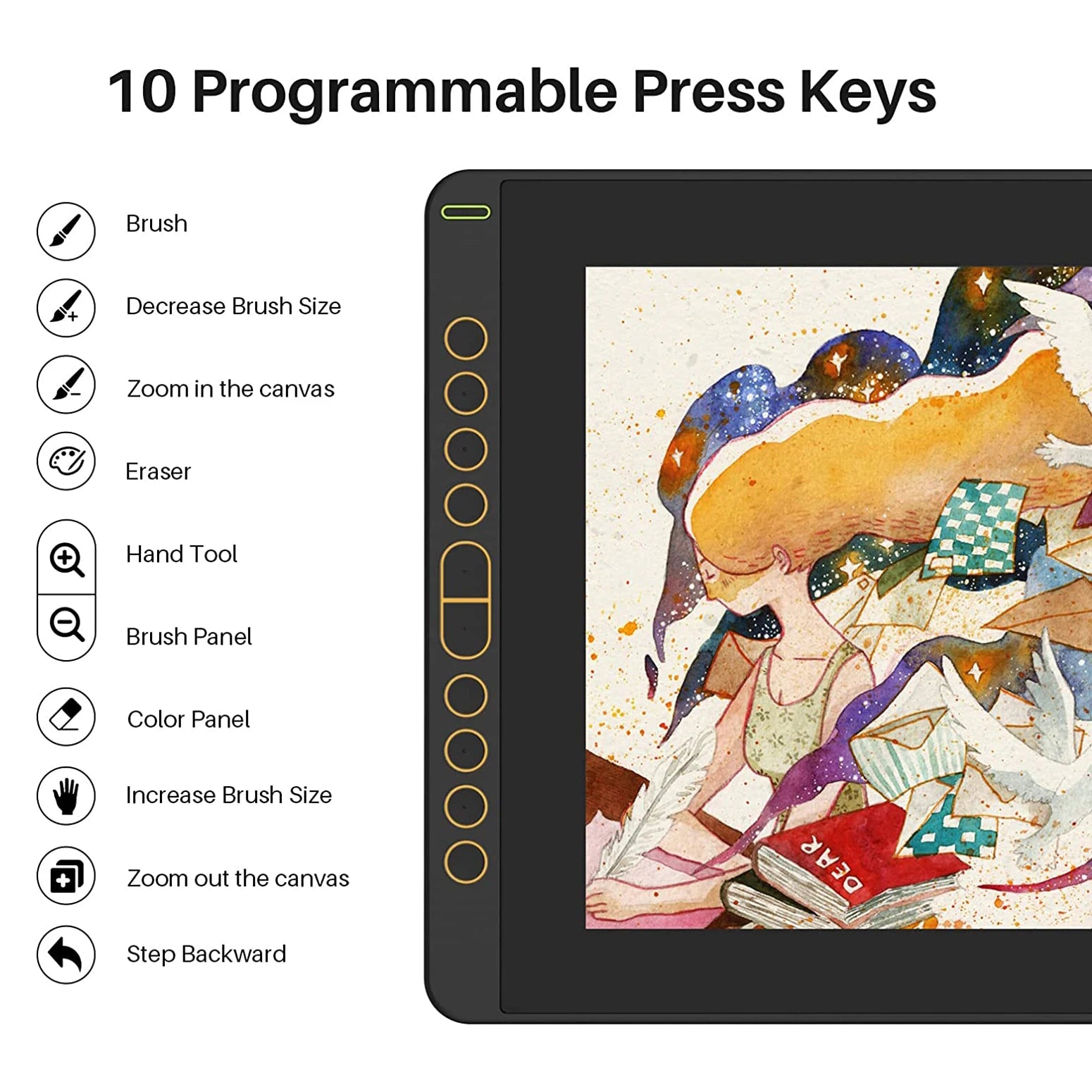

| Shortcuts / Controls | 10 programmable express keys on the left side in 2021 version. Some versions/gen 3 add dials / function buttons. |
| Active Area | Around 344.16 mm × 193.59 mm (which corresponds roughly to the 15.6" diagonal at 16:9). |

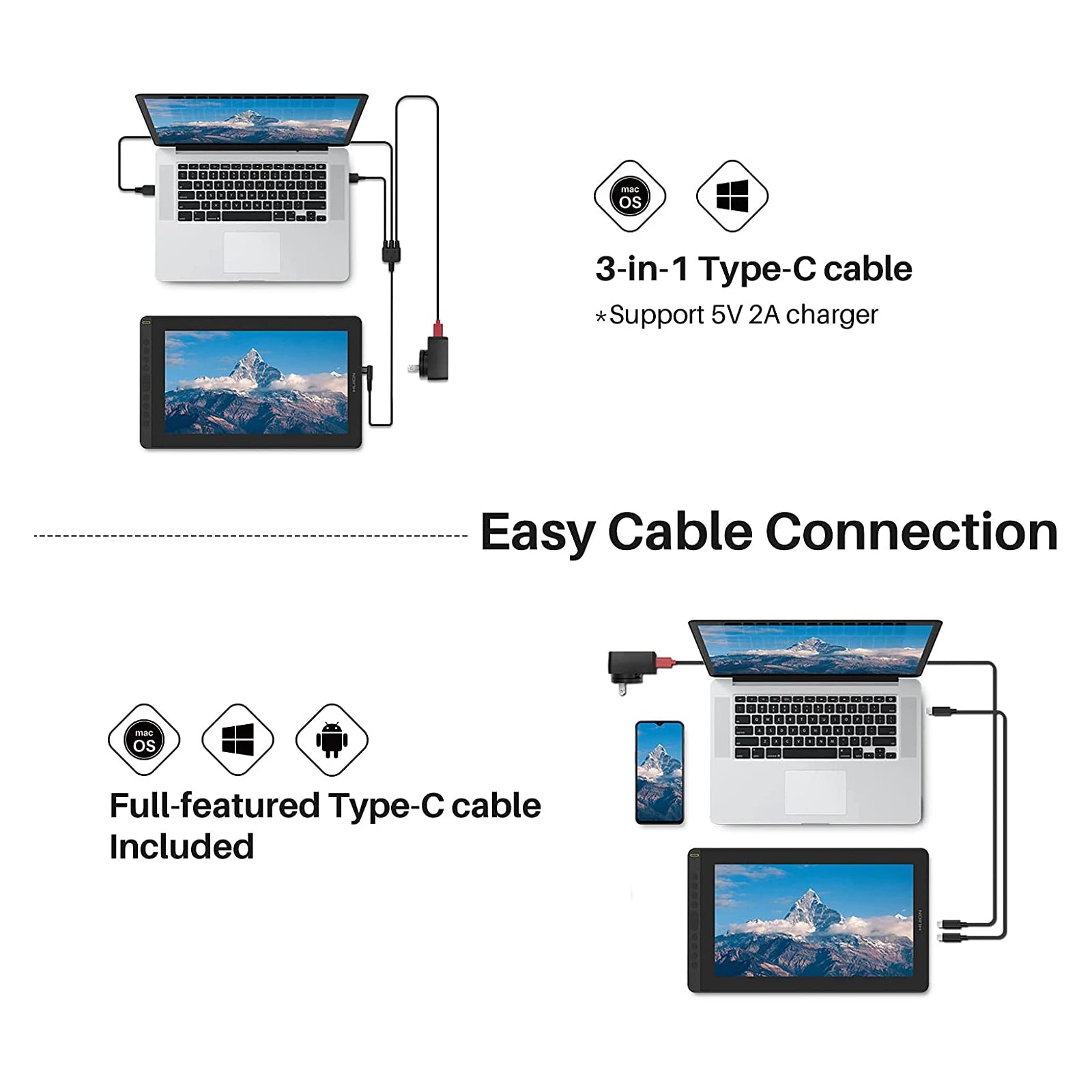

| Power / Cabling | Comes with a “3‑in‑1” cable (for video, data, power) in many kits. Also supports connection via a full‑featured USB‑C cable. For Android use, the device must support USB 3.1 + DisplayPort 1.2. |
| OS Compatibility | Windows 7 or later; macOS 10.12 or later; Android (with required USB/DP supports); Linux (Ubuntu 20.04 LTS is explicitly supported). |
| Other Physical/Performance Specs | Reported response time ~25 ms (2021 version); viewing angles ~178°; weight in the 1.2‑1.3 kg range; includes pen holder, spare nibs. Dimensions (2021 version): approx 432 × 264 × ~14.8 mm without stand. |
Brand Name: HUION
Color: Black/Blue
Connectivity Technology: 3-in-1 cable with HDMI, full-featured Type-C cable
Contrast Ratio: 1000:1
HUION Model: Kamvas 16
Hign-concerned Chemical: None
Interface Type: USB
Item Weight: 7.48 pounds
Model: Kamvas 16 (2021)
Operating System: Mac OS 10.12 or later, linux(Ubuntu), Windows 7 or later, Android devices that support USB3.1 GEN1 and DP1.2Mac OS 10.12 or later, linux(Ubuntu), Windows 7 or later, Android devices that support USB3.1 GEN1 and DP1.2
Package: Yes
Pressure Levels: 8192
Product Dimensions: 16.67 x 9.96 x 0.47 inches
Resolution Ratio: 5080lpi
Screen Resolution: 1920x1080
Screen Size(diagonal): 15.6"
Tablet Width: 9.96inch
Tablet length: 16.67inch
Type: Pen Tablet Monitor,U1200
