SPECIFICATIONS

Overview

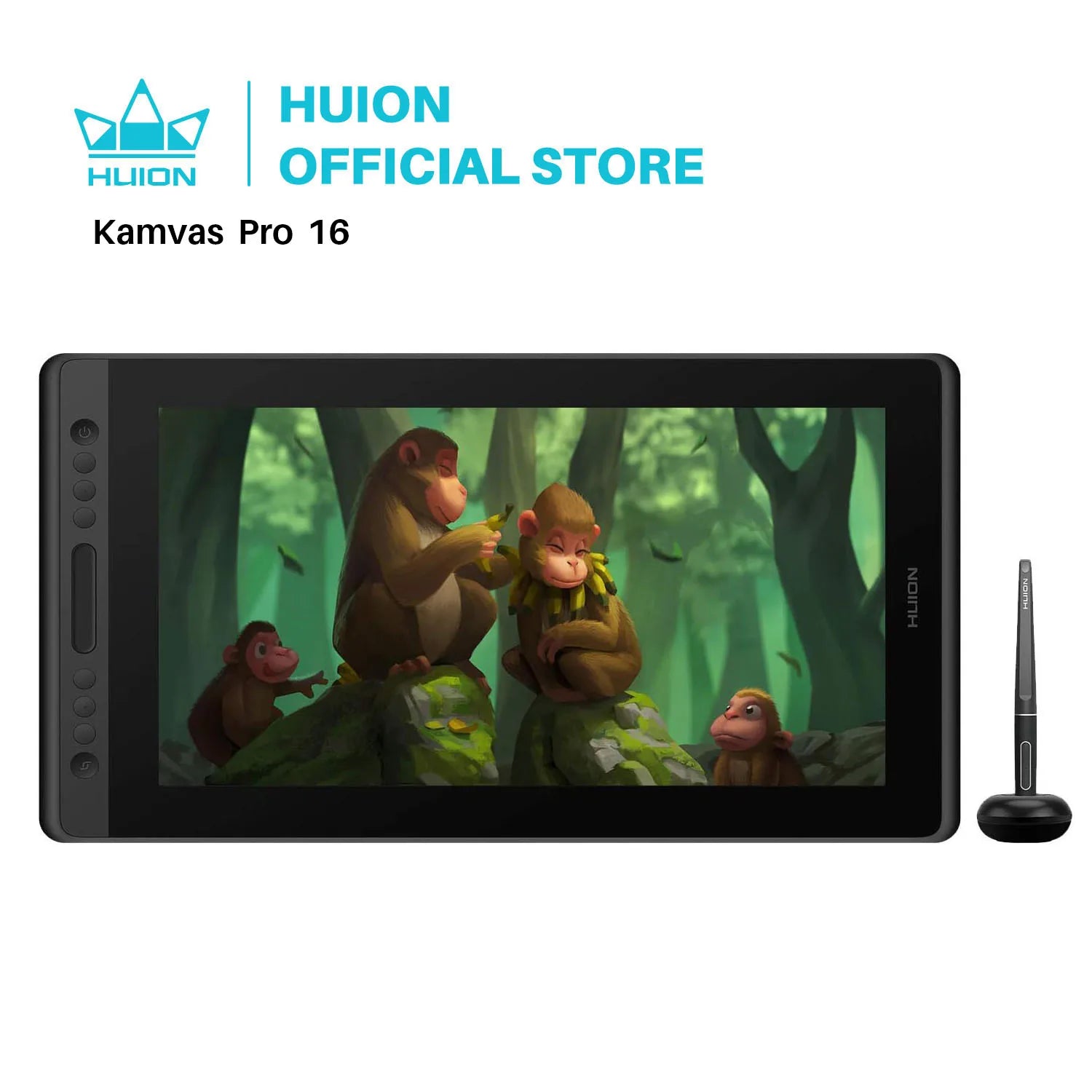

• The Kamvas Pro 16 is a 15.6‑inch pen display (i.e. a graphics monitor) made by Huion, designed for artists, illustrators, digital painters, etc.

• It is not standalone — it needs to be connected to a host device (PC, Mac, some Android devices) which drives the display and handles the software / rendering.

• The “battery‑free stylus” means the pen operates via electromagnetic resonance (Huion's PW507), so you don’t have to recharge the pen.

---

Key Specifications

Here are its main tech specs:

Feature	Specification
Display size	15.6‑inch IPS panel, 16:9 aspect ratio
Resolution	Full HD: 1920 × 1080 pixels for the standard Kamvas Pro 16  There are variants: 2.5K (QHD) version and a 4K UHD version.
Color / gamut	~120% sRGB, approx 16.7 million colors (8‑bit)
Brightness	~220 cd/m² typical
Contrast ratio	~1000:1 typical
Viewing angles	Very wide: ≈ 178° horizontal and vertical (similar)
Response time	25 ms typical

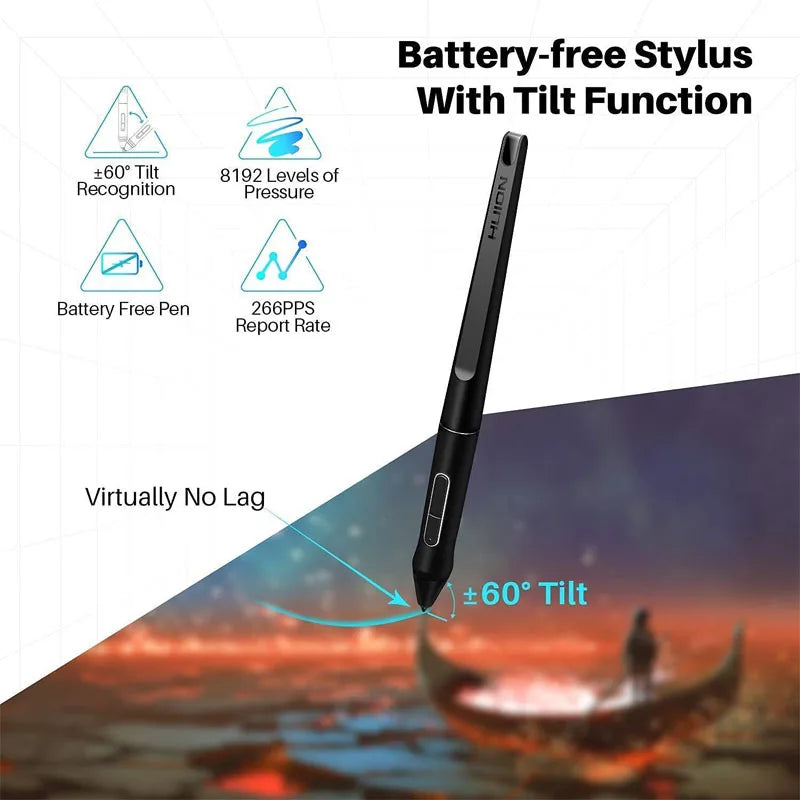

Pen features	• PW507 battery‑free pen • 8192 pressure levels • ±60° tilt support • Report rate: around 220–266 PPS (points per second)
Working / active area	Approximately 344.16 × 193.59 mm for the standard versions

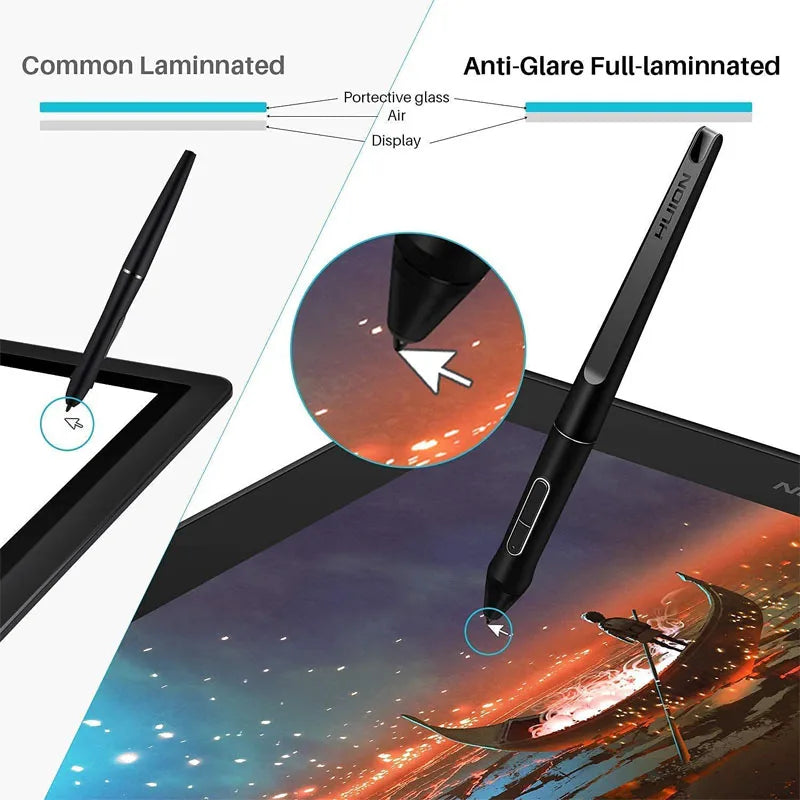

Full lamination + glass finish	The screen is full‑laminated with anti‑glare (etched) glass to reduce parallax, give a matte/paper‑like finish, and improve pen tip accuracy.
Physical & mechanical	Thickness ~11.5 mm (standard model) Net weight approx 1.35 kg for the standard FHD version; lighter in some variants.

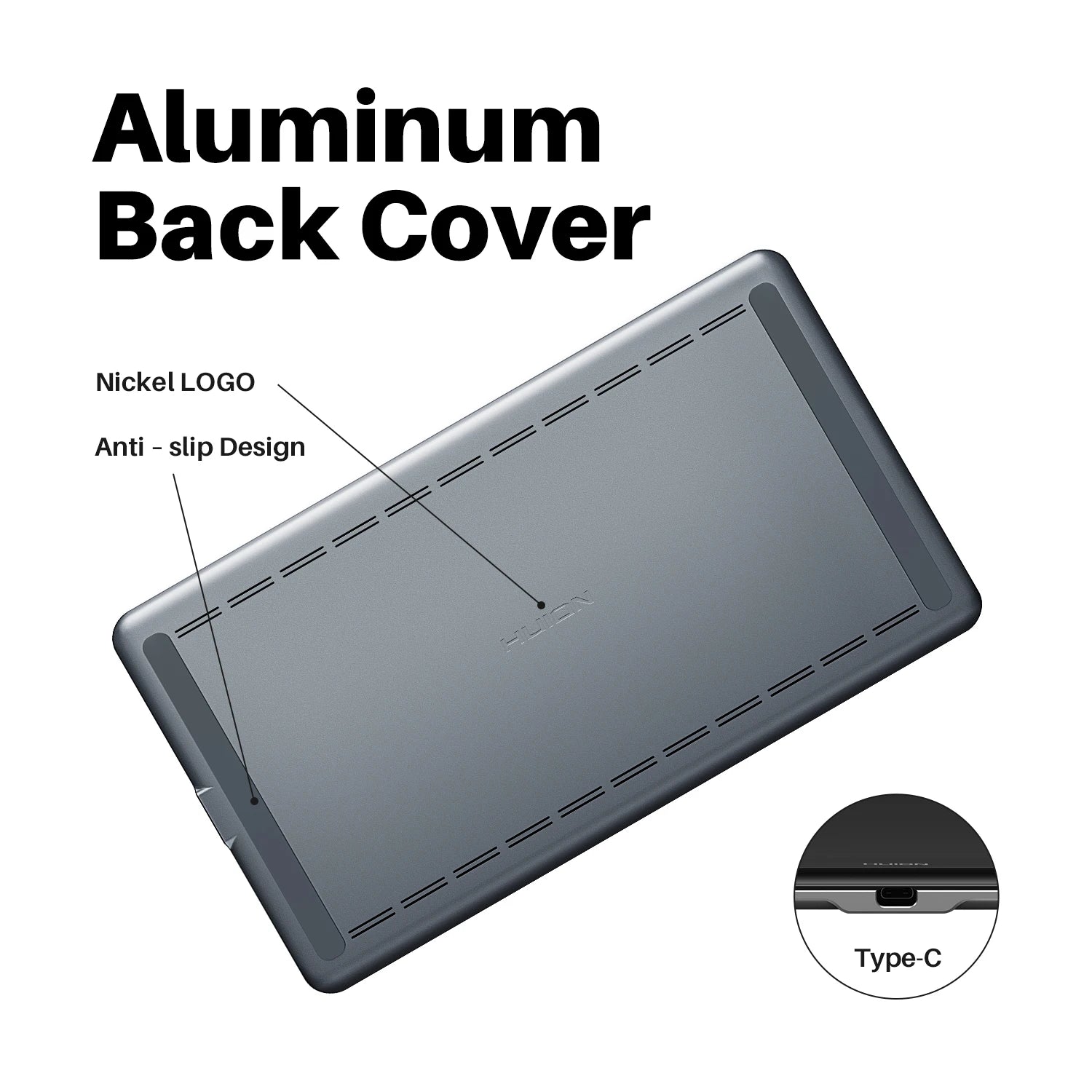

Connectivity / Ports	Usually a “3‑in‑1 cable” (power / USB / video) or via USB‑C plus HDMI (depending on version); some variants support USB‑C video input (DisplayPort or USB video).
Express / shortcut keys	6 programmable buttons + a “touch bar” in many versions, for efficiency in workflows.

Strengths & Advantages

Here are the things many users like about this model:

1. Good balance of size vs portability

   • 15.6‑inch gives a decent working area without being overly bulky. It’s more portable than much larger displays.

2. Battery‑free pen

   • Eliminates the need to charge the pen; lighter pen; more convenient.

3. Reduced parallax & matte / etched glass

   • Full lamination + anti‑glare glass gives a more “pen on paper” feeling. Less gap between pen tip and drawing. Less glare for many users.

4. Adequate color fidelity

   • 120% sRGB is respectable for many digital artists; good for illustration, digital painting, etc.

5. Tilt support and high pressure levels

   • Tilt support (±60°) helps with shading / broad strokes; 8192 levels pressure is standard at this class and works well.

6. Decent build, express keys, efficient workflow tools

   • Programmable buttons, touch bar, good connectivity (especially in newer models) make it usable and flexible.

Well suited for:

• Digital illustration, concept art, digital painting, sketching

• Animation, manga / comics, or any artwork where you need pen tilt, pressure sensitivity, and reasonably accurate color

• Artists who want a pen display but a more affordable alternative to high‑end brands

• Users who value portability and moderate specs (not ultra‑premium color or ultra‑fast rate)



In the Box / What You Get

Typical package includes:

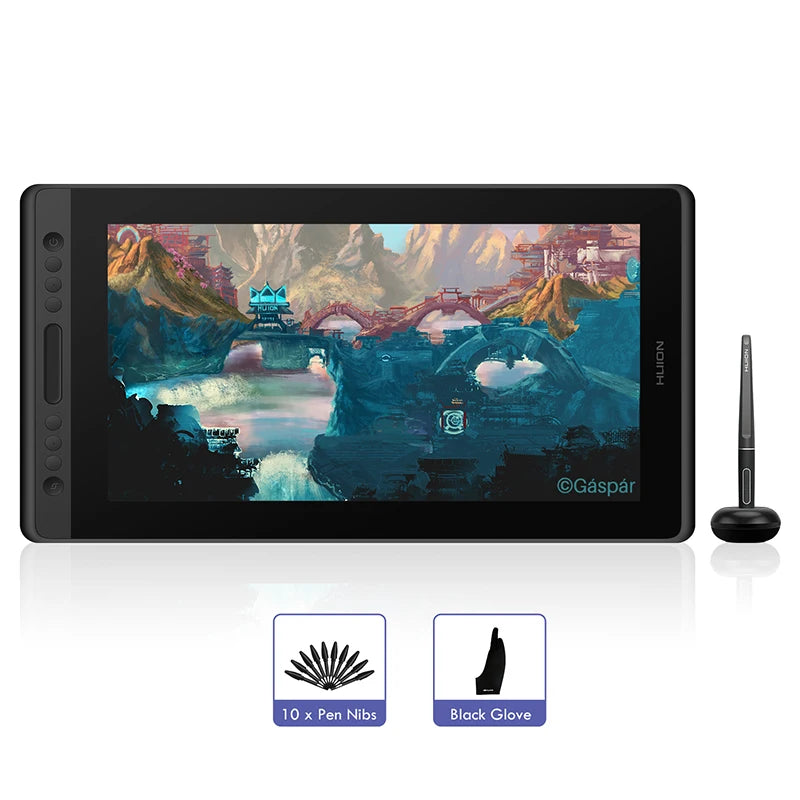

• The Kamvas Pro 16 display tablet monitor <br>

• Battery‑free stylus (PW507), with spare nibs and nib removal tool <br>

• Pen holder <br>

• 3‑in‑1 cable (power + USB + video), or the needed connectivity cables <br>

• Power adapter <br>

• Artist glove (to reduce palm friction) <br>

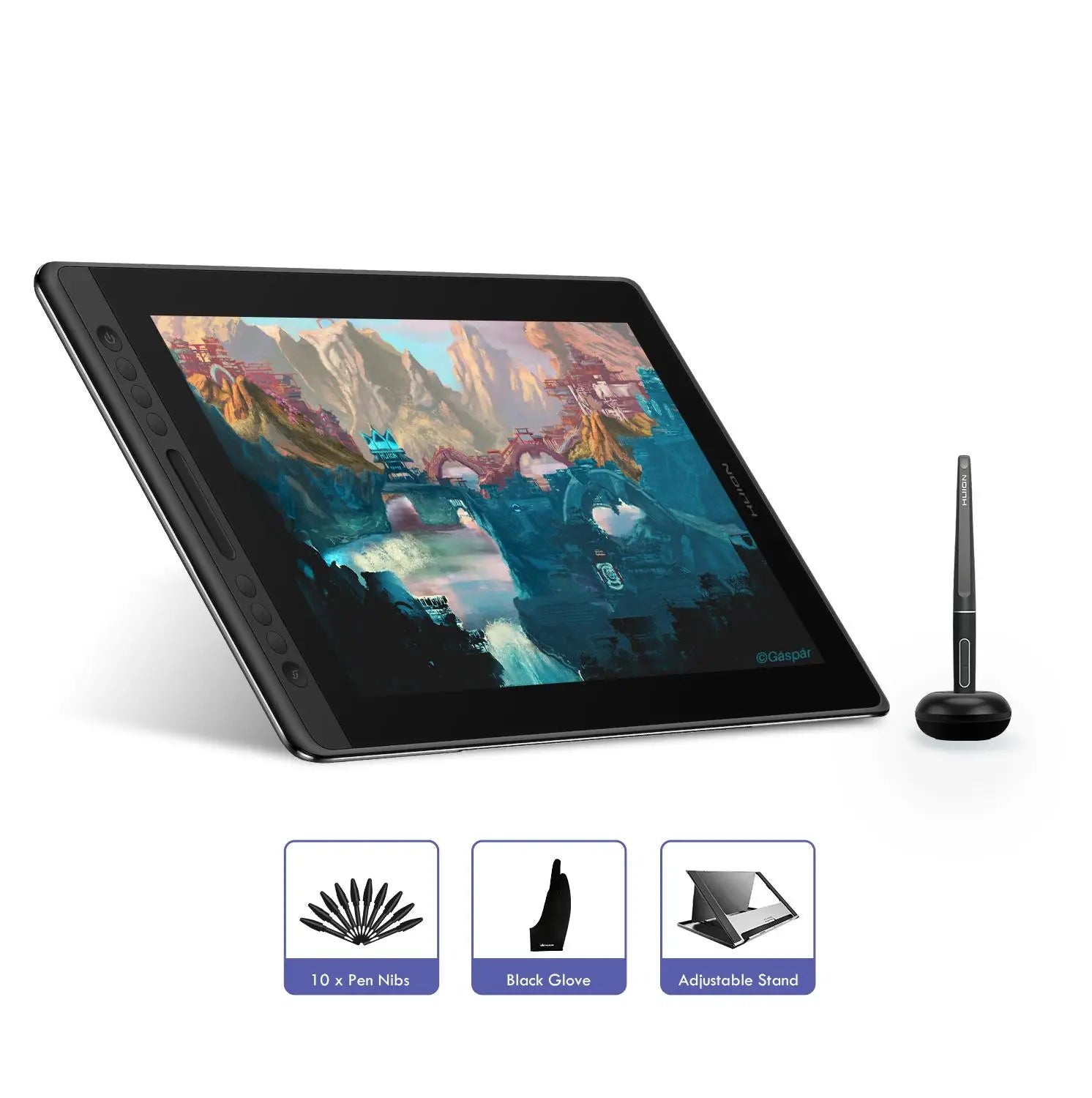

• Sometimes stand or support (depending on version / retailer) <br>

• Cleaning cloth, quick‑start guide

The Huion Kamvas Pro 16 offers strong value in the pen display space: good feature set for the price, battery‑free pen, tilt support, decent color, and a matte / laminated screen that makes drawing more natural. It’s especially attractive for hobbyists, illustrators, or digital artists who want a decent working surface without spending at the super‑premium end.

AG Glass: YES

Active Area: 344.16 x 193.59mm

Battery Included: No

Brand Name: HUION

Certification: CE

Colour: Silver Black

Contrast Ratio: 1000:1

Digital Pen: PW507

Dimension: 437.8 x 251.2 x 11.5mm

Display Color: 16.7M(8bit)

Full Lamination: YES

Gamut: 120% sRGB

High-concerned chemical: None

Interface Type: USB

LCD Type: IPS

Net Weight: 1.35Kg

OS Support: Windows 7 or later, macOS 10.12 or later

Package: Yes

Pen Technology: Battery-Free Electromagnetic Resonance

Press Keys: 6 Programmable Press Keys

Pressure Levels: 8192

Report Rate: 266PPS

Resolution Ratio: 5080lpi

Screen Resolution: 1920x1080

Screen Size(diagonal): 15.6"

Sensing Height: 10mm

Tablet Width: 251.2MM

Tablet length: 437.8MM

Tilt: 60

Touch Bar: Yes

Type: Pen Tablet Monitor,Digital Tablets
