SPECIFICATIONS

The HUANANZHI B650M-B PRO is a value-oriented Micro-ATX AM5 motherboard built on the AMD B650 chipset. Designed for budget gaming PCs and mainstream productivity systems, it supports AMD Ryzen 7000, 8000G, and 9000 Series processors, DDR5 memory with AMD EXPO profiles, PCIe 4.0 storage, and customizable ARGB lighting.

It delivers many of the essential features found on more expensive B650 motherboards while maintaining an affordable price point, making it a strong option for first-time AM5 builders and budget-conscious enthusiasts.

---

Key Features

AMD AM5 Platform

Compatible with:

• AMD Ryzen 7000 Series
• AMD Ryzen 8000G Series APUs
• AMD Ryzen 9000 Series

The board uses the AMD B650 chipset, providing support for the latest AM5 processors and DDR5 memory.

DDR5 Memory with AMD EXPO

• 2 × DDR5 DIMM slots
• Dual-channel memory architecture
• Supports DDR5 memory up to 6800 MHz (OC) using AMD EXPO profiles
• Maximum memory capacity: 96GB (depending on module support and BIOS version)

Dual PCIe 4.0 M.2 Storage

The motherboard includes:

• 2 × PCIe 4.0 M.2 NVMe slots
• High-speed SSD support for faster boot times and application loading

Ideal for gaming libraries, creative software, and large file transfers.

PCIe Expansion

Expansion options include:

• 1 × PCIe 4.0 x16 slot for modern graphics cards
• 1 × PCIe 4.0 x4 expansion slot

Suitable for current-generation GPUs and additional expansion cards.

ARGB Lighting Support

Features:

• Three 5V ARGB headers
• Compatible with addressable RGB lighting devices
• Allows synchronized lighting for compatible fans, LED strips, and CPU coolers

Connectivity

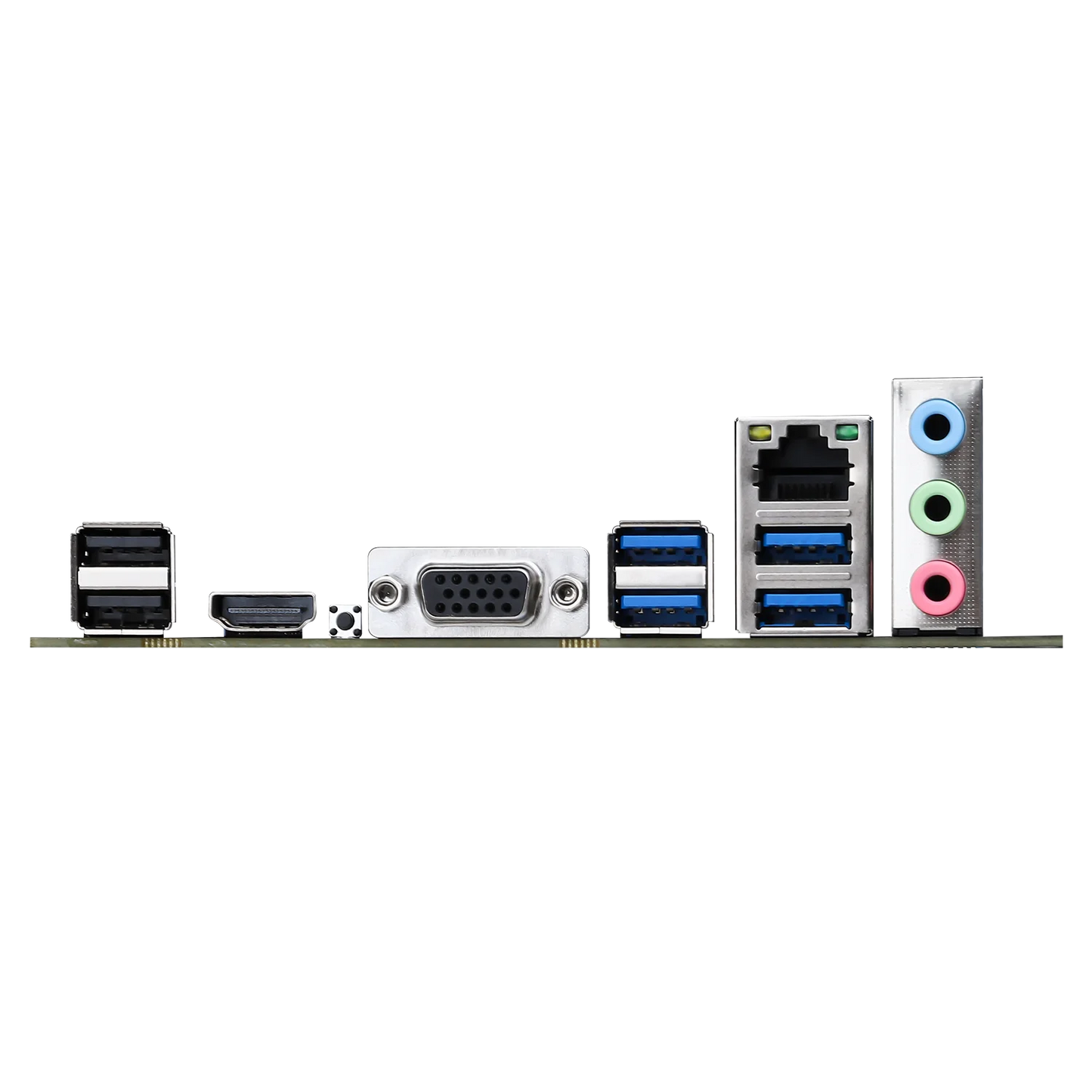

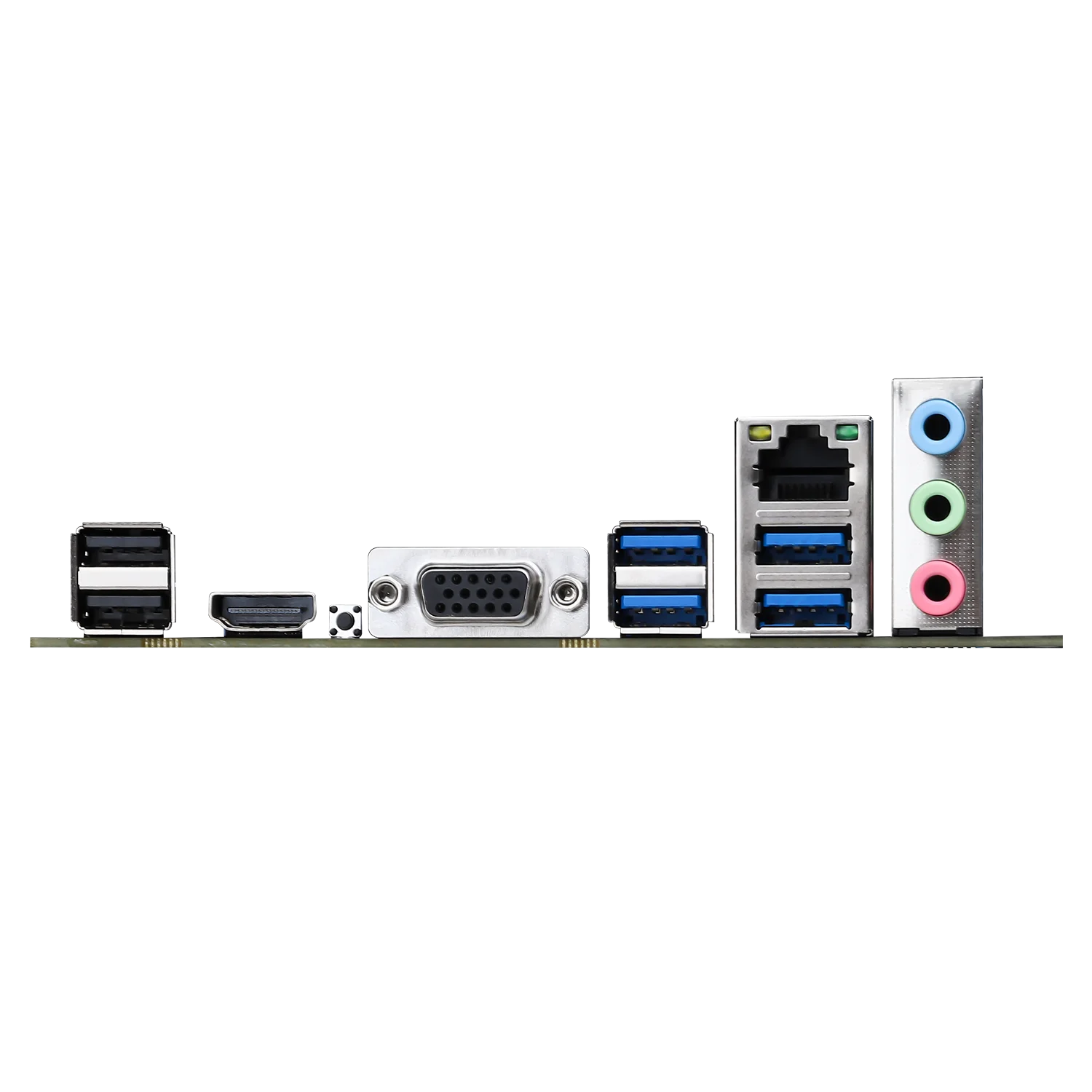

Rear I/O includes:

• HDMI
• VGA (D-Sub)
• USB 3.2 Gen 1 ports
• USB 2.0 ports
• Gigabit Ethernet (Realtek RTL8111H)
• 3-channel HD audio (Realtek ALC897)

Integrated Wi-Fi is not included, but the board provides an M.2 Key-E slot for installing a compatible Wi-Fi module.

---

Benefits

• Affordable AM5 motherboard
• Supports Ryzen 7000, 8000G, and 9000 Series CPUs
• DDR5 memory with AMD EXPO support
• Two PCIe 4.0 M.2 NVMe SSD slots
• PCIe 4.0 graphics support
• Multiple ARGB headers
• Compact Micro-ATX design

---

Ideal For

• Budget gaming PCs
• First-time AM5 builds
• Home and office computers
• Productivity workstations
• Mid-range content creation systems

---

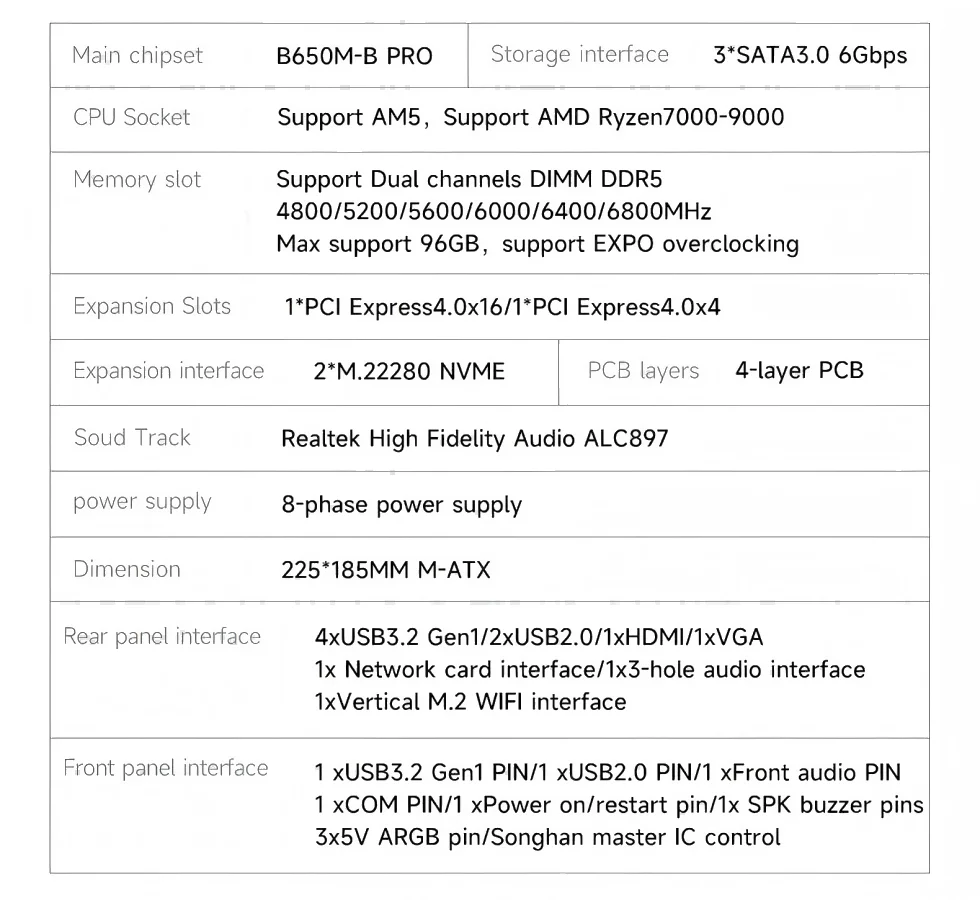

Specifications

• Brand: HUANANZHI
• Model: B650M-B PRO
• Chipset: AMD B650
• CPU Socket: AM5
• Form Factor: Micro-ATX (225 × 185 mm)
• Memory: 2 × DDR5 DIMM
• Maximum Memory: Up to 96GB
• Memory Speed: Up to DDR5-6800 (OC)
• Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x4
• Storage: 2 × PCIe 4.0 M.2 NVMe
• Networking: Realtek Gigabit LAN
• Audio: Realtek ALC897 HD Audio
• Display Outputs: HDMI, VGA
• Lighting: 3 × 5V ARGB headers

---

Package Includes

• 1 × HUANANZHI B650M-B PRO Motherboard
• 1 × I/O Shield (if included by the seller)
• 2 × SATA Data Cables (package may vary)
• M.2 Mounting Hardware
• User Manual

---

Strenghts

• Excellent price-to-feature ratio for an AM5 motherboard
• Supports Ryzen 9000 processors with compatible BIOS
• DDR5 EXPO memory support
• Dual PCIe 4.0 M.2 slots
• Multiple ARGB headers
• Compact Micro-ATX layout

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.2,PS/2

Battery Included: no

Brand Name: HUANANZHI

Chipset: AMD B650

Chipset Manufacturer: AMD

High-concerned chemical: None

Maximum Ram Capacity: 96GB

Memory channel: Double

Number Of Memory Slots: 2

Number of PCI: 1

Number of PCIe x 16: 1

Number of SATA Ports: 4

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 4.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7

RAID Supported: Yes

SATA RAID: 0,1

Socket Type: Socket AM5

Special Features: RGB

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5 REG

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No
