SPECIFICATIONS

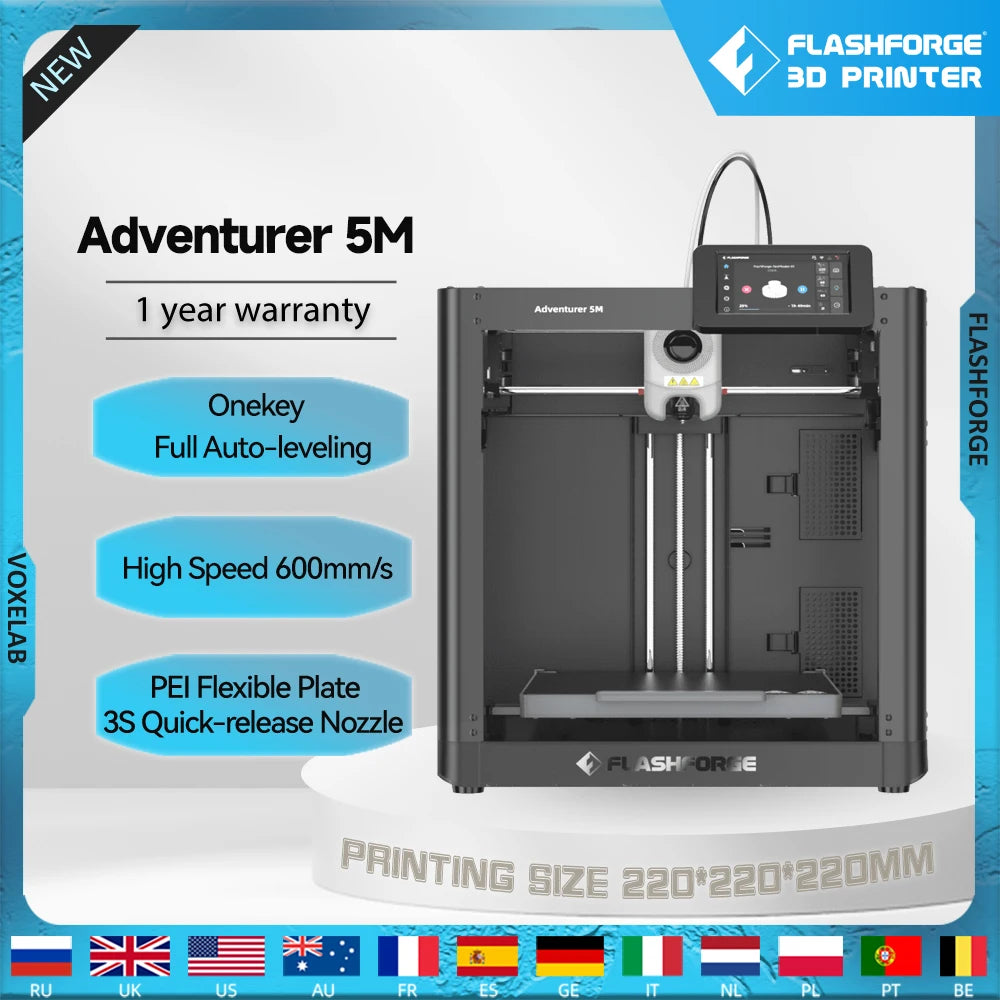

The FLASHFORGE Adventurer 5M 3D Printer is a high-speed CoreXY FDM 3D printer designed for beginners, hobbyists, educators, and creators who want fast, reliable, and easy-to-use 3D printing. With 600 mm/s maximum speed, full automatic leveling, a direct-drive extruder, flexible PEI build plate, quick-release nozzle system, and power-loss recovery, it provides a streamlined printing experience with minimal setup and maintenance.

Key Features

High-Speed CoreXY Printing

• Maximum travel speed: 600 mm/s
• Maximum acceleration: 20,000 mm/s²
• CoreXY all-metal motion structure improves stability during high-speed movement.
• Designed to reduce vibration, improve precision, and shorten print times.

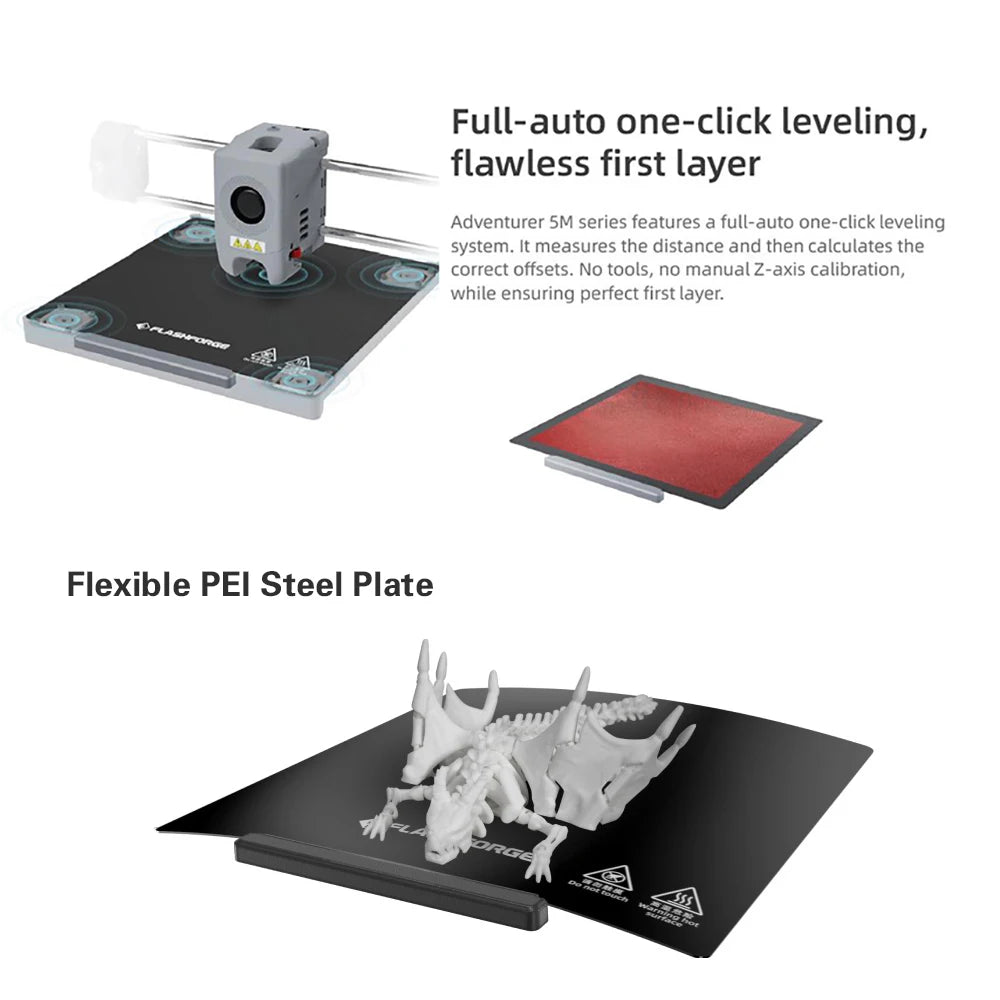

Full Automatic Leveling

• One-click automatic bed leveling removes the need for manual adjustment.
• Automatic calibration helps create consistent first layers.
• Reduces common issues such as:
  • Uneven adhesion
  • Warping
  • Poor first-layer quality

The automatic leveling system is one of the major beginner-friendly features of the Adventurer 5M series.

Direct Drive Extruder

• Direct-drive extrusion system provides better filament control.
• Supports flexible materials more effectively than many Bowden-style printers.
• Maximum nozzle temperature: 280°C.

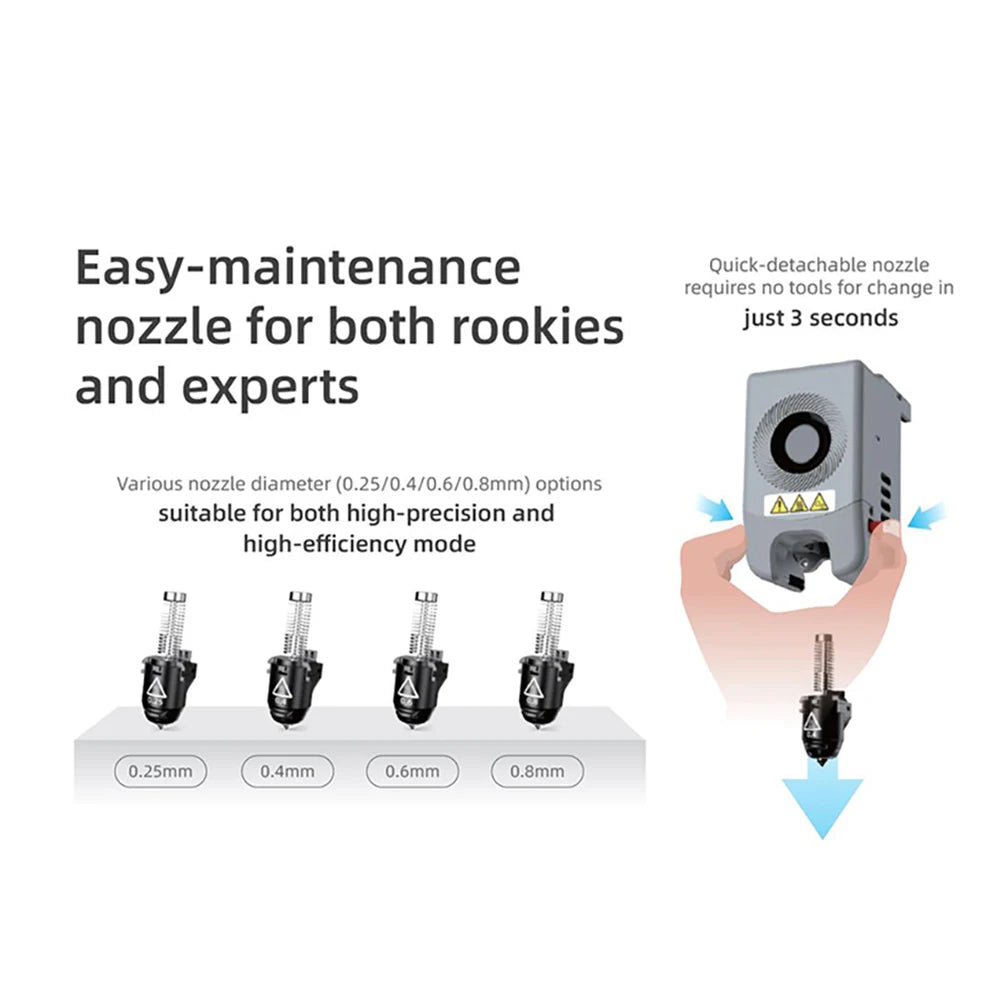

• Quick-release nozzle design allows faster cleaning and replacement.

Flexible PEI Build Plate

• Removable flexible PEI-coated steel plate.
• Provides strong adhesion during printing.
• Flexible surface makes finished models easier to remove.
• Heated platform reaches approximately 100°C.

Power Loss Recovery

• Automatically saves print progress if power is interrupted.
• Allows printing to resume after power restoration.
• Helps prevent wasted filament and failed long prints.

Quick Setup & Easy Operation

• Designed for fast installation and beginner-friendly use.
• Ready-to-print setup with minimal assembly.
• Includes a 4.3-inch display for controlling print settings.

Smart Connectivity

• Wi-Fi connectivity
• Ethernet connection
• USB printing
• Compatible with FlashPrint 5 and Orca-Flashforge slicing software.

Technical Specifications

Feature	Specification
Printer Type	FDM 3D Printer
Motion System	CoreXY
Build Volume	220 × 220 × 220 mm
Maximum Speed	600 mm/s
Maximum Acceleration	20,000 mm/s²
Extruder Type	Direct Drive
Nozzle Temperature	Up to 280°C
Build Plate	Flexible PEI Steel Plate
Bed Temperature	Up to 100°C
Leveling	Full Auto Leveling
Display	4.3-inch Screen
Connectivity	Wi-Fi, Ethernet, USB
Filament Diameter	1.75 mm

Supported Filaments

Compatible materials include:

• PLA
• PETG
• TPU
• PLA-CF
• PETG-CF

The printer is especially well-suited for fast printing with common hobby and engineering-grade filaments.

Ideal Uses

Home & Hobby Projects

• Custom household parts
• Toys and models
• Decorative items
• Replacement components

Small Business Applications

• Product prototypes
• Custom accessories
• Personalized items
• Short-run manufacturing

Education & STEM

• Classroom projects
• Engineering demonstrations
• Design experiments
• Maker spaces

Advantages

✅ Extremely fast 600 mm/s printing
✅ Beginner-friendly automatic leveling
✅ Stable CoreXY structure
✅ Direct-drive extruder for better filament control
✅ Flexible PEI plate for easier model removal
✅ Quick nozzle replacement system
✅ Power-loss recovery protects long prints
✅ Supports carbon fiber reinforced filaments

The FLASHFORGE Adventurer 5M is a strong choice for:

• Beginners wanting an easy first 3D printer
• Makers upgrading from older printers
• Students and educators
• Small businesses creating prototypes
• Hobbyists who value speed and reliability

Final Overview

The Flashforge Adventurer 5M delivers an impressive combination of speed, automation, and print quality. Its CoreXY design, 600 mm/s performance, automatic leveling, direct-drive extrusion, and flexible PEI platform make it a versatile machine for users who want professional-looking prints without spending hours on calibration and maintenance.

Auto Leveling: Yes

Bed Temp: 110

Brand Name: FLASHFORGE

CE Certification: Yes

Certification: CE

Color Print Speed: 200-300mm/s

Consumables Diameter: 1.75mm

Diameter Temp: 280

File Format: 3MF/STL/OBJ/FPP/BMP/PNG/JPG/JPEG File

Fliament: PLA/PETG/TPU/PLA-CF/PETG-CF

High-concerned chemical: None

Interface Type: USB

IsWi-Fi/BluetoothSupport: Yes

Language: Chinese/English/Japanese/German/French/Spanish/Korean

Maximum Print Size: 220*220*220mm

Maximum Printing Speed: 300mm/s

Maximum Working Speed: 600mm/s

Molding Technology: FDM

Nozzle Diameter: 0.25mm/0.4mm/0.6mm/0.8mm

Operating System: Win xp/Vista/7/8/10/Mac OS/Linux

Power Supply: 350W

Precision: ±0.2mm

Printing Speed: 200-300mm/s

Slice Software: FlashPrint 5/Cura/PRUSA/OCAR

Slice Thickness: 0.1-0.4mm

Voltage: 110-220V

Wireless Connectivity: Wi-Fi
