SPECIFICATIONS

⚡ High Power Output (3000W Continuous / 6000W Surge)

• Continuous power: 3000W
• Peak/surge power: 6000W (for startup loads)

👉 This allows you to run:

• Refrigerators
• Power tools
• TVs, laptops, lights
• Small appliances

👉 Surge capacity is critical for devices with motors (fridge, pumps).

---

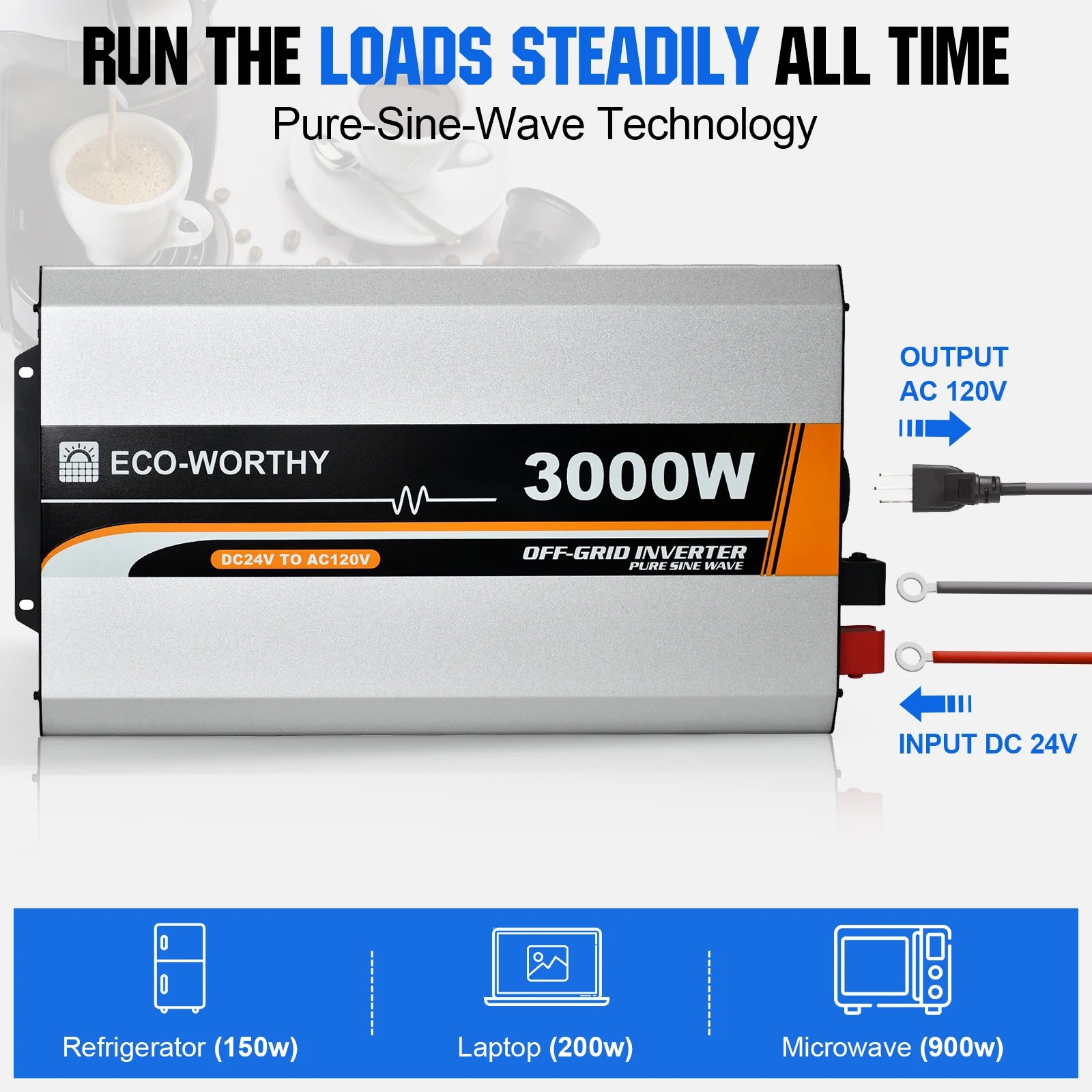

🔌 Pure Sine Wave Output (Clean & Stable Power)

• Produces true sine wave AC electricity (like utility grid power)
• Total Harmonic Distortion (THD): ≤3%

👉 Benefits:

• Safe for sensitive electronics
• No buzzing or interference
• Better efficiency and device lifespan

---

🔋 24V DC Input (Battery System Compatible)

• Designed for 24V battery banks
• Input range: ~21.6V–32V DC

👉 Typically used with:

• Solar battery systems
• Lithium or lead-acid batteries

---

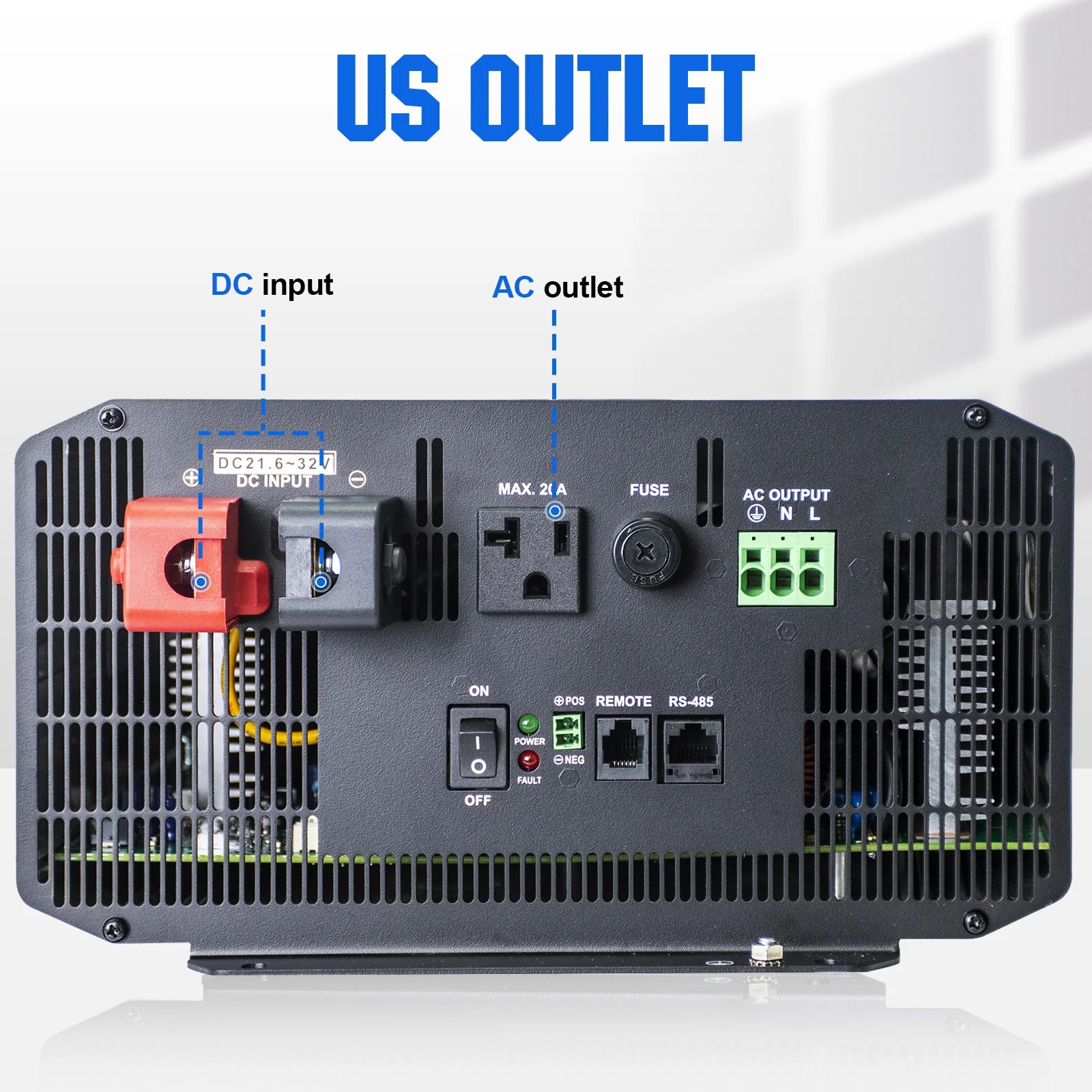

🔌 AC Output & Connections

• Output: 110V–120V AC
• Includes:
  • 1 AC outlet
  • Hardwire terminal for direct connection
  • 150A fuse (protection)

👉 Hardwire option is useful for:

• RV electrical panels
• Home backup circuits

---

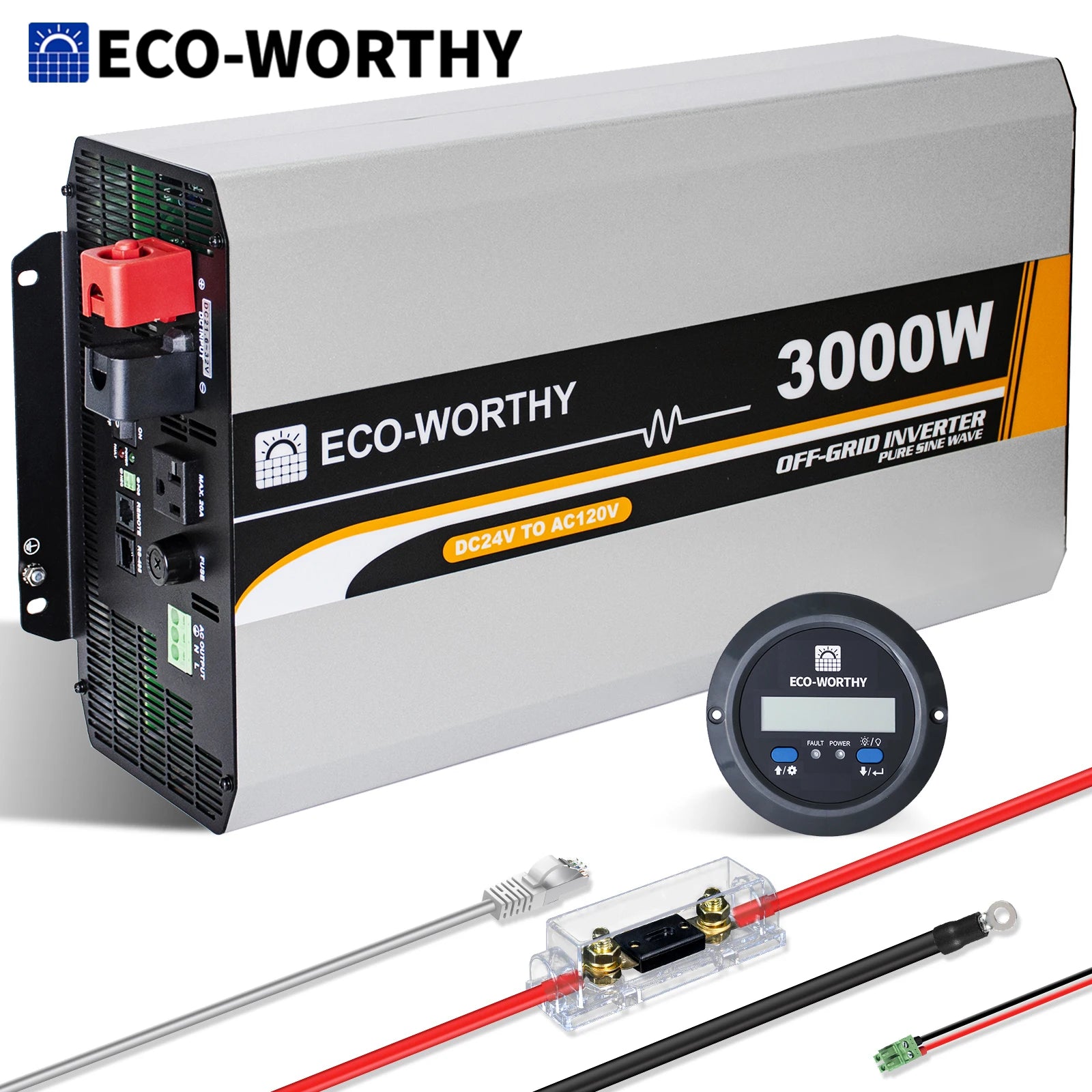

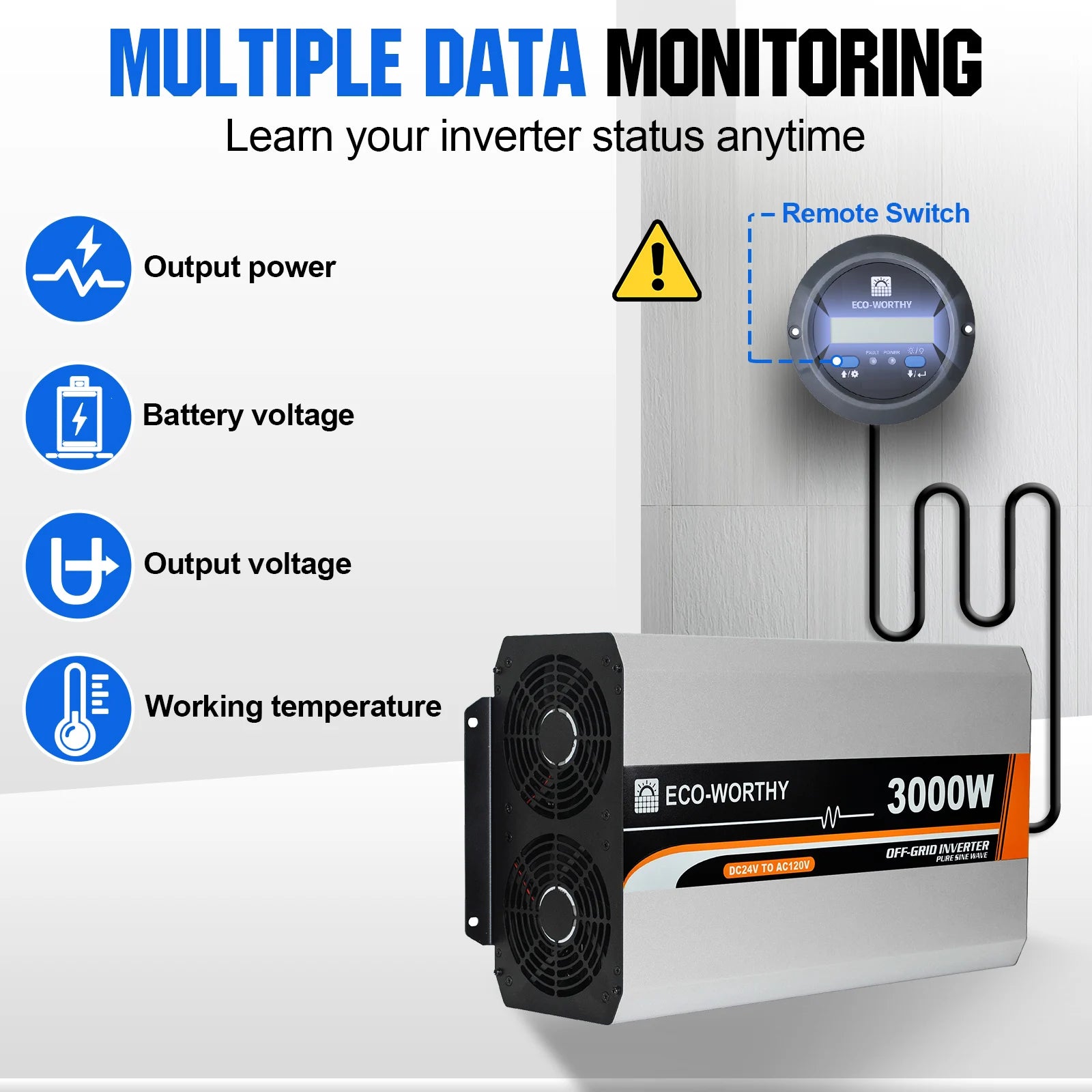

🎮 Remote Control Function

• Comes with wired remote controller
• Allows:
  • Power ON/OFF from a distance
  • Convenient control in RV or solar setups

👉 Very useful for installations where the inverter is mounted out of reach.

---

🔧 Efficiency & Performance

• Efficiency: >90% (up to ~94%)
• Low idle consumption
• Stable voltage output (±3%)

👉 Means less energy loss and longer battery runtime.

---

🧱 Build Quality & Design

• Heavy-duty metal housing
• Built-in cooling system (fans)
• Weight: ~8.5 kg (robust internal components)

👉 Designed for continuous operation in off-grid environments.

---

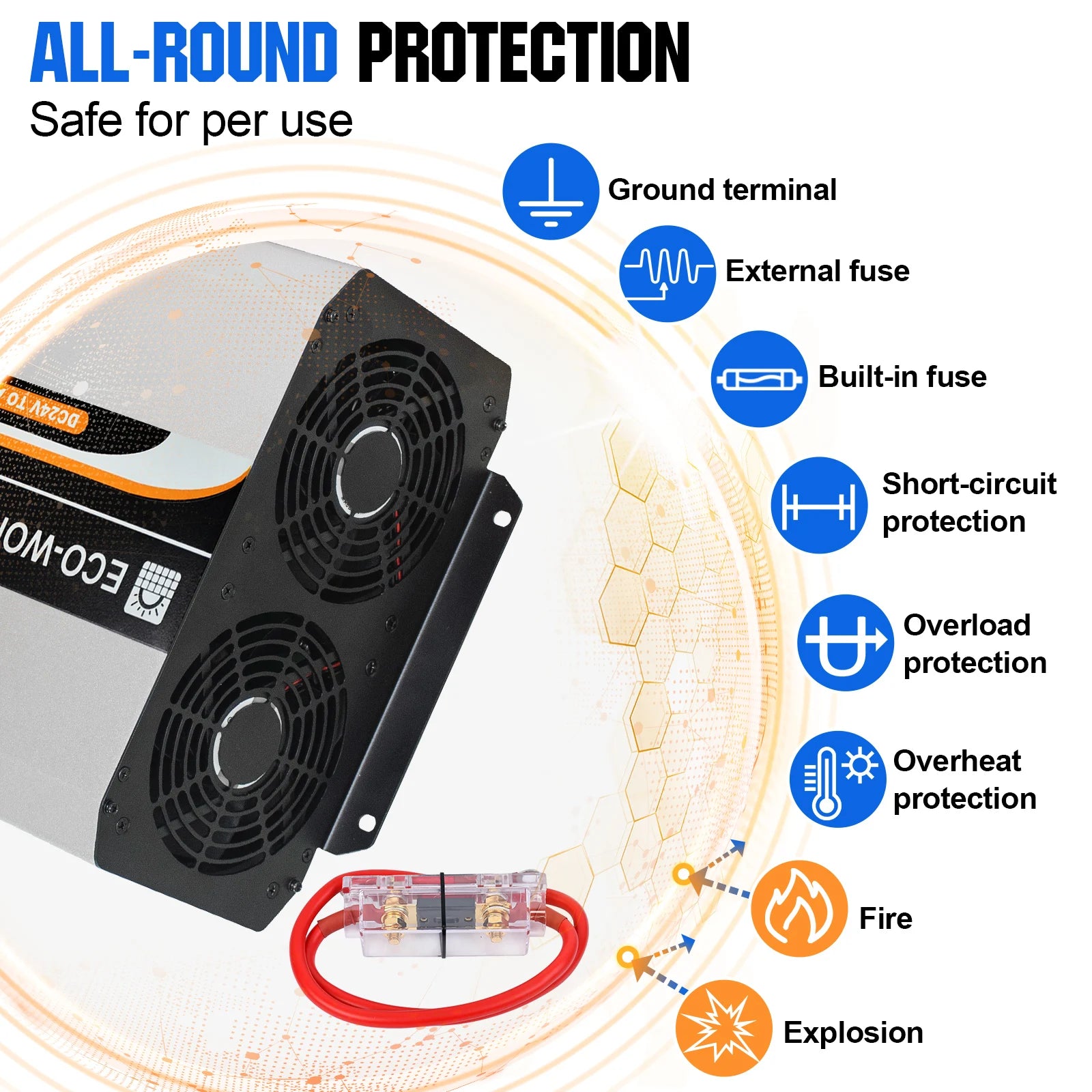

🛡️ Safety Protections

Includes multiple protections:

• Overload protection
• Over-voltage / under-voltage protection
• Over-temperature shutdown
• Short circuit protection

👉 Essential for protecting both inverter and connected devices.

---

🏠 Best Use Cases

• Solar off-grid systems
• RV / camper vans
• Trucks & mobile setups
• Emergency home backup power
• Cabins or tiny homes

✅ Key Advantages

• Clean, stable pure sine wave output
• High power for appliances and tools
• Remote control convenience
• Strong efficiency and protection features
• Ideal for solar/off-grid setups

📊 ECO-WORTHY vs Typical 3000W Inverters

Feature	ECO-WORTHY
Output Type	Pure sine wave
Continuous Power	3000W
Surge Power	6000W
Efficiency	~90–94%
Input Voltage	24V
Remote Control	✔️
AC Outlets	1 + hardwire
Best For	Solar / RV / off-grid

⚠️ Things to Consider

• Requires 24V battery system (not 12V)
• Only 1 AC outlet (you may need power strip or hardwire)
• Large and heavy (not portable like small inverters)
• Installation may require basic electrical knowledge

Application: Camping/Hiking, Electronics, Home/Garden

Brand Name: ECO－WORTHY

Certification: NONE

Current Rating: 21-30 A

Current Type: AC/DC

Features: LCD Display

High-concerned chemical: None

Inverter Technology: Battery-Based

Is Smart Device: No

Model Number: 1101600027

Output Current: 30A

Output Frequency: 3000

Output Type: SINGLE

Power: Greater Than 2000 W

Power Source: Solar

Resistance Properties: Abrasion Resistant, Fire Resistant

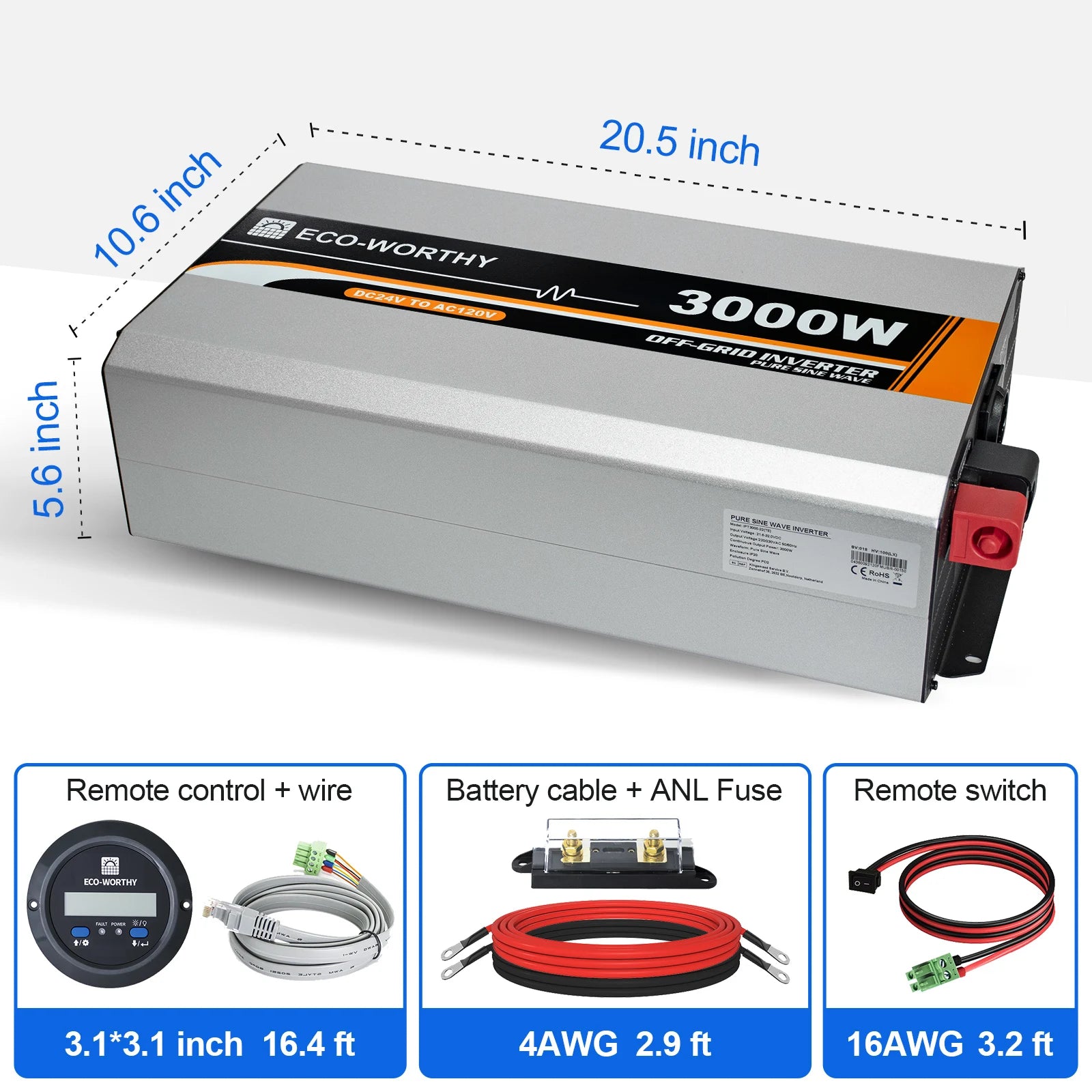

Size: 52.1*27*14.3cm

System Configuration: Off-Grid

Type: Charger/Inverter

Voltage: 21-30 V

Wattage: 3000-3499 W
