SPECIFICATIONS

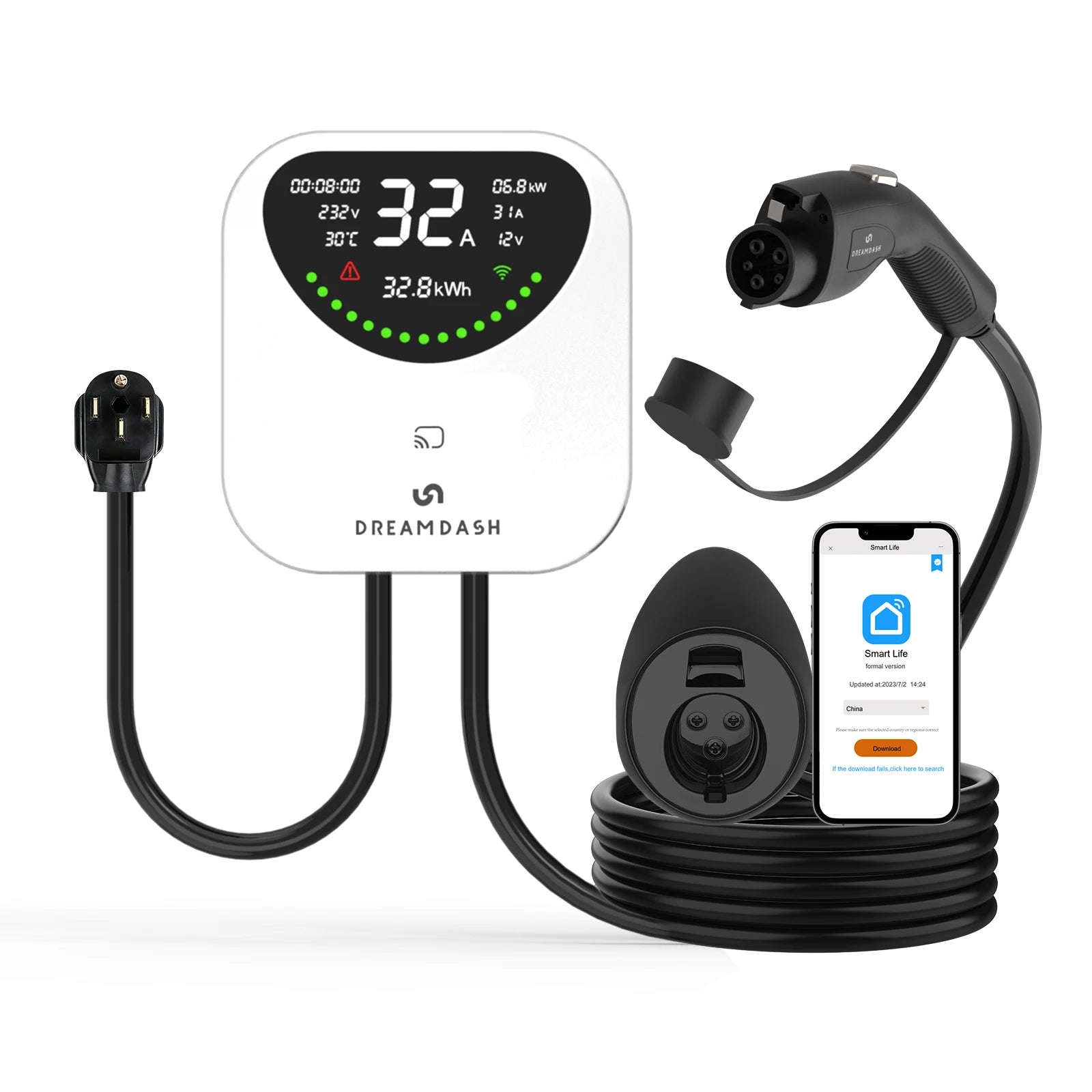

The DREAMDASH 48A Level 2 EV Charger is a powerful home charging station designed for faster AC charging than a standard 120V Level 1 charger. With up to 11.5kW output, adjustable 6–48A charging, Wi-Fi connectivity, a NEMA 14-50 plug, a 25-foot J1772 cable, and ETL listing, it is aimed at EV owners who want a capable home charging setup for indoor or outdoor installation.

⭐ Key Features

• Level 2 AC charging
• Up to 48A / 11.5kW
• Adjustable charging current from 6–48A
• Wi-Fi smart connectivity
• NEMA 14-50 plug
• 25-foot J1772 charging cable
• ETL listed
• Indoor/outdoor use
• Designed for home EV charging
• US-shipped according to the listing

⚡ 11.5kW Charging — ⭐⭐⭐⭐⭐

The 48A / 11.5kW maximum output is the main attraction.

Compared with a typical Level 1 charger, a properly installed Level 2 charger can dramatically reduce charging time.

For an EV capable of accepting the full output, 11.5kW can add roughly 40–50 miles of range per hour, although the actual amount varies significantly by vehicle efficiency and charging limits.

There's an important limitation:

The car determines how much power it can accept.

If an EV's onboard AC charger is limited to 7.2kW, for example, connecting it to an 11.5kW EVSE won't make it charge at 11.5kW.

🔌 6–48A Adjustable Charging — ⭐⭐⭐⭐⭐

The adjustable current range is an excellent feature.

You can reduce the charging rate when your home's electrical capacity is limited or when you don't need maximum charging speed.

For example, lower settings can be useful when:

• Sharing a circuit with other loads
• Charging overnight
• Managing electrical demand
• Using a smaller compatible circuit

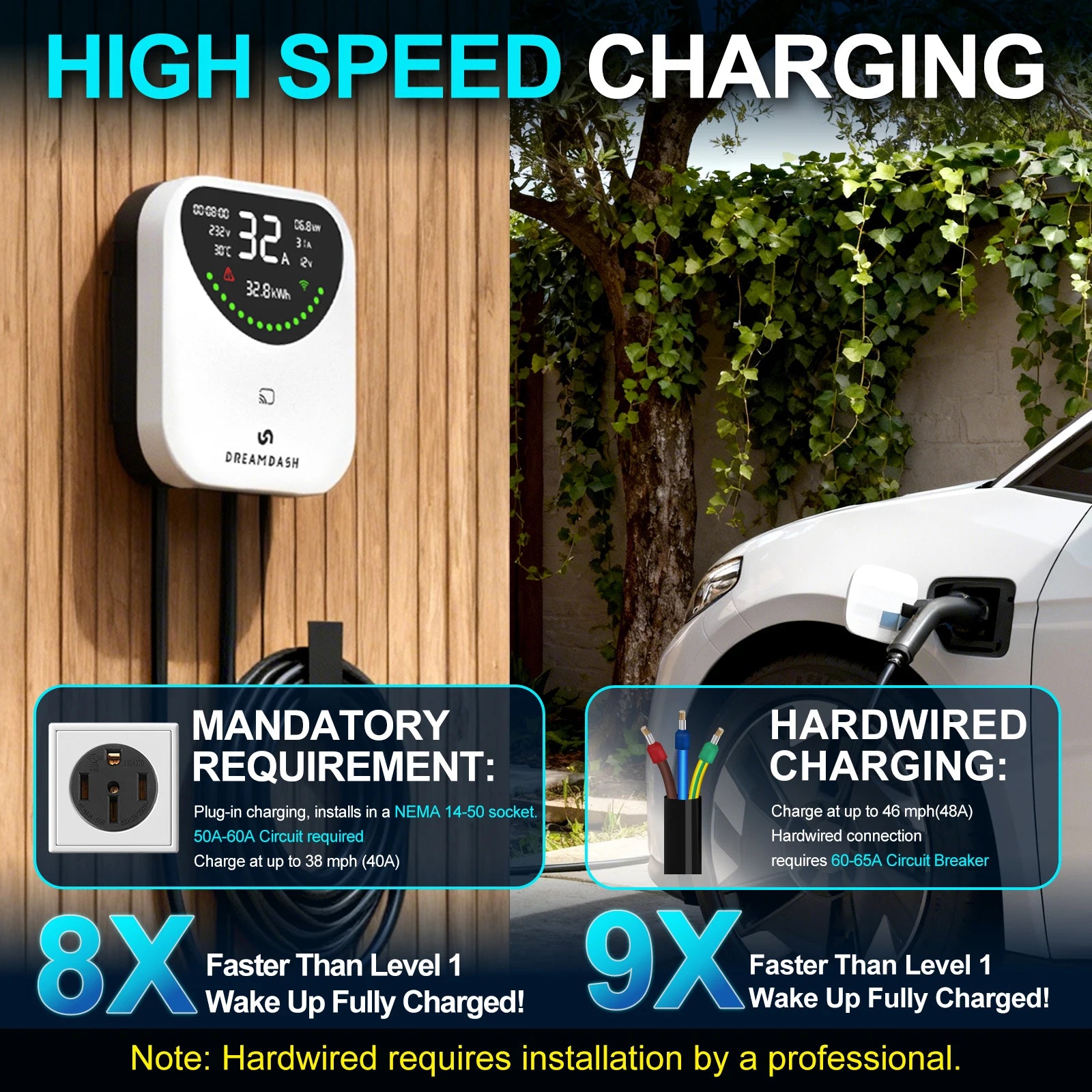

The maximum 48A continuous EV charging load generally requires a 60A dedicated circuit under the standard 80% continuous-load rule.

Do not install a 48A EV charger on an ordinary 50A circuit.

A qualified electrician should verify the home's wiring, breaker, receptacle, and local requirements before installation.

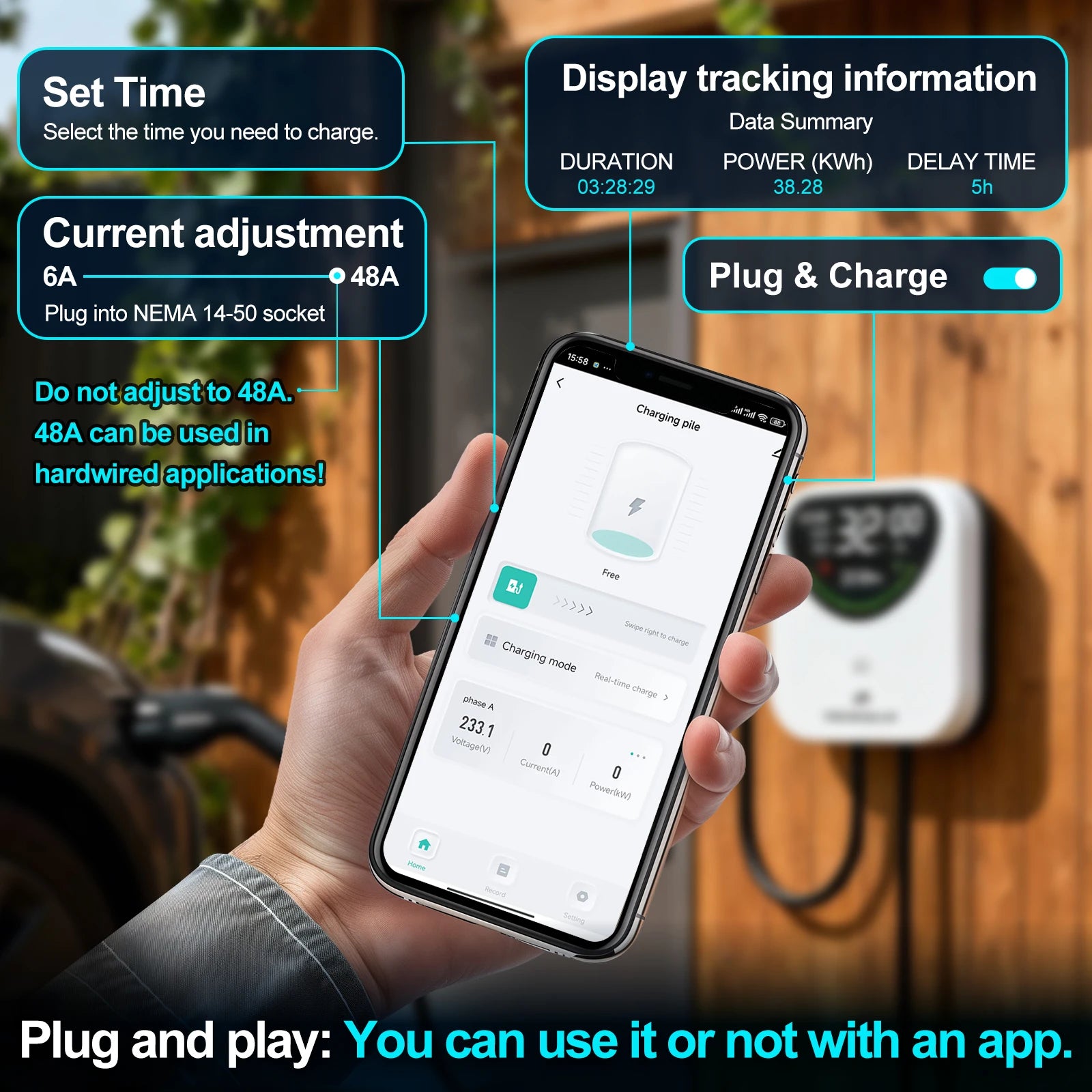

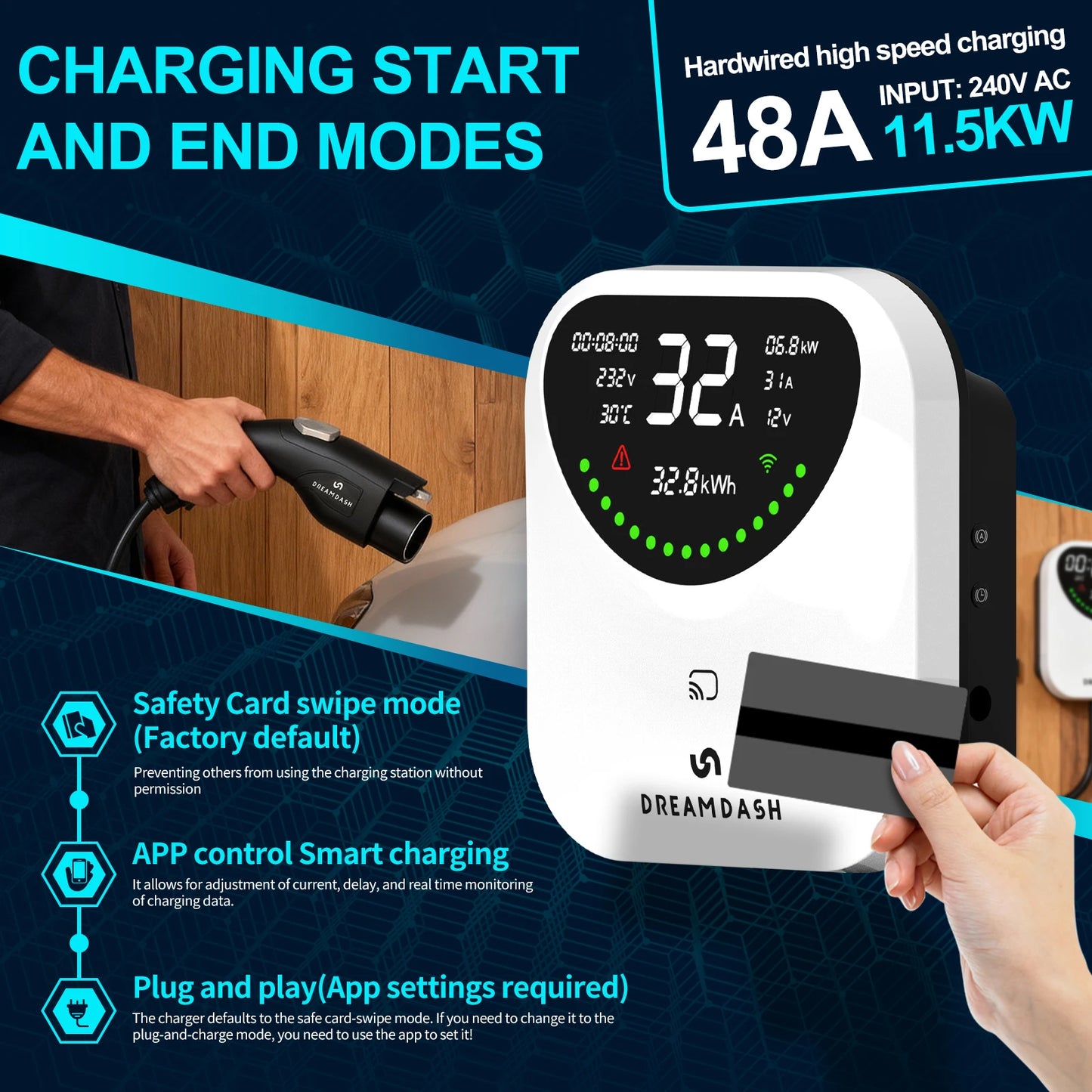

📶 Wi-Fi Smart Charging — ⭐⭐⭐⭐½

Wi-Fi connectivity adds useful smart-home functionality.

Depending on the included software/app, smart charging can potentially provide features such as:

• Remote monitoring
• Charging status
• Current adjustment
• Scheduling
• Energy tracking
• Remote start/stop

The exact app functionality should be verified because smart features can vary between charger models and software revisions.

🔌 NEMA 14-50 Plug — ⭐⭐⭐⭐⭐

The NEMA 14-50 connection is convenient for installations where a compatible 240V receptacle already exists.

It's a familiar configuration for residential EV charging.

However, there's an important distinction:

A 14-50 plug does not automatically mean you can simply plug it into any existing 14-50 outlet. The circuit must be appropriately sized for the desired charging current.

For maximum 48A charging, a dedicated properly sized circuit is required.

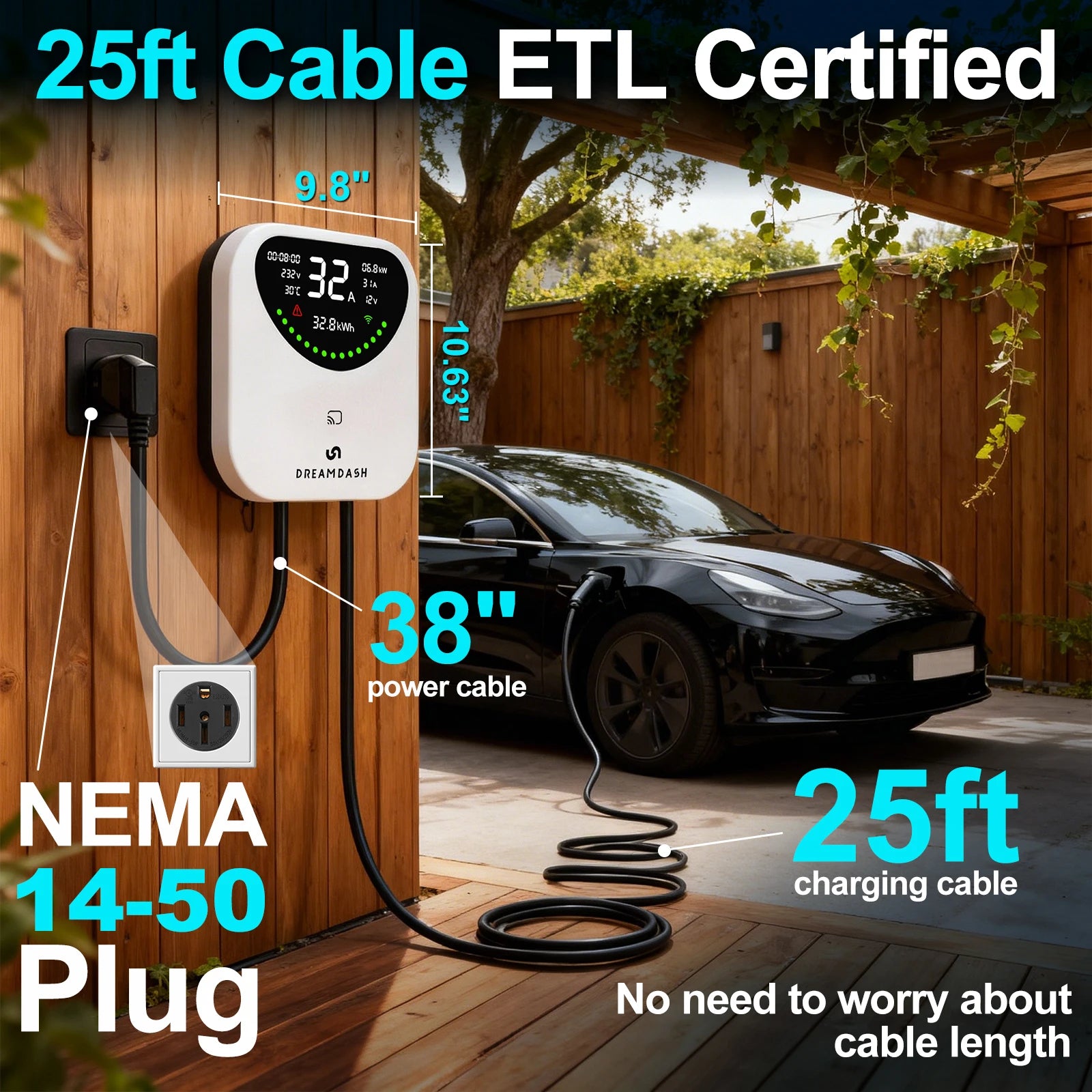

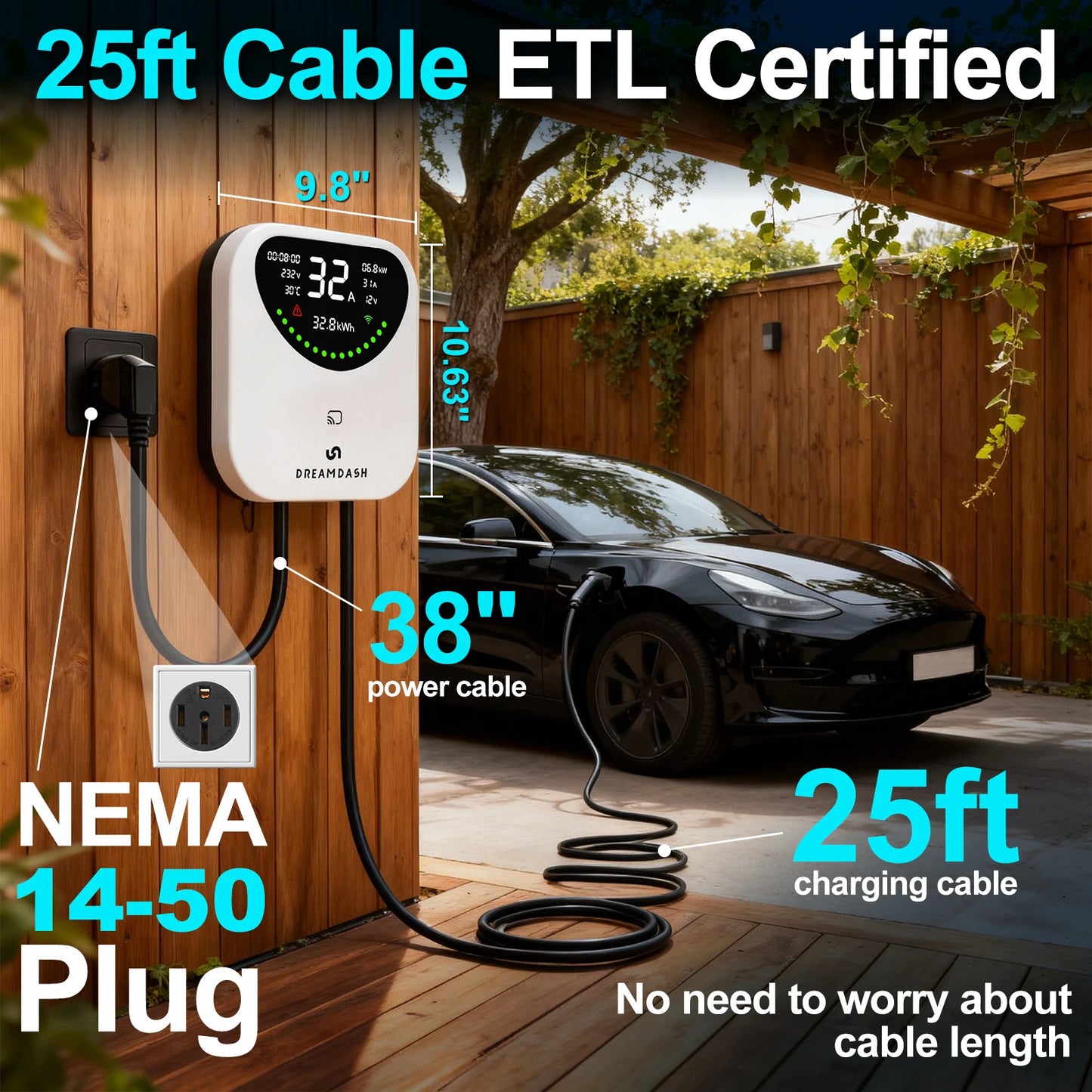

📏 25-Foot J1772 Cable — ⭐⭐⭐⭐⭐

The 25-foot cable is a major practical advantage.

It gives you substantially more flexibility when the vehicle's charging port isn't close to the wall-mounted charger.

Useful for:

• Garage installations
• Driveways
• Multiple parking positions
• Larger garages
• Outdoor charging

The J1772 connector is compatible with most North American EVs that use the J1772 AC charging standard. Vehicles with NACS/Tesla-style ports generally need the appropriate adapter or a vehicle-specific connection.

🌧️ Indoor/Outdoor Capability — ⭐⭐⭐⭐½

Being designed for both indoor and outdoor use gives the charger additional flexibility.

Possible installation locations include:

• Garage
• Carport
• Exterior wall
• Driveway
• Covered parking area

For outdoor installation, make sure the charger, receptacle, and electrical connection are installed according to their respective weather/water-protection requirements.

Don't leave a standard NEMA 14-50 receptacle exposed to weather without appropriate protection.

🛡️ ETL Listed — ⭐⭐⭐⭐⭐

The ETL listing is an important positive specification.

ETL certification indicates the product has been evaluated by Intertek against applicable safety standards.

For a high-power electrical appliance like an EV charger, third-party safety certification is considerably preferable to an uncertified generic unit.

I'd still verify the specific model's current certification listing before installation.

Best For

This charger makes the most sense for:

• EV owners charging at home
• Daily commuters
• Households with higher daily mileage
• Multiple-EV households
• Owners wanting overnight Level 2 charging
• Homes with suitable 240V electrical service
• Users who want Wi-Fi monitoring and scheduling

Brand Name: DREAMDASH

High-concerned chemical: none

Touchscreen: Yes

Wireless Support: Wifi,Bluetooth
