SPECIFICATIONS

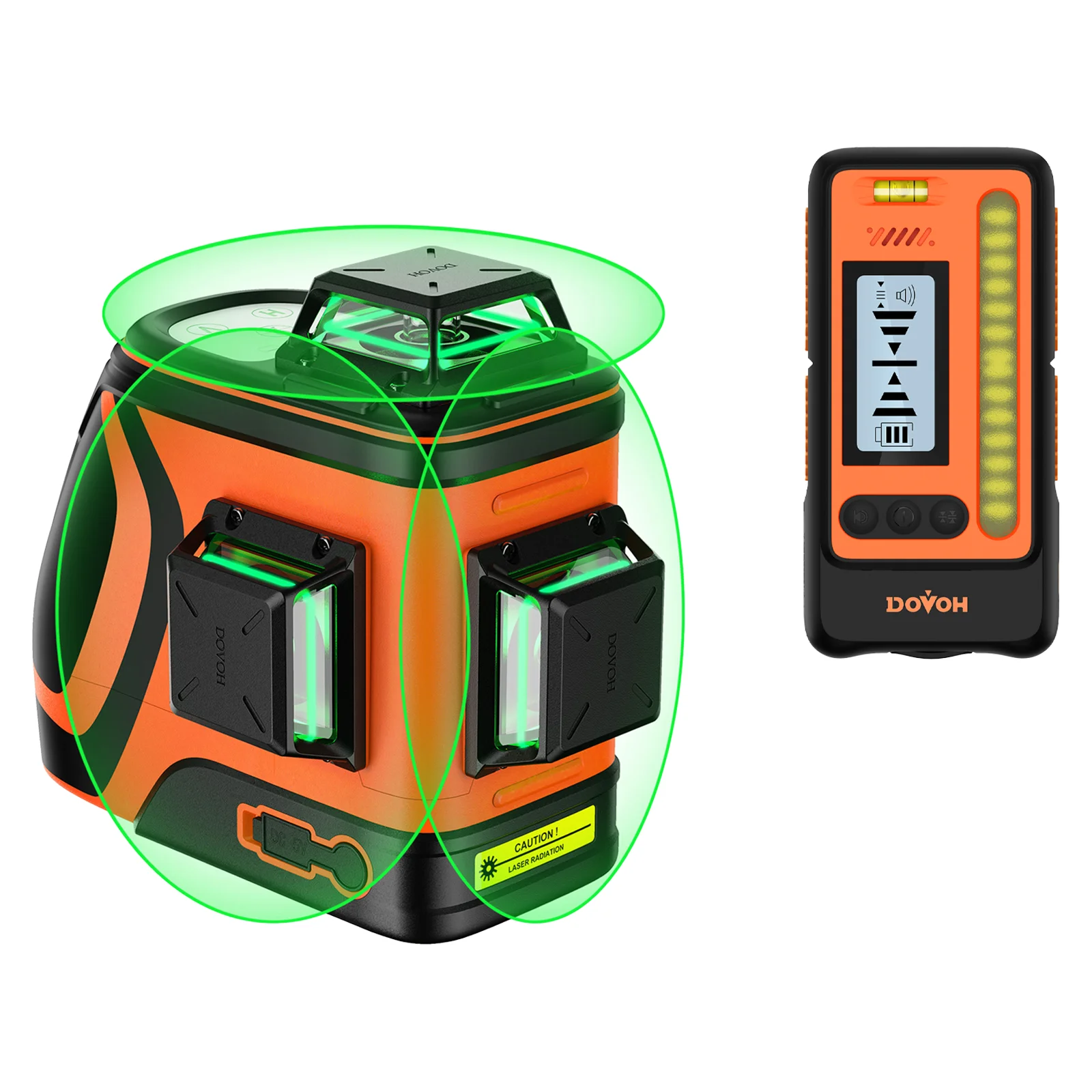

🛠️ Core Design: 3×360° Multi-Plane System

This is a professional-grade 3-plane laser level, meaning:

• 1 horizontal 360° plane
• 2 vertical 360° planes (crossing at 90°)

👉 This gives full room or jobsite coverage:

• Floor, walls, and ceiling alignment
• Square layouts and vertical transfers

Unlike basic cross-line lasers, you don’t need to reposition it constantly.

---

☀️ Outdoor Performance (Key Advantage)

This model is built specifically for outdoor visibility:

• Uses high-power 110mW green laser diodes
• Much brighter than typical 30mW lasers

👉 Important reality:

• Even strong green lasers are hard to see in direct sunlight
• That’s why this kit includes a laser receiver (detector)

---

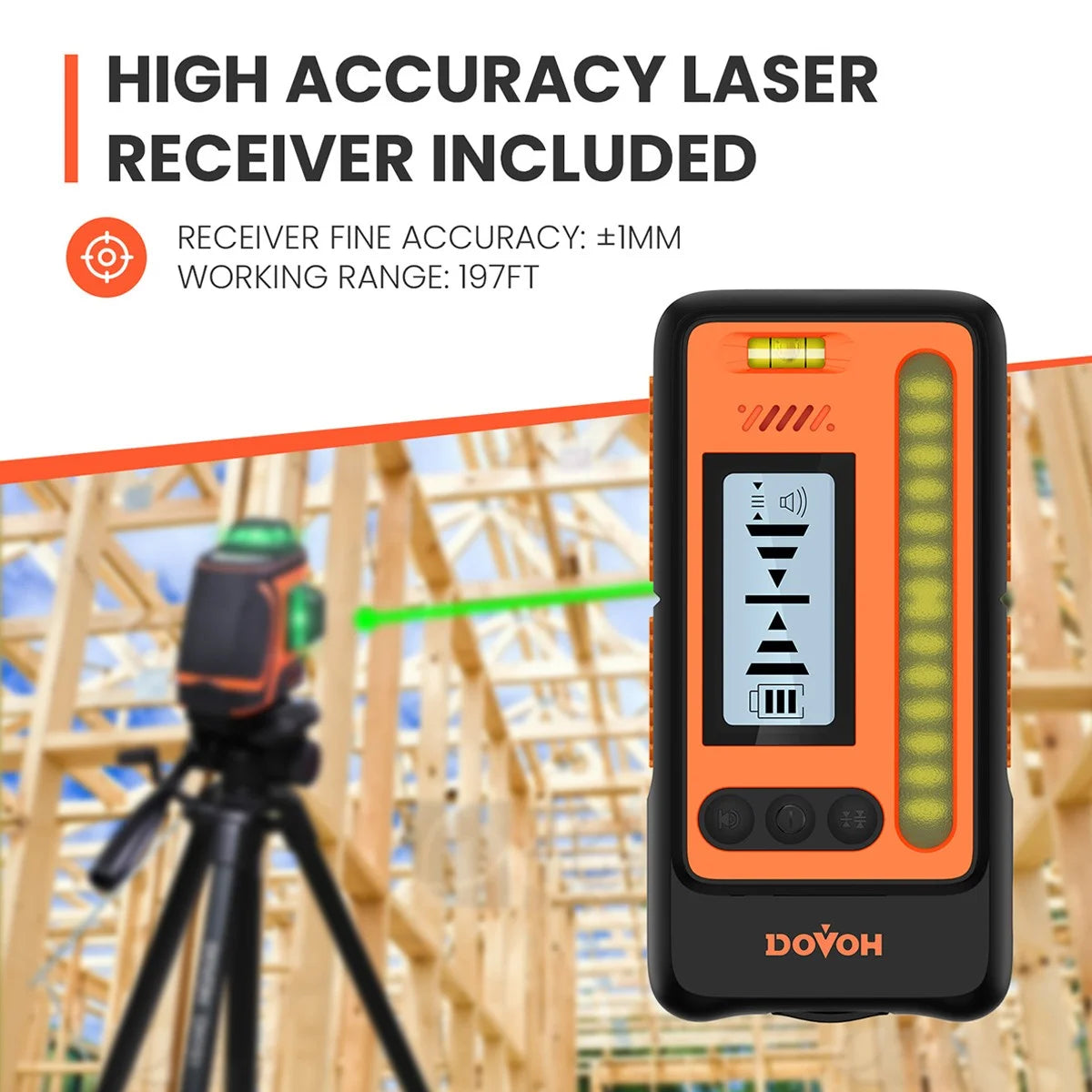

📡 Laser Receiver (Detector Included)

• Extends working range up to 400 ft (122 m)
• Detects laser beam when it’s not visible to the eye
• Essential for:
  • Outdoor construction
  • Long-distance leveling
  • Bright daylight conditions

👉 This is what separates it from cheaper models—true outdoor capability.

---

⚙️ Self-Leveling + Manual Mode

• Self-leveling range: ±4°
• Auto-levels in under 4 seconds
• Out-of-level warning (flashing beam)
• Manual (tilt) mode:
  • Lock lines at any angle
  • Useful for slopes, stairs, or angled installs

---

📏 Accuracy & Precision

• Accuracy: ±2 mm at 10 m (±1/13 in at 33 ft)

👉 That’s solid mid-to-high professional accuracy, suitable for:

• Framing
• Deck building
• Structural layout

---

🔋 Battery & Runtime

• Includes 2 × 2600mAh lithium batteries
• Runtime:
  • ~8 hours (all lines on)
  • Up to ~18 hours (reduced lines)
• Can be used while plugged in

👉 Designed for full-day jobsite work.

---

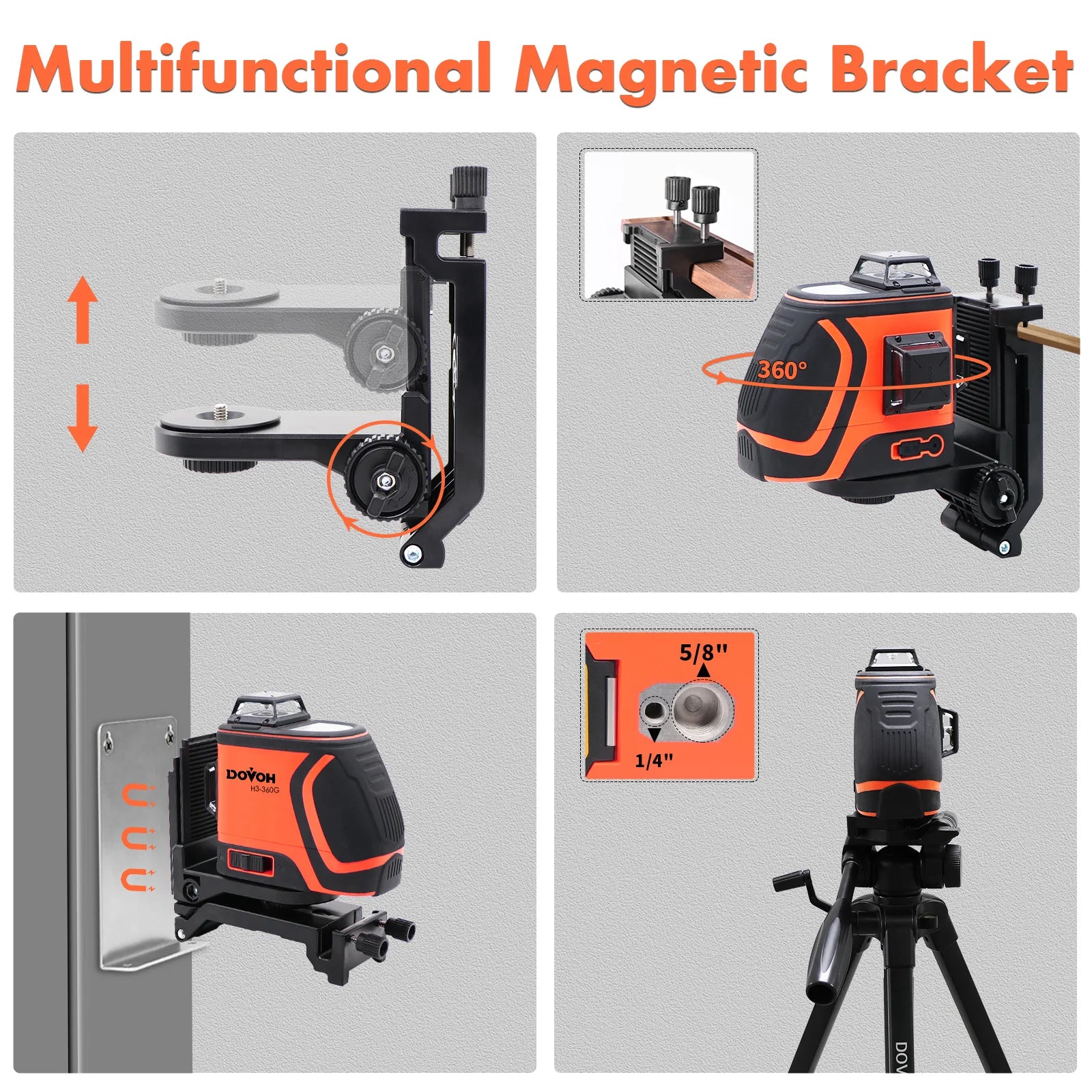

🧲 Mounting & Adjustability

• Dual thread mounts:
  • 1/4"-20 (tripods)
  • 5/8"-11 (professional mounts)
• Includes:
  • Magnetic bracket
  • Fine-adjustment base
  • Clamp mount

👉 Flexible setup for:

• Tripods
• Metal surfaces
• Wall mounting

---

🛡️ Build Quality & Durability

• IP54 rated (dust & splash resistant)

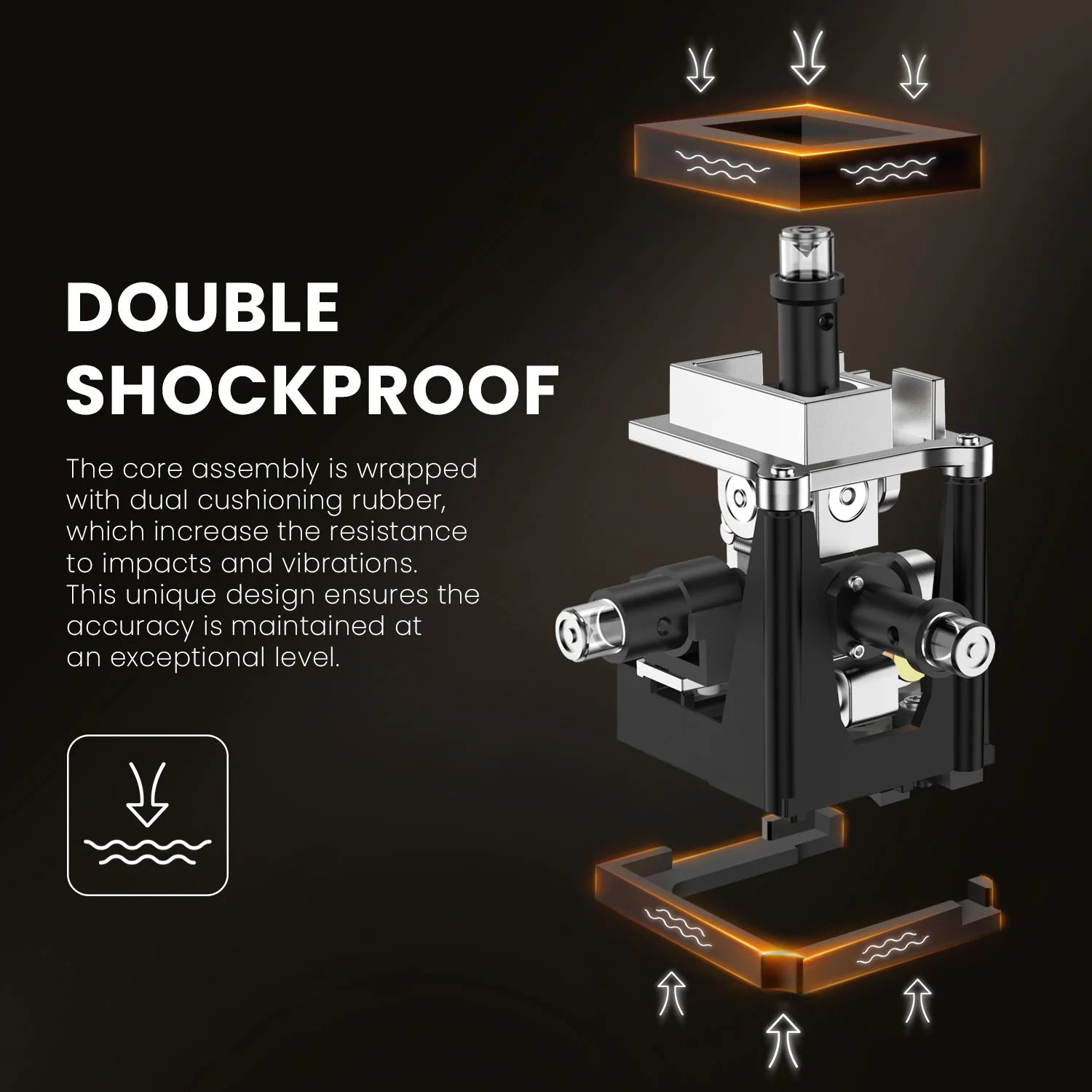

• Shock-resistant internal pendulum system
• Rubberized housing for jobsite durability

👉 Built for real construction environments, not just DIY.

---

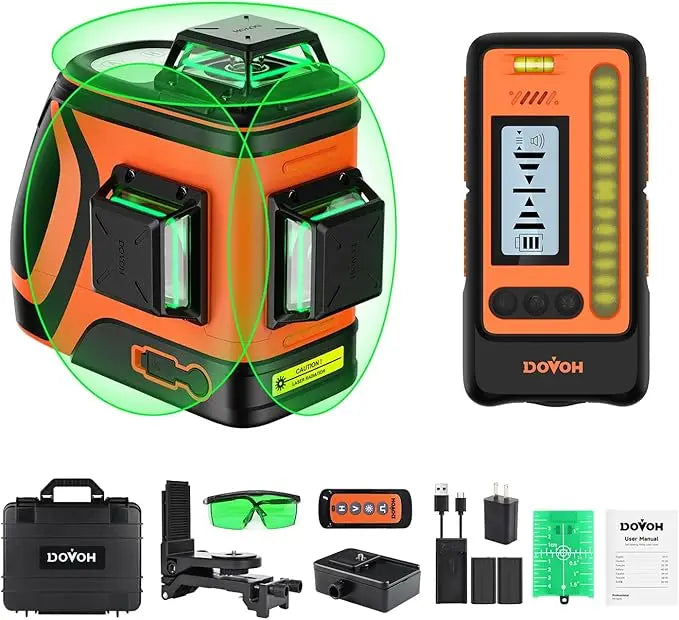

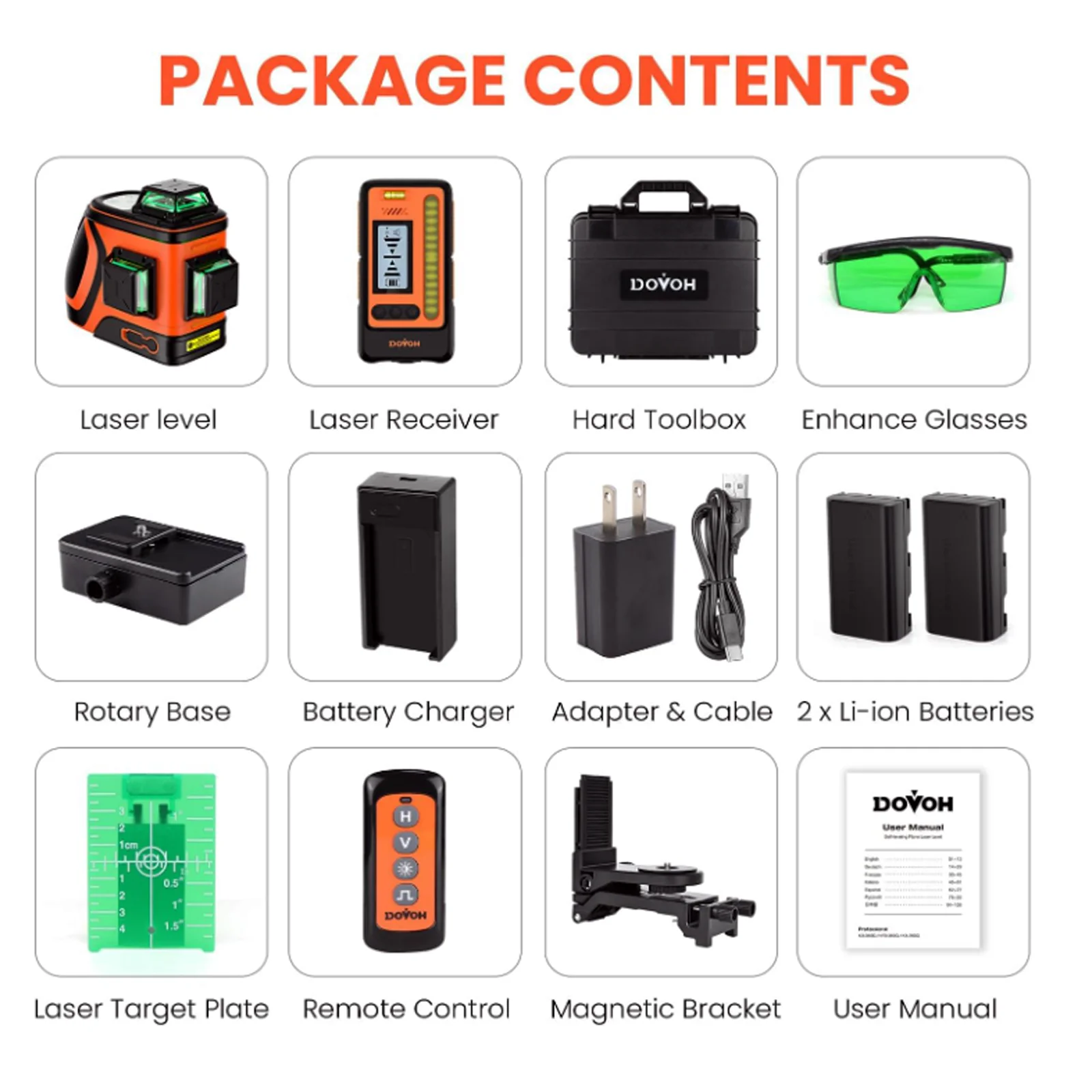

📦 What’s Included (Full Kit)

• Laser level unit
• Laser receiver (DR1)
• 2× rechargeable batteries
• Charger + USB-C cable
• Magnetic bracket + clamp
• Green target plate
• Laser glasses
• Hard carrying case
• Remote control

👉 It’s a complete professional kit out of the box.

---

🧰 Best Use Cases

This model is ideal for:

• Outdoor construction & grading
• Deck and fence layout
• Concrete work
• Framing & structural alignment
• Large indoor commercial jobs

👉 Especially useful where distance + sunlight = problem.

Battery: 7.4V 2600mAh Li-ion Battery

Battery Included: Yes

Brand Name: DOVOH

Certification: CE

Charging Port: Type-C

Electronic: Yes

High-concerned chemical: None

IP Rating: IP54 (Water & Dust proof)

Laser Type: 520nm, <1mw

Laser color: Other Light

Measurement Model: 12 lines

Model Number: H3-360G-Kit

Plug Type: US

Power Adapter: 5V=2A

Precision: ±2mm/10m

Self-leveling Range: ±4°

Self-leveling Time: < 4 seconds

Size: 42*15*35

Type: Vertical & Horizontal Lasers

Working Range(300LUX): 98ft/30m

Working Range(w/ DR1 receiver): Up to 400ft/122m

Working Time w 12 laser lines: 8 hours

Working Time w 4 laser lines: 18 hours

Working Time w 8 laser lines: 11 hours
