SPECIFICATIONS

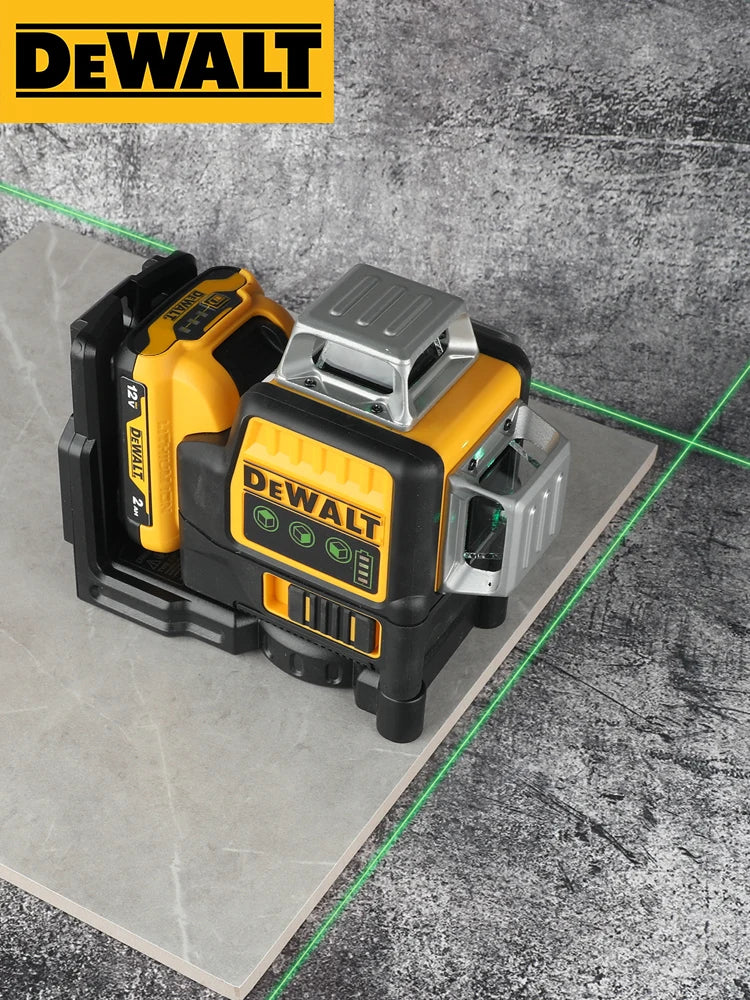

The DEWALT DW089LG is a professional-grade 3-plane 360° green laser level designed for construction layout work like framing, drywall, tile, cabinetry, and full-room leveling.

It is one of DEWALT’s more advanced layout lasers because it projects three full 360° laser planes instead of just cross lines.

---

🔧 Core Features

• 3 × 360° laser planes
  • One full horizontal line (around the room)
  • Two vertical 360° lines (forming plumb + square layout)
• Green beam technology
  • Much brighter and more visible than red lasers indoors
• Self-leveling system
  • Automatically levels when within tilt range
• Pulse mode
  • Works with a detector for longer range and outdoor use
• 12V DEWALT battery system
  • Uses DEWALT tool batteries (no AA batteries needed)
• Magnetic pivot bracket
  • Strong mount for metal studs, tripods, or ceiling grid

---

📏 Performance Specs

• Working range: ~100 ft visible (up to ~165 ft with detector)
• Accuracy: about ±1/8 in at 33 ft
• Laser type: Green beam (high visibility indoors)
• Protection: IP65 rated (dust & water resistant)
• Battery: 12V lithium-ion DEWALT platform

---

🧱 What makes it different from cheaper laser levels

This model is not a simple cross-line tool—it’s designed for full-room layout work:

• You can square entire rooms (walls + floors + ceilings)
• Vertical lines help with plumbing walls and framing
• Horizontal 360° line replaces traditional bubble level across long distances
• Works like a “laser reference grid” for whole projects

---

🧰 Common uses

• Framing walls and ceilings
• Installing cabinets and shelving
• Tile and backsplash layout
• Electrical outlet alignment
• Door/window installation
• Drywall and trim work
• Floor leveling reference lines

---

👍 Key advantages

• Very bright green beam (easy to see indoors)
• True 360° coverage in all directions
• Jobsite durability (rubber overmold + IP65)
• Uses standard DEWALT 12V batteries
• Accurate enough for professional layout work

Battery Included: Yes

Brand Name: DEWALT

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee

High-concerned chemical: None

Is Smart Device: no

Laser color: Other Light

Measurement Model: 12 lines

Type: Vertical & Horizontal Lasers
