SPECIFICATIONS

Bullet Points

• Experience a New Level of Lightweight Racing and Freestyle Version Flying with our 1S 65mm Indoor Whoop. Weighing in at just 17.3g, it offers an exhilarating and agile flying experience.

• Air Brushless Flight Controller (5IN1), the first 1S FC that features the G473 processor which has superior computing power, and is equipped with ICM42688P gyroscope. This all-in-one solution seamlessly integrates FC, ESC, OSD, Serial ELRS 2.4G RX and Onboard 5.8G 25mw~400mw VTX, while weighing just 3.6g.

• Racing/Freestyle Version Propulsion Systems have been upgraded to the 0702SE II motor, delivering a significant boost in performance. Specifically designed for the lightweight 65mm whoop, these systems provide an exhilarating flight experience tailored to meet the demands of every pilot.

• Discover the Air65, accompanied by the Z-Folding LAVA battery, enabling the ultimate lightweight flight experience. Take to the skies with unparalleled agility and weightlessness.

• Express your unique style with various part options. From 65mm frames to canopies and propellers, offering pilots a diverse selection of captivating colors. Combine with BETAFPV waterslide decals to effortlessly infuse your whoop drones with a personalized.

Specifications

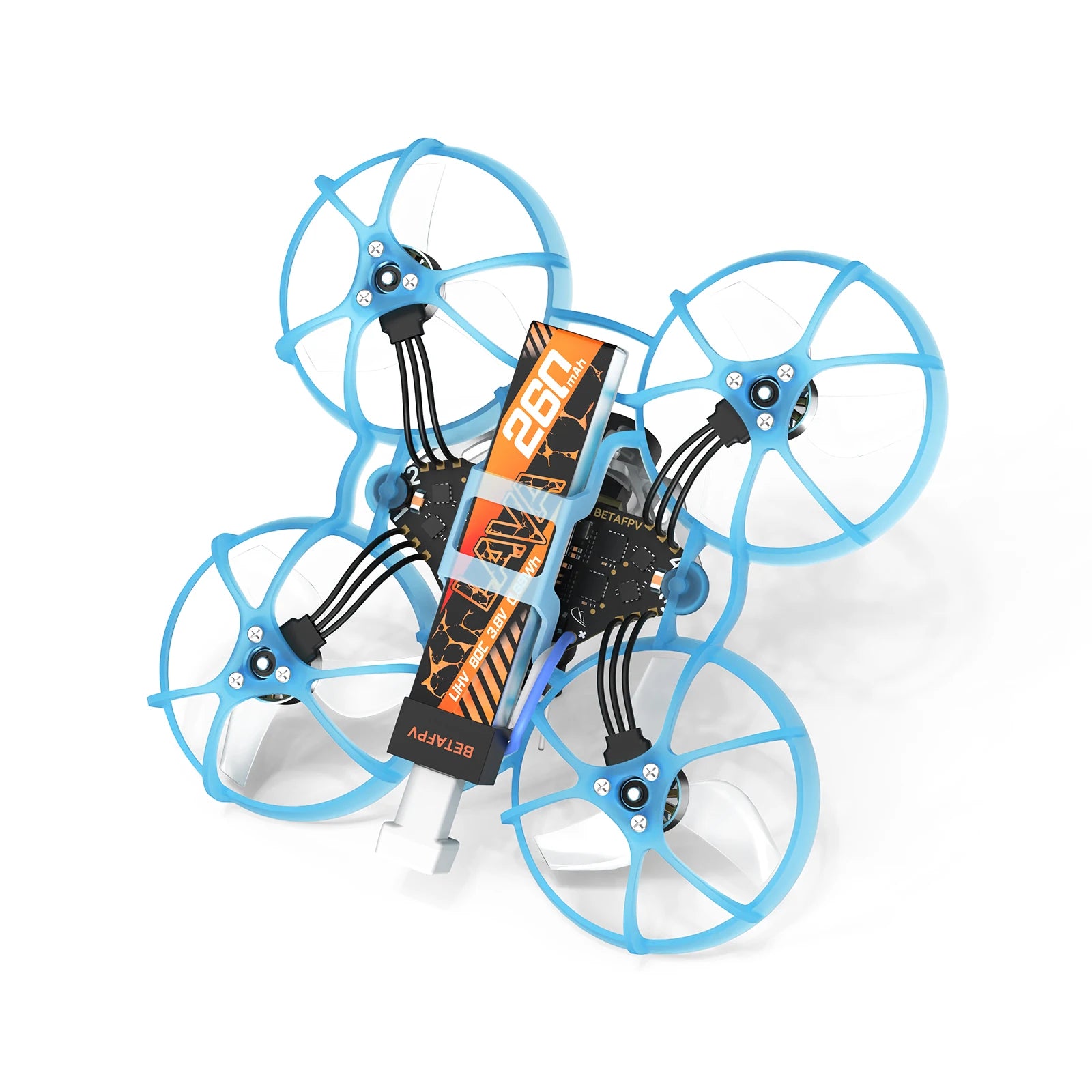

• Item: Air65 Brushless Whoop Quadcopter

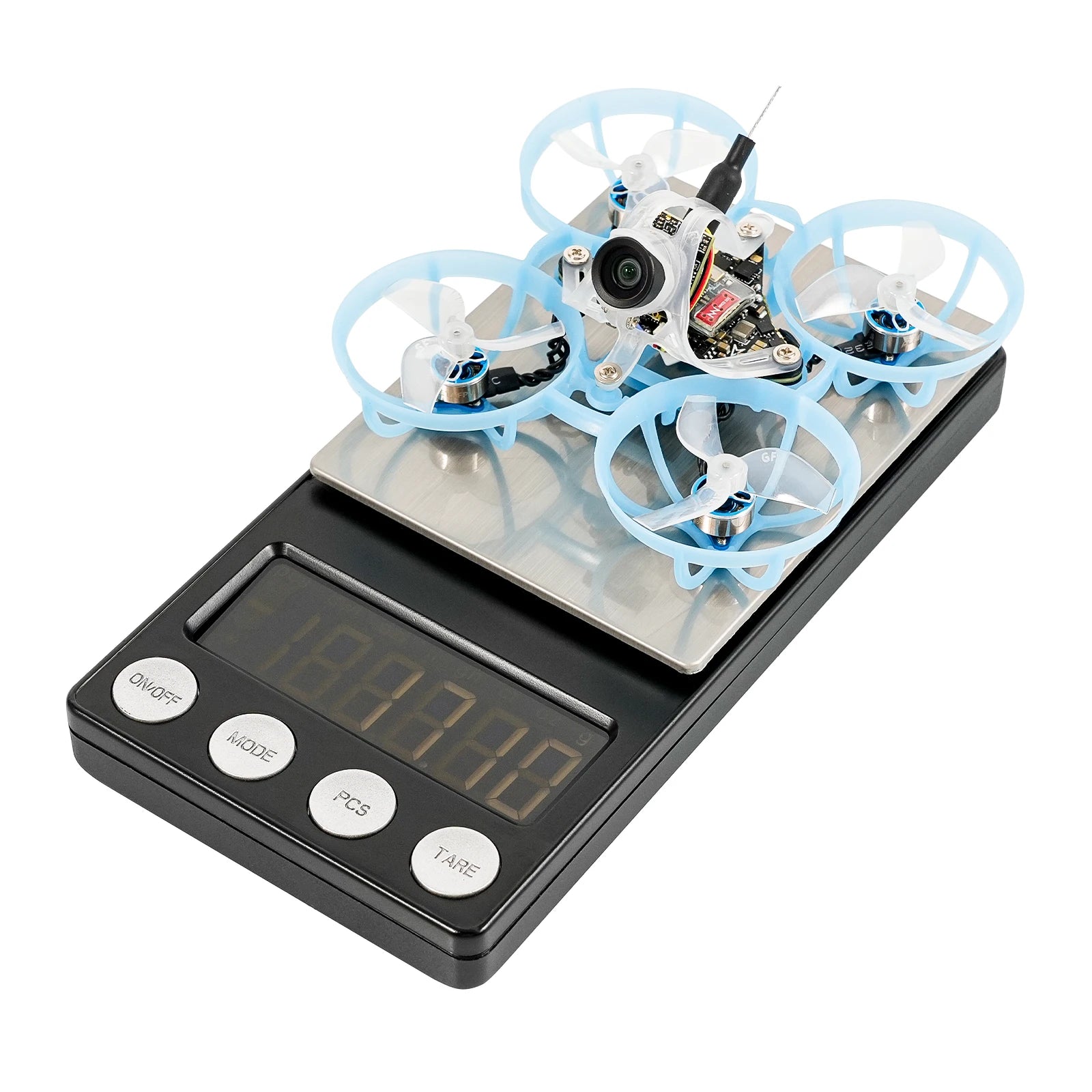

• Weight: 17.3g (Racing & Freestyle Version), 17.4g (±0.15g) (Champion Version)

• Wheelbase: 65mm

• Frame: Air65 Frame

• Canopy: Air Canopy

• FC & ESC: Air Brushless Flight Controller (5IN1 Version)

• VTX: Onboard 5.8G 25mw~400mw VTX

• Camera: C03 Camera

• Motor: 0702SE II|27000KV (Racing Version), 0702SE II|23000KV (Freestyle Version), 0702 II|30000KV (Champion Version)

• Props: GF 1219S 3B (Racing & Champion Version), HQ 31mm Ultralight (Freestyle Version)

• Battery Connector: BT2.0 U Cable Pigtail

• Recommend Battery: LAVA 1S 260/300mAh

• Flight Time (4.35V-3.3V): 4min (LAVA 260mAh)

• RX Version: Onboard ELRS 2.4G

Comparison Between Air65 Champion, Air65 & Meteor65

	Air65 Champion	Air65	Meteor65
Weight	17.4g (±0.15g)	17.3g	22.8g
Wheelbase	65mm	65mm	65mm
Frame	Air65 Frame	Air65 Fame	Meteor65 Micro Frame
Canopy	Air Canopy	Air Canopy	Canopy for Micro Camera 2022
FC & ESC	Air Brushless Flight Controller (5IN1)	Air Brushless Flight Controller (5IN1)	F4 1S 5A FC (Serial ELRS 2.4G) F4 1S 5A FC (SPI Frsky)
VTX	Onboard 5.8G 25mw~400mw	Onboard 5.8G 25mw~400mw	M03
Camera	C03	C03	C03
Motor	0702 II|30000KV (dual ball bearings)	Racing Version: 0702SE II|27000KV (brass bushings) Freestyle Version: 0702SE II|23000KV (brass bushings)	0802SE|19500KV (brass bushings)
Props	GF 1219S 3B	Racing Version: GF 1219S 3B Freestyle Version: HQ 31mm Ultralight	GF 31mm 3B
Battery Connector	BT2.0 U Cable Pigtail	BT2.0 U Cable Pigtail	BT2.0
Recommend Battery	LAVA 1S 260/300mAh	LAVA 1S 260/300mAh	BT2.0 300mAh 30C LAVA 1S 300mAh
Flight Time (4.35V-3.3V)	4min (LAVA 260mAh)	4min (LAVA 260mAh)	4min (BT2.0 300mAh)
RX Version	Onboard ELRS 2.4G RX	Onboard ELRS 2.4G RX	ELRS/Frsky/TBS
Motor Screws	PEEK screws	Steel screws	Steel screws

Flight Controller & ESC

The Air65 is now equipped with the Air Brushless Flight Controller (5IN1), featuring the advanced G473 processor, which provides superior computing power and lightning-fast response times—a significant upgrade over the F411 used in the Meteor65. Weighing just 3.6g, it integrates FC, ESC, OSD, VTX, and RX into a compact design, simplifying setup and maintenance while striking the perfect balance between performance and lightness. Powered by the industry-leading ICM42688P gyroscope and a custom micro-sized OSD chip, the Air65 delivers smoother, more responsive control. With multiple UART ports for flexible function expansion, the Air65 is designed for seamless integration into both racing and freestyle FPV, offering unmatched precision and fingertip control.

Upgraded Air Canopy

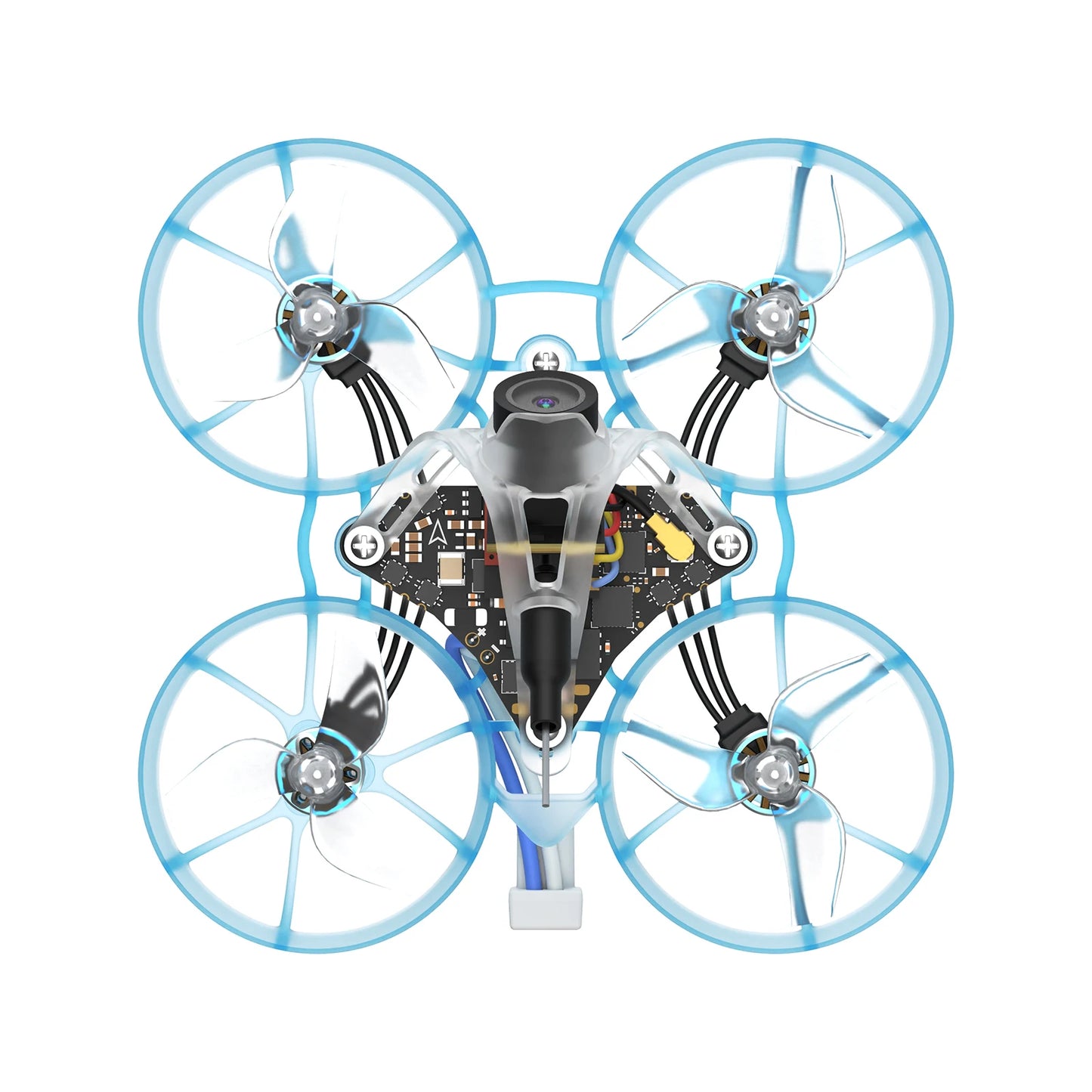

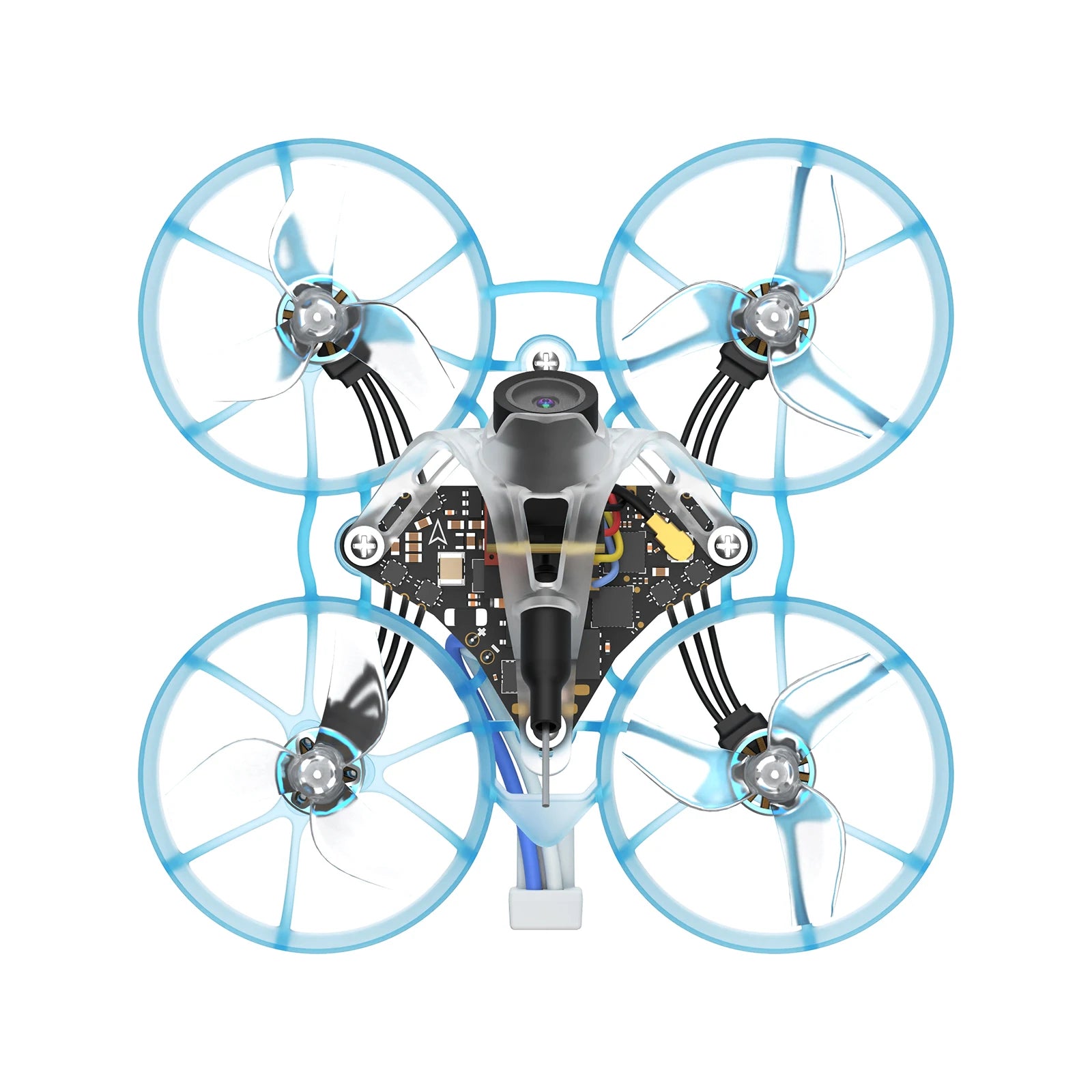

Experience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We've redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air65 can chase the limit of freestyle and racing victory worry less.

Propulsion System

Powered by the upgraded 0702SE II Brushless Motors, Air65 takes propulsion and performance to new heights. Whether it's the Racing or Freestyle Version, the Air65 is designed to maintain exceptional agility and precision, perfectly suited to conquer racing tracks or freestyle flights with ease.



The Racing Version now boasts a 12.7% thrust-to-weight ratio boost, reaching 5.82:1 with 0702SE II|27000KV Motors for explosive speed. The Freestyle Version sees a 13% improvement to 5.26:1 with 0702SE II|23000KV Motors, offering fluid control and precise movements. Paired with lightweight GF 1219S 3B and HQ 31mm 3B props, it excels in both speed and maneuverability.

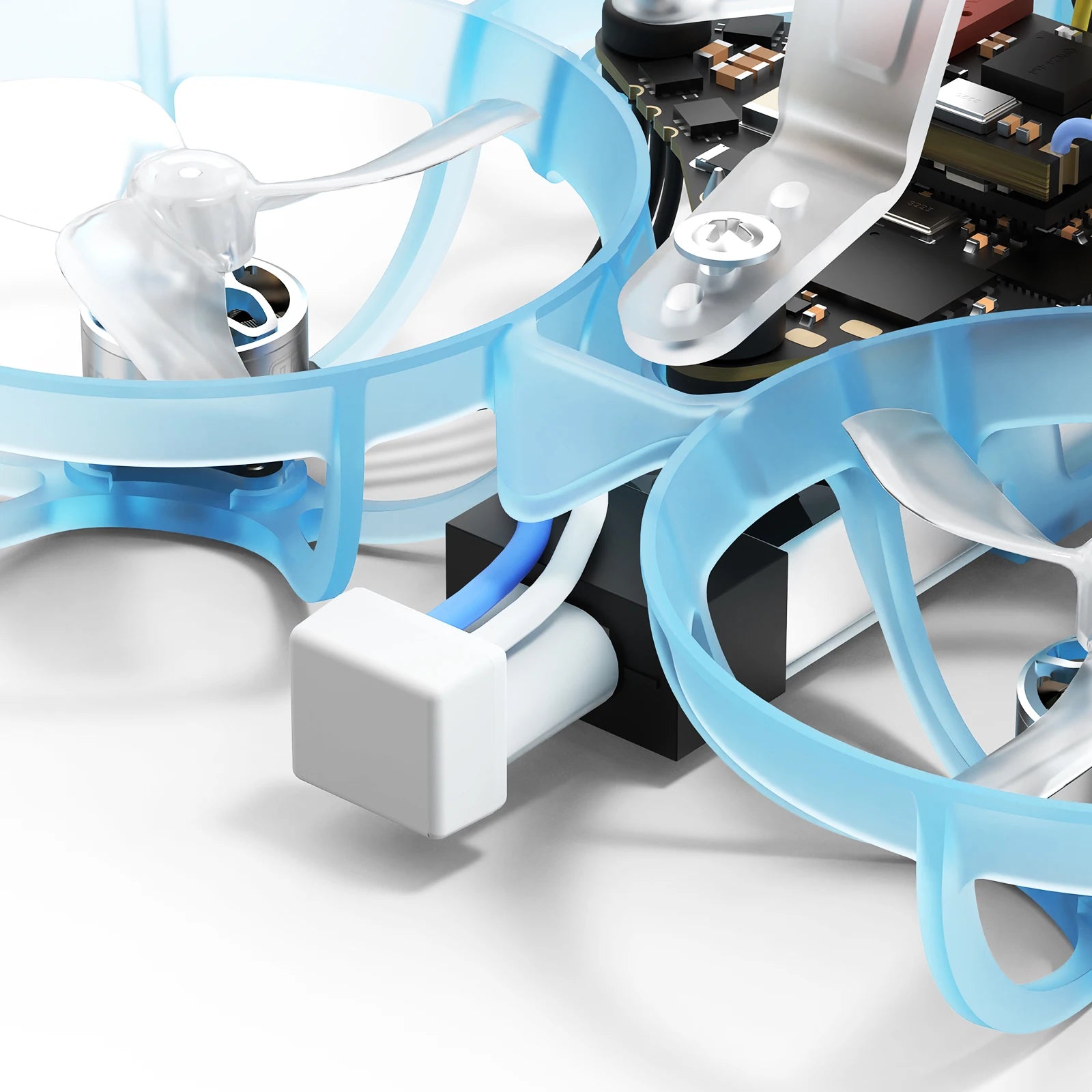

The Ultralight LAVA 1S 260/300mAh Battery is a compact premier for Air65. With more concentrated center gravity, it offers crisper response, greater acceleration, and enhanced maneuverability. Featuring the groundbreaking Z-Folding Process, this LiHV battery exceeds conventional capacity and discharge thresholds. And equipped with the BT2.0 U Cable Pigtail, saying goodbye to folding cables, for easy plugging and an extended lifespan. Lighter weight by reducing pigtail length. Achieve the ultimate lightweight choice for drone racing or freestyle.

Air65 Frame

To enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 65mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor65 Micro Frame to the Air65 Frame, which achieves a remarkable weight lighter from 3.64g to 2.67g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having 6 color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub18g 65mm 1S Whoop drone and personality.



Aerial Photography: No



Anti-wind Ability: 1

Brand Name: NoEnName_Null

Camera Mount Type: Other

Control Channels: 4 channels

Controller Battery: NONE

Controller Mode: MODE1,MODE2

Drone Weight: 171g

Features: App-Controlled

Flight Time: <5

Hign-concerned Chemical: None

Indoor/Outdoor Use: Indoor-Outdoor

Is Batteries Included: Yes

Is Electric: No Battery

Material: Resin,Plastic,Metal

Model Number: AIR65

Motor: Brushless Motor

Operator Skill Level: Beginner,Intermediate

Origin: Mainland China

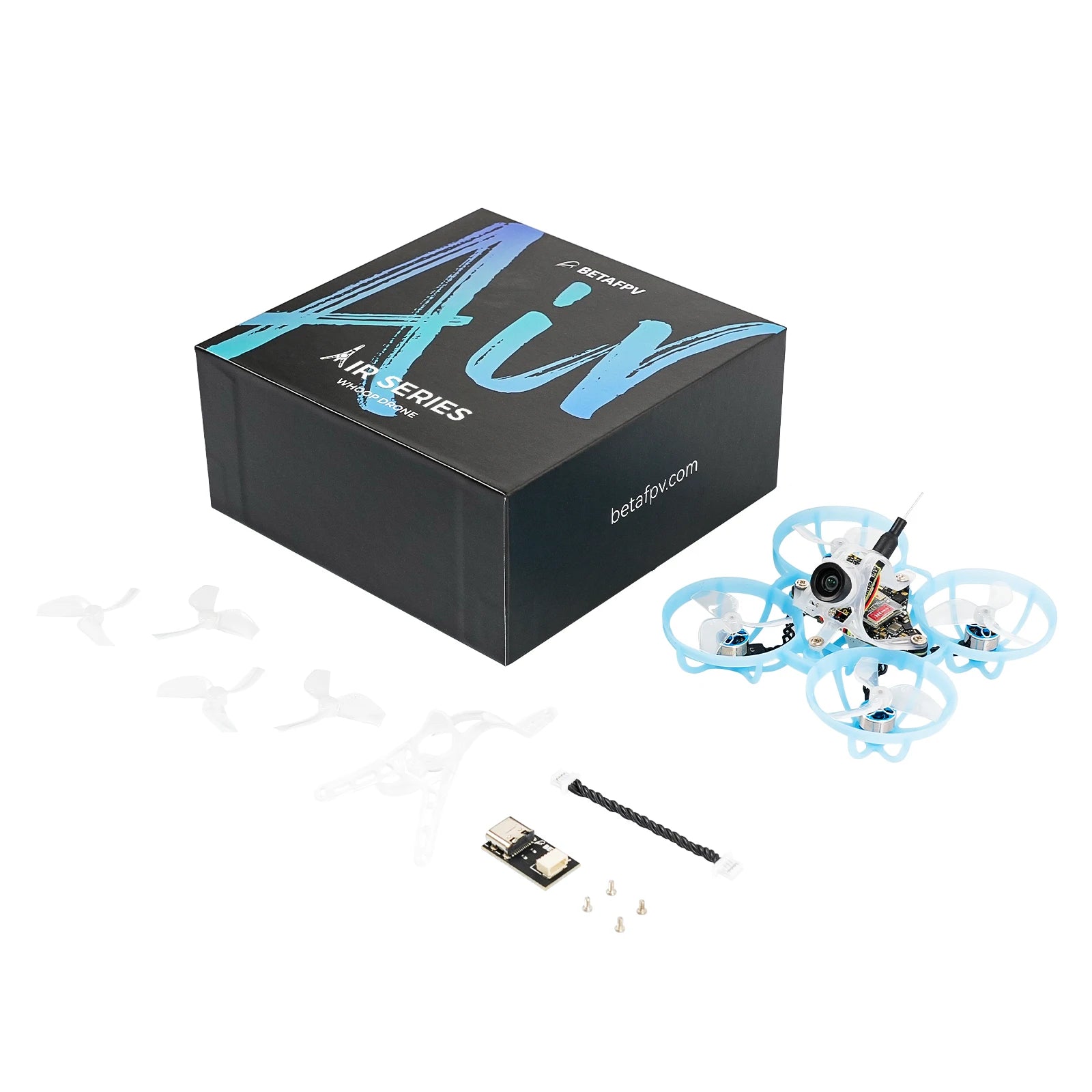

Package Includes: Original Box

Recommend Age: 14+y

Remote Control: No

Remote Distance: 300m

Takeoff Weight: 16g

Transit Time (Days): 300m

Type: HELICOPTER

Video Capture Resolution: Other

Warranty: 1 month
