SPECIFICATIONS

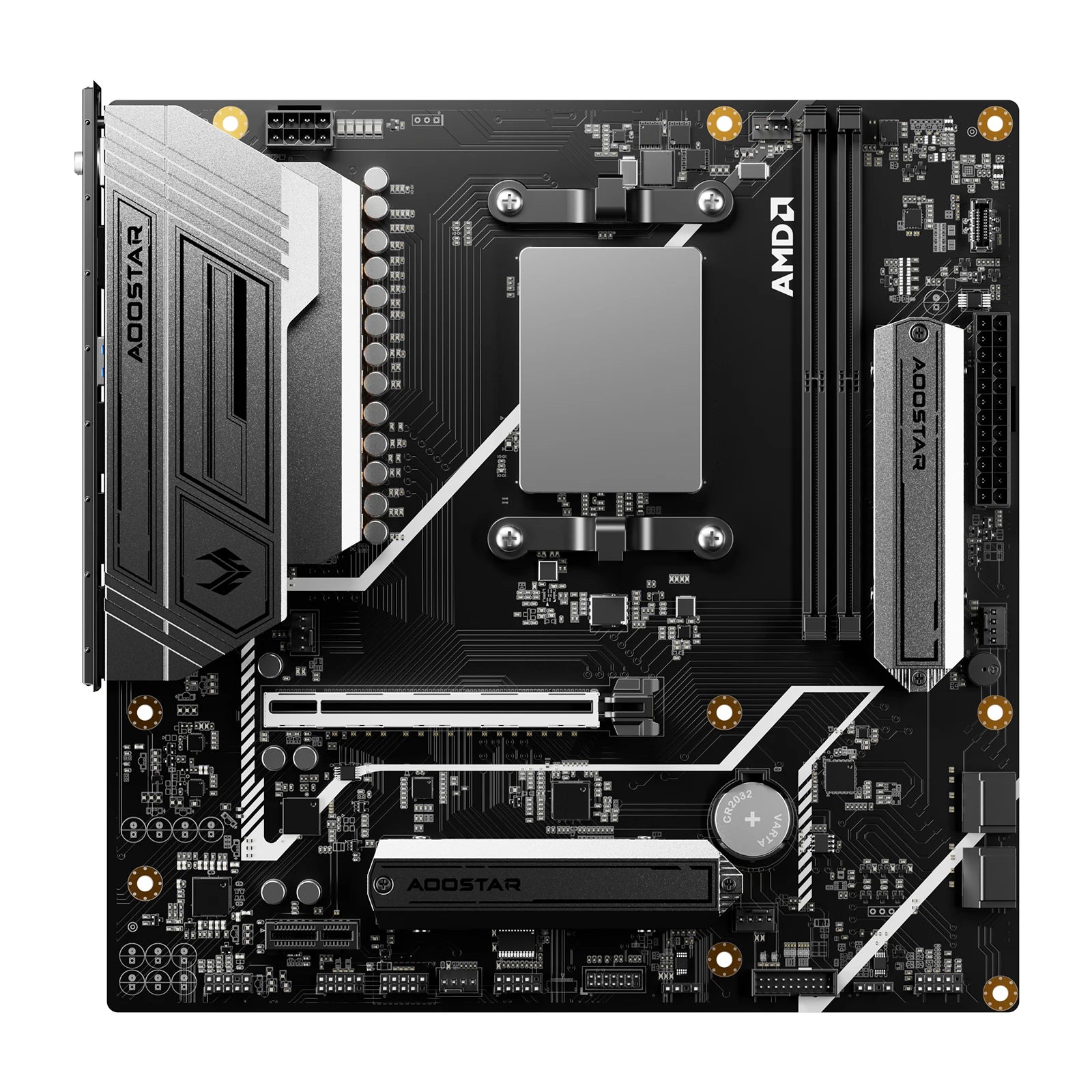

The AOOSTAR TA95X3D is a MoDT (Mobile on Desktop) motherboard, meaning it uses a laptop-class CPU soldered directly onto a desktop-style motherboard. In this case, it features the AMD Ryzen 9 9955HX3D, a high-end 16-core / 32-thread Zen 5 mobile chip with 3D V-Cache (up to ~144MB total cache).

It’s designed for users who want near-flagship gaming performance in a compact mATX system without a traditional AM5 desktop CPU.

---

🧠 Key Specs (Confirmed from product listings)

• CPU: AMD Ryzen 9 9955HX3D (soldered)
• Cores/Threads: 16C / 32T
• Architecture: Zen 5 mobile (Fire Range platform)
• Cache: ~144MB total (includes 3D V-Cache)
• Board size: mATX (244 × 244 mm)
• Memory: 2× DDR5 UDIMM
  • Up to ~96GB

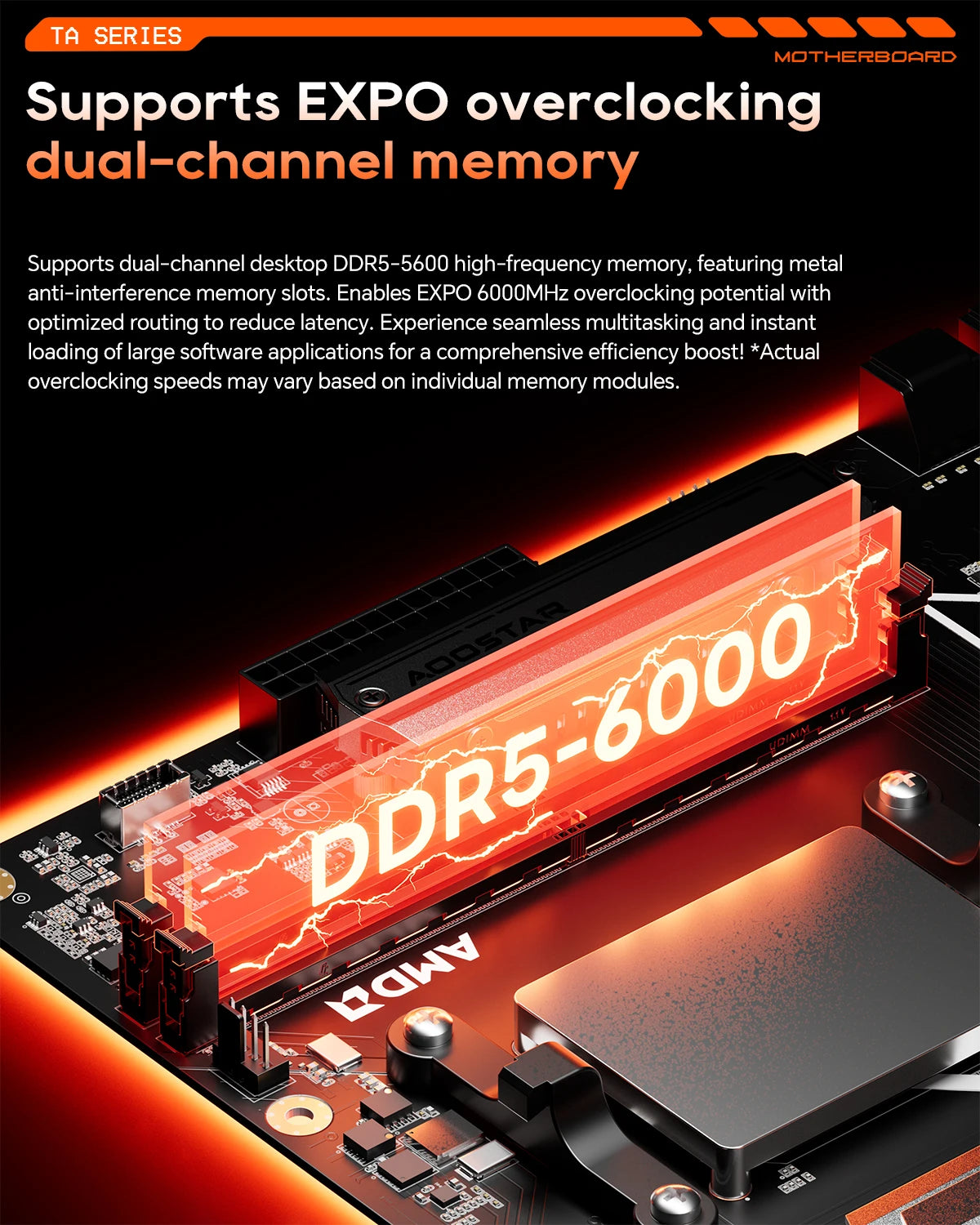

  • EXPO support, ~5600–6000 MHz OC range
• Storage:

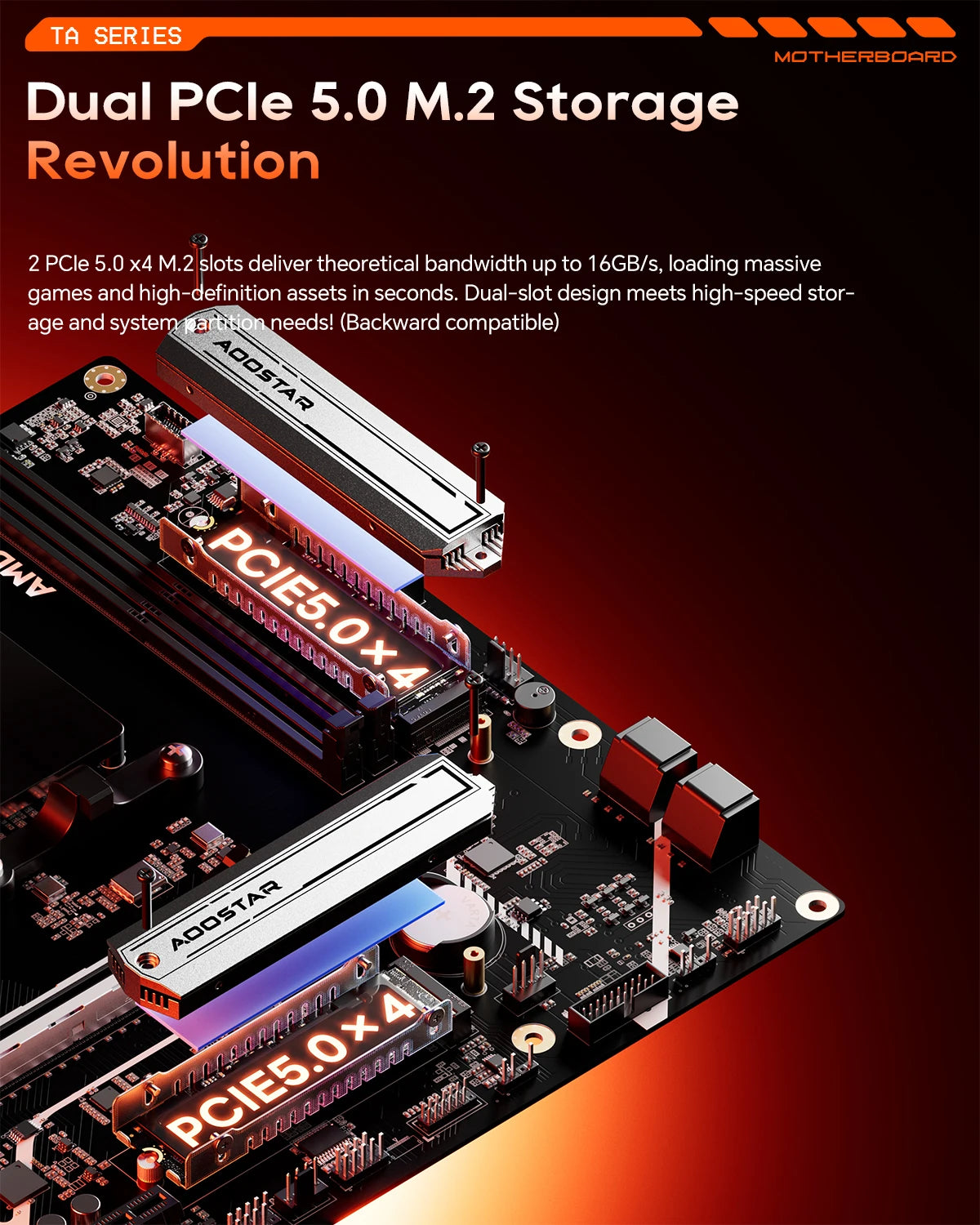

  • 2× PCIe 5.0 x4 M.2 SSD slots
• GPU slot: 1× PCIe 5.0 x16
• Networking:
  • 5GbE LAN (on some revisions)
  • WiFi 6E + Bluetooth (MTK chipset)
• Audio: 7.1 channel support

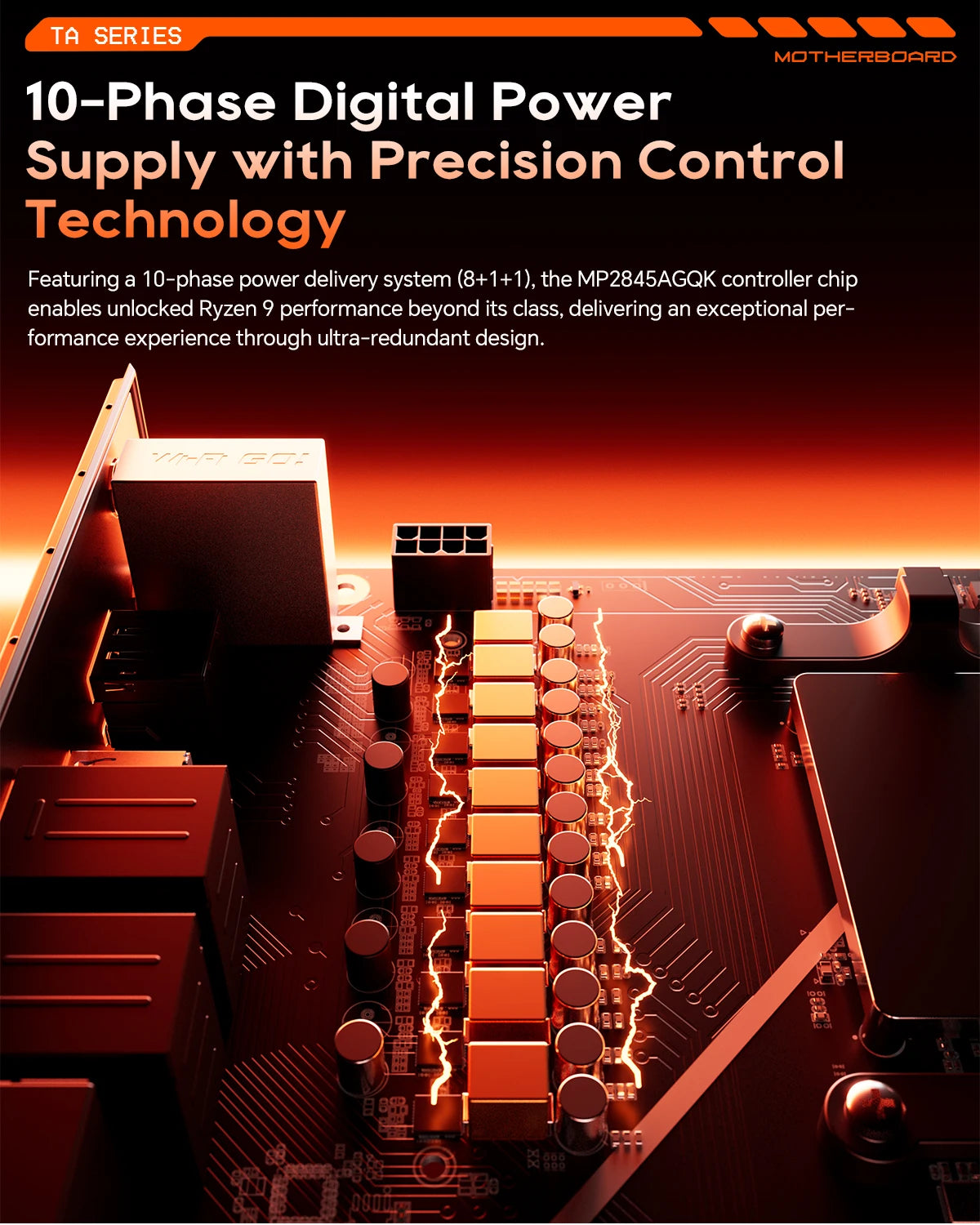

• VRM: ~10-phase digital power design

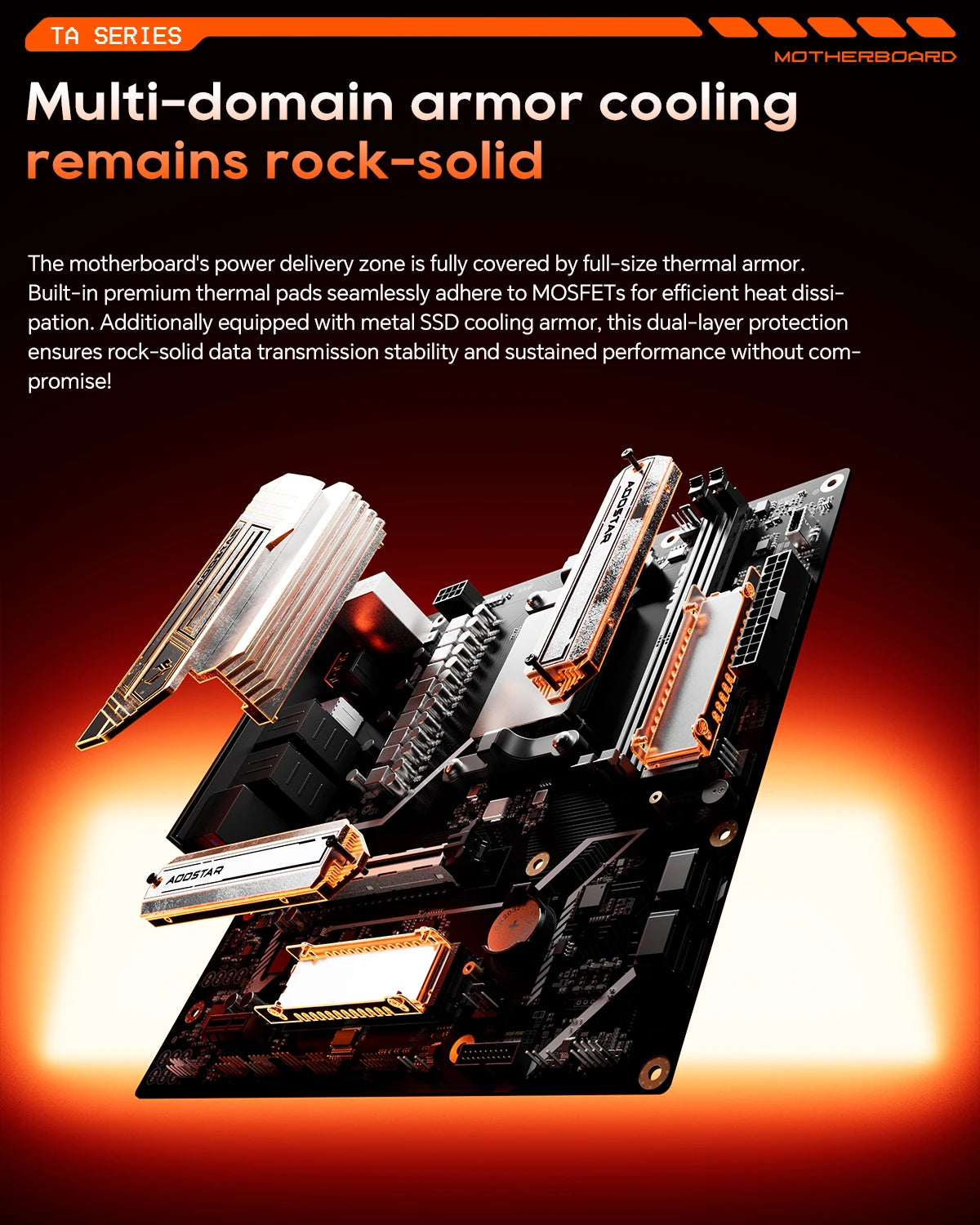

• Cooling: vapor chamber / VC heat spreader over CPU

---

⚡ What makes this board special?

🧩 1. Laptop CPU on a desktop motherboard (MoDT)

Instead of a socketed CPU:

• The CPU is permanently attached
• No CPU upgrades later
• But you get very high efficiency + gaming performance

---

🎮 2. 3D V-Cache gaming advantage

The 9955HX3D includes:

• Huge L3 cache (~144MB total)
• Extremely strong performance in:
  • Gaming (FPS stability)
  • Simulation workloads
  • Cache-heavy apps

This is similar in concept to Ryzen X3D desktop chips, but in a mobile form factor.

---

⚡ 3. PCIe 5.0 everywhere

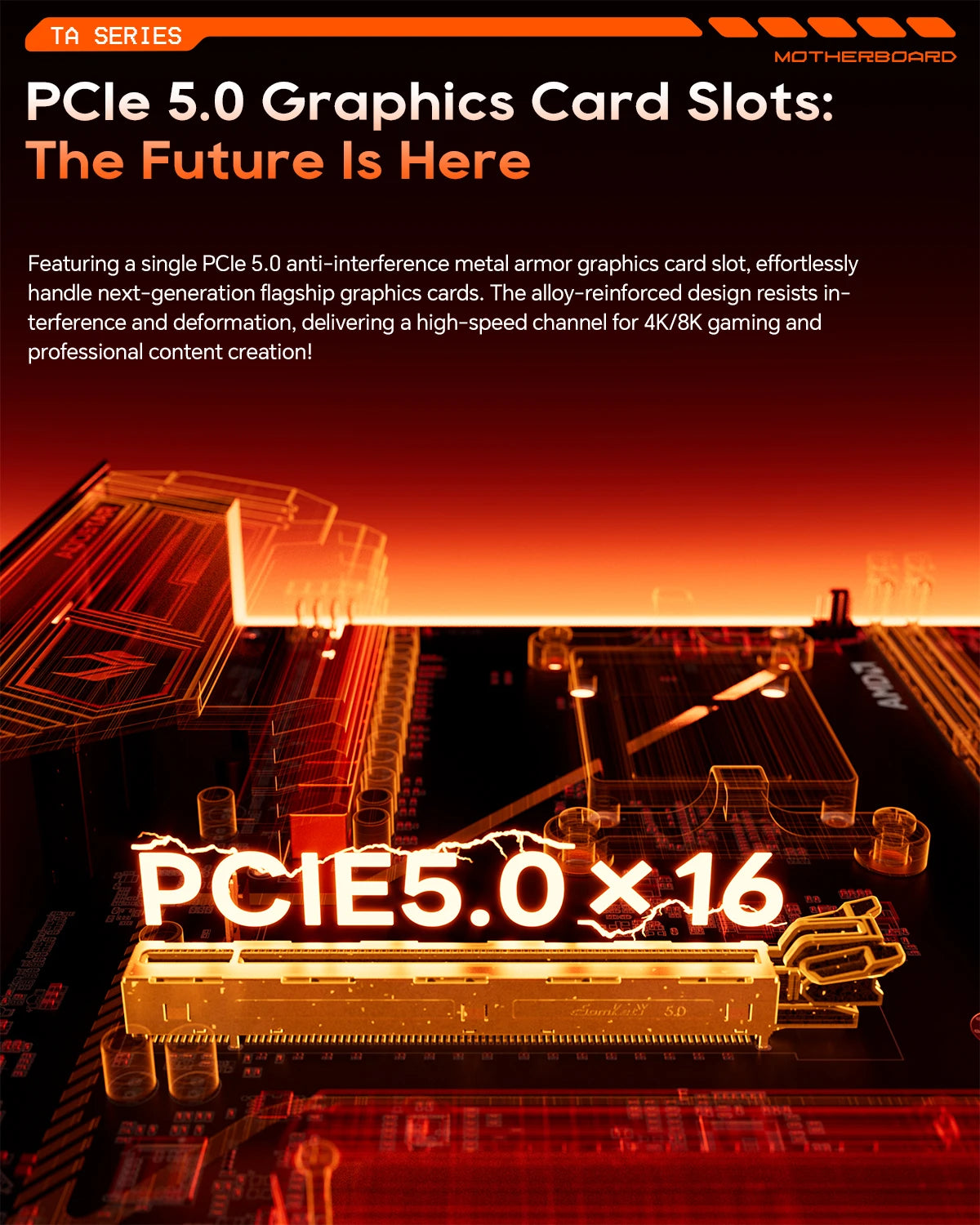

• PCIe 5.0 GPU slot
• Dual PCIe 5.0 NVMe slots

👉 This makes it:

• Very future-proof for storage
• High-end GPU capable (RTX 5080 / 5090 class builds)

---

👍 Advantages

• 🔥 Extremely strong gaming performance (X3D cache benefit)
• ⚡ PCIe 5.0 GPU + SSD support
• 💾 Dual Gen5 NVMe slots
• 🧊 Built-in vapor chamber cooling design
• 💰 Often cheaper than equivalent desktop CPU + board combos
• 🧠 High efficiency (mobile chip power profile)

🎯 Best Use Cases

This board is best for:

• High-end gaming PC builds
• Compact “all-in-one powerhouse” systems
• RTX 4070–5090 class GPUs
• Users who want top gaming FPS without desktop CPU pricing
• Enthusiasts comfortable with slightly non-standard platforms

Application: Desktop

Back I/O Ports: 1x RJ45,WiFi,3 x Audio Jacks,HDMI 1.0,4x USB 3.2/3.1 Gen 1,USB Type-C,Disply Port

Battery Included: no

Brand Name: Aoostar

Chipset: AMD

Chipset Manufacturer: AMD

High-concerned chemical: None

Maximum Ram Capacity: 96GB

Number of PCI: 0

Onboard LAN: 1x RJ45,WIFI 6 (AX),Bluetooth v5.1

PCI - E standards: PCI-E 5.0

Package: Yes

Processor compatibility: AMD Others

RAID Supported: no

Socket Type: Onboard CPU

Special Features: Cooling Armor,Support for Overclocking

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Mini PC

With CPU: Yes
