SPECIFICATIONS

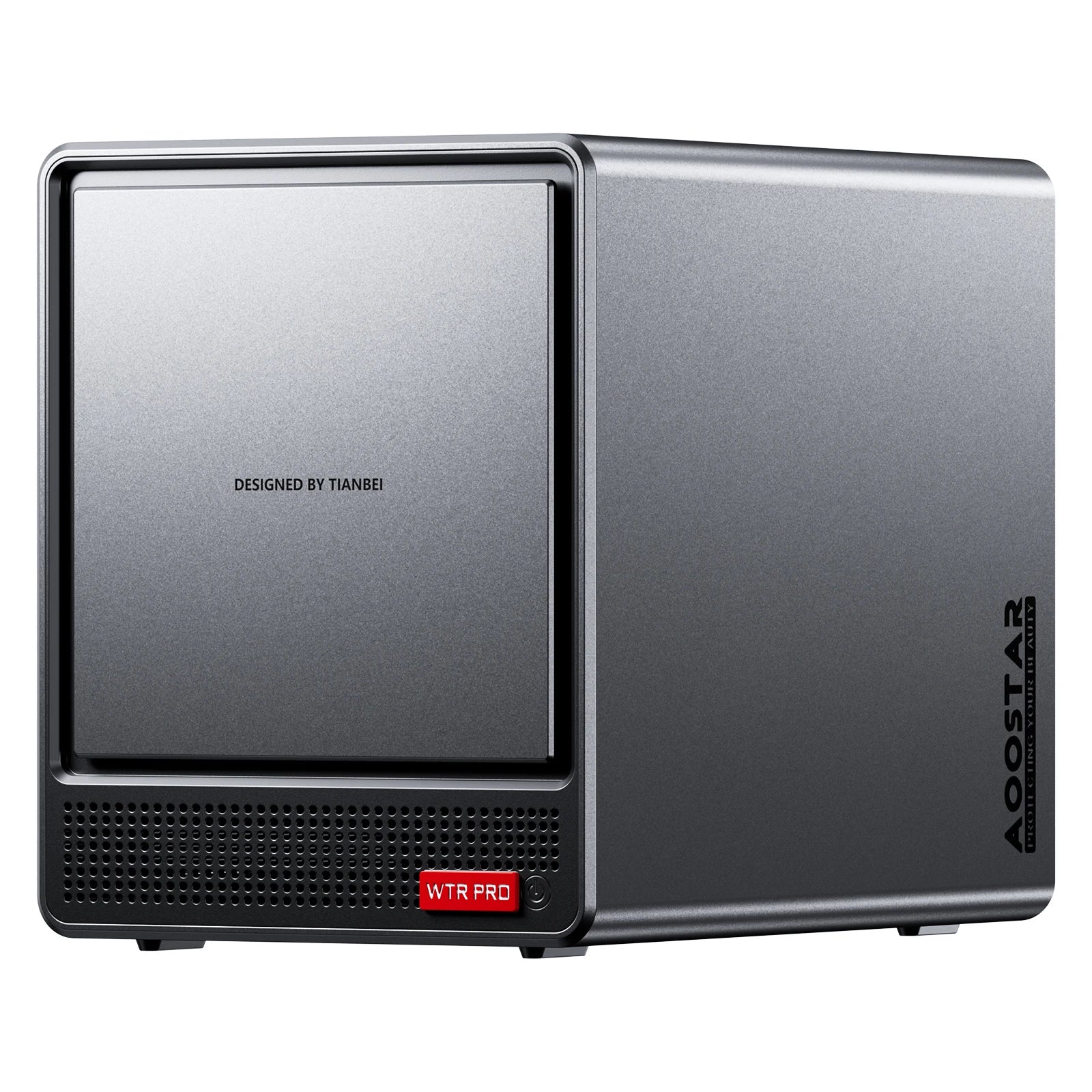

The Aoostar Ryzen 7 5825U 4-Bay NAS Mini PC is a compact DIY NAS/server platform rather than a conventional ready-to-use desktop. Its key attraction is the combination of an 8-core/16-thread Ryzen 7 5825U, four SATA drive bays supporting 2.5"/3.5" drives, and two M.2 NVMe slots.

Because it comes without RAM or SSD/storage, this is primarily aimed at users who want to build and configure their own NAS.

⭐ Key Features

• AMD Ryzen 7 5825U
• 8 cores / 16 threads
• No RAM included
• No SSD included
• 4 × SATA drive bays
• Supports 2.5" and 3.5" drives
• 2 × M.2 NVMe slots
• Compact NAS/mini-PC form factor
• Suitable for NAS, home server, virtualization, and media storage

🧠 Ryzen 7 5825U — ⭐⭐⭐⭐⭐

The Ryzen 7 5825U is a strong processor for a compact NAS.

Its 8 cores and 16 threads provide considerably more CPU capability than many inexpensive NAS appliances.

That makes this platform suitable for more than simply storing files.

Potential workloads include:

• File sharing
• Media servers
• Backup servers
• Docker containers
• Home automation
• Network services
• Virtual machines
• Photo libraries
• Personal cloud storage
• Multiple simultaneous users

For a home lab enthusiast, the CPU is one of the biggest advantages of this system.

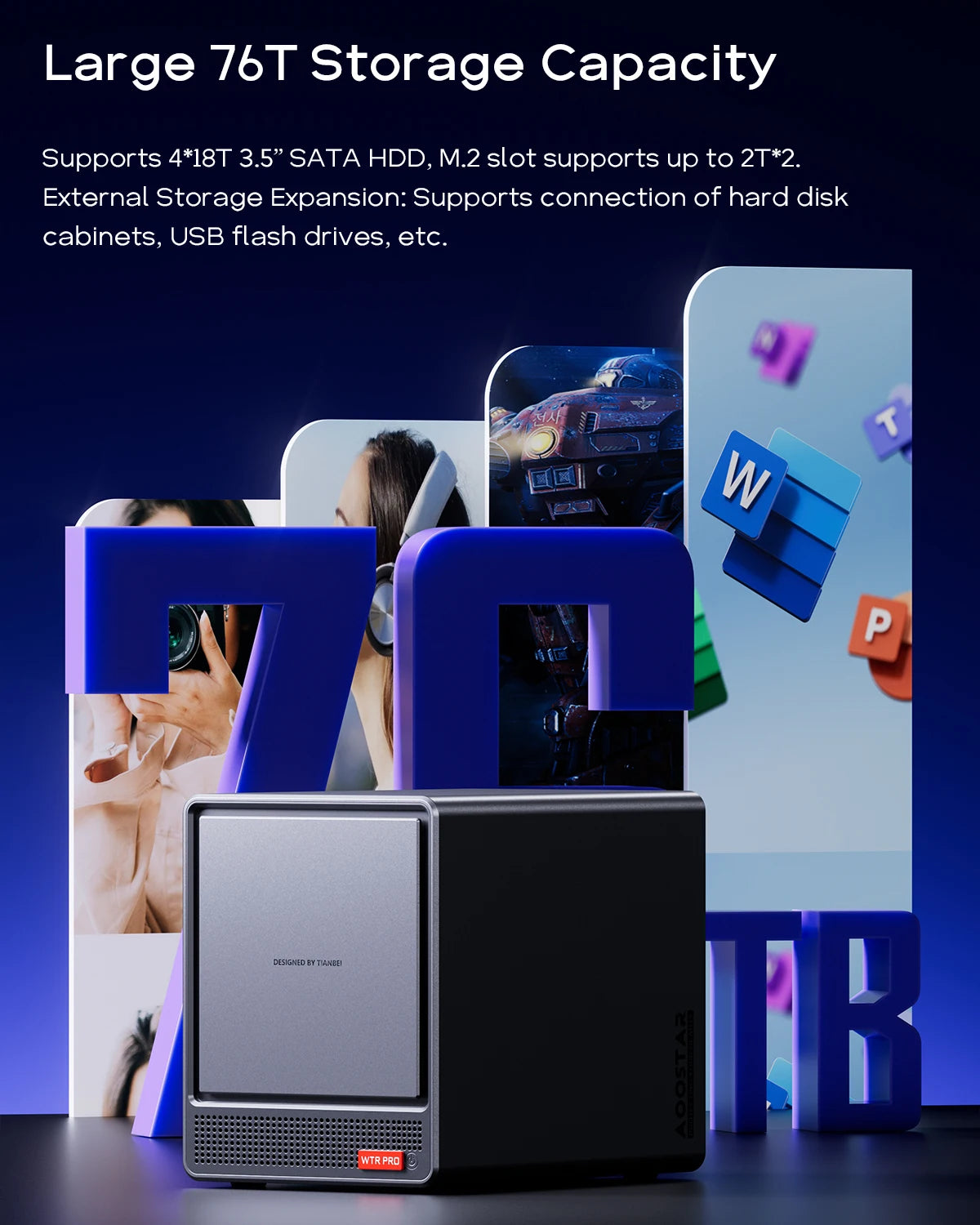

💾 Four SATA Bays — ⭐⭐⭐⭐⭐

The four drive bays are the centerpiece of this NAS.

Support for both 2.5-inch and 3.5-inch SATA drives gives you considerable flexibility.

You could configure it with:

• Four large 3.5" HDDs for bulk storage
• SSDs for quieter operation
• A mixture of drive types, depending on the platform's supported configuration

Four bays also provide enough drives for common RAID/ZFS-style configurations, depending on the operating system and storage software you choose.

🚀 Two M.2 NVMe Slots — ⭐⭐⭐⭐⭐

Having two NVMe slots is a particularly attractive feature.

They can potentially be used for:

• Operating-system storage
• Fast application storage
• VM storage
• Cache
• High-speed working data

This creates an interesting architecture:

NVMe → operating system/apps/cache
4 × SATA → bulk storage

That's considerably more flexible than a basic four-bay NAS with only SATA storage.

🧩 No RAM / No SSD — ⭐⭐⭐

This is both a drawback and an advantage.

The obvious disadvantage is that it's not ready to use out of the box.

You'll need to purchase and install:

• RAM
• NVMe SSD and/or SATA drives
• NAS operating system/software

The advantage is that you aren't paying for components you don't want.

This is particularly appealing if you already have:

• Spare DDR4 memory
• NVMe SSDs
• SATA HDDs
• Enterprise/used NAS drives

🛠️ DIY NAS Flexibility — ⭐⭐⭐⭐⭐

This is where the Aoostar becomes interesting.

Rather than being locked into a manufacturer's proprietary NAS operating system, you can potentially build a system around software such as:

• TrueNAS
• Unraid
• OpenMediaVault
• Proxmox
• Linux
• Windows Server

The exact compatibility and recommended configuration should be verified before choosing the operating system.

🎬 Media Server Potential — ⭐⭐⭐⭐½

The Ryzen 7 5825U has enough CPU performance for a capable home media server.

It could be used for applications such as:

• Plex
• Jellyfin
• Network video storage
• Music servers
• Photo management

However, hardware transcoding capability is an important consideration. If you expect to transcode lots of 4K video streams, verify the specific integrated GPU/software support rather than assuming the CPU alone makes it suitable.

For direct-play media serving, the platform is much less demanding.

🏠 Home Lab Potential — ⭐⭐⭐⭐⭐

This is arguably one of the best applications for the machine.

The combination of:

8C/16T CPU + 4 SATA bays + 2 NVMe slots

gives you a lot of flexibility for a relatively compact platform.

It could serve as:

NAS + Docker server + media server + backup server

all on one machine.

With sufficient RAM, it could also become a useful virtualization platform.

⚠️ RAM Is Important

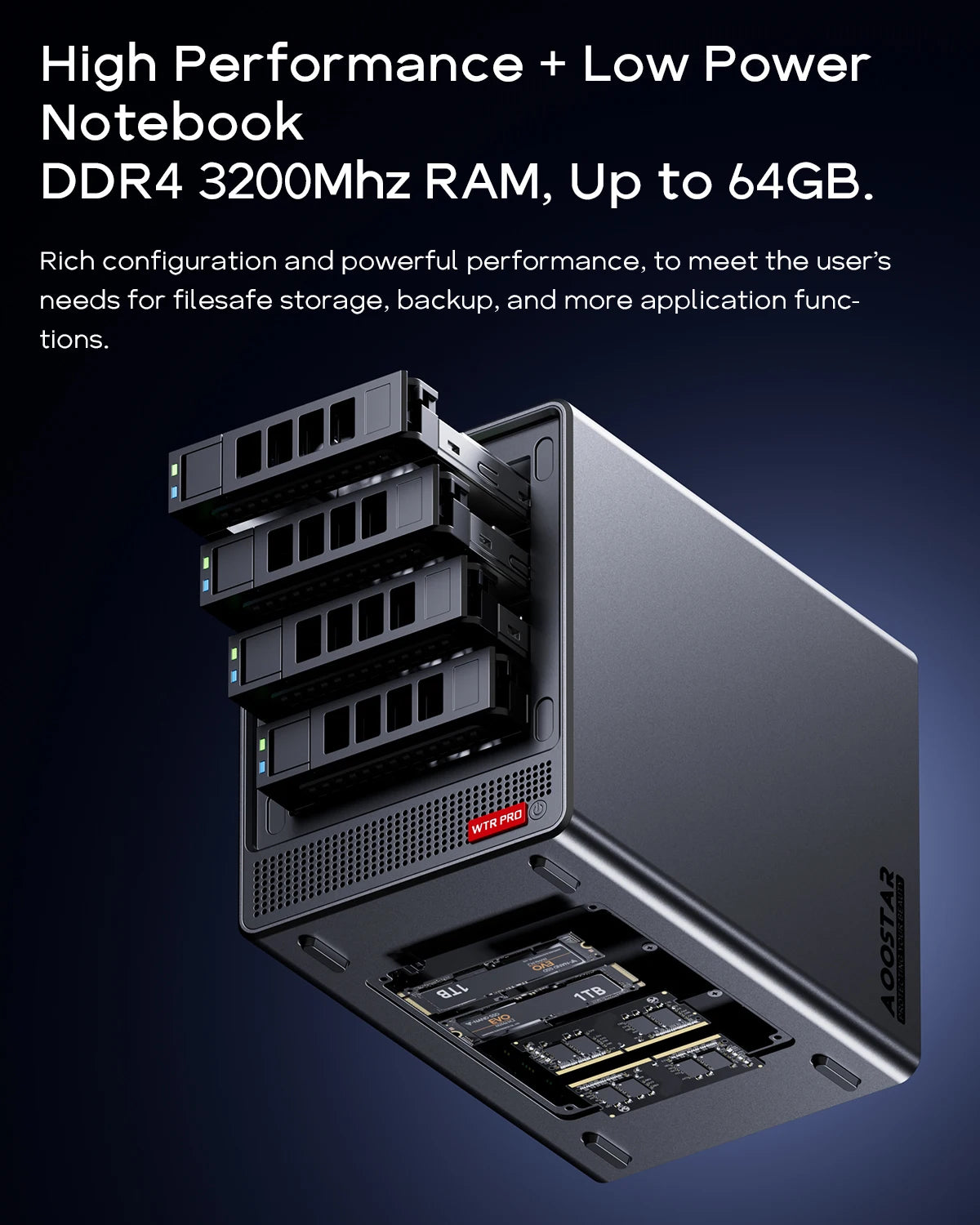

Since this model doesn't include RAM, don't skimp on memory.

For a simple file server, a modest amount may be sufficient.

For:

• ZFS
• Docker
• Multiple containers
• Virtual machines
• Databases
• Media applications

I'd strongly favor 32GB or more, assuming the system supports the desired capacity.

The exact memory type, maximum capacity, and number of slots should be confirmed for the particular R7 5825U configuration.

For a serious home NAS, I'd consider something like:

CPU: Ryzen 7 5825U
RAM: 32GB DDR4
NVMe 1: 500GB–1TB OS/app drive
NVMe 2: 1TB+ for applications/cache/VMs
SATA: 4 × NAS-grade HDDs
Storage layout: RAID/ZFS configuration appropriate for your redundancy needs

The exact configuration should depend on whether your priority is maximum capacity, redundancy, performance, or virtualization.

Brand Name: AOOSTAR

Certification: CE,EAC

Graphics Card Type: Integrated Card

Hard Drive Capacity: ≤ 40 GB

High-concerned chemical: none

Memory Capacity: ≤ 128MB

Model Number: WTR PRO 5825

Processor Brand: AMD

Processor Main Frequency: 3.0-3.8

Processor Model: AMD 5825 U

Type: Mini Desktop,Mini PC

Use: Multimedia
