SPECIFICATIONS

The AOOSTAR MACO 6850H Mini PC is a high-performance compact desktop designed for users who want near-desktop-class power in a small, quiet, and energy-efficient system. Built around the AMD Ryzen 7 PRO 6850H, it targets productivity users, creators, developers, homelab enthusiasts, and light-to-moderate gamers who need strong CPU + GPU performance, advanced connectivity, and heavy multitasking capability in a tiny footprint.

---

🧠 Processor & Graphics Performance

The system is powered by the AMD Ryzen 7 PRO 6850H, a Zen 3+ mobile processor built on a 6nm process.

Key specs:

• 8 cores / 16 threads
• Boost clock up to 4.7GHz
• Integrated Radeon 680M (RDNA2) graphics
• Typical 45–54W sustained performance envelope

This combination delivers:

• Strong productivity performance (office, coding, multitasking)
• Smooth 4K media playback
• Solid esports gaming at 1080p (low–medium settings)
• Good emulation performance for retro and mid-tier systems

The Radeon 680M iGPU is one of the strongest integrated GPUs in its generation, capable of handling many modern lightweight games and GPU-accelerated workloads.

---

🧩 Memory & Storage Architecture

One of the most distinctive aspects of the MACO 6850H is its high-speed soldered memory design.

RAM

• 24GB LPDDR5 6400MHz
• High bandwidth improves iGPU performance
• ❗ Not upgradeable (soldered)

Storage

• 3× M.2 2280 PCIe 4.0 NVMe slots
• Up to 24TB total expansion
• RAID support (on some configurations)

This makes it especially attractive for:

• Media servers
• Virtual machines
• Game libraries
• Large project storage setups

---

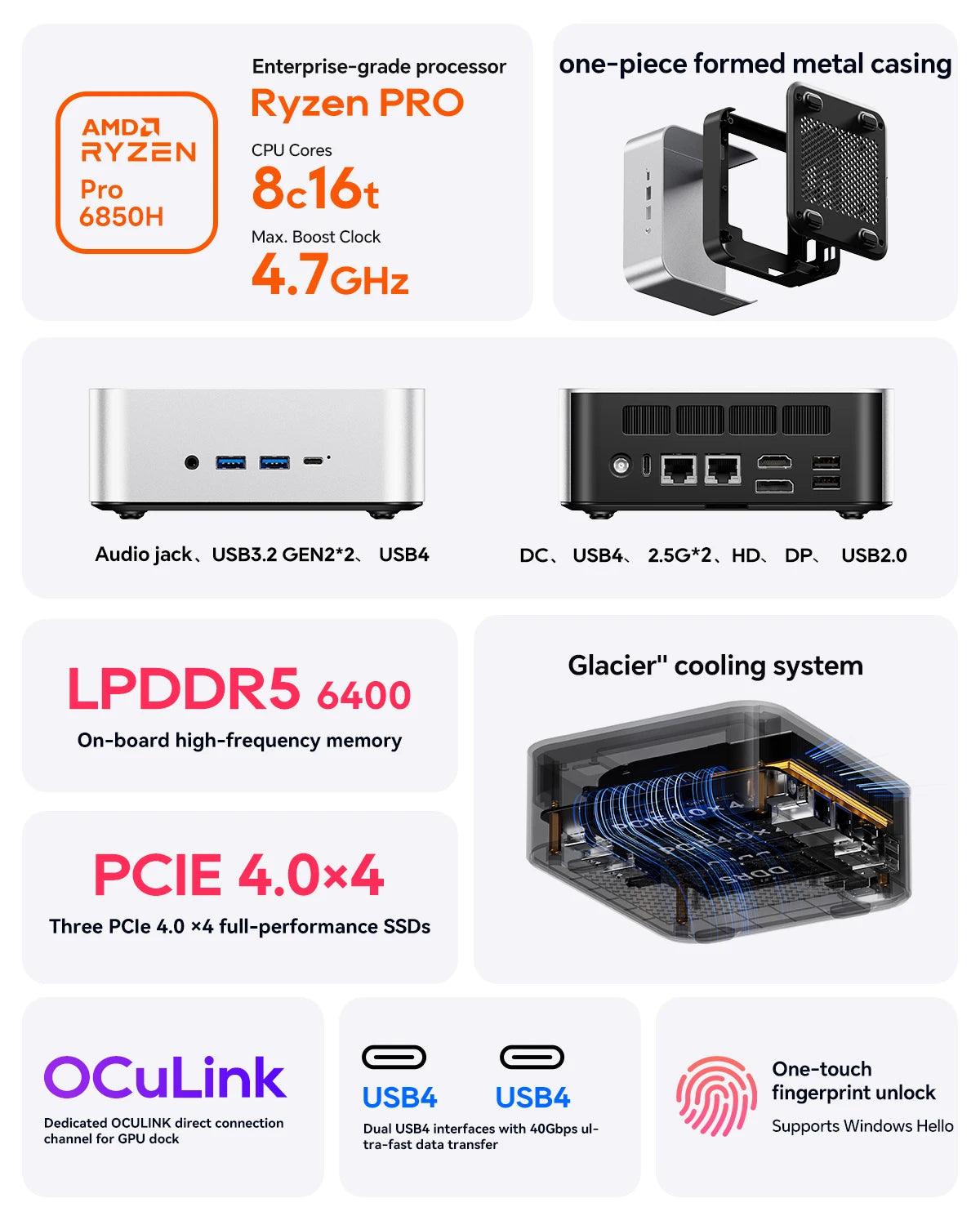

🔌 Connectivity & Ports (Very Feature-Rich)

The AOOSTAR MACO is known for its unusually rich I/O selection:

Video Outputs

• HDMI 2.1
• DisplayPort 1.4
• 2× USB4 (DisplayPort + data)
• Supports up to 4 displays simultaneously

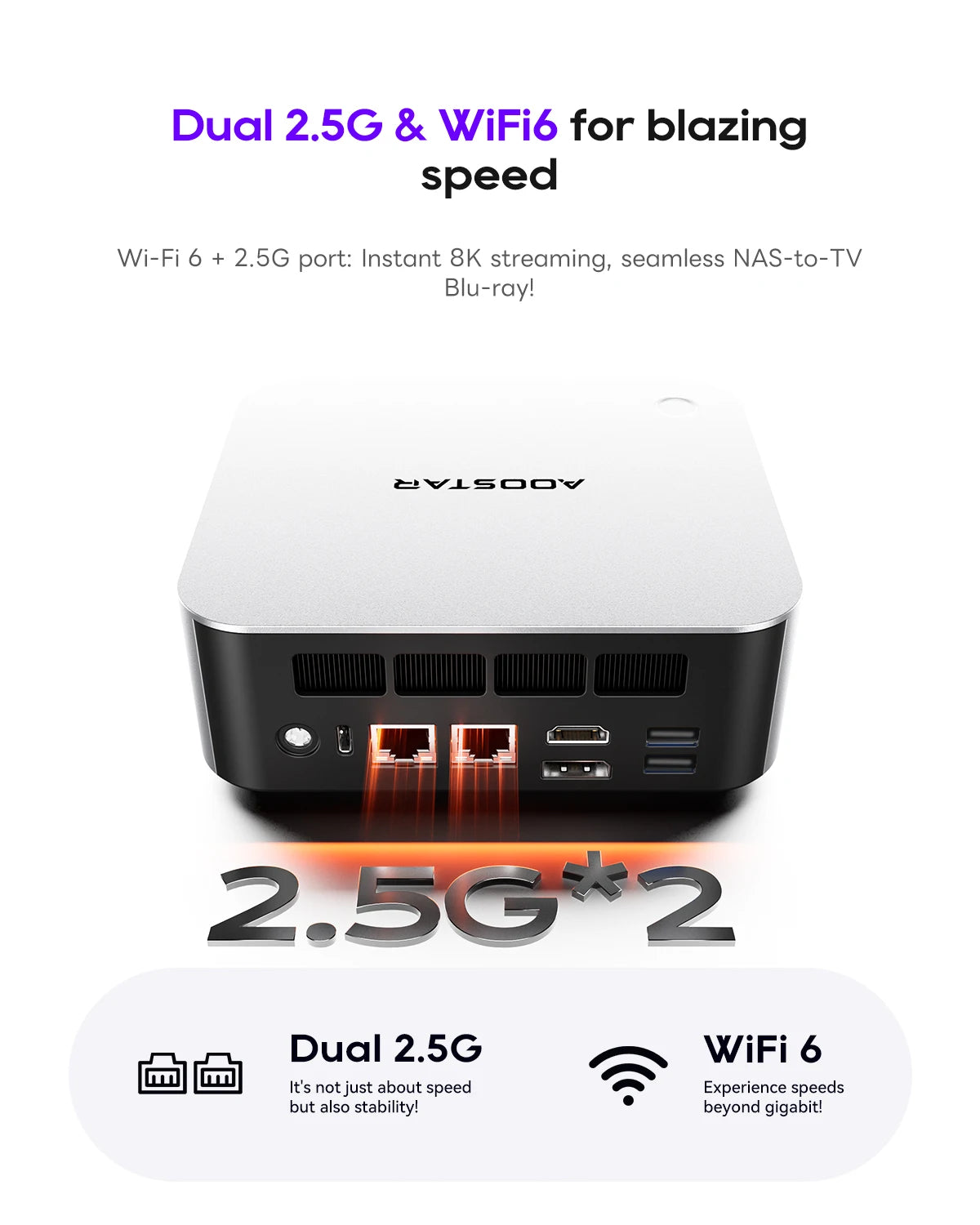

Networking

• Dual 2.5GbE LAN (Intel I226-V)
• Wi-Fi 6
• Bluetooth 5.2

Expansion & USB

• USB4 (40Gbps)
• USB 3.2 Gen 2 ports
• USB 2.0
• OCuLink (external GPU support, high bandwidth)
• Audio jack

This makes it suitable for:

• Multi-monitor workstations
• NAS / homelab setups
• External GPU configurations (eGPU)

---

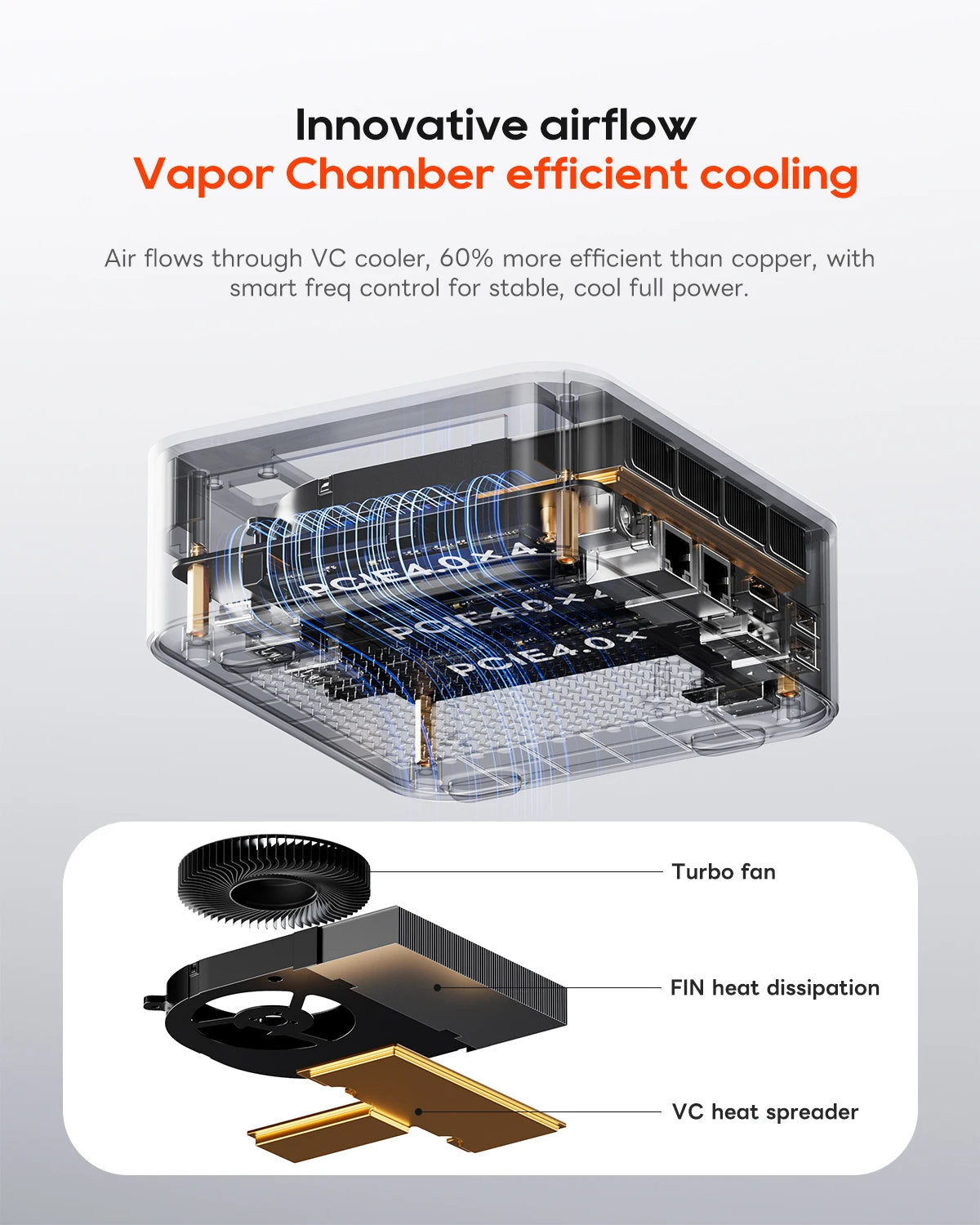

❄️ Cooling & Build Quality

• Full aluminum alloy chassis (premium feel)
• Compact ventilated design
• Active cooling system with performance fan curve

Pros:

• Solid metal build
• Good heat dissipation for size

Trade-offs:

• Can get loud under heavy load
• Fan curve may feel aggressive in some units

---

🖥️ Software & Operating System

• Ships with Windows 11 Pro (on most prebuilt versions)
• Barebone versions require OS installation
• Fully supports Linux distributions

Common use cases:

• Office workstation
• Development environment
• Proxmox / virtualization host
• Media center (HTPC)

---

🎮 Gaming & GPU Capabilities

Thanks to the Radeon 680M iGPU:

• Esports titles (Valorant, CS2, Dota 2): smooth at 1080p low/medium
• Older AAA games: playable with tuned settings
• Emulation: strong for PS2, GameCube, Switch (light titles)
• 4K video playback: excellent hardware decoding

Optional OCuLink / USB4 eGPU support allows:

• RTX-class external GPU upgrades
• High-end gaming and rendering expansion

• 🧠 Ideal Use Cases

• Home office workstation
• Programming / software development
• 4K media center (HTPC)
• Homelab / Proxmox server
• Light gaming PC
• Multi-monitor productivity setups
• Portable desktop replacement

Brand Name: AOOSTAR

Certification: CE,FCC

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

High-concerned chemical: None

Memory Capacity: 24GB

Model Number: MACO 6850H

Processor Brand: AMD

Processor Main Frequency: 3.0-3.8

Processor Model: AMD 6850H

Type: Mini Desktop,Mini PC

Use: Multimedia
