Annke C1200 12MP Ultra HD PoE IP Camera Smart Advanced Detection
Annke C1200 12MP Ultra HD PoE IP Camera Smart Advanced Detection
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
High Definition: 12.0 Megapixels
Supported Operating Systems: Windows 98
Supported Operating Systems: Windows 7
Supported Operating Systems: Windows 8
Lens (mm): 2mm
Style: Bullet Camera
Connectivity: IP/Network Wired
Installation: Normal
Minimum Illumination(Lux): 1/2.7 Progressive Scan CMOS
Scene: Indoor and outdoor
Color Night Vision: YES
Megapixels: 1.3MP
Storage: 256GB
Video Compression Format: H.264
Video Compression Format: H.265
IR Distance(m): Up to 30 m
Color: WHITE
Color: Black
Movement Range(Tilt): 0°-360°
is_customized: No
Model Number: I91DD/I91DN
Supported Mobile Systems: Windows Mobile
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
Smart home platform: none
AI Functions: Vehicle Detection
IP Rating: IP67
Special Features: Waterproof / Weatherproof
App name: other
TF Card: 128G TF Card
Digital Zoom: none
Audio Output: 1CH BNC
Sensor: CMOS
Sensor Brand: Sony/索尼
Operating Temperature: -10°-60°
Shell Material: Metal
Power Supply: With POE
Viewing Angle : 90°

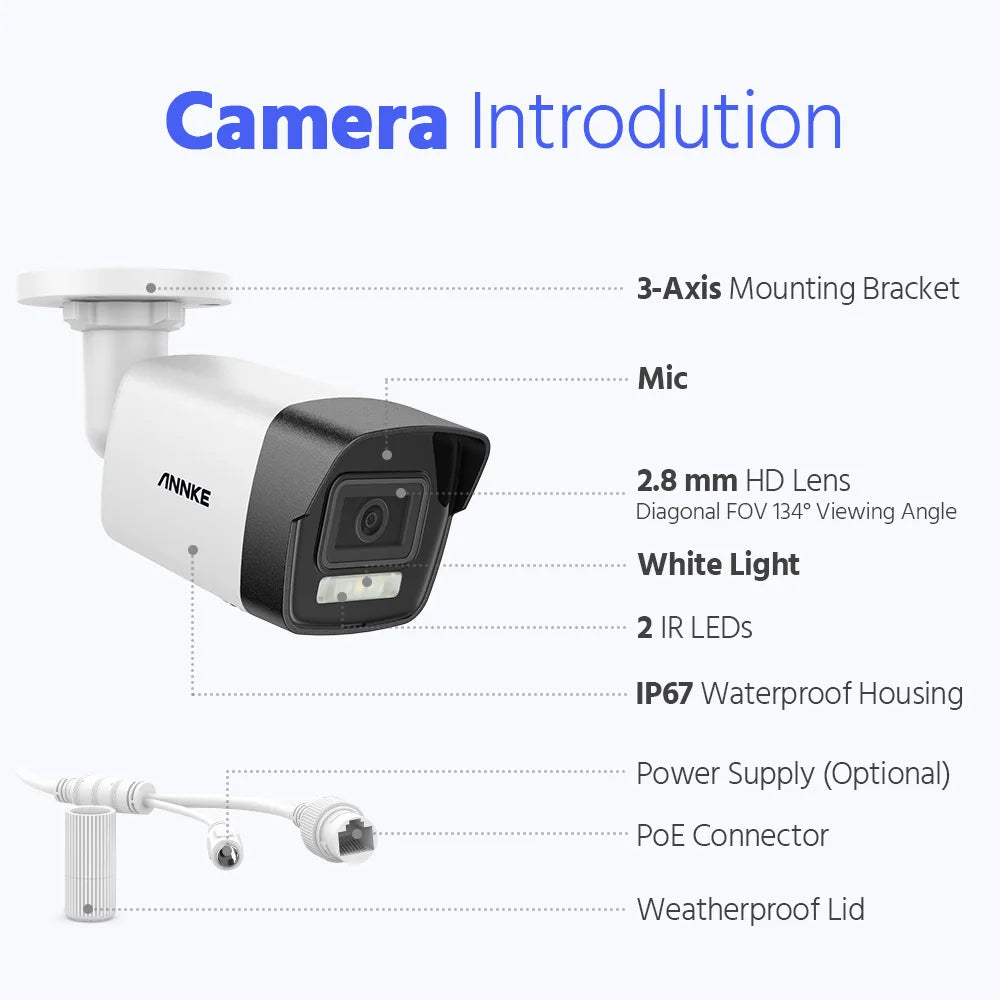

Key features

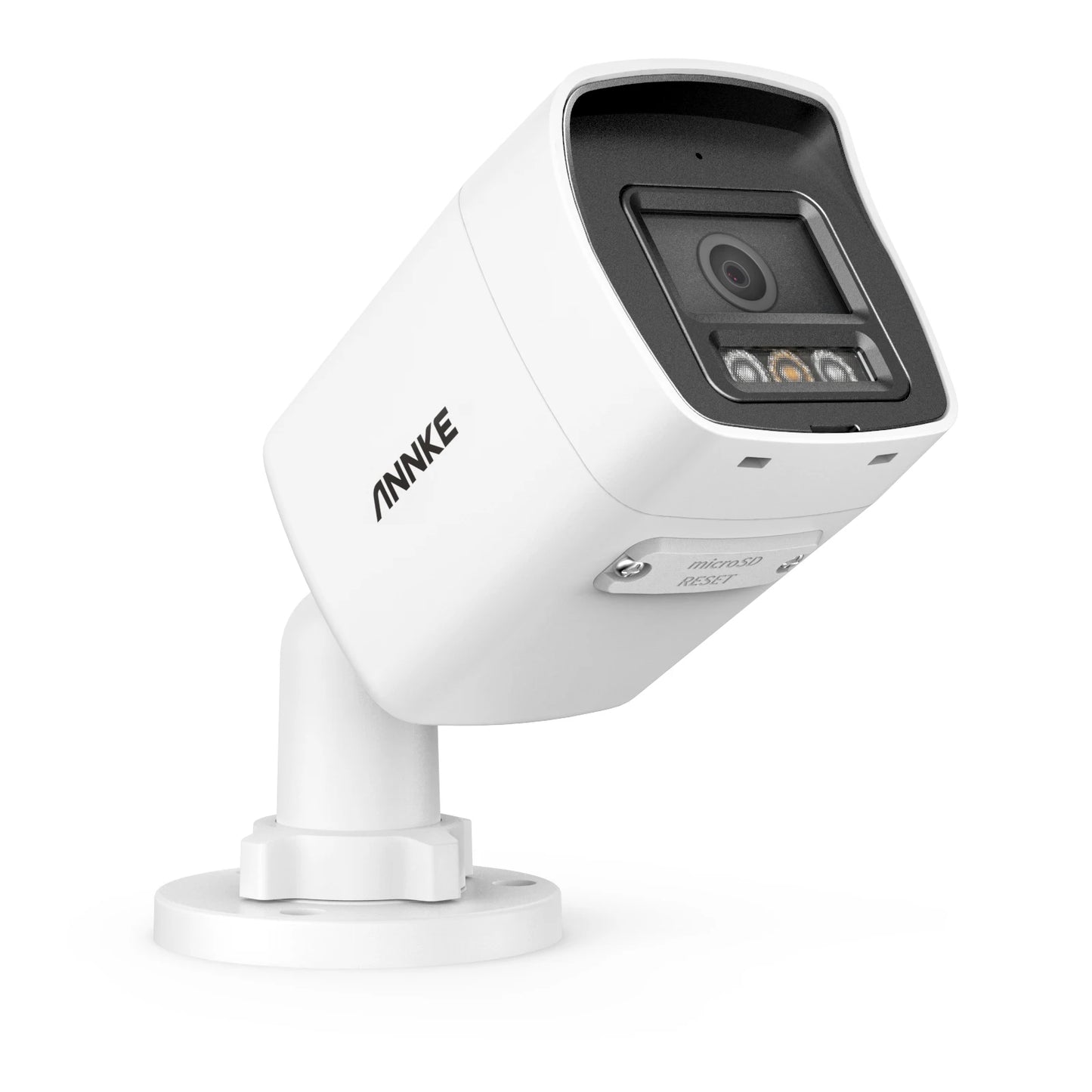

★ 12MP smart dual light bullet network camera
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
|
IP Camera |
||
|
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Max resolution |
4096*3072(12MP) |
|
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
|
Supplement Light Range |
Up to 30 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White & Black |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67 |
|
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
|
Weight |
0.6 lb./285 g |
|
