ANNKE 8MP 8CH POE Video Recorder

ANNKE 8MP 8CH POE Video Recorder

$173.99 USD
$0.00 USD $173.99 USD
Sale Sold out
Tax included.
Video Input
Ships From

SPECIFICATIONS



Brand Name: ANNKE

Wireless Security: WPA

POE: 8 Port

Certification: CE

Certification: FCC

Hard Drive Size: 3.5''

Supported Mobile Systems: iPhone OS

Supported Mobile Systems: Android

Audio Compression Format: G711A

Model Number: N48PAW

Audio Input: 1 Channel

Technology: Network

Supported Operating Systems: Microsoft Windows 98

Supported Operating Systems: Microsoft Windows 2000

Supported Operating Systems: Microsoft Windows 7

Video Standard: NTSC

Video Standard: PAL

Backup Type: Hard Drive

Alarm Action: Local Alarm

Network Interface: RJ45 10/100M

Audio Output: 1CH RCA

Communication Interface: RS485

Video Compression: H.264+/H.264/H.265/H.265+/MPEG4

IP Video Input: 8CH POE

Video Output: HDMI Up to 4K,VGA Up to 1080P

Incoming bandwidth: 80m

Max Playback Channel: 8ch

Max Recording Resolution: Up to 8M(3840x2160)

Onvif Protocols: Support

HDD Capacity: Up to 6TB capacity for each HDD

Operating Power: DC48V


Key Features:
1/ 8CH PoE IP Camera Input
2/ Powerful NVR with Strong Compatibility

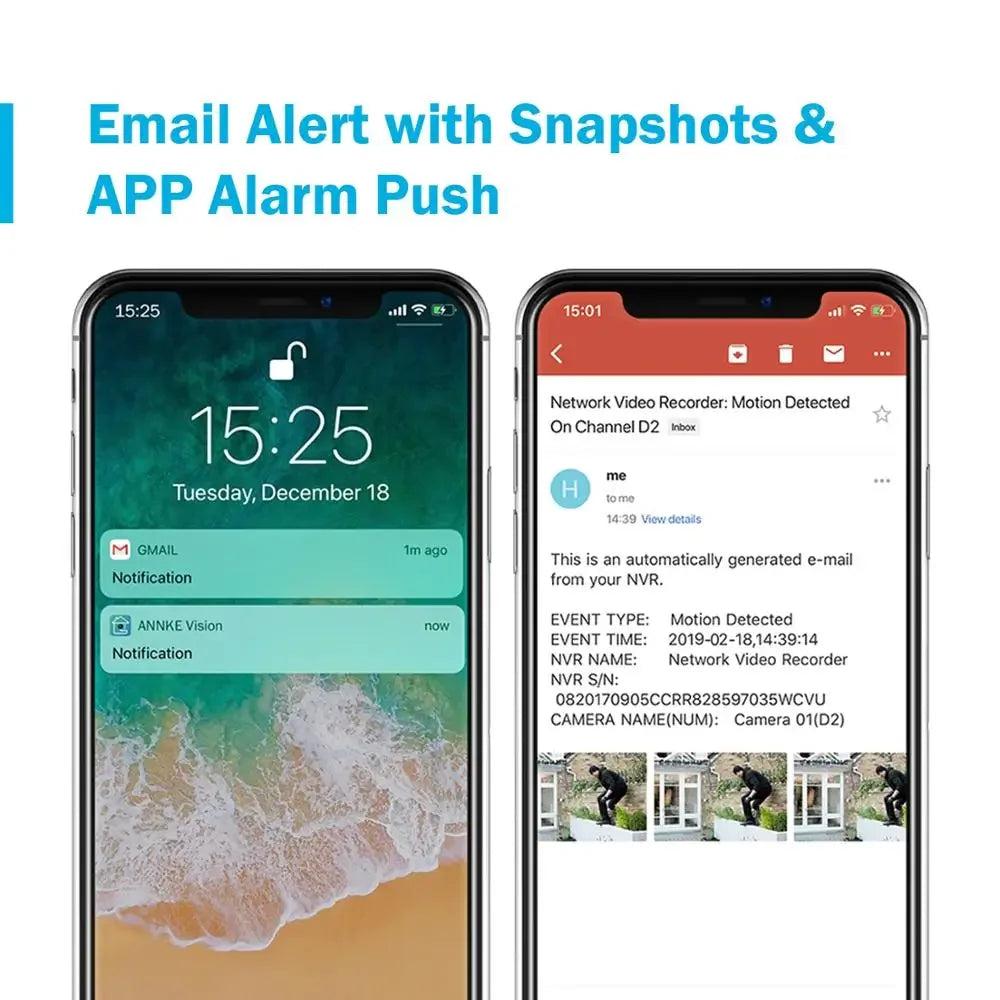

3/ Smart Motion-Triggered Alerts
4/ Connectable to IP Cameras Supporting H.265+
5/ Customizable Motion Detection & Privacy Mask
6/ Smart Motion-Triggered Alerts
7/ Quick Remote Monitoring, Supports iPhone. iPad. Android mobile remote monitoring
8/ 4K Video Output to Display Ultra Clearness
9/ Save Time with Smart Search/Playback Function

Packaging Contents :
X1 NVR ((NO HDD or 1TB or 2TB HDD for Optional)
X1 USB Mouse
X1 Remote Control
X1 Power Cable
X1 1M network cable
X1 1.8M HDMI cable
X1 User's Manual For NVR

NVR Specification:
Video Compression:H.264+/H.264/H.265/H.265+/MPEG4
IP Video Input:8CH POE
Video Output: HDMI Up to 4K,VGA Up to 1080P
Audio Input/Output:1/1 RCA
Incoming bandwidth: 80M
Max Recording Resolution: Up to 8M(3840x2160)
Max Playback Resolution: Up to 8M(3840x2160)
Max Playback Channel: 8CH
Max Playback Capacity: 4-ch@1080P, 1-ch@8MP
Onvif Protocols: Support
HDD:1 SATA interface
HDD Capacity:Up to 6TB capacity for each HDD
Network interface: RJ45x1(10/100/1000M)
POE: 8 Ports(IEEE802.3at/af)
USB: 2x USB 2.0
Operating Power: DC48V
Power Consumption:≤10W(without HDD and POE),POE: Max 25.5W for single port
Working Temperature: 14 °F ~ 131 °F /-10 °C ~+55 °C
Dimensions(W x H x D):  12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
Weight (without hard disk): 2.2lbs / 1KG
