SPECIFICATIONS

Brand Name: ANNKE

Two-way Audio: no

Wireless Security: WPA

Hard drive Interface Type: SATA

POE: 8 Port

Certification: CE

Certification: FCC

Hard Drive Size: 3.5''

Supported Mobile Systems: iPhone OS

Supported Mobile Systems: Android

Audio Compression Format: G711A

Model Number: N48PBB

Audio Input: 1 Channel

Technology: Network

Supported Operating Systems: Microsoft Windows 7

Video Standard: NTSC

Video Standard: PAL

Smart home platform: other

Backup Type: Hard Drive

Video Resolution: 5MP

Alarm Action: Local Alarm

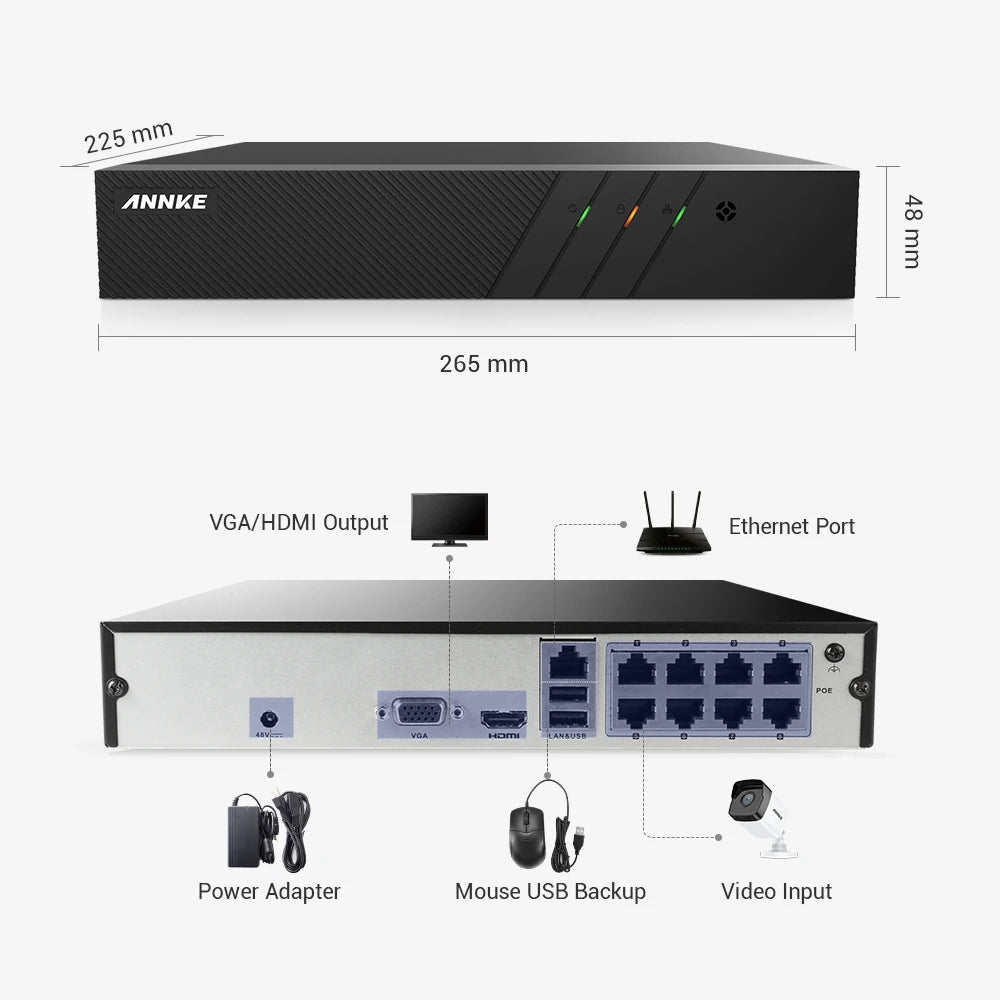

Network Interface: RJ45 10/100M

Audio Output: 1CH RCA

Communication Interface: None

Video Compression: H.265+/H.265/ H.264+/H.264

IP Video Input: 8CH POE

Video Output HDMI & VGA: Up to 1080P

Incoming bandwidth: 60m

Max Playback Channel: 8ch

Max Recording Resolution: Up to 6MP

HDD Capacity: Up to 6TB capacity

Operating Power: DC48V

Network interface: RJ45x1(10/100M)

HDD: 1 SATA interface

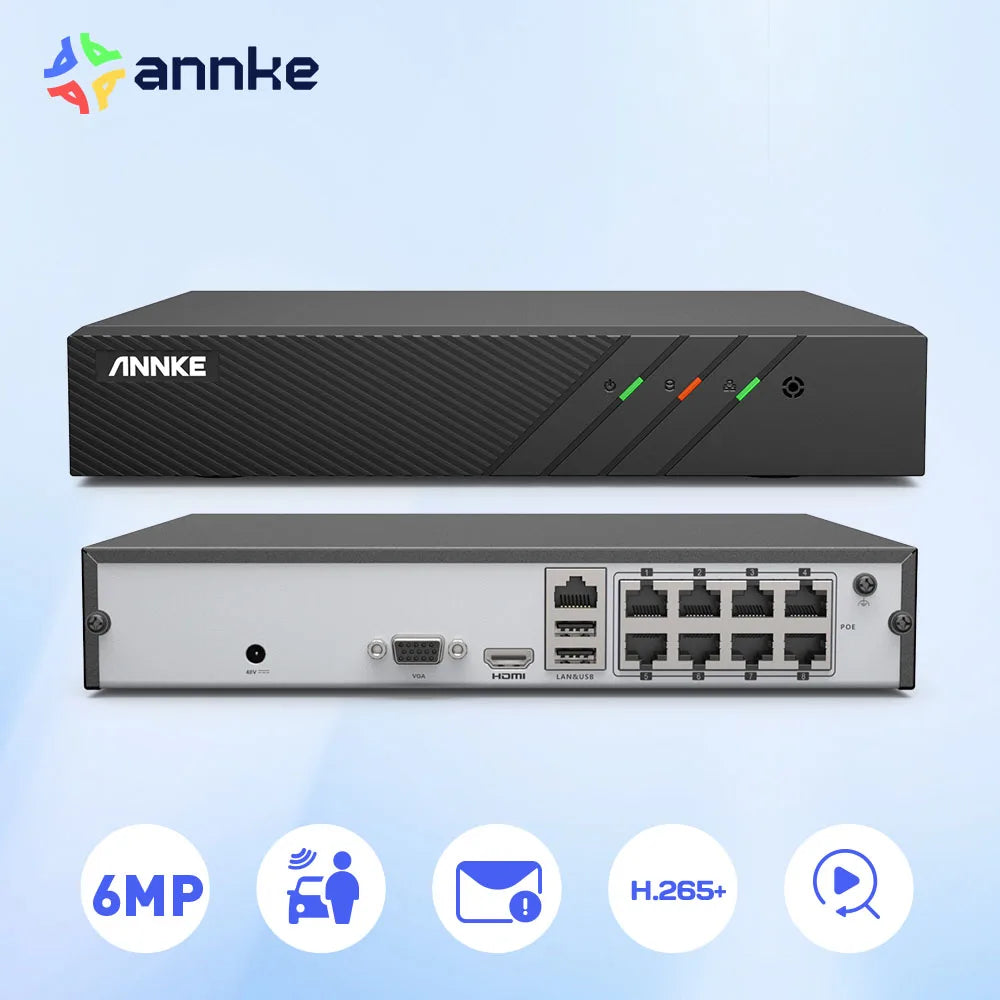

1. 8-Channel NVR:

   • Supports up to 8 IP cameras, allowing you to monitor multiple areas of your property simultaneously.

2. 6MP Video Resolution:

   • Capable of recording and displaying video at up to 6MP resolution, providing clear and detailed images.

3. Power over Ethernet (POE):

   • Simplifies installation by allowing both power and data to be transmitted over a single Ethernet cable, reducing the need for additional wiring.

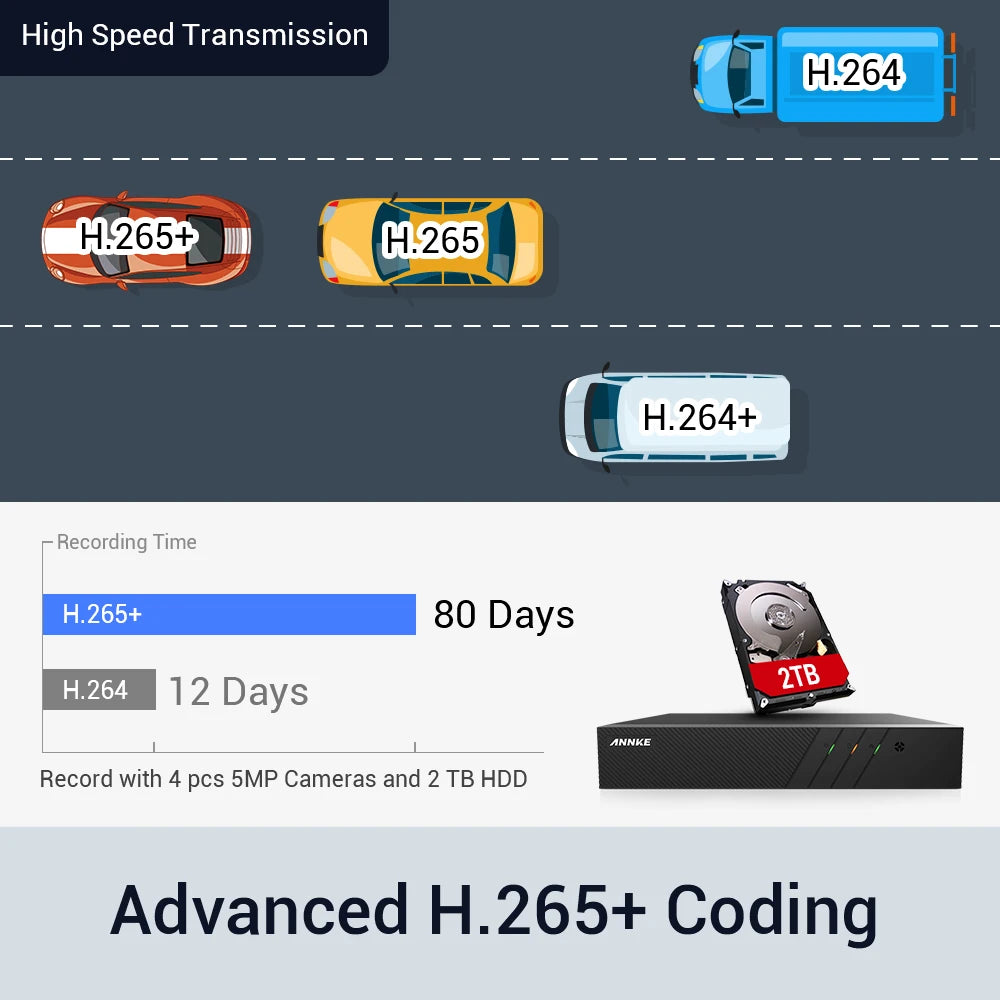

4. H.265+ Video Compression:

   • Enhances video quality while significantly reducing storage requirements, allowing for longer recording times without compromising image quality.

5. Compatibility with Various IP Cameras:

   • Compatible with a range of IP cameras from 2MP to 6MP, providing flexibility in selecting cameras that meet your specific needs.

6. Remote Access:

   • Supports remote viewing via a smartphone app or web browser, enabling you to monitor your property from anywhere at any time.

7. Motion Detection and Alerts:

   • Features motion detection with customizable zones, sending alerts to your phone or email when movement is detected in designated areas.

8. Storage Options:

   • Supports various storage options, including built-in hard drives (specific capacity may vary) and external storage devices.

Benefits:

• High-Resolution Surveillance:

  • Higher resolution cameras provide clearer, more detailed images, making it easier to identify faces, license plates, and other important details.

• Easy Installation:

  • POE technology reduces the complexity of installation, as only one cable is needed per camera, simplifying setup and reducing potential points of failure.

• Efficient Storage Management:

  • H.265+ compression technology optimizes storage usage, allowing for more footage to be stored without sacrificing video quality.

• Enhanced Security:

  • Continuous monitoring and real-time alerts help ensure that any suspicious activity is detected and responded to promptly, enhancing the security of your property.

• Scalability:

  • The ability to support up to 8 cameras means you can start with a smaller setup and expand as needed to cover more areas.

• Remote Monitoring:

  • Provides peace of mind by allowing you to check on your property from anywhere, ensuring you are always informed about what is happening at home.
