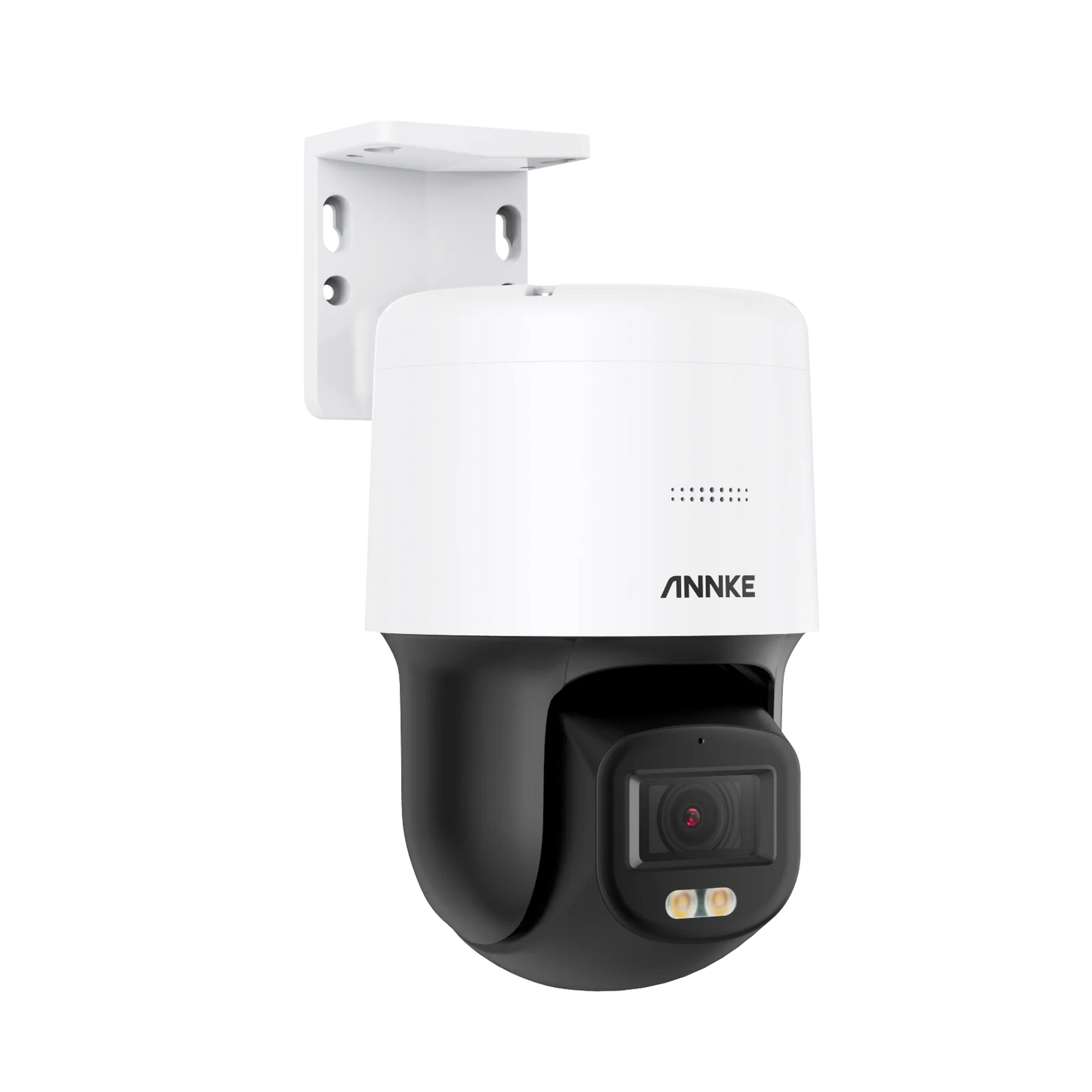

Annke 6MP POE Full Color Camera Outdoor POE Two Way Audio
Annke 6MP POE Full Color Camera Outdoor POE Two Way Audio
SPECIFICATIONS
Brand Name: ANNKE
High Definition: 6.0 Megapixels
Lens (mm): 2mm
Style: Box Camera
Connectivity: WIFI
Installation: Normal
Minimum Illumination(Lux): 0.01
Megapixels: 6mp
Video Compression Format: H.264
IR Distance(m): Up to 30m
Certification: FCC
Dimensions (L x W x D)(mm): 75mm*75mm*110mm
Color: WHITE
Alarm Action: Local Alarm
is_customized: Yes
Model Number: I81EM
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
Smart home platform: Tuya
IP Rating: IP66
Special Features: Vandal-proof
Power Supply(V): 5V 1A
Power Consumption(W): 5W
Sensor: CMOS
Sensor Brand: Sony/索尼
Power Supply: Normal
Viewing Angle : 100°
APP: Annke
Video Resolution: 3K(3072X1728)
Image sensor: 1/1.8 Progressive Scan CMOS
Video Bit Rate: 32 Kbps to 8 Mbps
Lens: 2.8mm
Audio Sampling Rate: 8 kHz/16 kHz
Protection Level: IP66
Introducing the Annke 6MP POE Full Color Camera, an advanced outdoor security camera designed to provide high-resolution surveillance and comprehensive protection for your property. With features such as 6MP resolution, full-color night vision, two-way audio, and POE connectivity, this camera offers enhanced security monitoring and peace of mind.
Key Features:
-
High Resolution: Experience exceptional video clarity with 6MP resolution, ensuring sharp and detailed images that capture important details with precision, allowing for effective surveillance and monitoring.
-
Full-Color Night Vision: Enjoy enhanced night vision capabilities with full-color night vision technology, which provides vivid and colorful images even in low-light conditions, ensuring reliable surveillance coverage day and night.
-
Power over Ethernet (POE): Simplify installation and setup with POE connectivity, allowing both power and data to be transmitted over a single Ethernet cable, reducing cable clutter and providing a reliable and stable connection to your network video recorder (NVR) kit.
-
Two-Way Audio: Communicate with visitors or deter intruders with built-in two-way audio capabilities, allowing you to listen in on audio and speak through the camera using the Annke mobile app or web interface, enhancing security monitoring and situational awareness.
-
2.8mm Lens: The camera features a 2.8mm wide-angle lens, providing a broad field of view to cover large areas and capture more details, ensuring comprehensive surveillance coverage and monitoring capabilities.
-
Weatherproof Design: Built to withstand outdoor conditions, the camera features a weatherproof design that is IP67 rated, ensuring durability and reliability in harsh weather conditions such as rain, snow, and extreme temperatures.
-
Security Protection: Rest assured knowing that your property is protected with advanced security features such as motion detection, intrusion detection, and tamper detection, providing comprehensive security coverage and protection against potential threats.
With the Annke 6MP POE Full Color Camera, you can enjoy peace of mind knowing that your property is under constant surveillance and protection. From high-resolution video quality and full-color night vision to two-way audio and weatherproof design, this camera offers everything you need to ensure the safety and security of your home or business.
Key features
• 1/1.8" Progressive Scan CMOS
• 3K full Color Network Speed Dome with 16:9 image scale
• Built-in microphone and speaker for real-time audio security

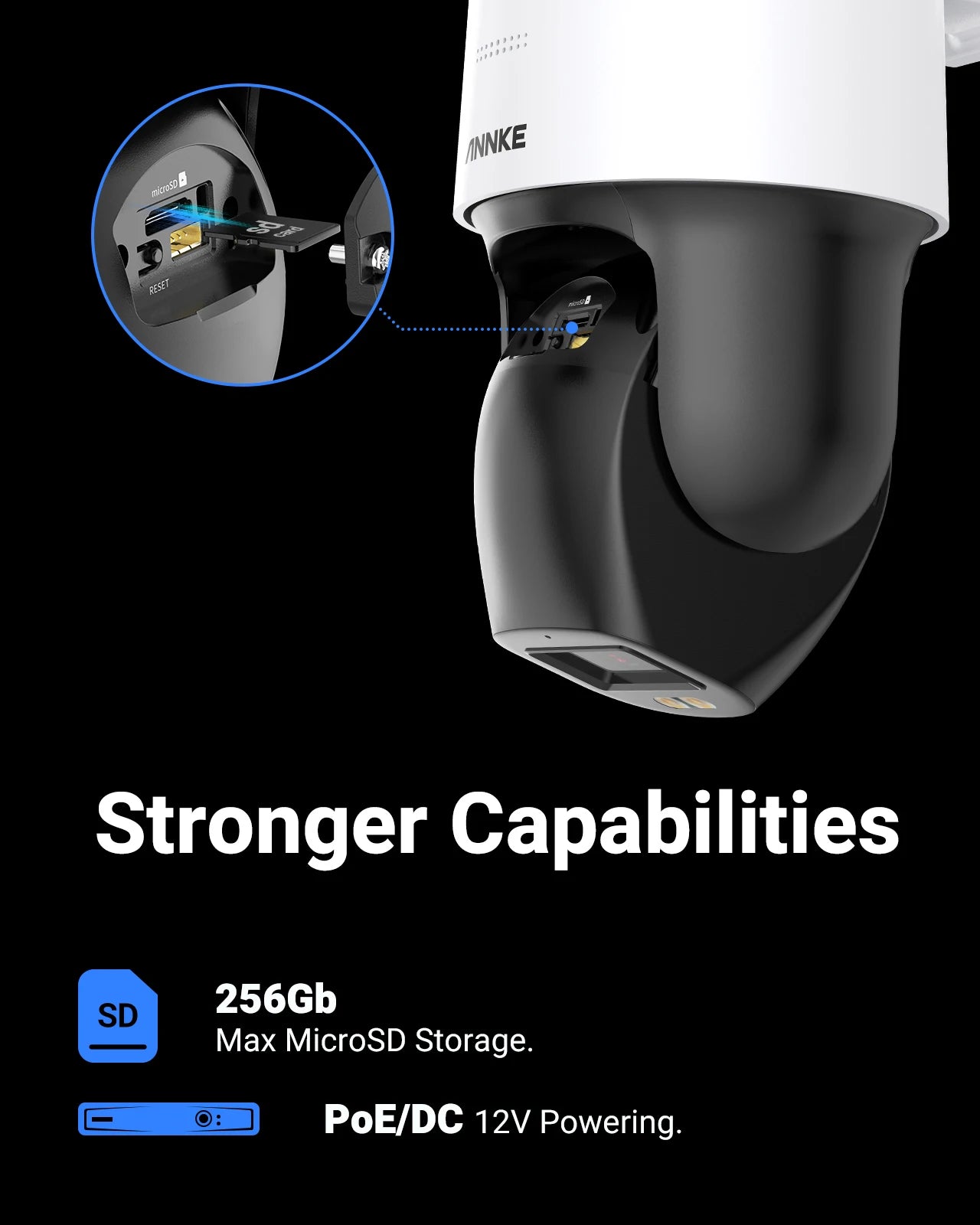

• Built-in memory card slot, support microSD card, up to 256 GB
• H.265+, H.265, H.264+, H.264
• DWDR, 3D DNR
• IP66
• 12 VDC and PoE (802.3af)
Packaging Contents
1 X Camera
1 X Surveillance Sign
1 X Allen wrench
1 X Mounting Hole Template
1 X Mounting Screw Bag
1 X Waterproof Lid
1 X User Manual
IP Camera |
||
Camera |
Image Sensor |
1/1.8"Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
Lens |
2.8 mm@F1.0 |
|
FOV |
Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9° |
|
Supplement Light |
Smart white Light, up to 30 m |
|
Min. Illumination |
24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light |
|
Movement Range |
Pan:0° to 340°, Tilt: -5° to 105° |
|
Pan Speed |
Configurable from 4° to 21°/s |
|
Tilt Speed |
Configurable from 4° to 19°/s |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Image Enhancement |
3D DNR,BLC, HLC, WDDR |
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Audio |
Build in microphone & speaker, support 2-way audio |
|
Basic Event |
Motion detection, video tampering alarm, exception |
|
General Function |
Mirror, password protection, watermark |
|
General |
Material |
Plastic |
Color |
White & black |
|
Operating Power |
12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Support MicroSD Card (up to 256 GB) |
|
Operating Temperature |
-22° to 122° F (-30° to 50° C) |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Protection Level |
IP66 |
|
Dimension |
162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") |
|
Weight |
780 g (1.7 lb.) |
