IP Camera

Camera

Image sensor

2×1/2.5" Progressive Scan CMOS

Main Stream

50 Hz: 20 fps (3632 × 1632)
60 Hz: 20 fps (3632 × 1632)

Sub Stream

50 Hz：20 fps（1200 × 536，960 × 432）
60 Hz：20 fps（1200 × 536，960 × 432）

Video compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

Built-in Microphone

Yes, support environment noise filtering

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Built-in Speaker

Yes, max. sound pressure: 10 cm: 95 dB

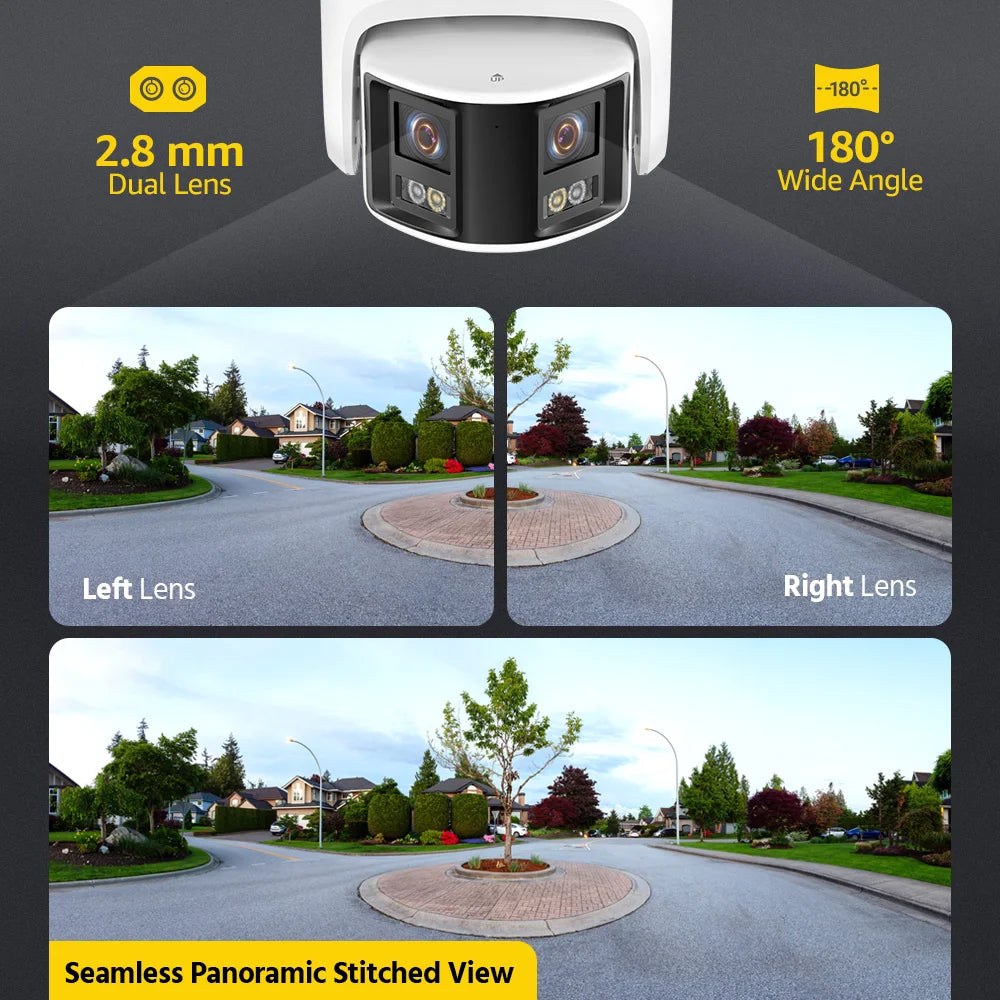

Lens

Dual lens: 2.8 mm

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Angle of View

Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°

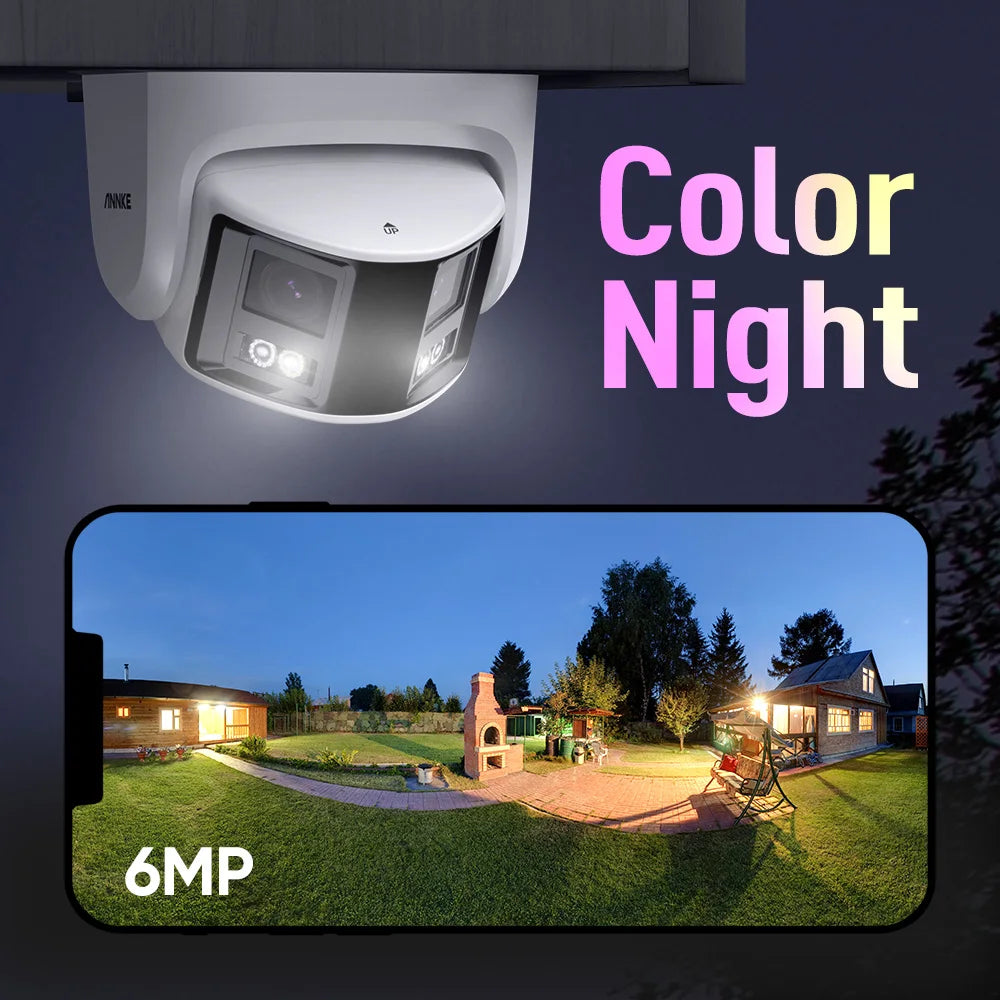

Supplement Light

White light + IR

Supplement Light Range

White light up to 20 m, IR light up to 30m

Image Parameters Switch

Yes

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120dB WDR

Network Protocols

TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif

Basic Event

Motion detection (support human and vehicle detection), video tampering

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)

Audio Alarm

Support(Parameters adjustable,support custom audio, can be triggered from APP)

General

Housing

Metal&Plastic, White color

Operating Power

PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR

DC12V output

DC12 V，100 mA output

Audio input/output

1 input (line in),1 output (line out)

Alarm nput/output

1 input, 1 output (max. 24 VDC, 1 A)

Hardware Reset

Yes

Operating Temperature

-22 °F – 140 °F /-30 °C – 60 °C

Indoor/Outdoor

Indoor/Outdoor

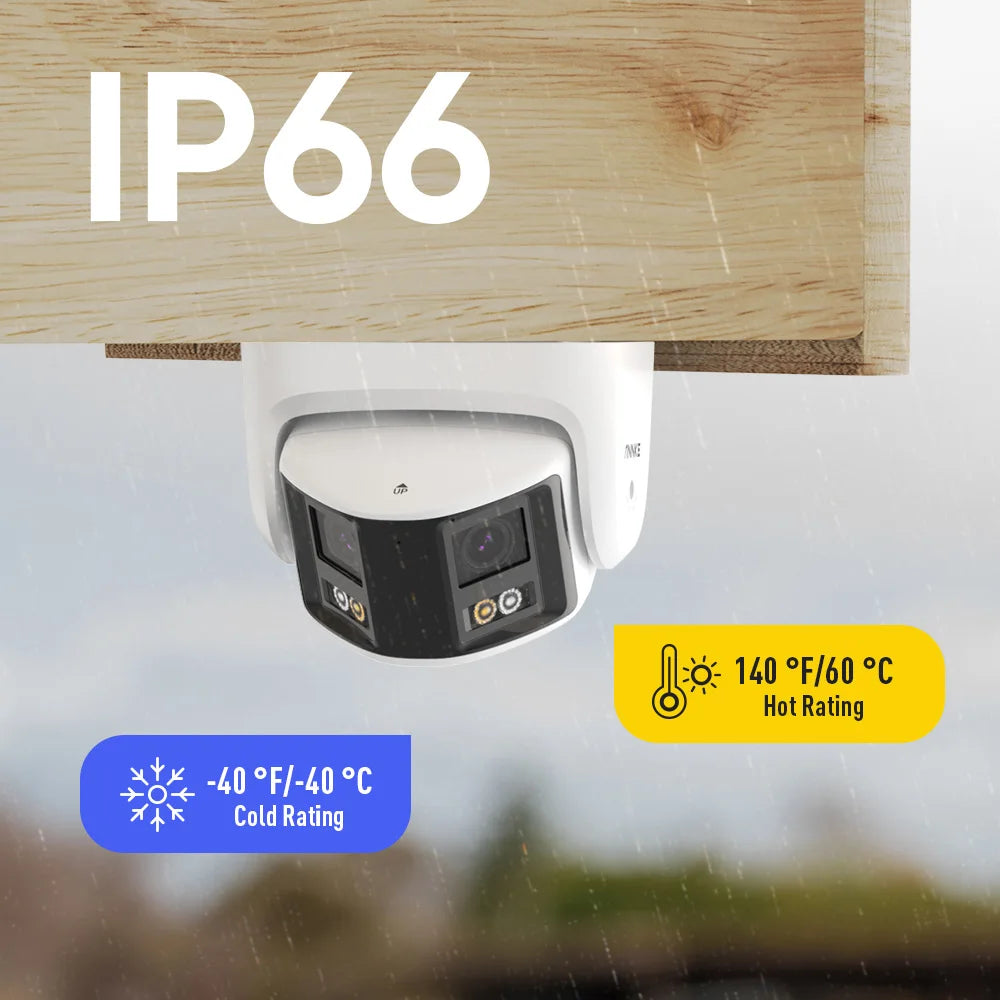

Weatherproof Rating

IP66

Dimension (L x W x H)

138.1 × 101.1 × 120.4 mm

Weight

Approx. 600 g (1.32 lb.)

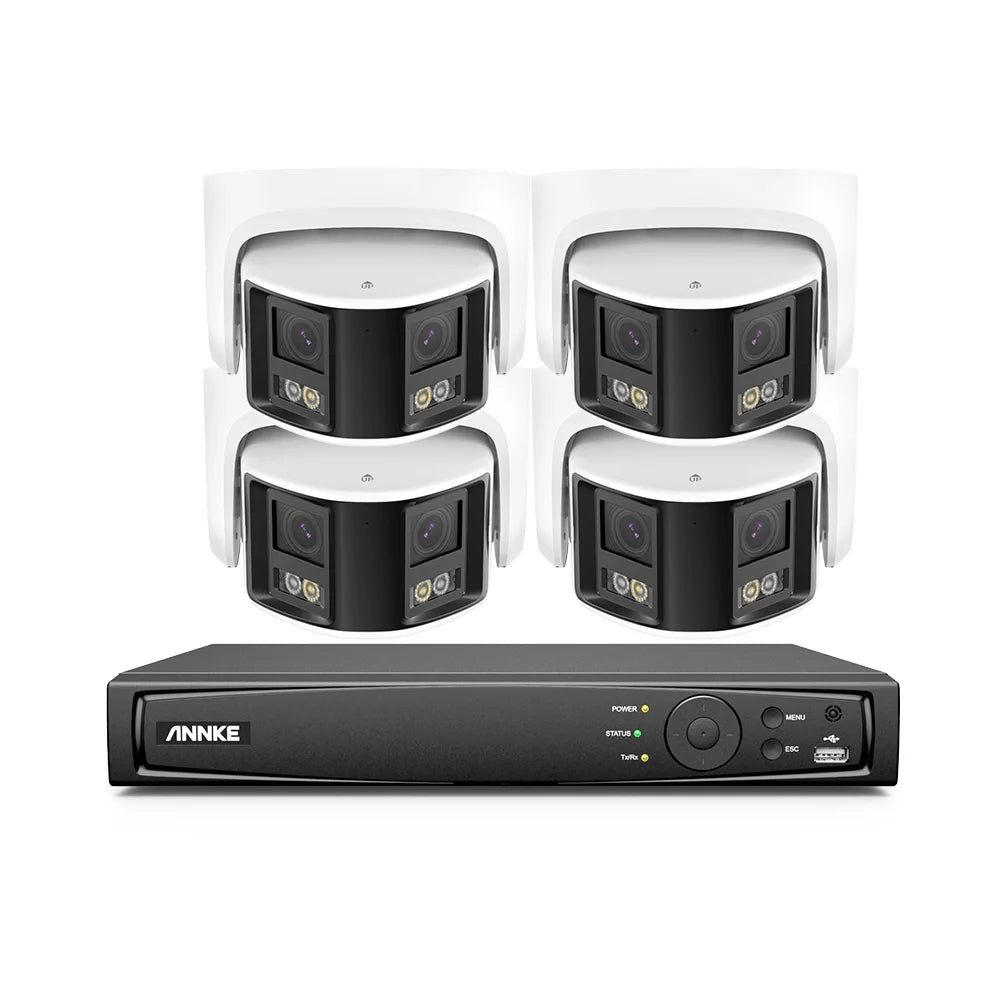

NVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

IP Video Input

8CH PoE

Video Output

HDMI up to 4K, VGA up to 1080p

Audio Input/Output

1/1 RCA

Incoming/outgoing Bandwidth

80/80 M

Max Recording Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Channel

8CH

Max Playback Capacity

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

ONVIF Protocols

Support

Hard Drive

HDD

1 SATA Interface

HDD Capacity

Up to 8 TB Capacity

External Interface

Network Interface

1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at

USB interface

USB 2.0*2

Smart Function

Deep learning

Human and vehicle targets detection(Need IP camera support)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)

General

Operating Power

DC 48 V

Power Consumption

≤10 W (Without HDD and PoE)

PoE: Max 25.5 W for Single Port

Working Temperature

14 °F ~ 131 °F/-10 °C ~+55 °C

Dimensions (W X H X D)

12.4” X 9.4” X 1.9”/315 X 240 X 48 mm

Weight (Without Hard Disk)

2.2 lbs/1 kg
