SPECIFICATIONS

The ANBERNIC RG CUBEXX is a compact Linux-based retro gaming handheld that combines a unique square-screen design, modern connectivity, multimedia functionality, and excellent ergonomics. Designed for retro gaming enthusiasts, the RG CUBEXX features a 3.95-inch IPS display with a 1:1 aspect ratio, making it particularly well-suited for Game Boy, Pico-8, Nintendo DS, arcade, and classic console gaming. Its comfortable grip, RGB-lit analog sticks, and support for more than 30 emulation platforms make it one of ANBERNIC's most versatile handheld consoles.

Product Highlights

• 3.95-inch IPS OCA laminated display
• 720 × 720 HD resolution
• Linux 64-bit operating system
• H700 Quad-Core processor
• Built-in Wi-Fi and Bluetooth
• HDMI/TV video output
• WiliWili video streaming support
• E-book reader functionality
• RGB joystick lighting effects
• Up to 6.5 hours of battery life
• Dual microSD card slots with expansion up to 512GB
• Support for 30+ emulators and gaming platforms

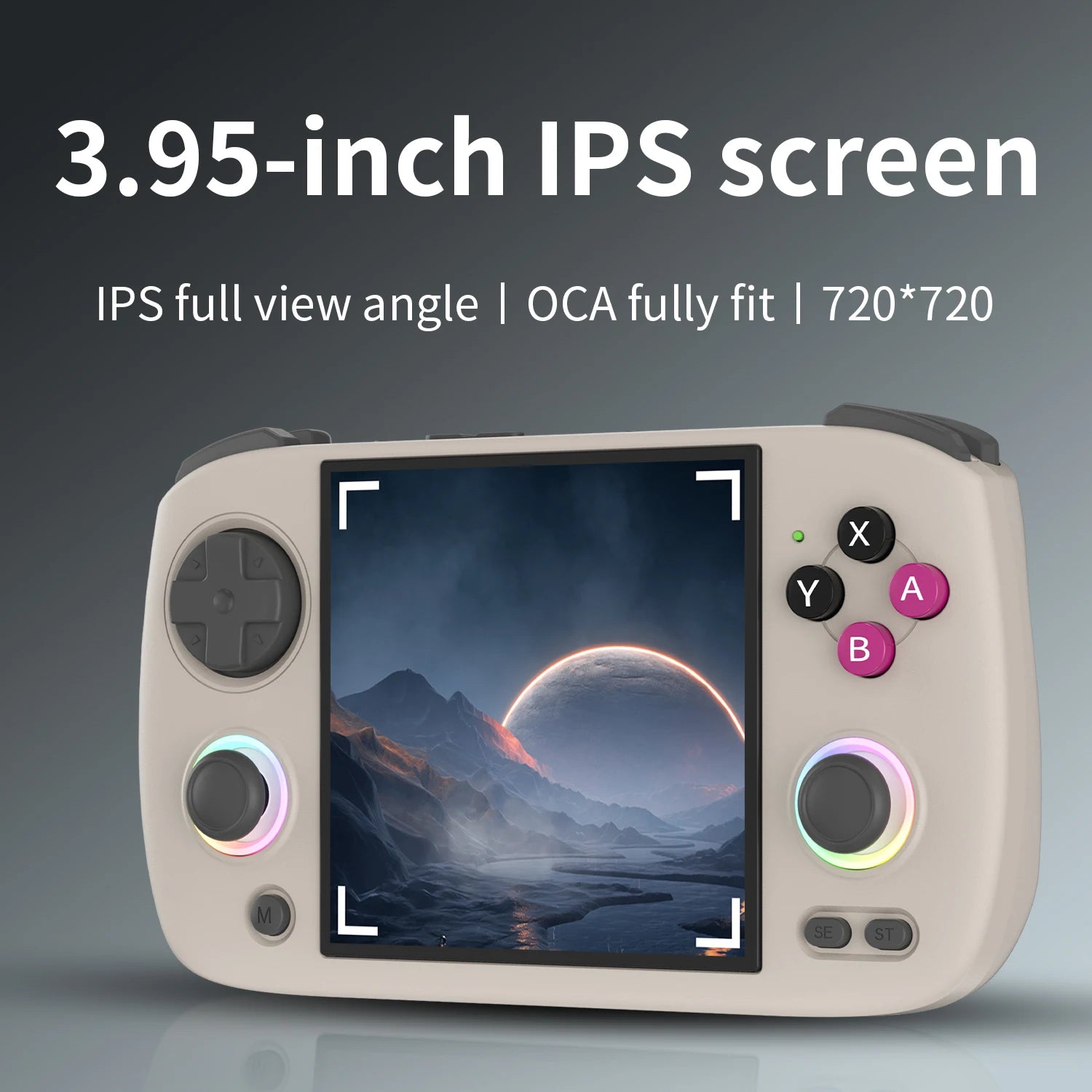

Display & Visual Experience

One of the standout features of the RG CUBEXX is its 3.95-inch IPS display with a square 720 × 720 resolution. The fully laminated OCA screen delivers:

• Bright and vivid colors
• Sharp image quality
• Wide viewing angles
• Reduced screen reflections
• Enhanced retro game scaling

The square 1:1 aspect ratio is particularly beneficial for:

• Game Boy and Game Boy Color
• Pico-8
• Vertical arcade games
• Nintendo DS emulation
• Classic 8-bit and 16-bit titles

Many retro gaming enthusiasts consider the display one of the strongest features of the CubeXX platform.

Hardware Specifications

Specification	Details
Display	3.95" IPS OCA Fully Laminated
Resolution	720 × 720
CPU	H700 Quad-Core ARM Cortex-A53
Clock Speed	1.5GHz
GPU	Dual-Core Mali G31 MP2
RAM	1GB LPDDR4
Operating System	Linux 64-bit
Wireless	2.4GHz / 5GHz Wi-Fi
Bluetooth	Bluetooth 4.2
Battery	3800mAh Li-Polymer
Runtime	Up to 6.5 Hours
Charging	USB Type-C
Storage	Dual TF Card Slots
Expansion	Up to 512GB TF Card

Linux Operating System

The RG CUBEXX runs a customized Linux 64-bit gaming system optimized for emulation. Benefits include:

• Fast startup times
• Stable emulator performance
• Custom firmware support
• Community-developed enhancements
• Save states and quick loading
• Custom themes and interfaces

The Linux platform is lightweight and focused primarily on retro gaming performance.

Gaming & Emulator Support

The handheld supports more than 30 gaming platforms and emulators, including:

• NES / Famicom
• SNES
• Game Boy
• Game Boy Color
• Game Boy Advance
• Sega Genesis / Mega Drive
• Neo Geo
• MAME Arcade
• PlayStation 1
• Nintendo DS
• Nintendo 64
• Dreamcast
• Sega Saturn
• PSP (selected titles)
• Pico-8
• Various home computer systems

Performance is excellent for 8-bit, 16-bit, arcade, and PlayStation-era gaming, while selected N64, Dreamcast, and PSP games are also playable.

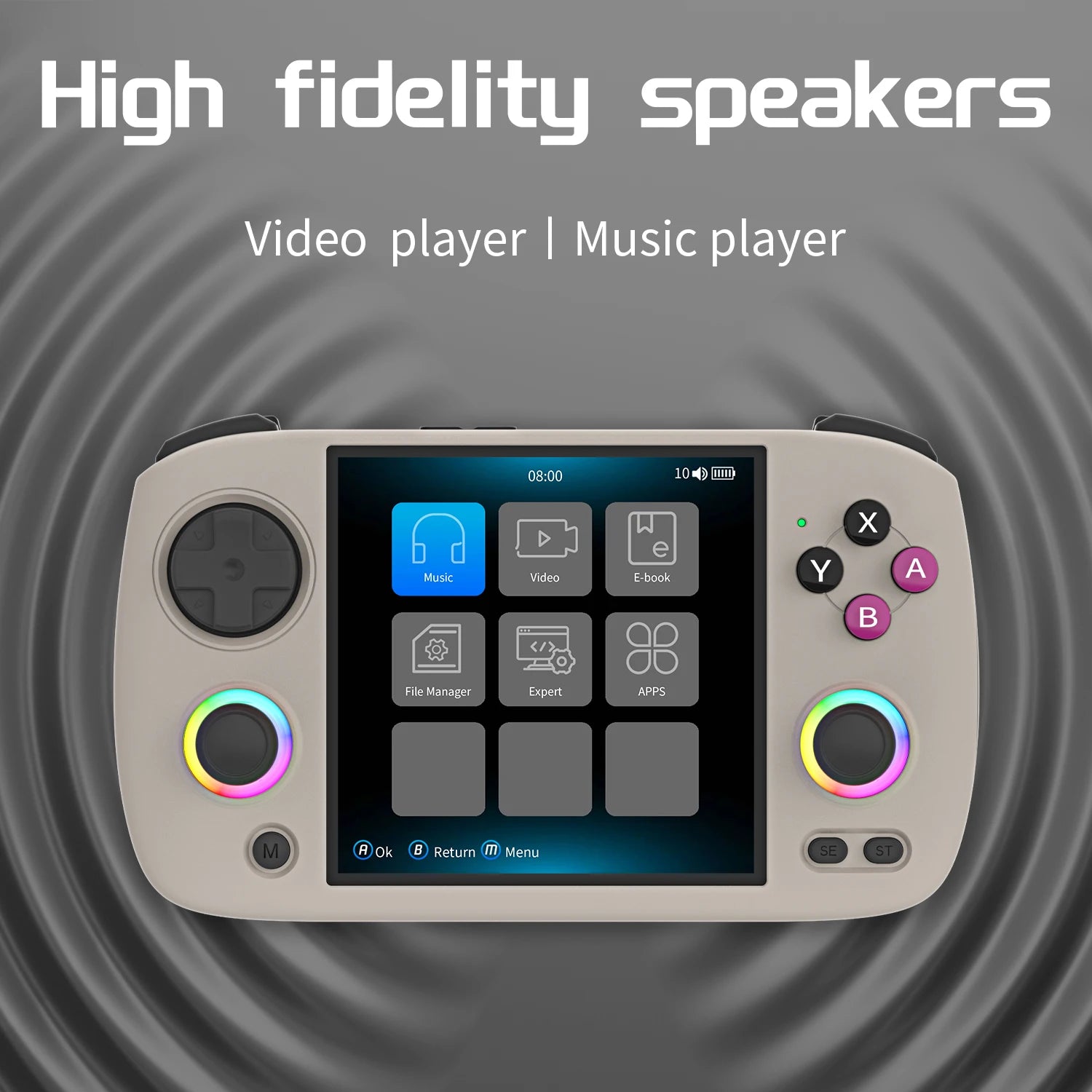

Multimedia Features

The RG CUBEXX is more than a gaming device. It also functions as a portable multimedia player.

Video Player Support

Compatible formats include:

• MP4
• AVI
• MKV
• MOV
• FLV
• MPG
• 3GP
• ASF
• WMV
• RMVB

Audio Player Support

Compatible formats include:

• MP3
• FLAC
• WAV
• AAC
• OGG
• WMA
• APE
• AIFF

Additional utilities include:

• File manager
• Image viewer
• E-book reader (TXT format)
• WiliWili video application support

These features make the device suitable for entertainment beyond gaming.

WiliWili & Online Features

The built-in Wi-Fi allows access to:

• WiliWili video streaming
• Online multiplayer gaming
• Firmware updates
• Moonlight game streaming
• Wireless file transfers
• Network features for supported applications

Dual-band Wi-Fi support (2.4GHz and 5GHz) provides improved wireless performance.

TV Output & Controller Support

The RG CUBEXX can transform into a home gaming system through video output support.

Features include:

• HDMI-compatible TV output
• External display connectivity
• 2.4G wireless controller support
• Wired controller support
• Multiplayer gaming on larger screens

This allows users to enjoy retro games on televisions while using external controllers.

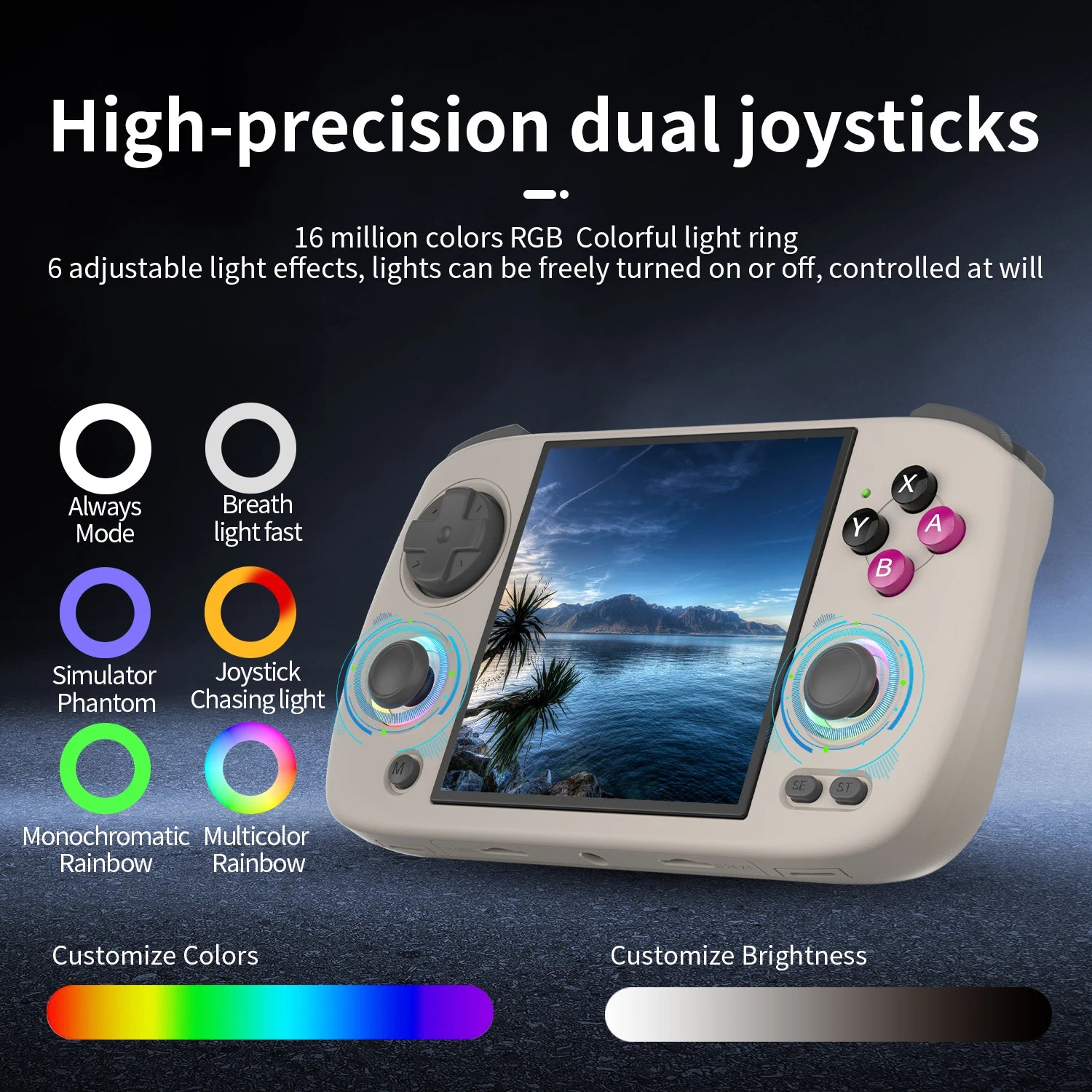

RGB Lighting Effects

The dual analog sticks feature customizable RGB lighting with:

• 16 million color options
• Breathing effects
• Rainbow effects
• Chasing light effects
• Static colors
• Adjustable brightness

These lighting options add a modern gaming aesthetic to the retro-inspired handheld.

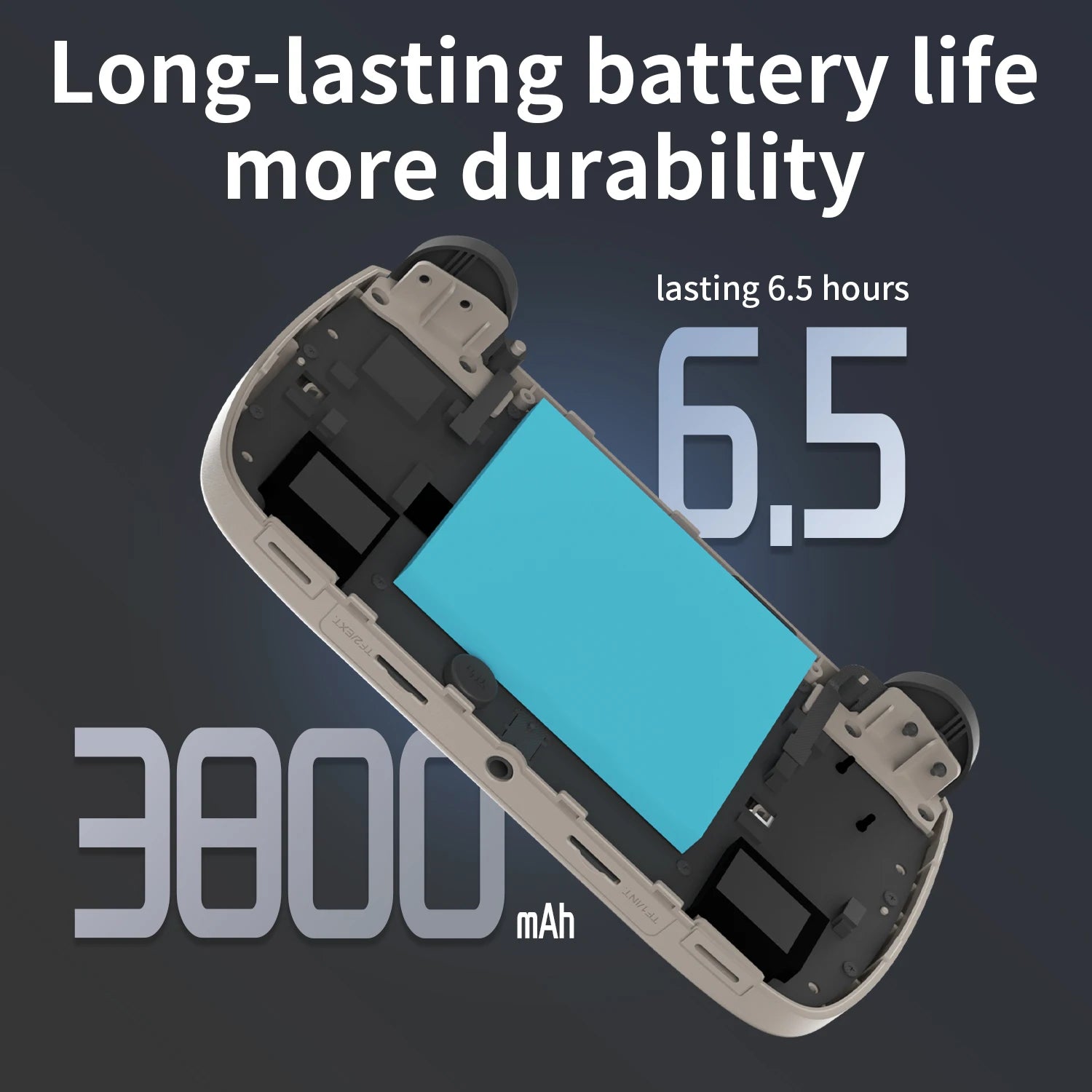

Battery Life

The built-in 3800mAh battery provides:

• Up to 6.5 hours of gameplay
• USB-C charging
• Efficient power management
• Portable all-day gaming sessions

The battery capacity is well balanced for the lightweight Linux platform and low-power H700 processor.

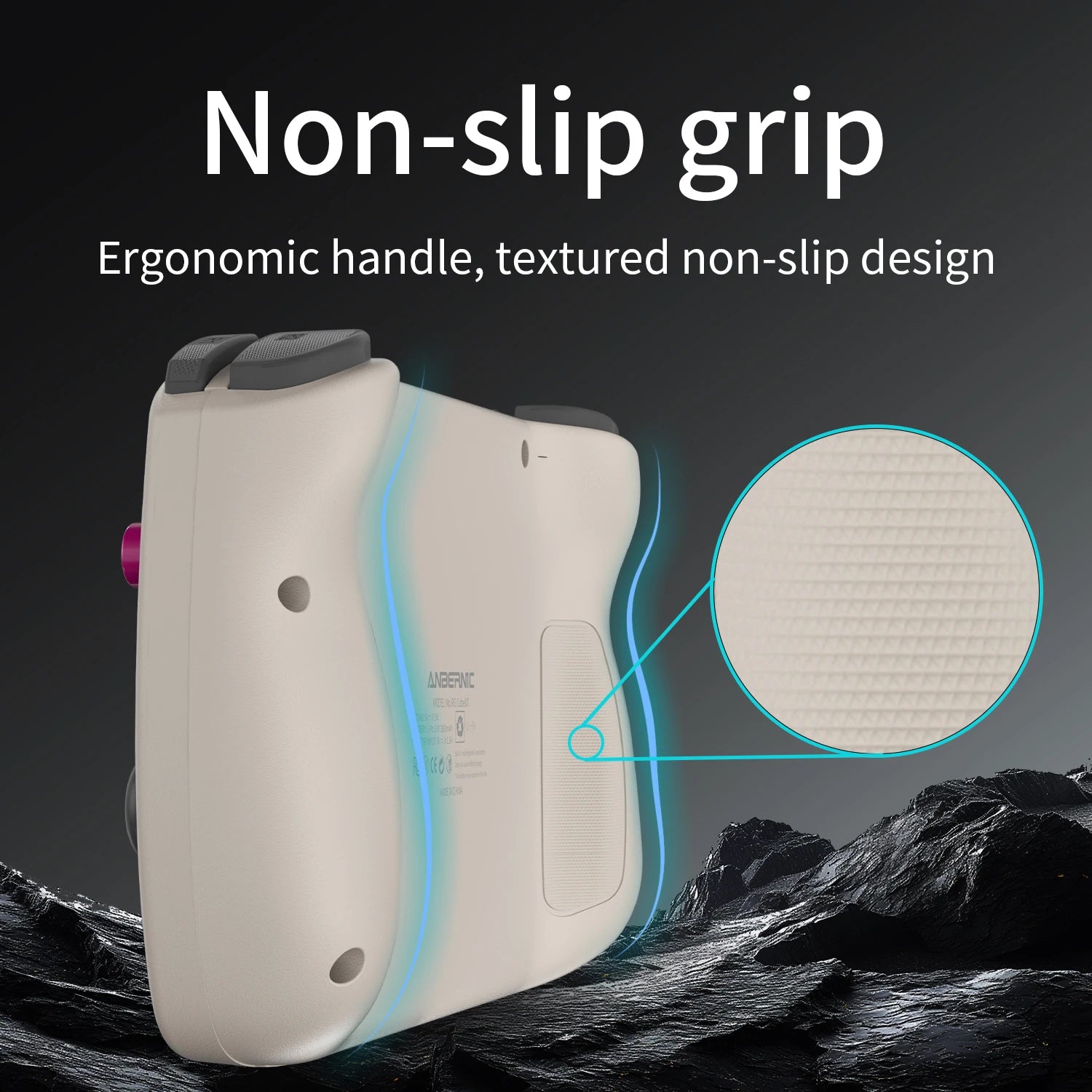

Design & Ergonomics

The RG CUBEXX features a comfortable horizontal layout with ergonomic grips that reduce hand fatigue during long gaming sessions. Community feedback frequently praises:

• Comfortable grip design
• Lightweight construction
• Excellent button placement
• Responsive controls
• Quality D-pad and analog sticks

Many users consider it one of the most comfortable handhelds in ANBERNIC's XX series lineup.

Ideal For

• Retro gaming enthusiasts
• Game Boy and Pico-8 fans
• Nintendo DS emulation
• Arcade game collectors
• Travel gaming
• Multimedia playback
• E-book reading
• Budget-conscious handheld gamers

The ANBERNIC RG CUBEXX stands out thanks to its unique square display, Linux-based simplicity, multimedia capabilities, Wi-Fi connectivity, TV output support, and excellent ergonomics. For players focused on retro gaming up to PlayStation 1 and many Dreamcast/N64 titles, it delivers exceptional value in a highly portable package.

Anbernic Model: RG CubeXX

Battery Capacity[mAh]: 3800

Battery Included: Yes

Bluetooth-compatible: Yes

Brand Name: Anbernic,Anbernic

CPU: H700

Category: Handheld Game Players

Certification: CE,FCC,RoHS,weee

Charging Interface Type: Type-C

Color Display: Yes

Communication: Wi-Fi

Depth[mm]: 157.2

Display Size: 3.95"

Expandable storage: Up to 512GB

External Controller Interface: Type-C

GPU: Dual-core G31 MP2

Games Type: Retro Game

Games included: 5000+

HDMI: MINI HDMI

Hall Effect: Yes

Height[mm]: 17.9

High-concerned chemical: None

Input/Output: HDMI

Material: Plastic

Operating System: Opendinglinux

Package: Yes

RGB lighting joysticks: Yes

Recommended age: 6+

Screen Resolution: 720*720

Screen Type: IPS

Supporting Language: Japanese,French,German,Spanish,Portuguese,Russian,English,Korean,Simplified Chinese

Touch Screen: No

Type of devices: Other

WIFI: Yes

Width[mm]: 89.6
