SPECIFICATIONS

The Anbernic RG 477M is a premium Android-powered handheld gaming console engineered for serious retro gaming enthusiasts and mobile gamers who demand flagship-level performance. Featuring a CNC-machined aluminum alloy chassis, a high-refresh-rate LTPS touchscreen, AI-powered functions, and a powerful MediaTek Dimensity processor, the RG 477M delivers one of the most advanced handheld gaming experiences available in its class.

Key Features

Premium Aluminum Alloy Construction

The RG 477M features a precision CNC-machined aluminum alloy body that provides exceptional durability, a premium feel, and improved heat dissipation during extended gaming sessions. Available in elegant Silver Blade and Chocolate Bronze finishes, the metal construction gives the console a high-end appearance while maintaining portability.

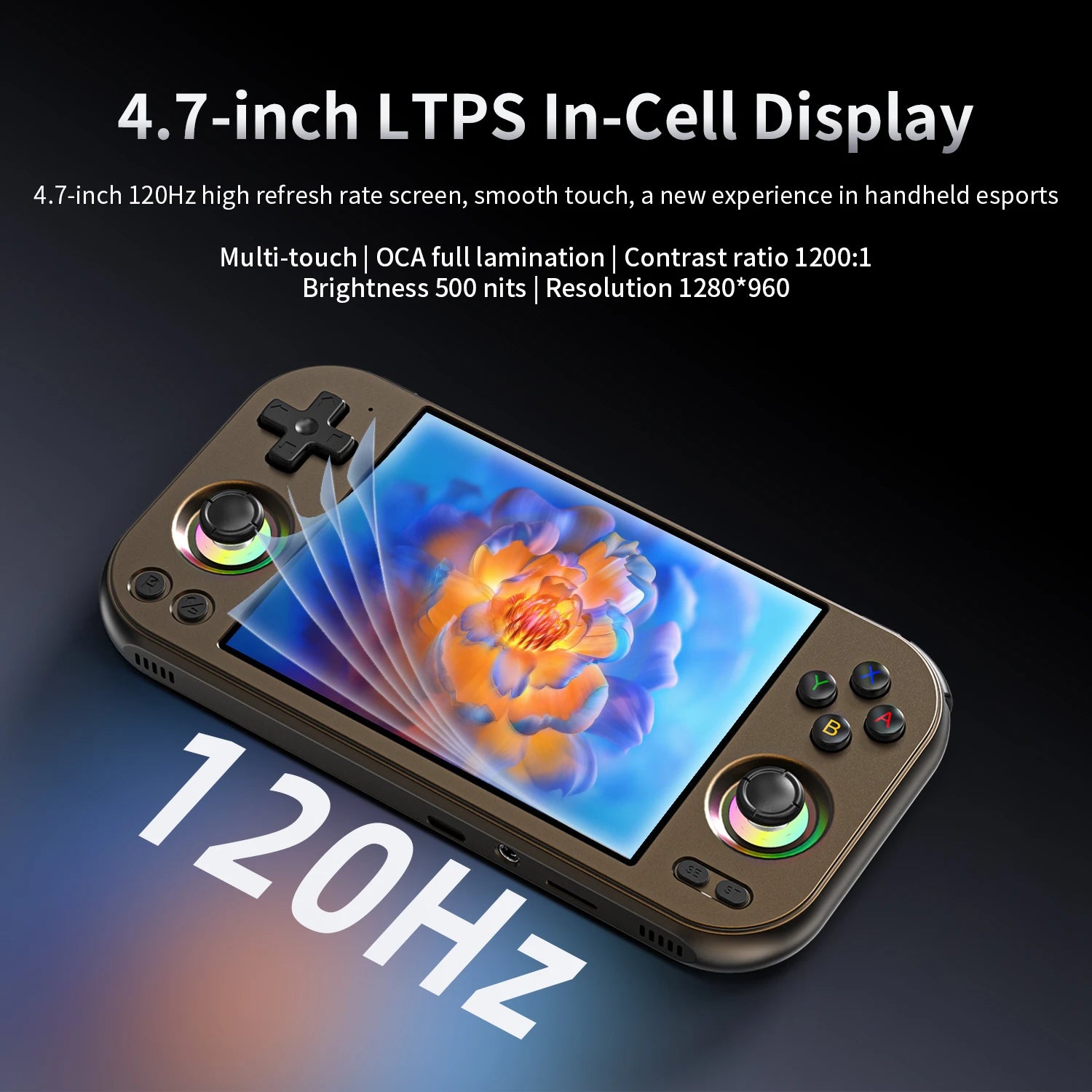

4.7-Inch LTPS In-Cell Touchscreen

The handheld is equipped with a vibrant 4.7-inch LTPS In-Cell touchscreen featuring:

• 1280 × 960 resolution
• 4:3 aspect ratio optimized for retro gaming
• OCA full-laminated display
• Multi-touch support
• Up to 120Hz refresh rate
• Sharp colors and excellent viewing angles

The display is particularly well-suited for retro consoles such as PlayStation, Dreamcast, GameCube, Nintendo DS, and arcade emulation.

Powerful Performance Hardware

Specification	Details
Processor	MediaTek Dimensity 8300
Manufacturing Process	4nm
CPU	Octa-Core (1×A715 3.35GHz + 3×A715 3.20GHz + 4×A510 2.2GHz)
GPU	Mali-G615 MC6
RAM	8GB or 12GB LPDDR5
Storage	128GB or 256GB UFS
Operating System	Android 14
Expandable Storage	Up to 2TB microSD/TF Card
Connectivity	Wi-Fi 6E, Bluetooth 5.3

The Dimensity 8300 chipset provides enough power to emulate demanding systems including:

• PlayStation 2
• GameCube
• Wii
• Nintendo 3DS
• PSP
• Dreamcast
• Sega Saturn
• Arcade systems
• Android games

Many users report excellent PS2 and GameCube performance with upscale settings enabled.

Android 14 Gaming Platform

Running Android 14, the RG 477M supports:

• Android gaming apps
• Google Play Store downloads
• Cloud gaming services
• Game streaming
• Emulation front-ends
• Custom launchers
• Wireless updates (FOTA)

The system supports more than 30 emulator platforms and allows users to install their own games and applications.

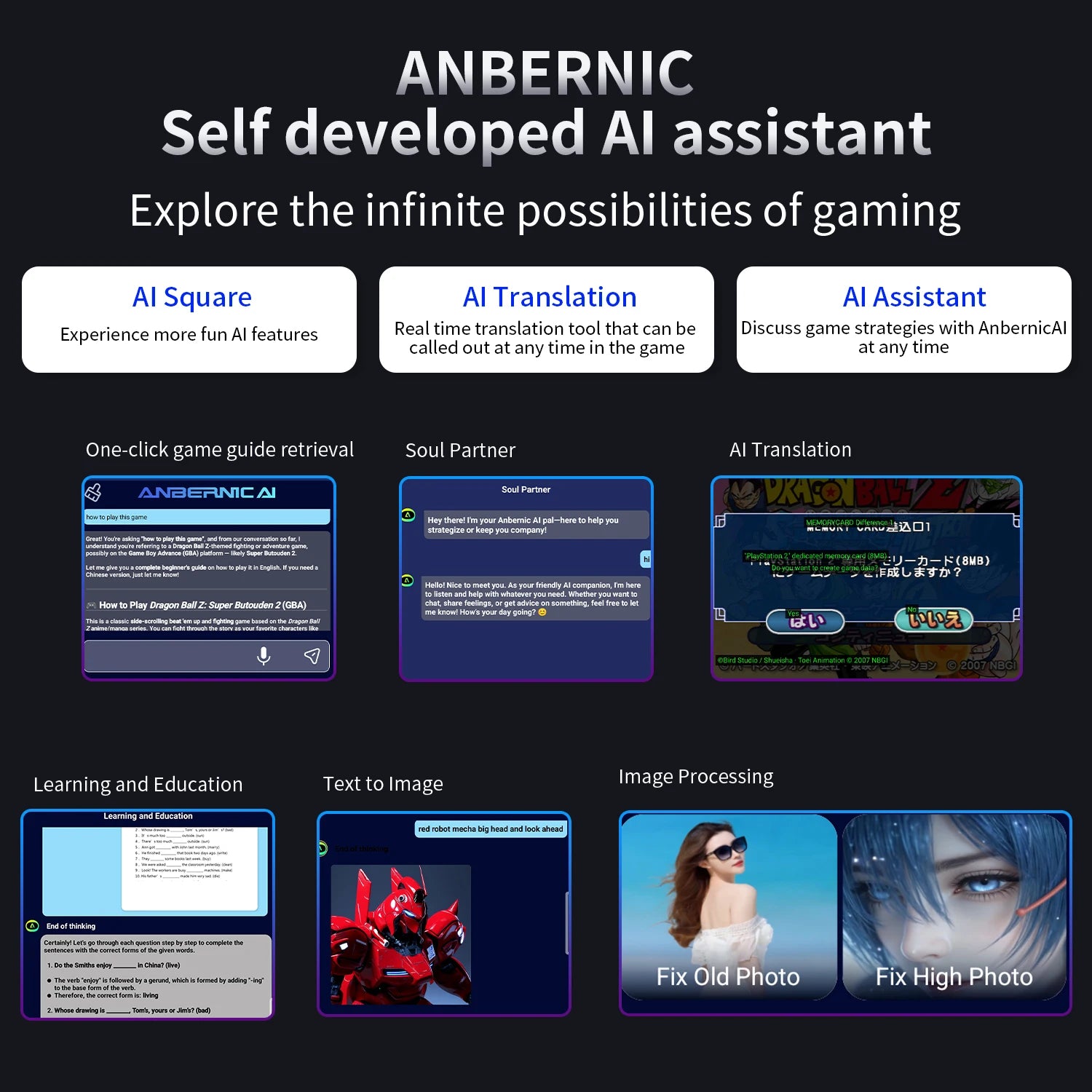

AI-Powered Features

One of the standout additions is integrated AI functionality, including:

• One-click game guide retrieval
• Real-time language translation
• Intelligent AI chat assistance
• Text-to-image generation
• Image enhancement and processing tools

These features expand the device beyond traditional gaming into productivity and entertainment applications.

Advanced Gaming Controls

The RG 477M includes:

• Hall-effect 3D analog joysticks
• Precision D-pad
• Responsive ABXY buttons
• Shoulder triggers
• Six-axis gyroscope
• Vibration motor
• Customizable RGB joystick lighting

The Hall-effect sticks help eliminate joystick drift while improving long-term reliability.

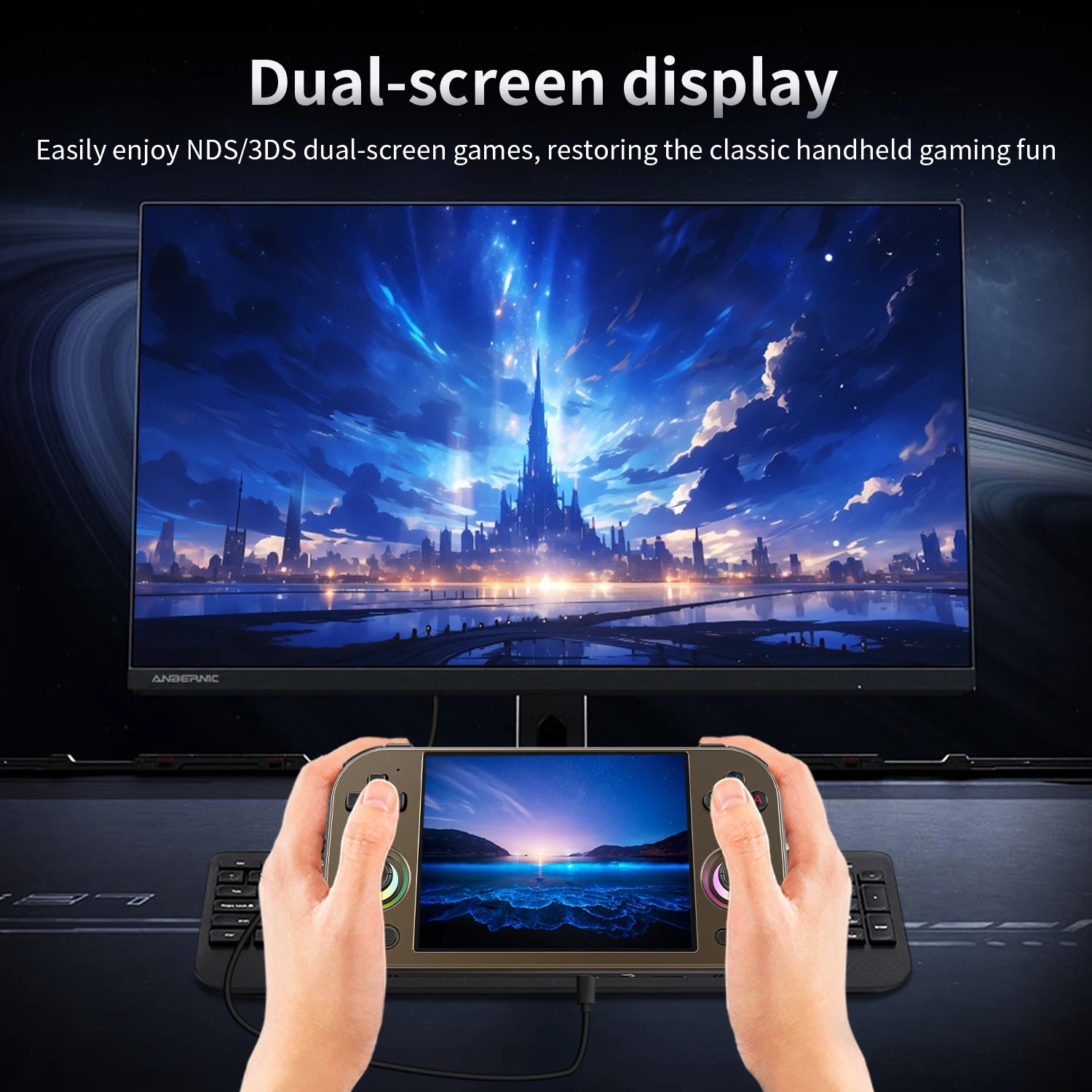

Multimedia & Display Output

The USB-C port supports:

• 1080p DisplayPort video output
• External monitor connection
• TV gaming
• Dual-screen support for Nintendo DS and Nintendo 3DS emulation
• Wireless screen casting

This allows the RG 477M to function as both a handheld and a home gaming device.

Battery Life & Charging

The console is powered by a 5300mAh lithium-polymer battery that delivers:

• Up to 7 hours of gameplay
• USB-C fast charging
• 27W charging support
• Efficient power management

The large battery is designed to support demanding Android gaming and high-end emulation workloads.

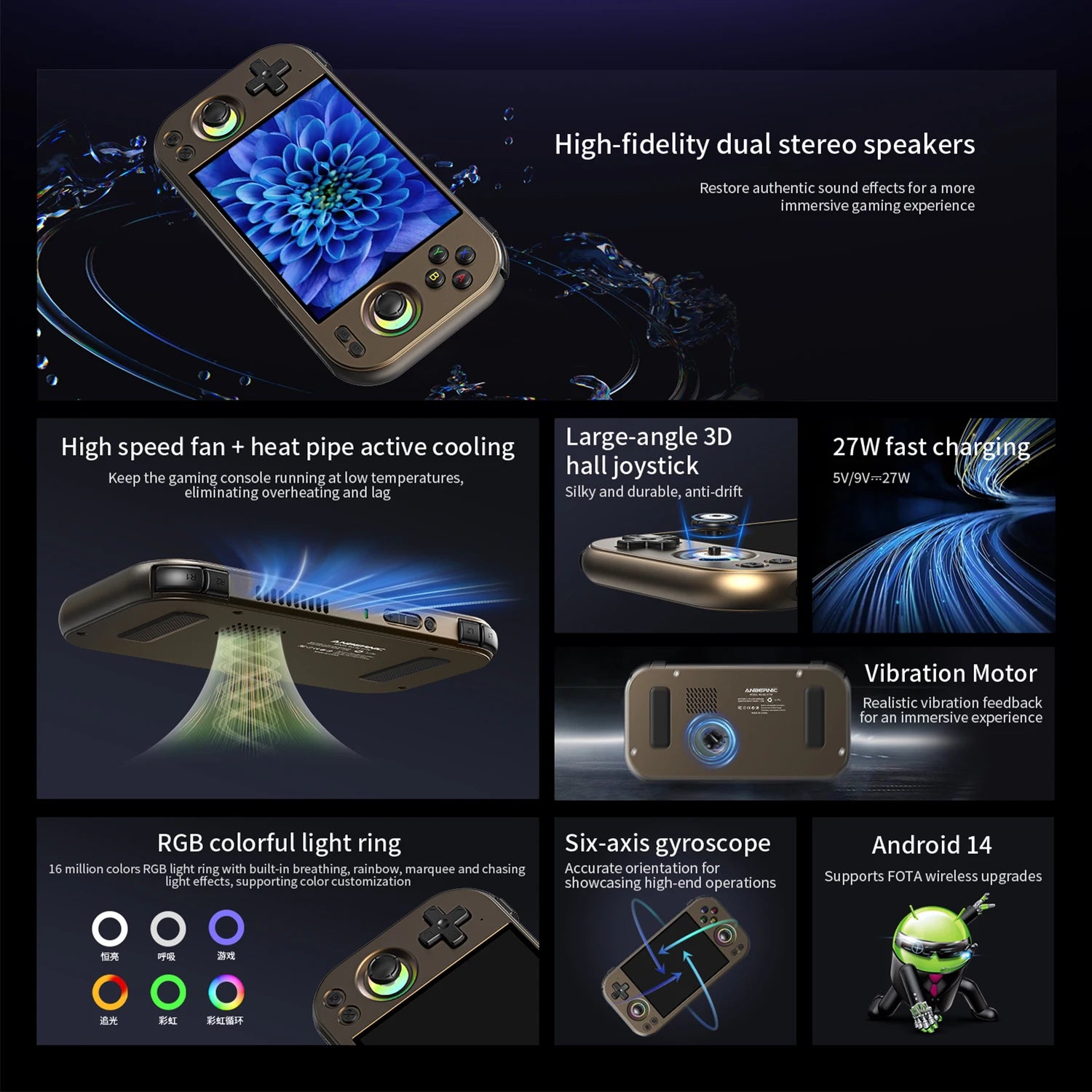

Cooling System

To maintain peak performance, the RG 477M includes:

• Active cooling fan
• Heat pipe thermal system
• Intelligent temperature control
• Sustained gaming performance

This cooling solution helps prevent thermal throttling during intensive gaming sessions.

Physical Specifications

Feature	Specification
Length	176 mm
Width	89.4 mm
Thickness	16 mm
Weight	354 g
Audio	Dual High-Fidelity Speakers
Headphone Jack	3.5 mm
Colors	Silver Blade, Chocolate Bronze

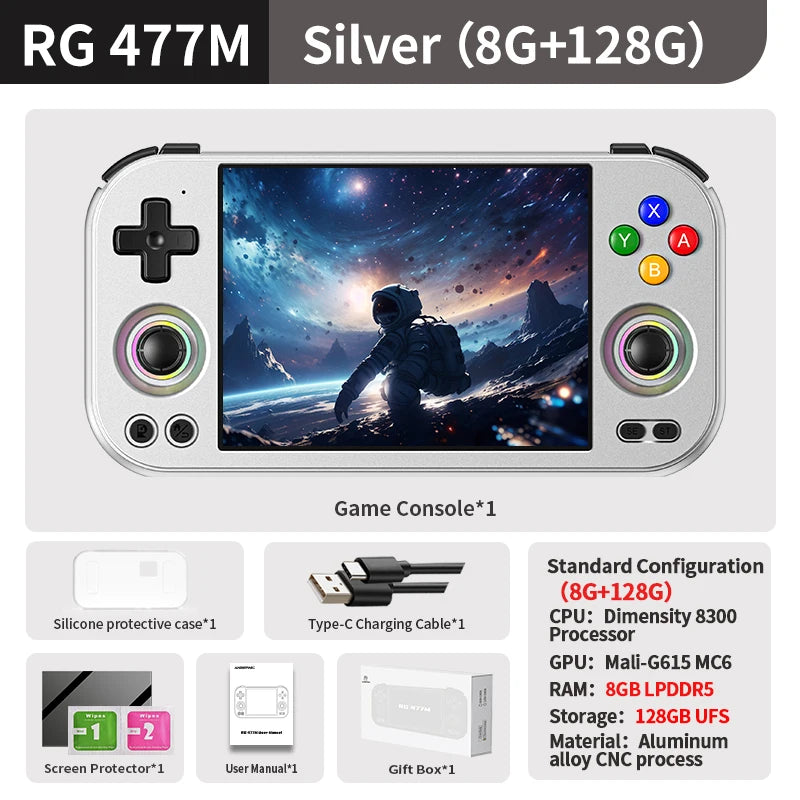

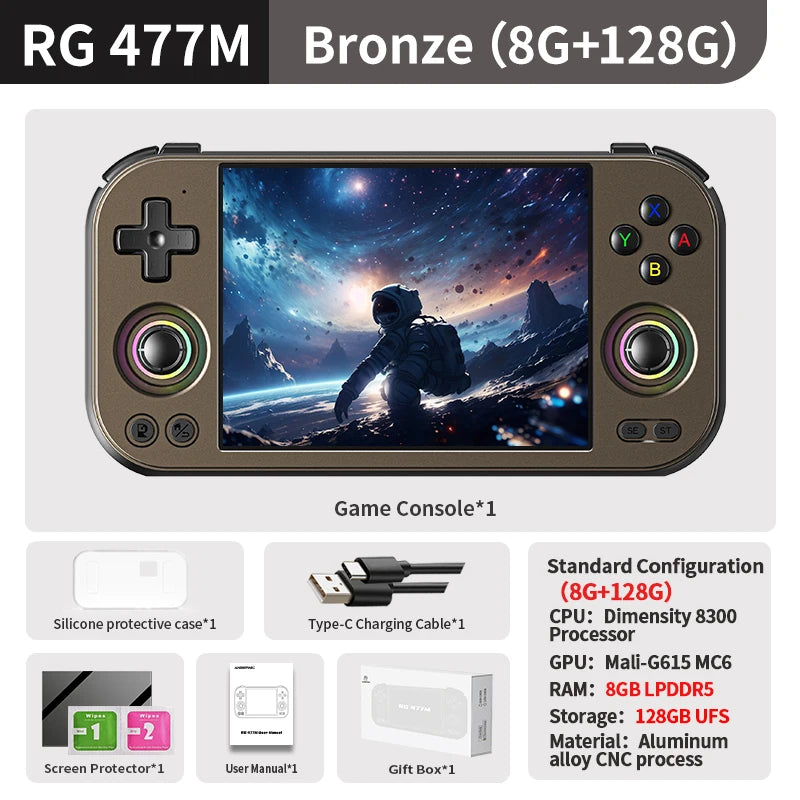

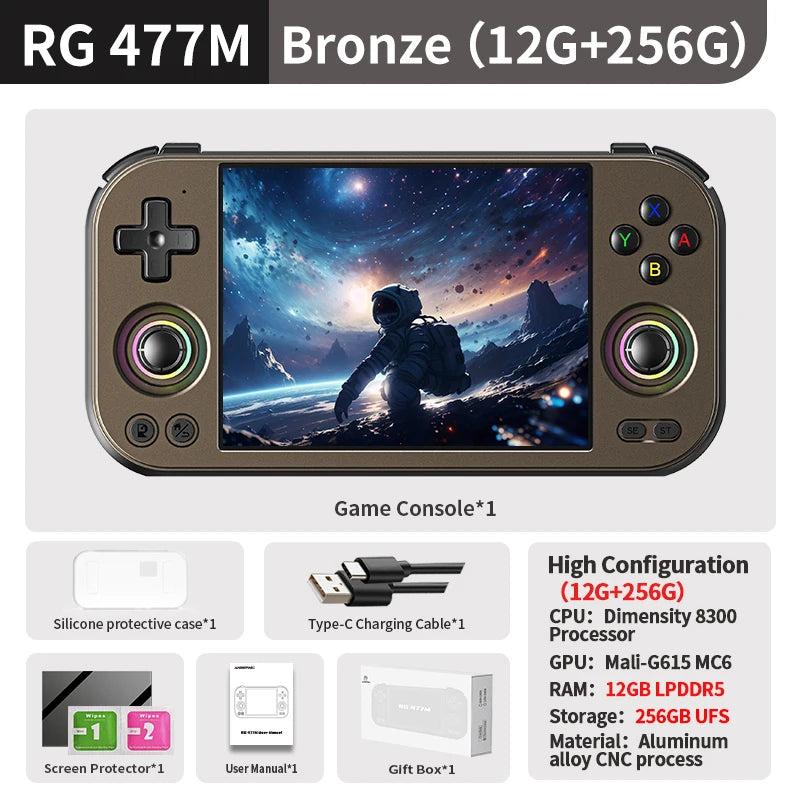

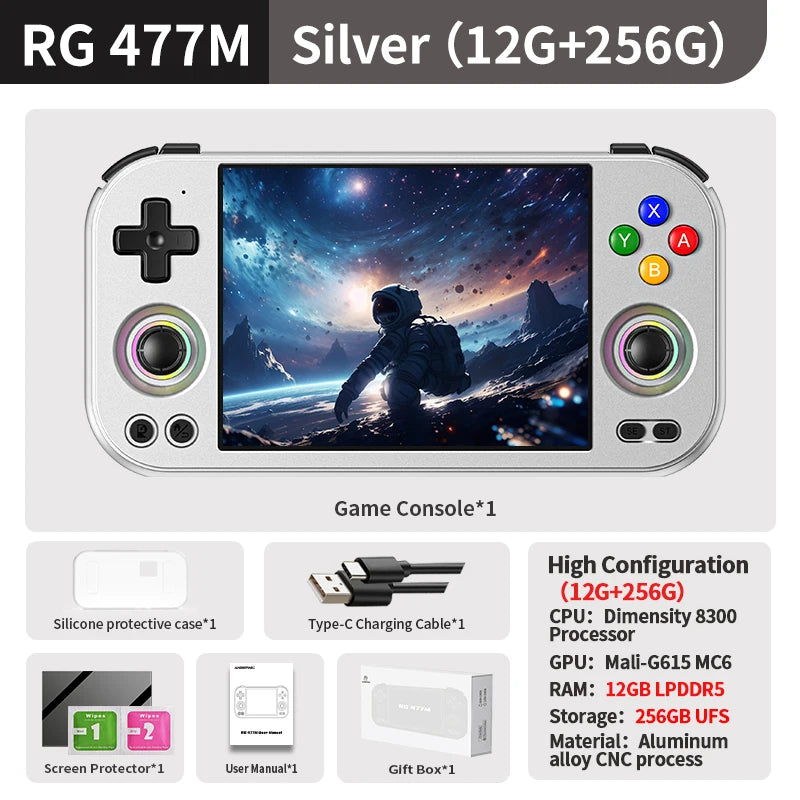

What's Included

• RG 477M Handheld Console
• USB-C Charging Cable
• Screen Protector
• User Manual
• Protective Accessories (varies by package)

Ideal For

• Retro gaming enthusiasts
• PS2 and GameCube emulation
• Android gaming
• Cloud gaming services
• Portable media consumption
• Travelers seeking a premium handheld

AI: One-click game guide retrieval, real-time translation

Anbernic Model: RG 477M

Battery: Polymer lithium

Battery Capacity[mAh]: 5300

Battery Included: Yes

Bluetooth: Bluetooth5.3

Bluetooth-compatible: Yes

Brand Name: Anbernic

CPU: Dimensity 8300 Processor

Category: Handheld Game Players

Charging: 5V/9V 27W

Charging Interface Type: Type-C

Color: Chocolate bronze, Silver Blade

Color Display: Yes

Data Storage Capacity: 128GB UFS/256GB UFS

Display Size: 4.7"

Expandable storage: 2TB

GPU: Mali-G615 MC6

Games Type: Retro

Games included: 0-4000

Hall Effect: Yes

High-concerned chemical: None

Joystick: Large-angle 3D Hall joystick

Language: Multi-language

Material: Metal,Aluminum alloy CNC process

Motion-sensing technology: Handheld

Operating System: Android

Package: Yes

RAM: 8GB LPDDR5/12GB LPDDR5

RGB lighting effect: 16 million color RGB joystick lighting

RGB lighting joysticks: Yes

Screen Resolution: 1280x960

Screen Type: LTPS In-Cell

Speaker: High fidelity dual speakers

Storage: 128GB UFS/256GB UFS

Supporting Language: Japanese,German,Spanish,Portuguese,Russian,English,Korean,Simplified Chinese

System: Android 14

TF card: Support TF card expansion

Touch Screen: Yes

WIFI: Yes,Wi-Fi 6E
