SPECIFICATIONS

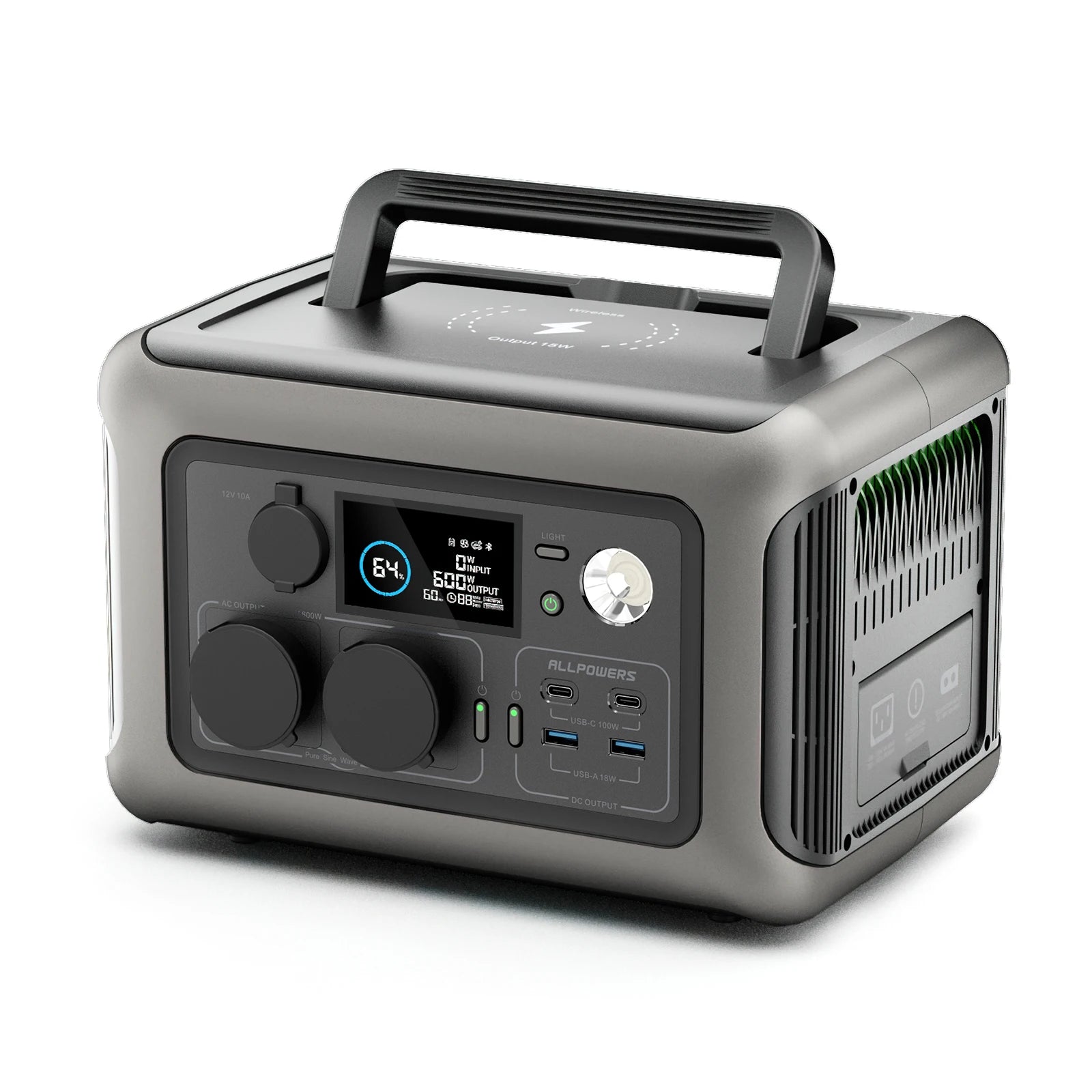

ALLPOWERS R600 Portable Power Station — Specs & Features

• Capacity: 299 Wh using a robust LiFePO₄ (LFP) battery rated for over 3,500 cycles to 80% capacity, offering nearly a decade of use

• AC Output: Two pure sine-wave AC outlets delivering 600 W continuous power (up to 1,200 W surge)

• Solar Input: MPPT controller supporting between 12‑60 V at up to ~12 A and max solar input of 200–220 W, depending on configuration

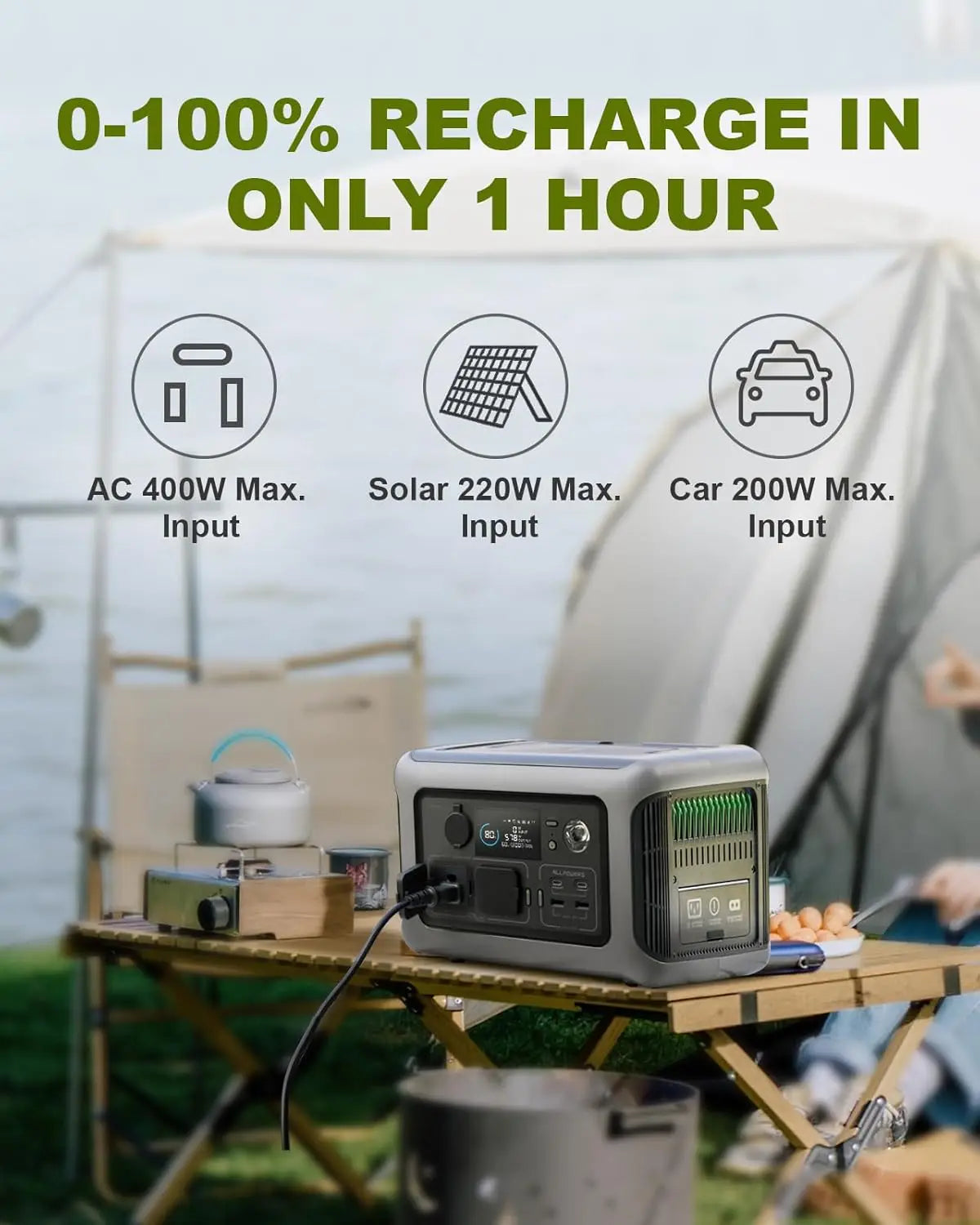

• Charging Options: Fully recharges in about 1 hour via AC (up to 400 W fast charge), or ~1.5 h via solar

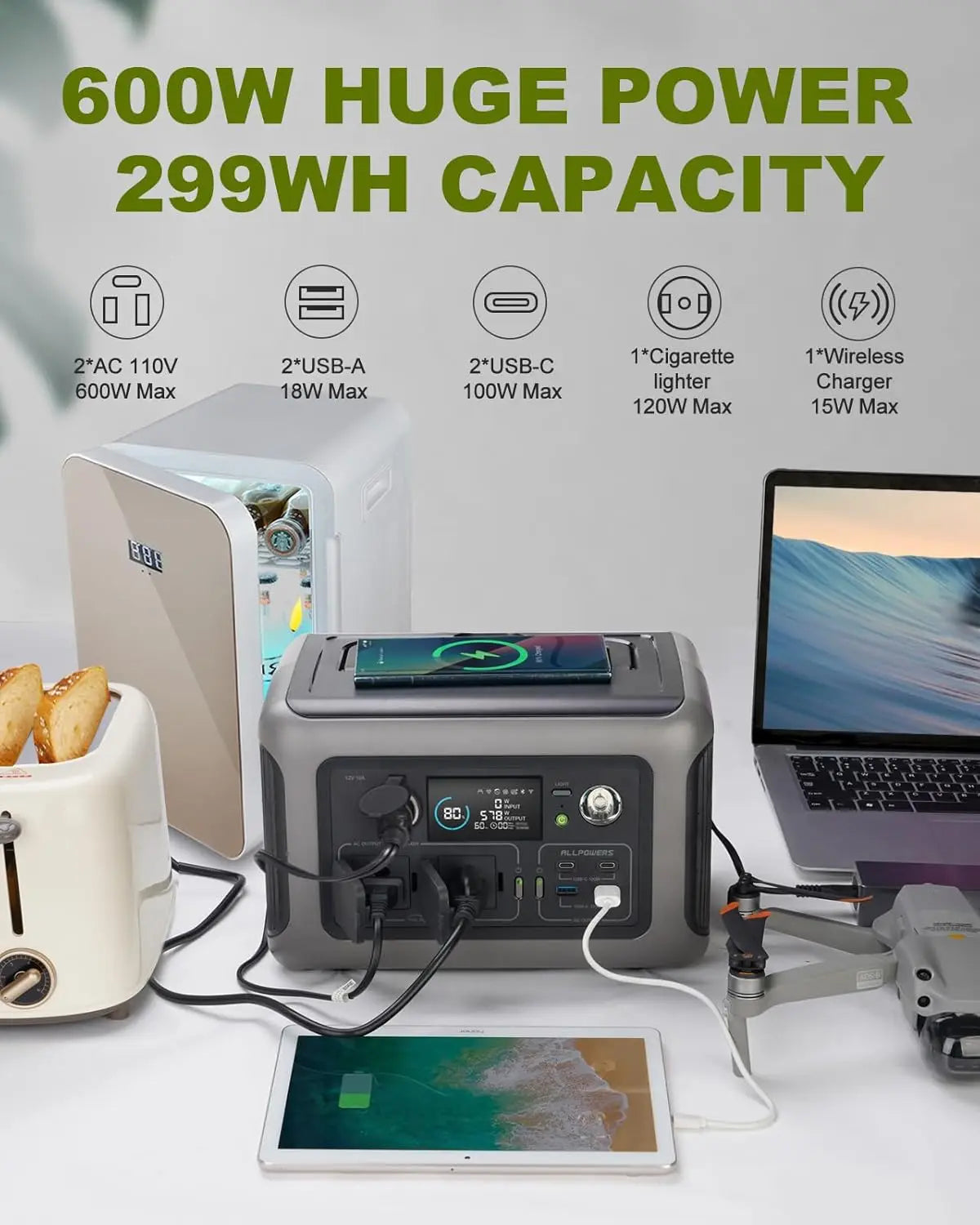

• Output Ports:

  • 2 × AC outlets

  • 2 × USB‑C (up to 200 W total)

  • 2 × USB‑A (up to 36 W)

  • 1 × 12 V car/12 V cigarette-lighter port (10 A/120 W)

  • 1 × Wireless Qi pad (15 W)

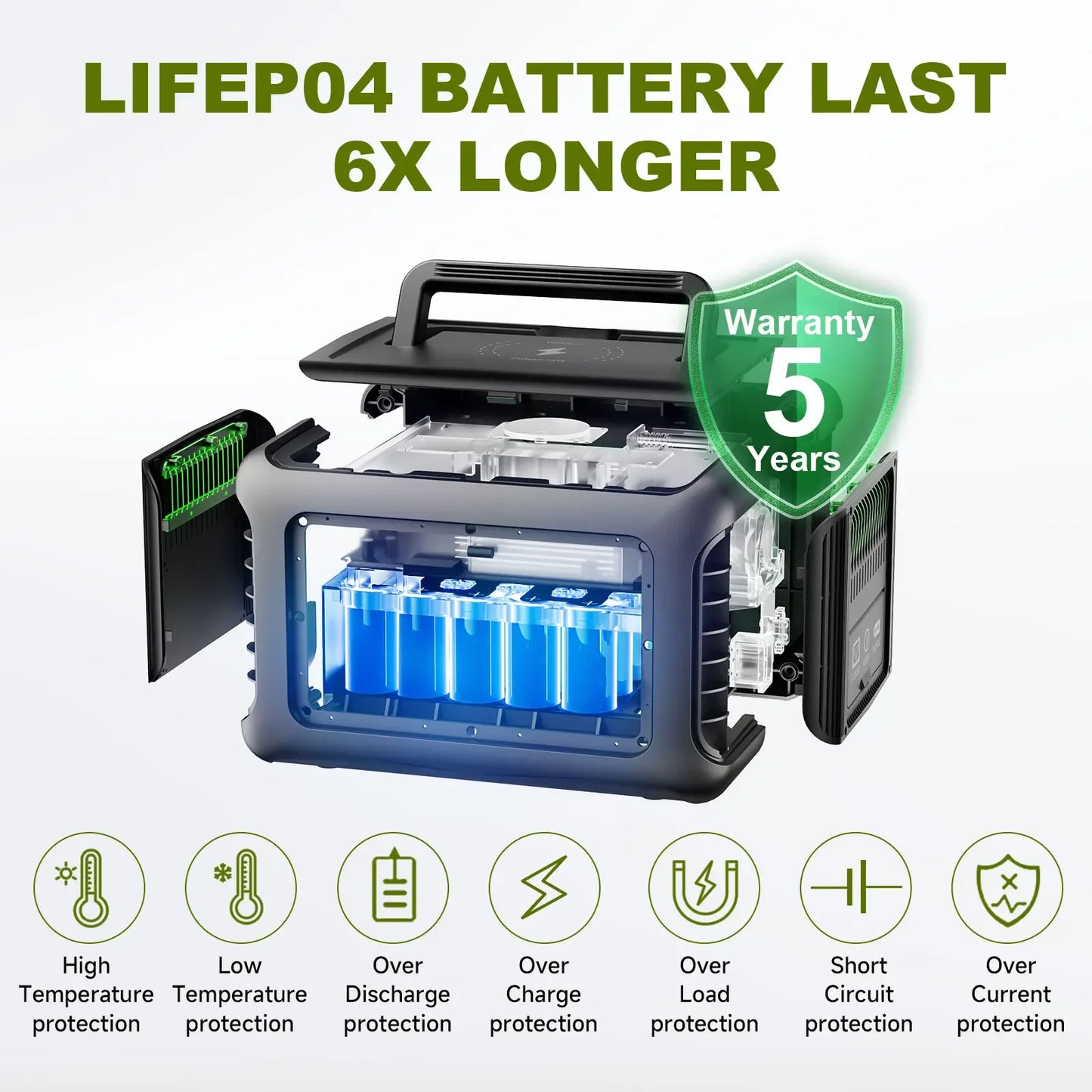

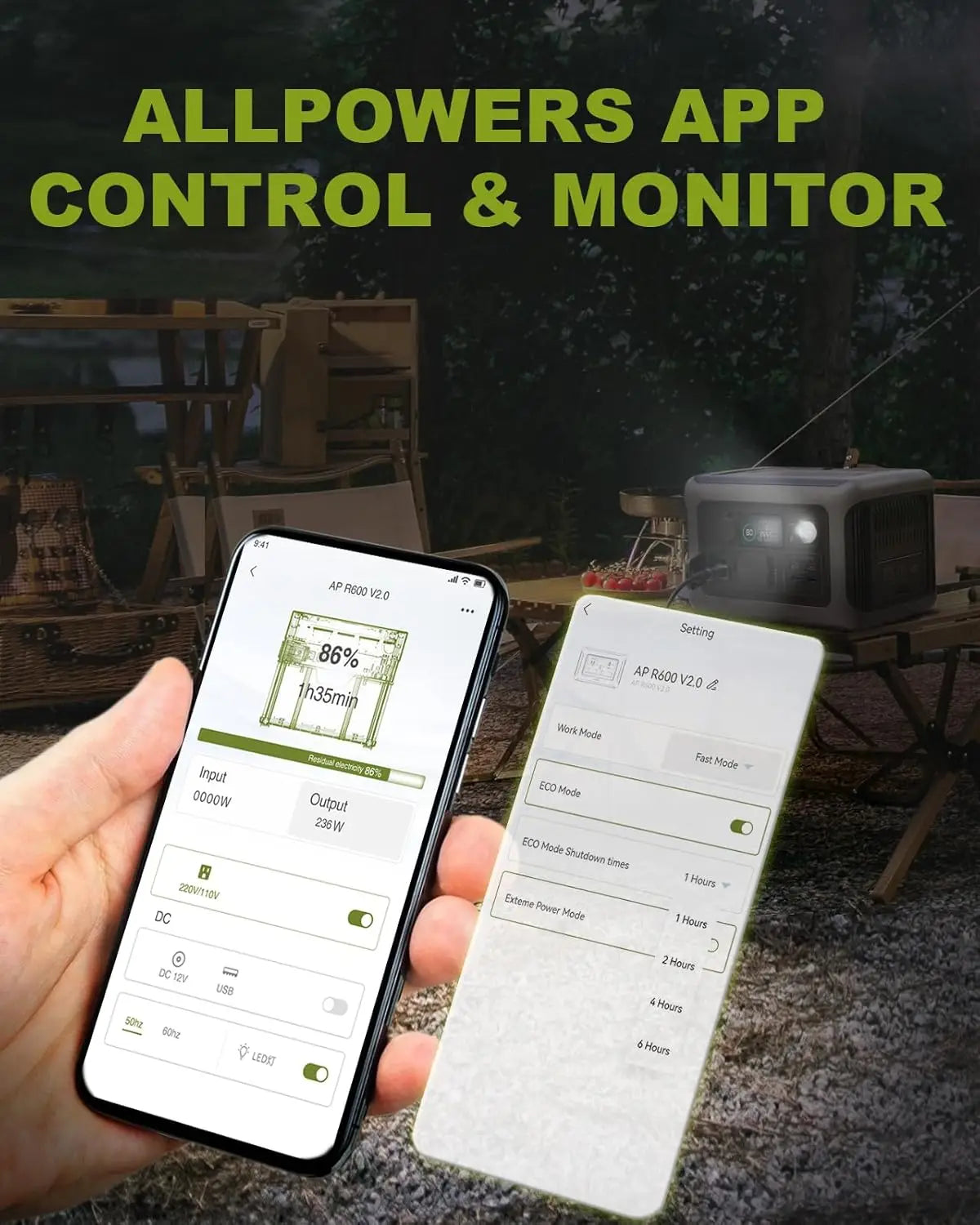

• Safety & Convenience: Built-in BMS protects against short-circuit, overload, temperature extremes, and more; supports app-based Bluetooth control; offers UPS-like functionality with <10 ms switchover

---

☀️ ALLPOWERS Foldable Solar Panels — 100 W, 140 W, & 200 W Kits

Common Features Across the Series:

• Proven 22–24 % conversion efficiency, using monocrystalline cells made in the U.S.

• Foldable design with nylon/ETFE weather-resistant cover and built-in kickstand; typically IP65–IP67 rated

• Includes multiple connector options: MC‑4 to Anderson, MC‑4 to DC5521/8 mm, alligator clips, plus USB‑A (and in 140 W version, USB‑C PD 60 W) ports

• Approx. weight and folded dimensions:

  • 100 W: ~7.9 lb (3.6 kg), 12.6×7.5×3.6 in folded

  • 140 W: ~9.9 lb (4.5 kg), folded 22×14.2×0.2 in; spread size ~62×22 in

  • 200 W: ~11 lb (5 kg), folded ~20.7×21 in; unfolded 87.8 in ⨯ 20.7 in

Performance Details:

• MC‑4 Outputs: Up to 25 A max, suitable for parallel/series chaining to boost current or voltage

• Use Case: Directly power USB‑A, DC‑powered devices, or feed a compatible portable power station without needing any separate solar controller

• Real‑World Output: Under direct sunlight, delivers near rated power; even under heavy cloud cover can produce ~14 W on 140 W panel

---

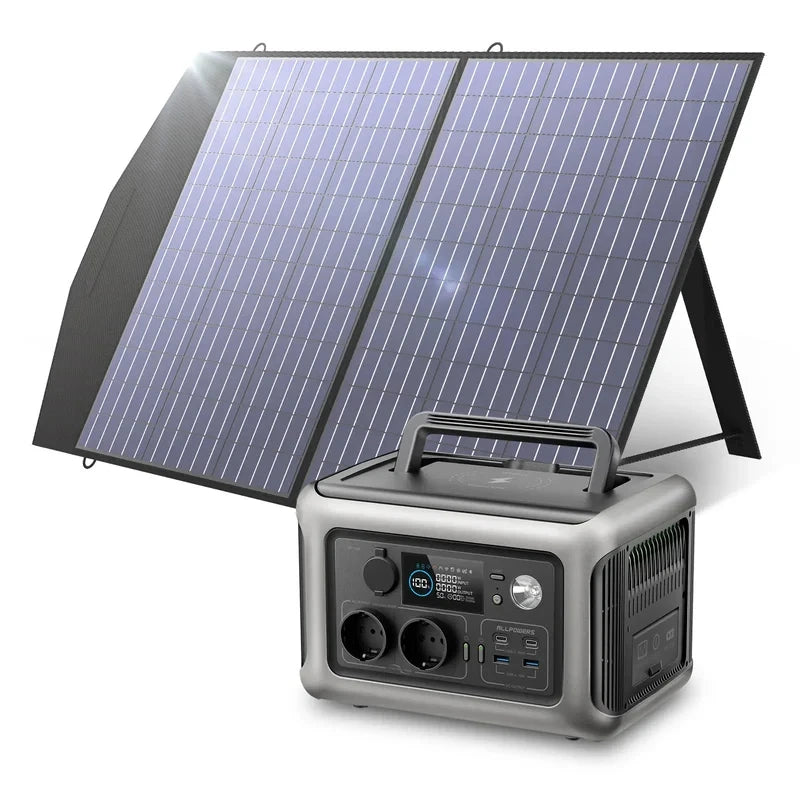

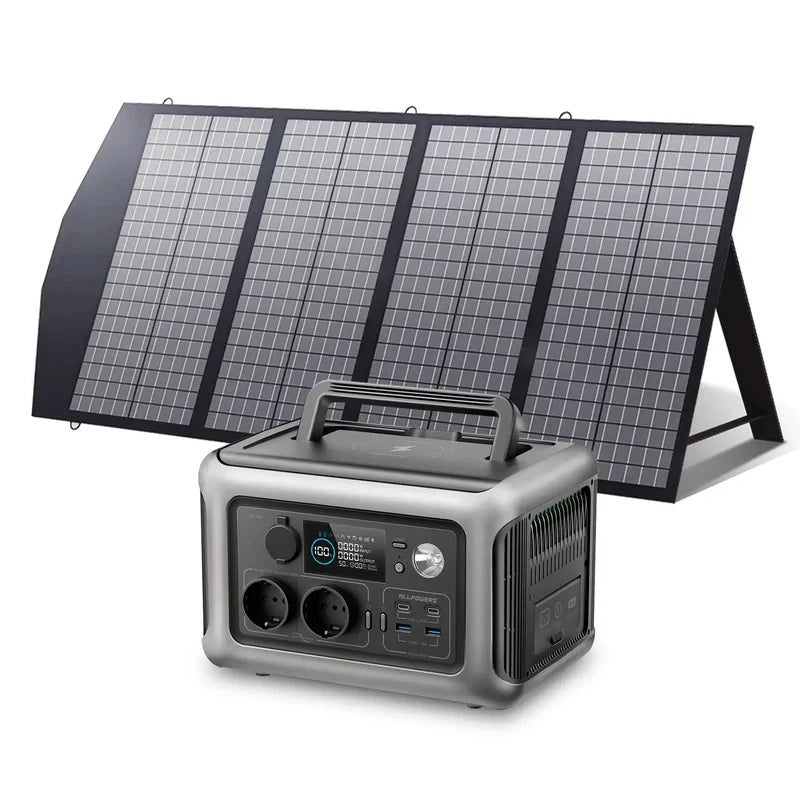

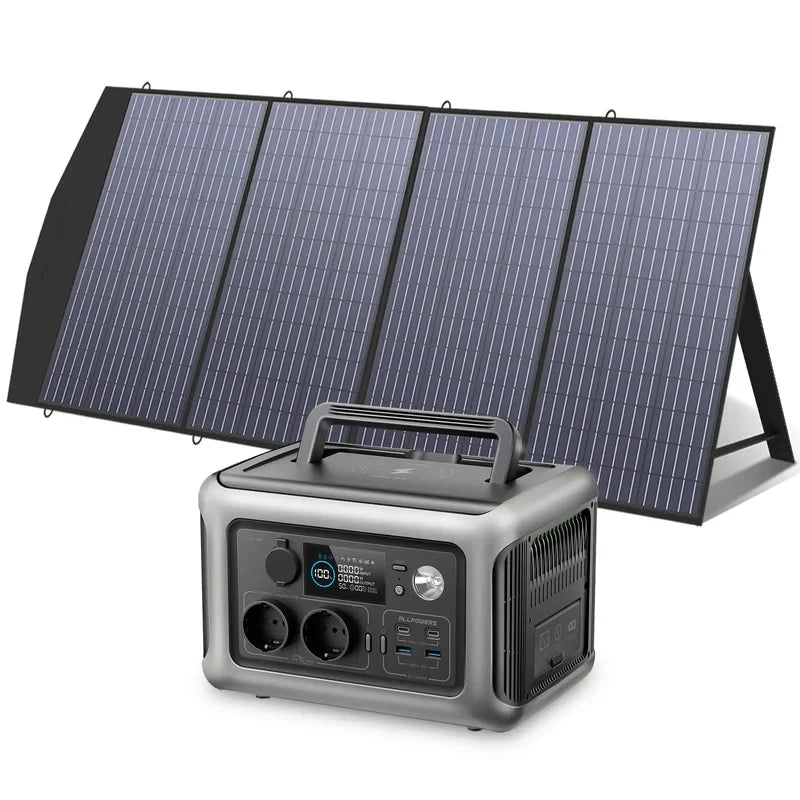

📦 Combined Package — What You Typically Get

If ordering a kit (R600 + panel), the package usually contains:

• R600 power station

• Foldable solar panel (100 W, 140 W, or 200 W, depending on kit)

• Solar connection cables for the panel (MC‑4 to XT60 or Anderson/DC)

• AC charging cable

• Multi‑connector adapters for DC outputs

• Instruction manuals and an 18‑month warranty

---

✅ Quick Summary Table

Component	Highlights
R600 (Power Station)	299 Wh LiFePO₄, 600 W AC output, fast recharge via AC or solar, multiple ports, UPS functionality, app control
Solar Panels – 100 W	Lightweight and portable, efficient multi-output kit (USB + DC + MC‑4), ideal for smaller charging needs
Solar Panels – 140 W	Higher output, built-in PD‑capable USB‑C port (60 W), foldable kit includes adapters
Solar Panels – 200 W	Highest output, 24 % efficiency, IP67 durability, suited for faster recharge & chaining



---

👣 Usage Advice

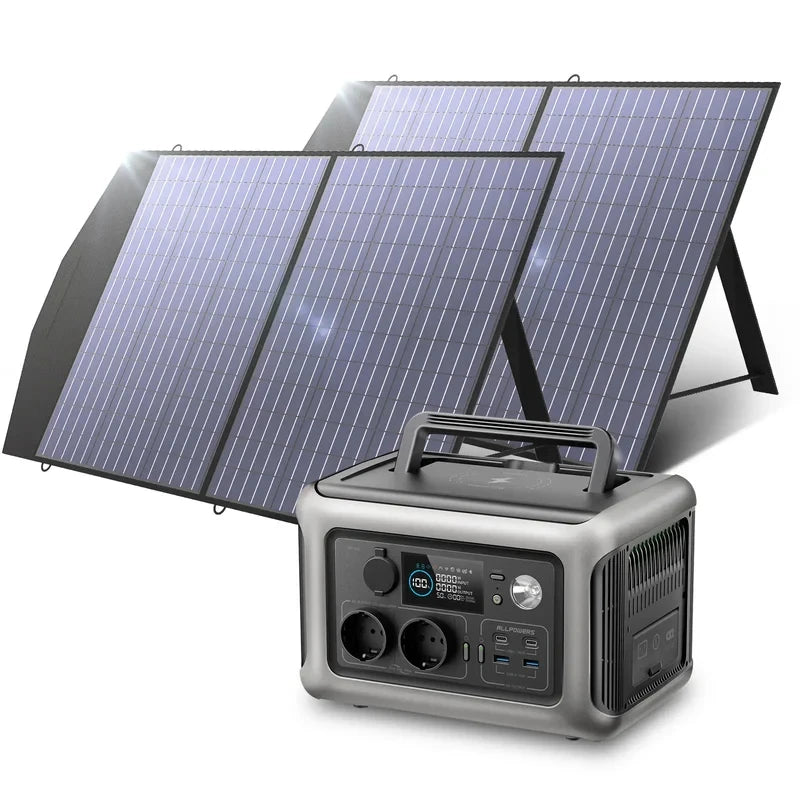

• Match panel to power station: The R600 supports up to ~200 W solar input—using a 200 W panel is most efficient. Two 100 W or one 140 W in optimal sun also works well.

• Chaining: Panels can be chained (parallel for more current or series for more voltage) to maximize R600 charging rate.

• Compatibility: Ships with multiple connectors, but always verify voltage and plug type fits your generator/device.

• Safety first: Be cautious if you’ve heard of local warranty/service issues; test thoroughly and follow safety protocols during initial use.

---

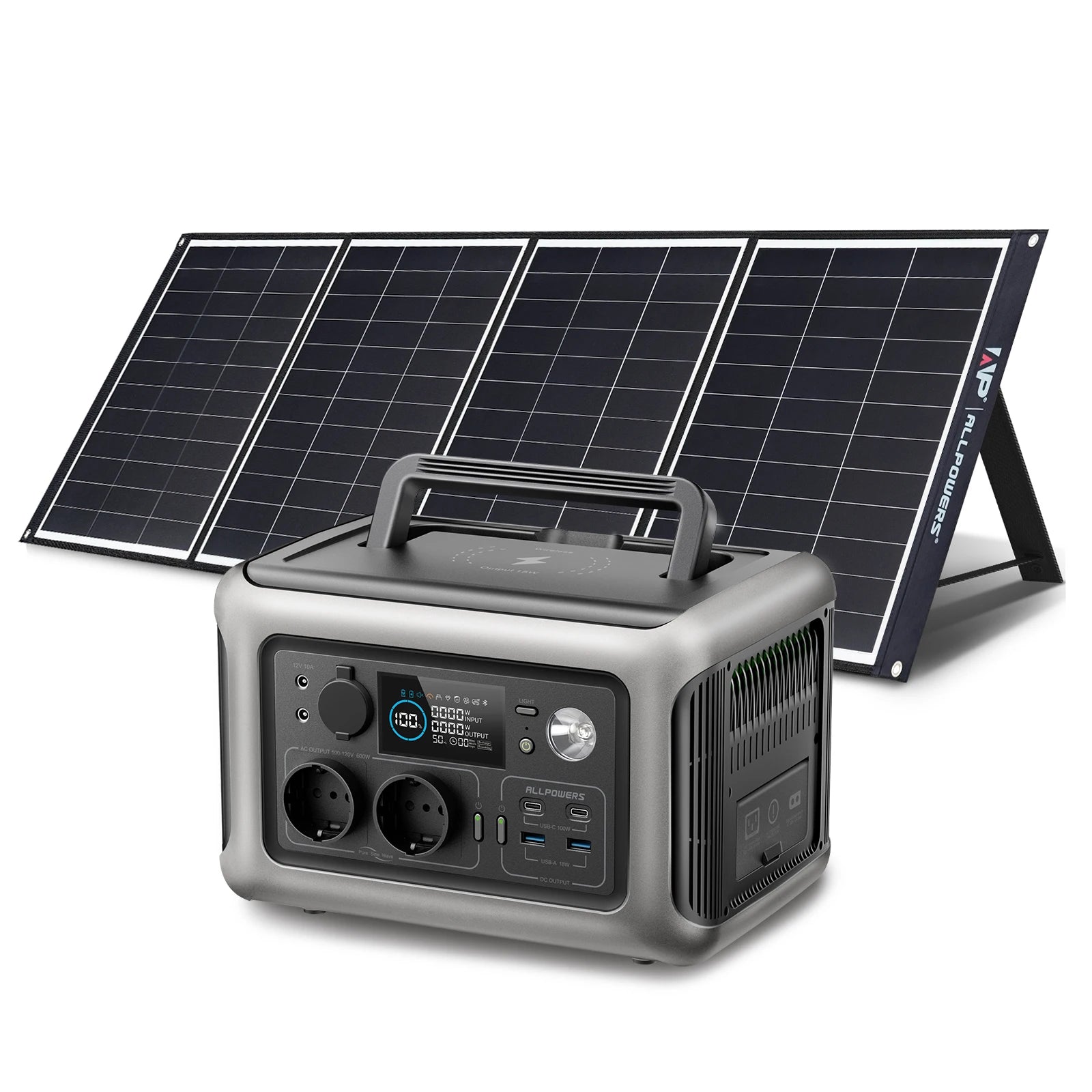

The ALLPOWERS R600 paired with their foldable 100 W, 140 W, or 200 W solar panels offers a flexible, portable off-grid charging setup: fast recharging, solid specifications, and multi-device output.



Application: Others



Brand Name: ALLPOWERS

Certification: CE,pse,FCC,RoHS,weee,UL

Display screen: Yes

Hign-concerned Chemical: None

Model Number: R600+SP

Nominal Capacity: 299Wh

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: 28X19X19CM

Type: LiFePO4
