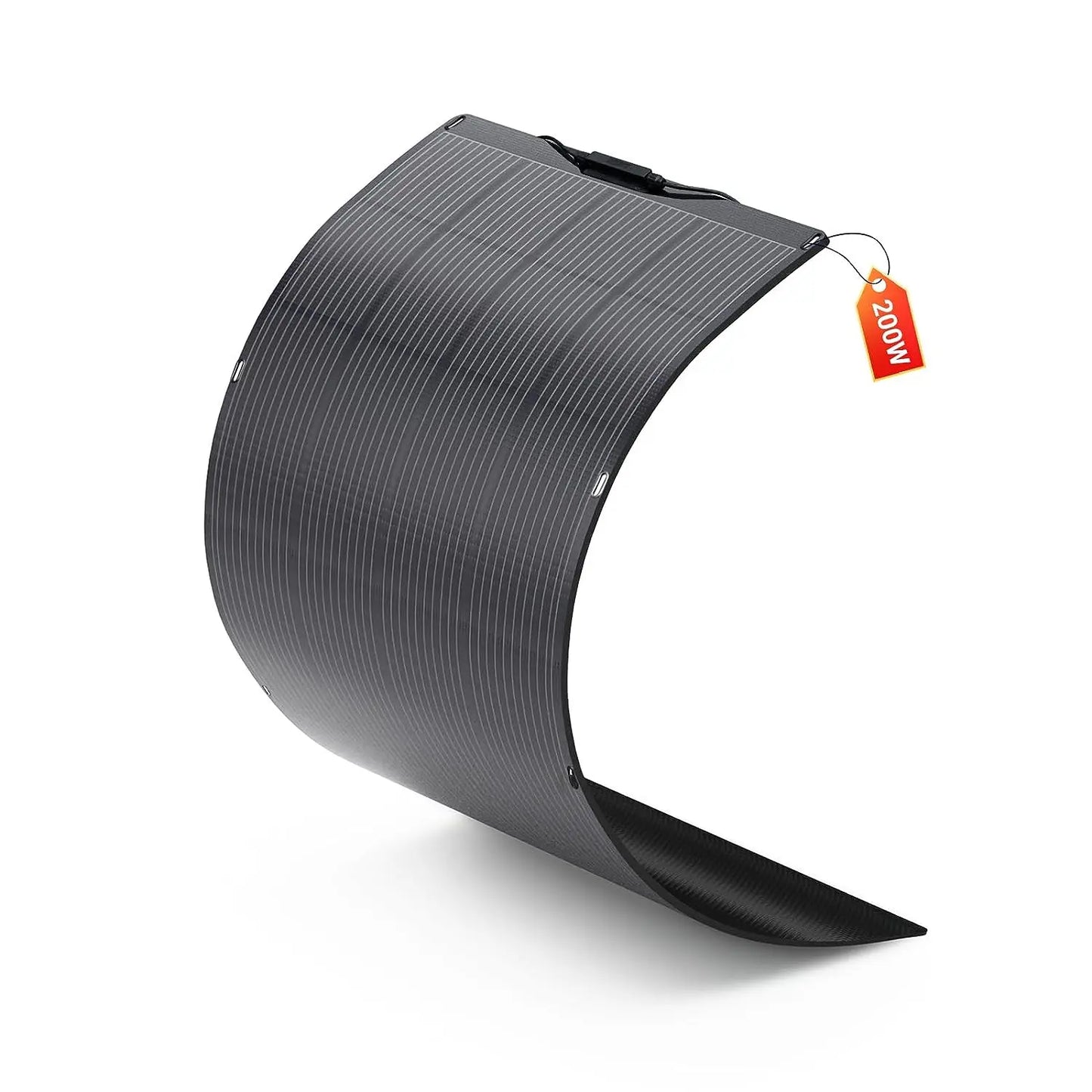

ALLPOWERS Balcony Power Plant 200W / 100W Flexible Solar panel
ALLPOWERS Balcony Power Plant 200W / 100W Flexible Solar panel
Couldn't load pickup availability
SPECIFICATIONS
The ALLPOWERS Flexible Solar Panel is engineered to provide efficient and portable solar energy solutions for various off-grid applications. Available in 100W and 200W configurations, these panels are designed to be lightweight, flexible, and durable, making them ideal for installation on curved surfaces like RV roofs, boats, and balconies.
🔧 Key Specifications
| Feature | 100W Model | 200W Model |
|---|---|---|
| Cell Type | Monocrystalline | Monocrystalline |
| Maximum Output | 100W ±5% | 200W ±5% |
| Open Circuit Voltage | 30.6V ±5% | 38.4V ±5% |
| Short Circuit Current | 4.58A ±5% | 6.87A ±5% |
| Maximum Output Voltage | 25.5V ±5% | 32V ±5% |
| Maximum Output Current | 4.17A ±5% | 6.25A ±5% |
| Material | Monocrystalline + ETFE | Monocrystalline + ETFE |
| Waterproof Rating | IP68 | IP68 |
| Weight | 5.29 lbs (2.4 kg) | 9.03 lbs (4.1 kg) |
| Dimensions | 39.68" x 22.83" x 0.11" (1010 x 580 x 2.8 mm) | 54.13" x 30.7" x 0.11" (1375 x 780 x 2.8 mm) |
🛠️ Features & Benefits
-
High Conversion Efficiency: Utilizes monocrystalline cells with an efficiency of up to 25%, ensuring maximum energy output.
-
Flexible & Lightweight: The panels can bend up to 240° and are only 0.11 inches thick, allowing for installation on curved surfaces without adding significant weight.
-
Durable & Weather-Resistant: Constructed with ETFE material and rated IP68 waterproof, these panels can withstand extreme weather conditions, including high temperatures, freezing, sandstorms, and rainstorms.
-
Easy Installation: Comes with MC4 connectors and six straps, facilitating straightforward installation on RVs, boats, cabins, balconies, and other off-grid locations.
-
Long Lifespan: Designed to last over 10 years with proper use, backed by a 3-year warranty.
🧭 Ideal Applications
-
RVs & Motorhomes: Provides reliable power for lighting, fans, and small appliances.
-
Boats & Yachts: Offers energy independence for navigation lights, radios, and other equipment.
-
Cabins & Sheds: Supplies electricity for tools, lighting, and small devices.
-
Balconies & Terraces: Generates power for outdoor lighting and small electronics.
