SPECIFICATIONS

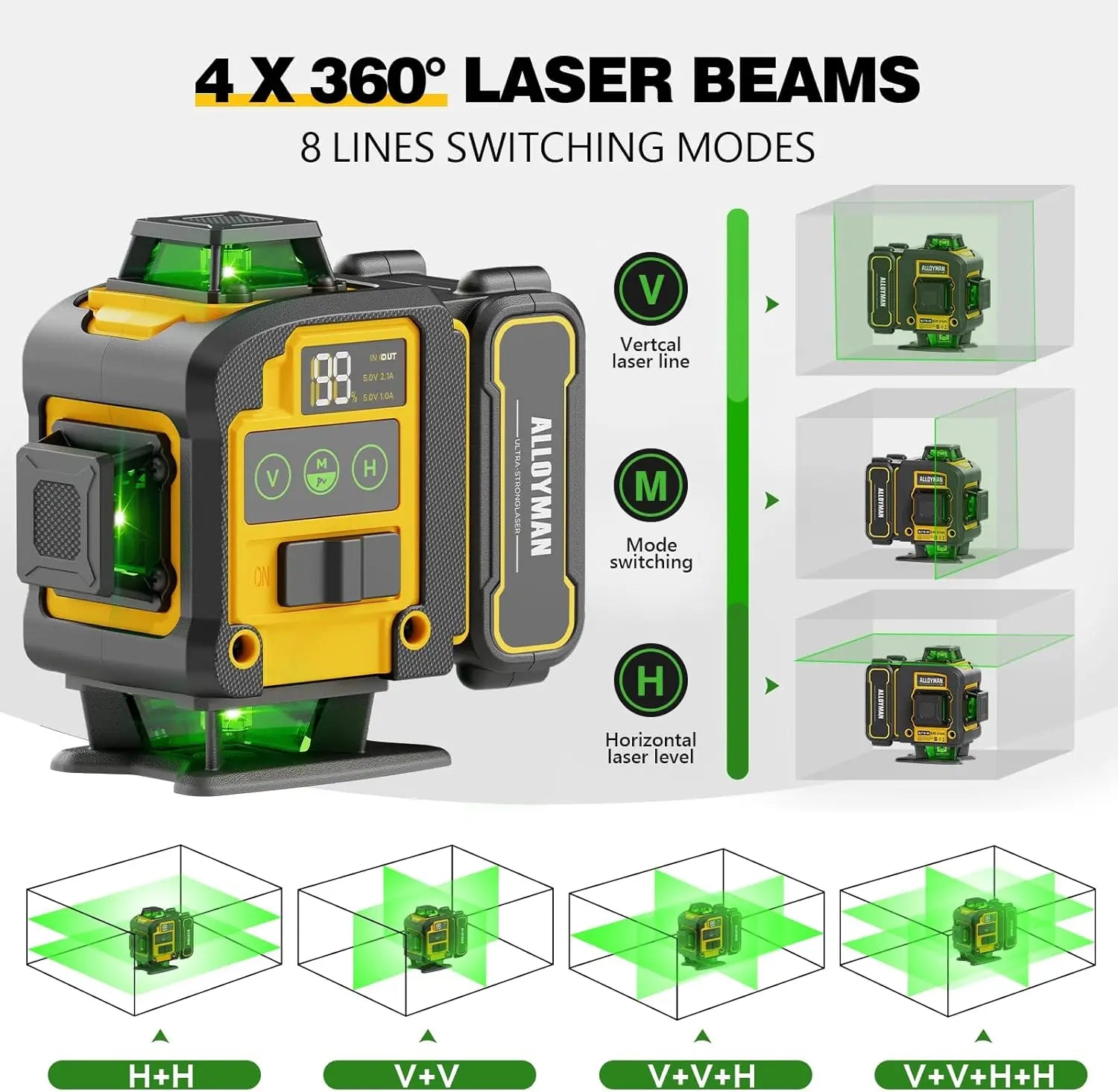

🛠️ Core System: 4×360° “4D” Laser Coverage

This model projects four full 360° laser planes:

• 2 horizontal planes
  • Top: standard leveling
  • Bottom: near-floor alignment
• 2 vertical planes intersecting at 90°

👉 This creates complete room coverage—walls, floor, and ceiling at the same time.

👉 You can:

• Lay tile without moving the tool
• Align cabinets across multiple walls
• Transfer measurements floor-to-ceiling

---

💡 What “16 Lines” Actually Means

• “16-line” = segments of the 4 full 360° planes
• Not 16 independent beams

👉 In practice, this is a 4-plane system, which is what really matters.

---

💚 Green Laser Visibility

• High-visibility green beam (Class II laser)
• Much brighter than red lasers
• Works well in:
  • Bright indoor rooms
  • Moderate outdoor light

👉 Improves accuracy because you can see the line clearly without squinting.

---

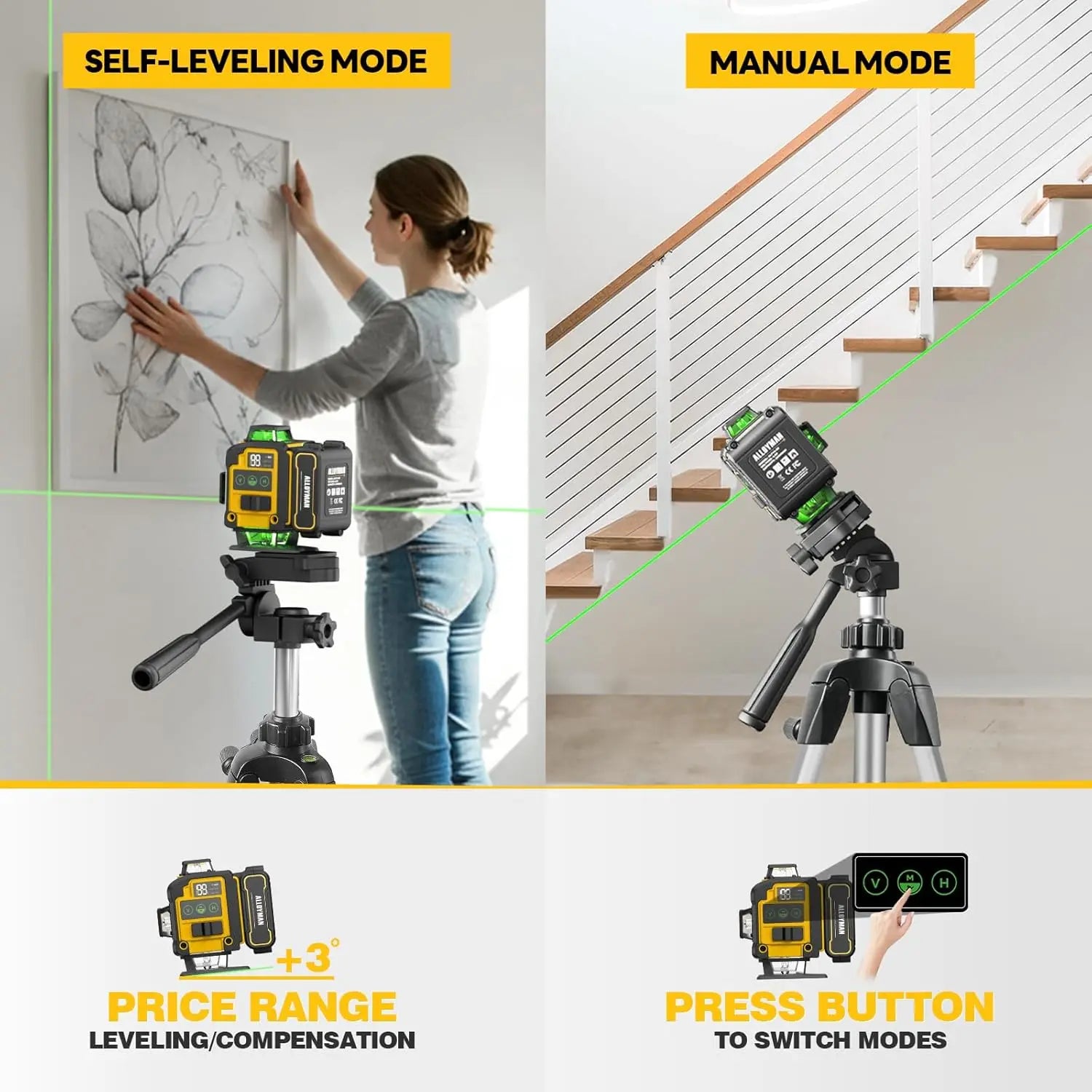

⚙️ Self-Leveling + Manual Mode

• Auto-level range: ~±3°
• If out of level:
  • Laser flashes + warning beep
• Manual mode:
  • Lock lines at angles (stairs, railings, slopes)

👉 Gives both:

• Quick automatic setup
• Flexible custom layout options

---

📏 Accuracy & Range

• Accuracy: ~±1 mm at 5 m

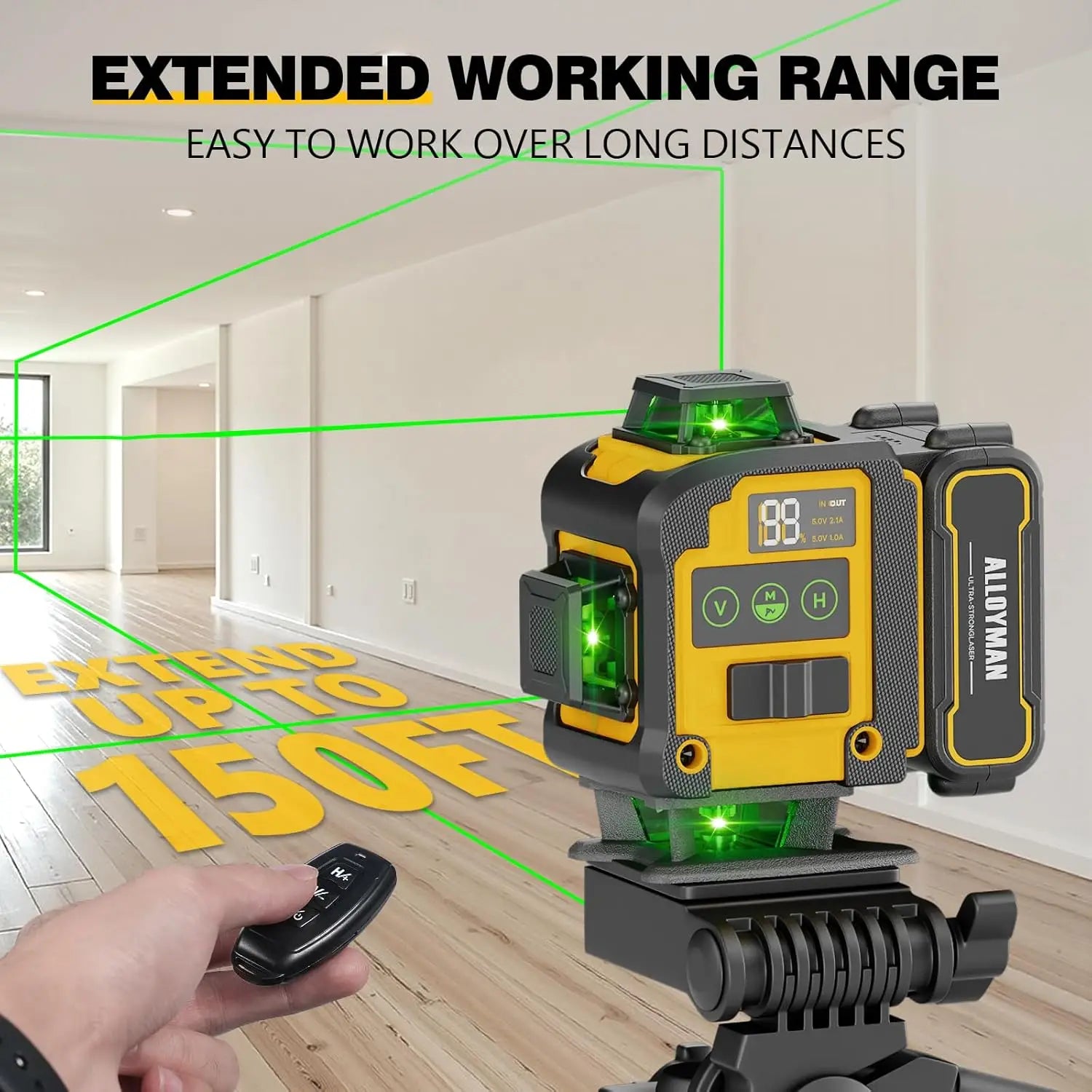

• Working range: up to ~98–150 ft depending on model and conditions

👉 Suitable for:

• Medium-to-large indoor projects
• Light outdoor work (better with detector)

---

🔋 Battery & Runtime

• Includes dual lithium batteries (≈4.0V packs)
• Runtime: up to 12 hours continuous use

👉 You can swap batteries and work all day without stopping.

---

🧲 Tripod & Mounting System

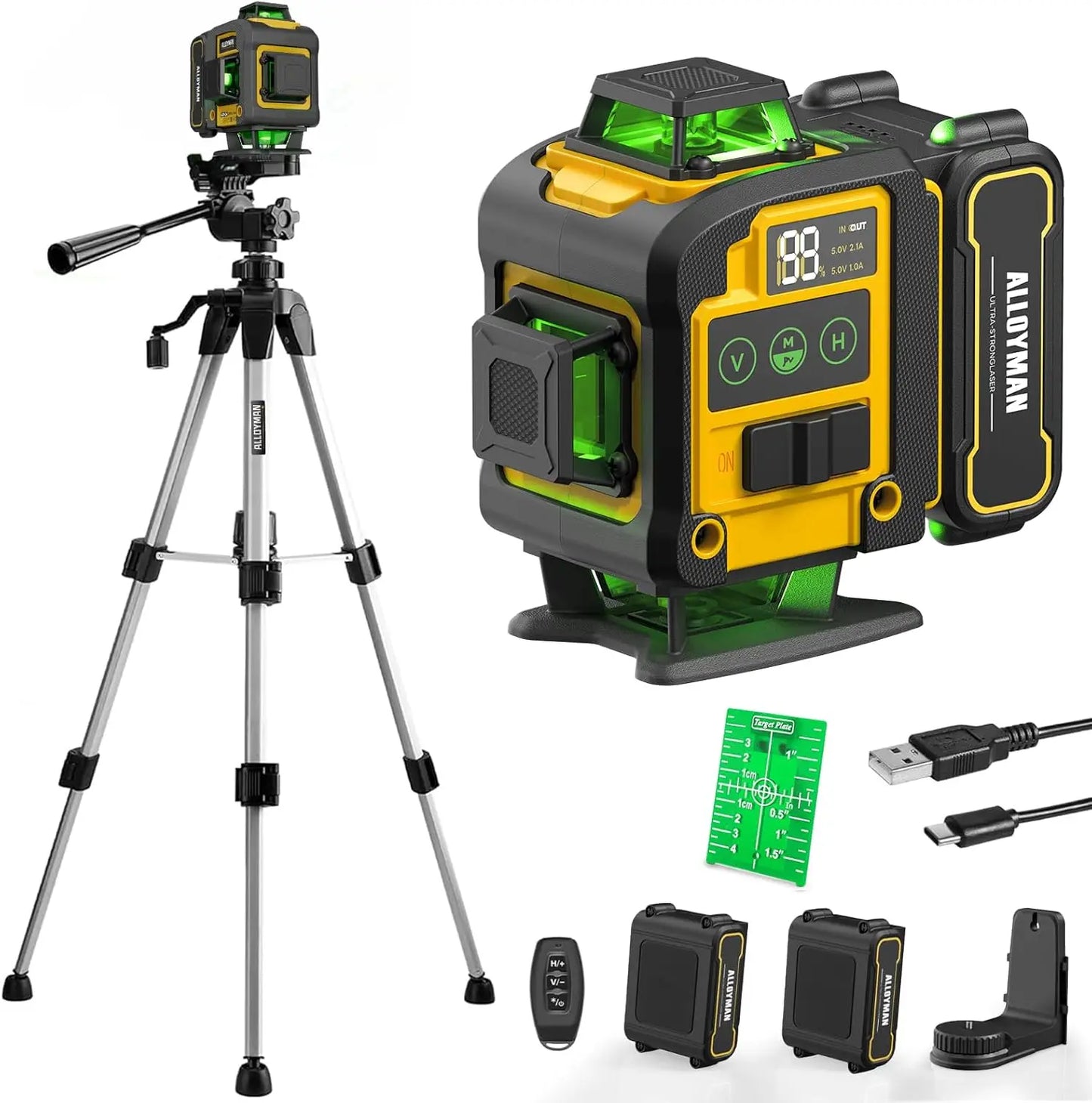

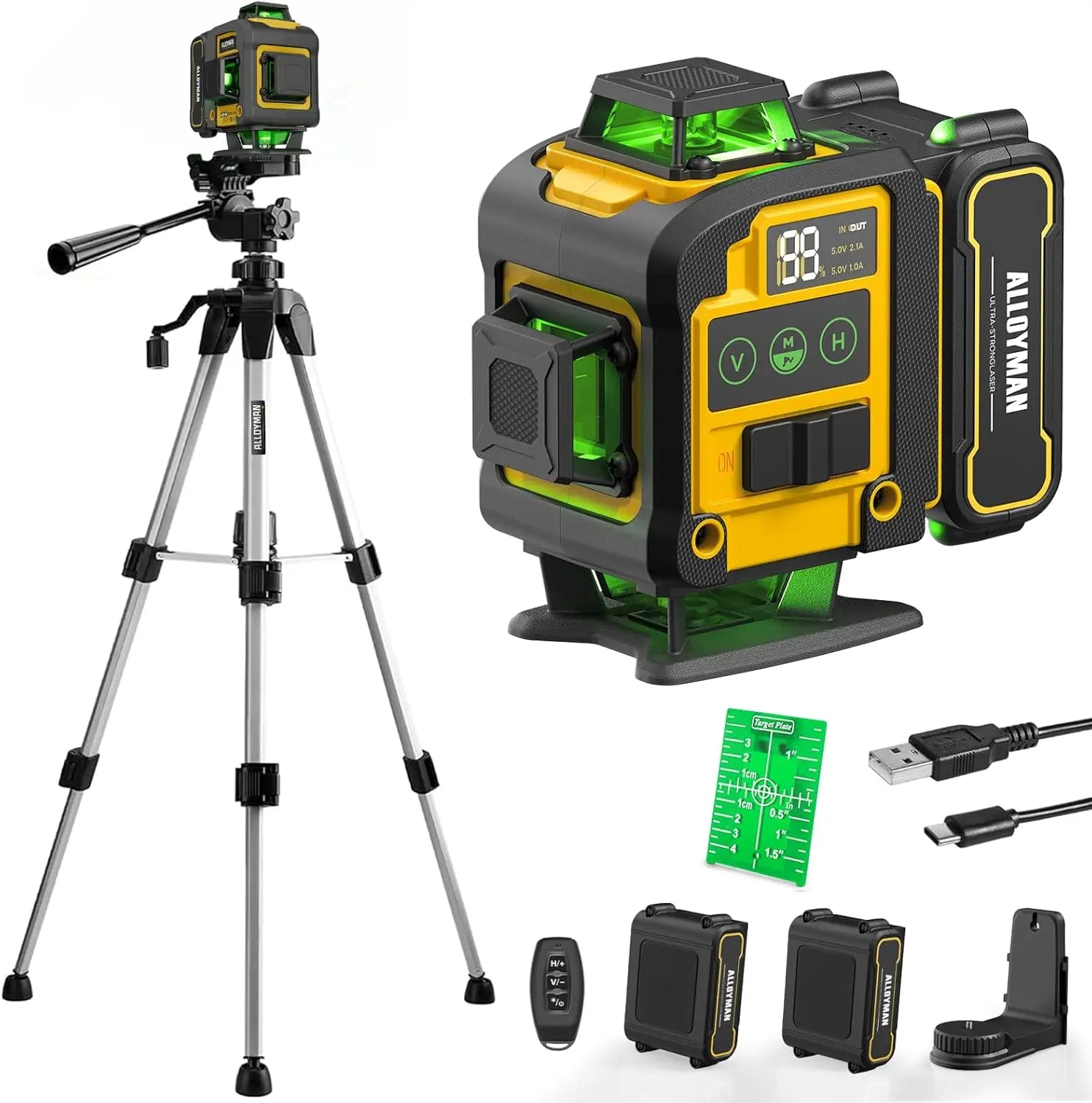

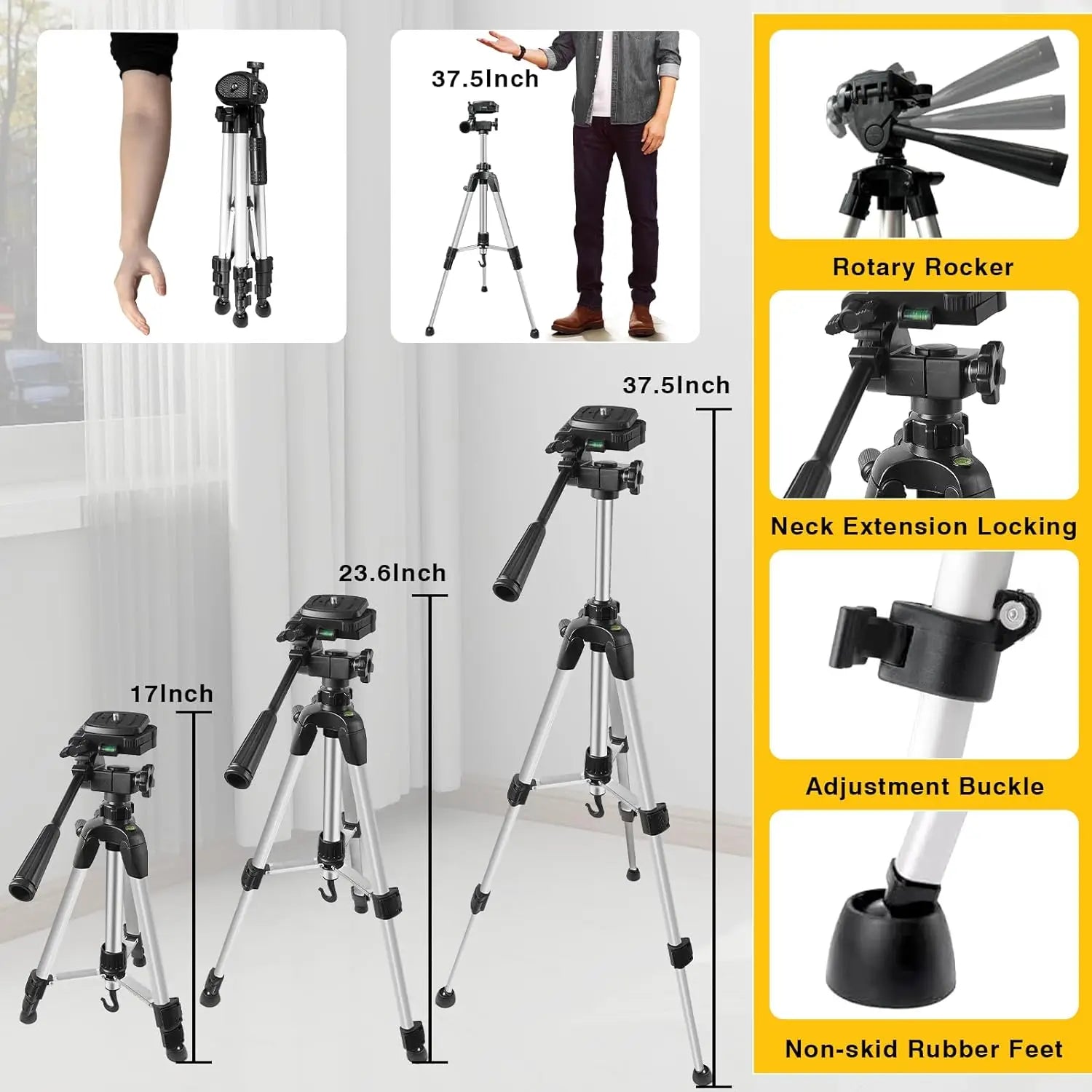

Included Tripod

• Adjustable height (~17"–37.5")
• Stable positioning for precision work

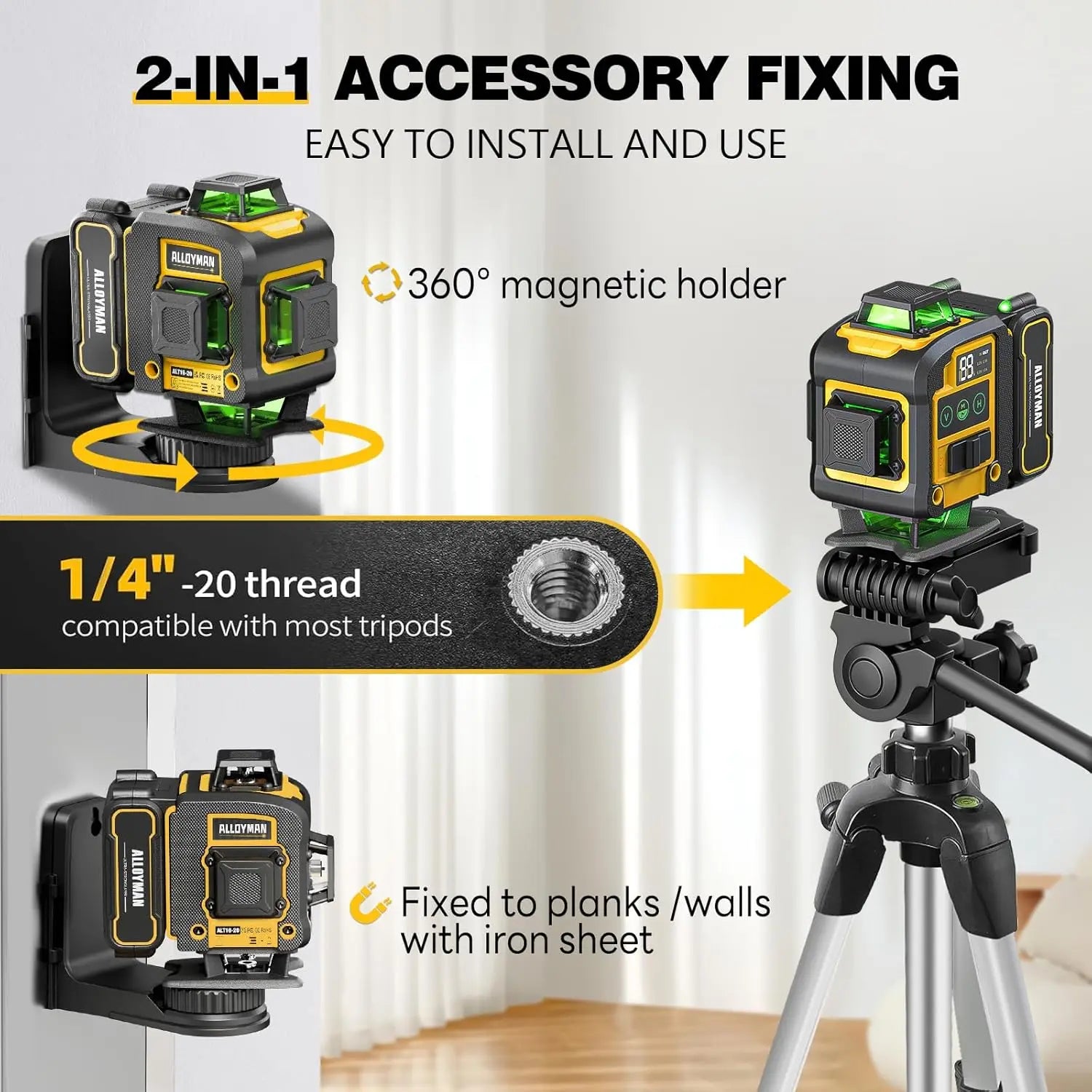

Mounting Options

• Magnetic bracket
• Elevating base
• 1/4" tripod thread

👉 Allows:

• Hands-free operation
• Precise height and angle adjustments

---

🌧️ Durability & Build

• IP54 rating (dust + splash resistant)
• Works in temperatures from -20°C to 50°C
• Shock-resistant housing

👉 Built for:

• Indoor renovation
• Light jobsite conditions

---

🧰 Best Use Cases

This laser level is ideal for:

• Tile installation (especially floor-level alignment)
• Cabinet and shelf installation
• Drywall and framing
• Ceiling grid layout
• Full-room renovation

👉 The extra lower horizontal beam is especially useful for flooring work.

Battery Included: Yes

Brand Name: ALLOYMAN

Color: Refer to product images

Electronic: Yes

High-concerned chemical: None

Origin: US(Origin)
