SPECIFICATIONS

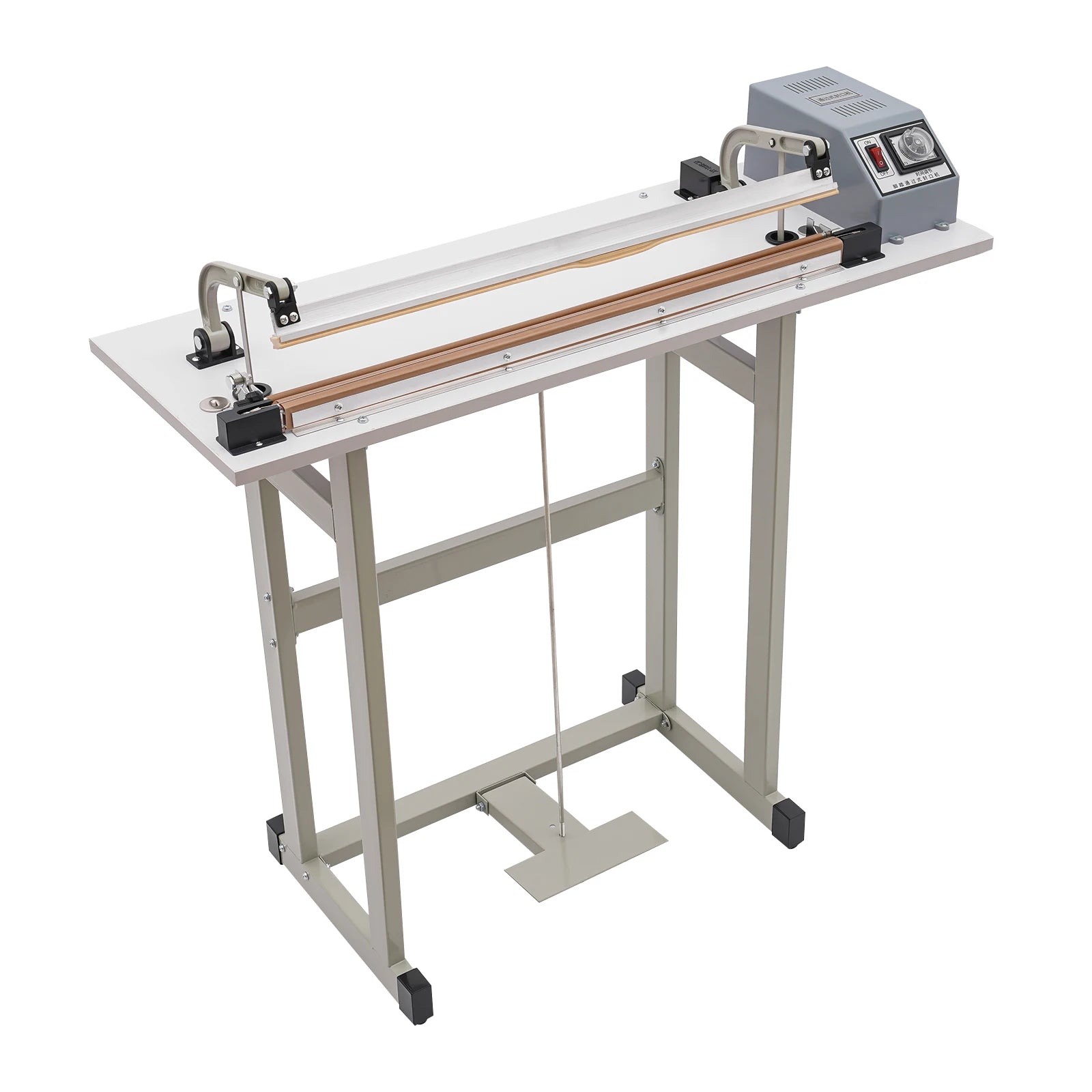

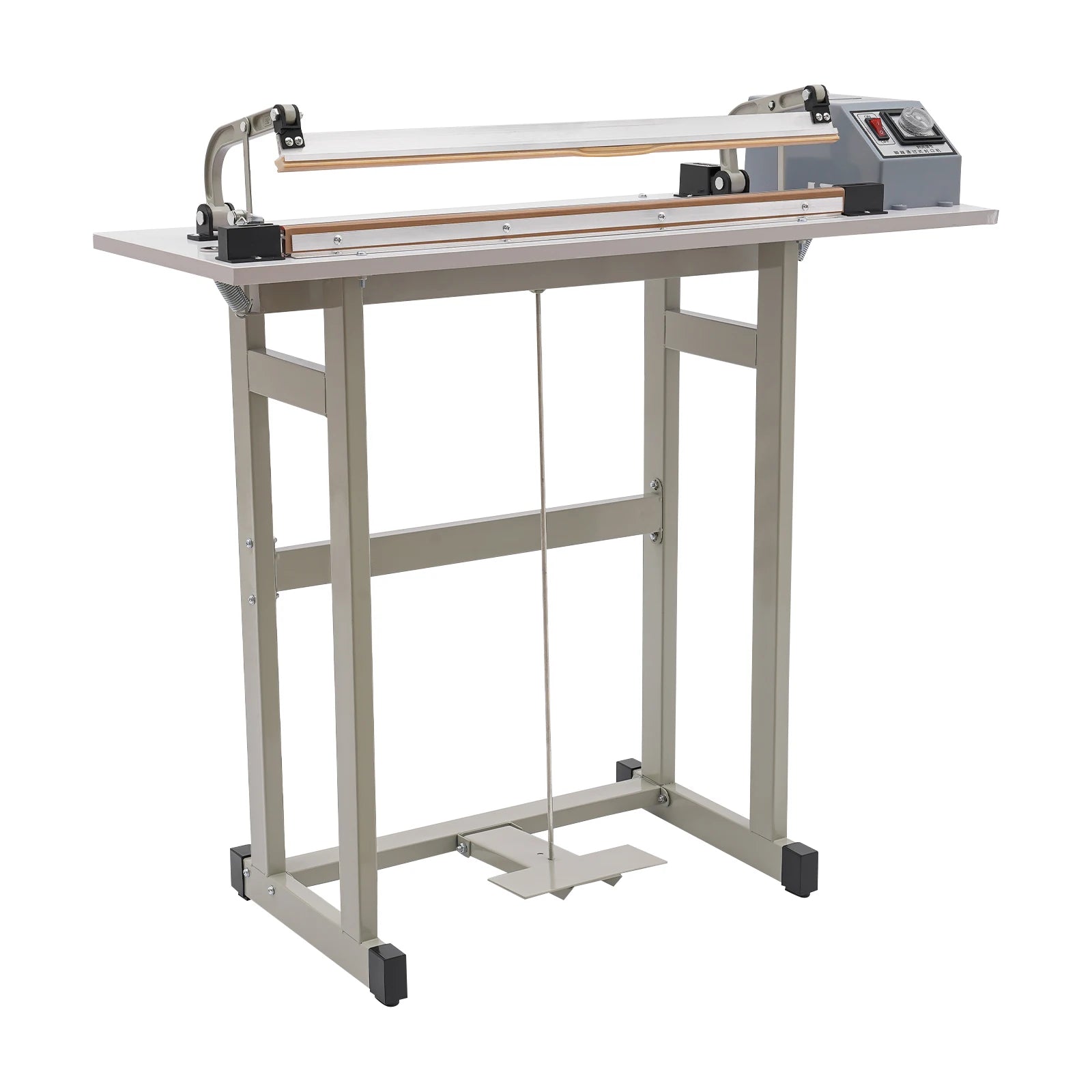

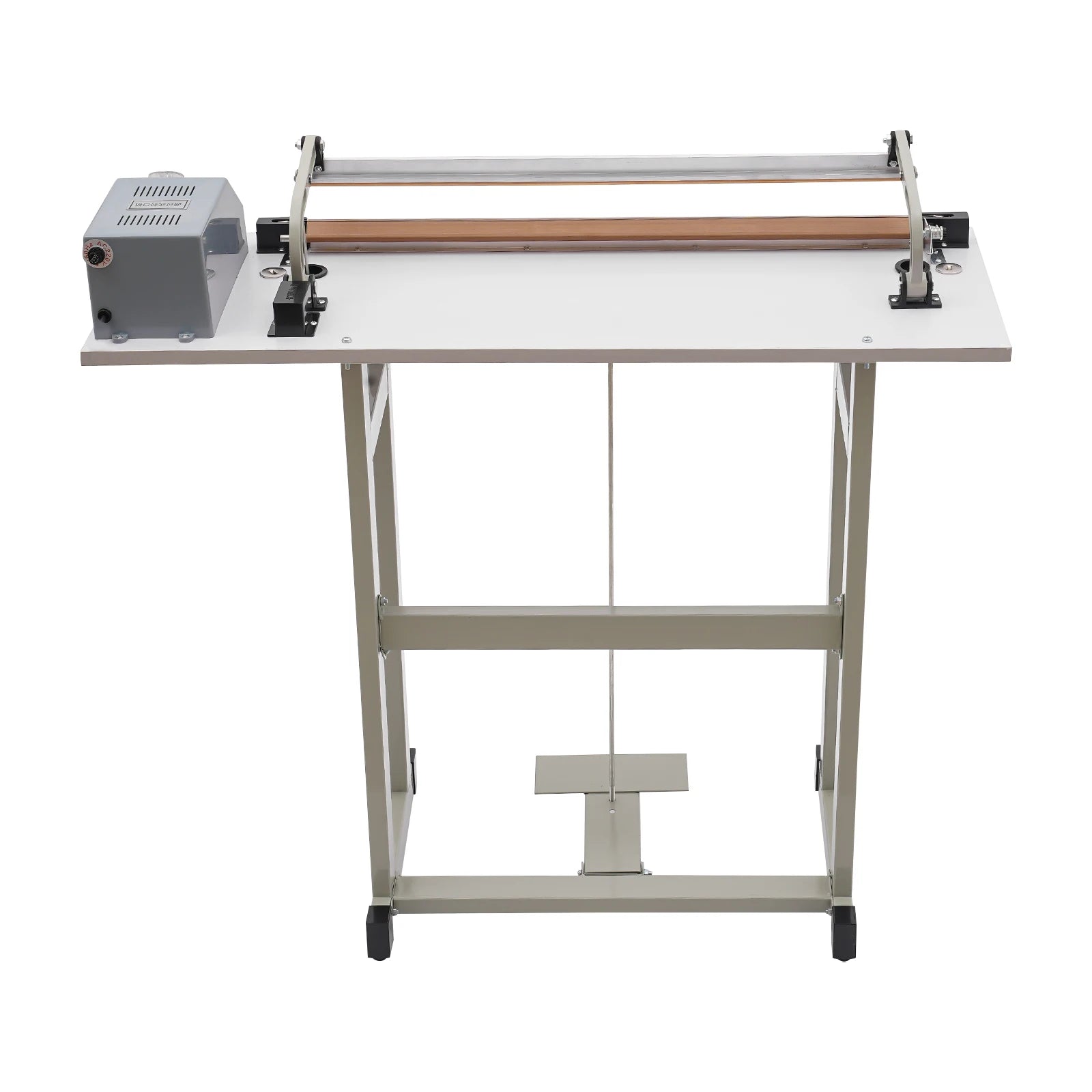

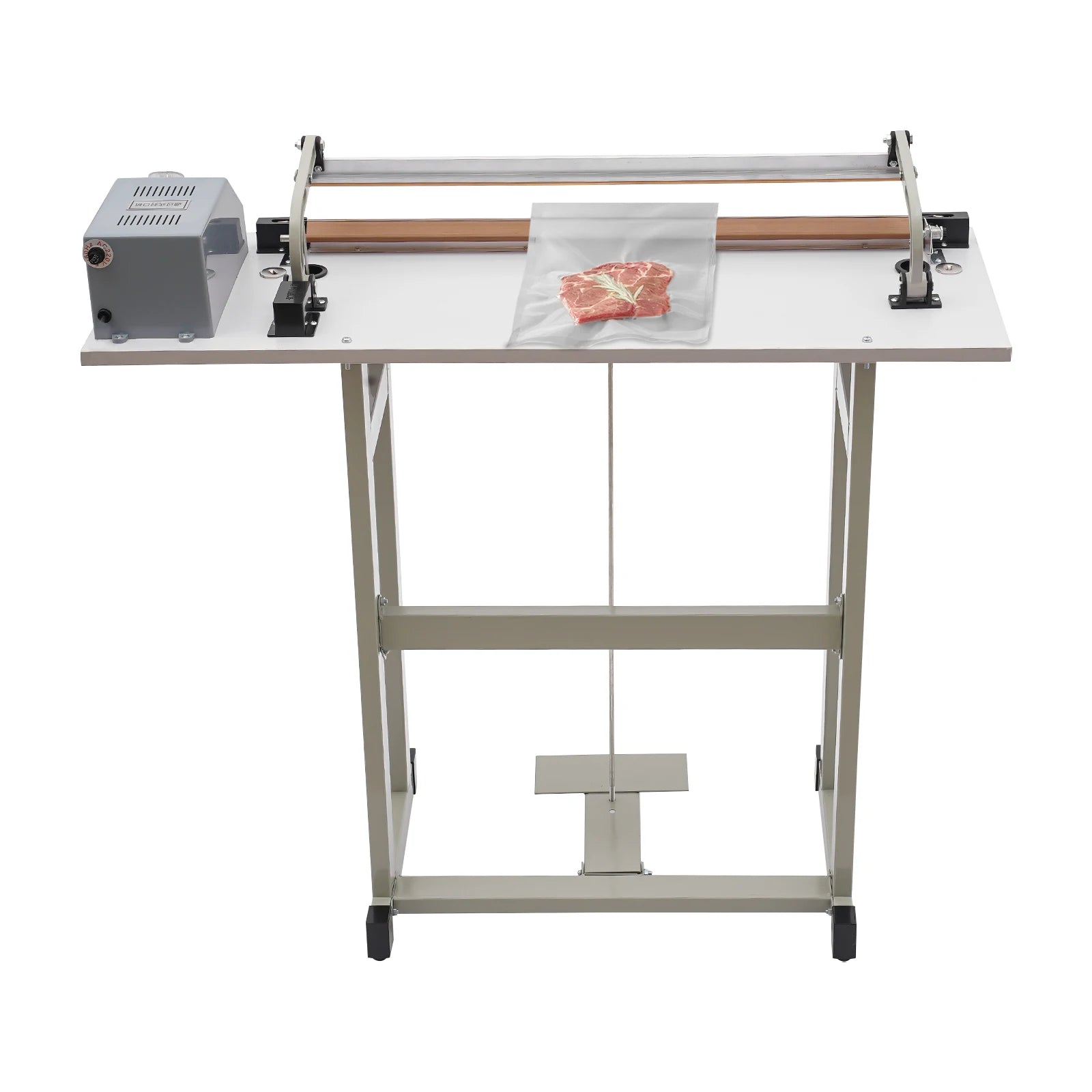

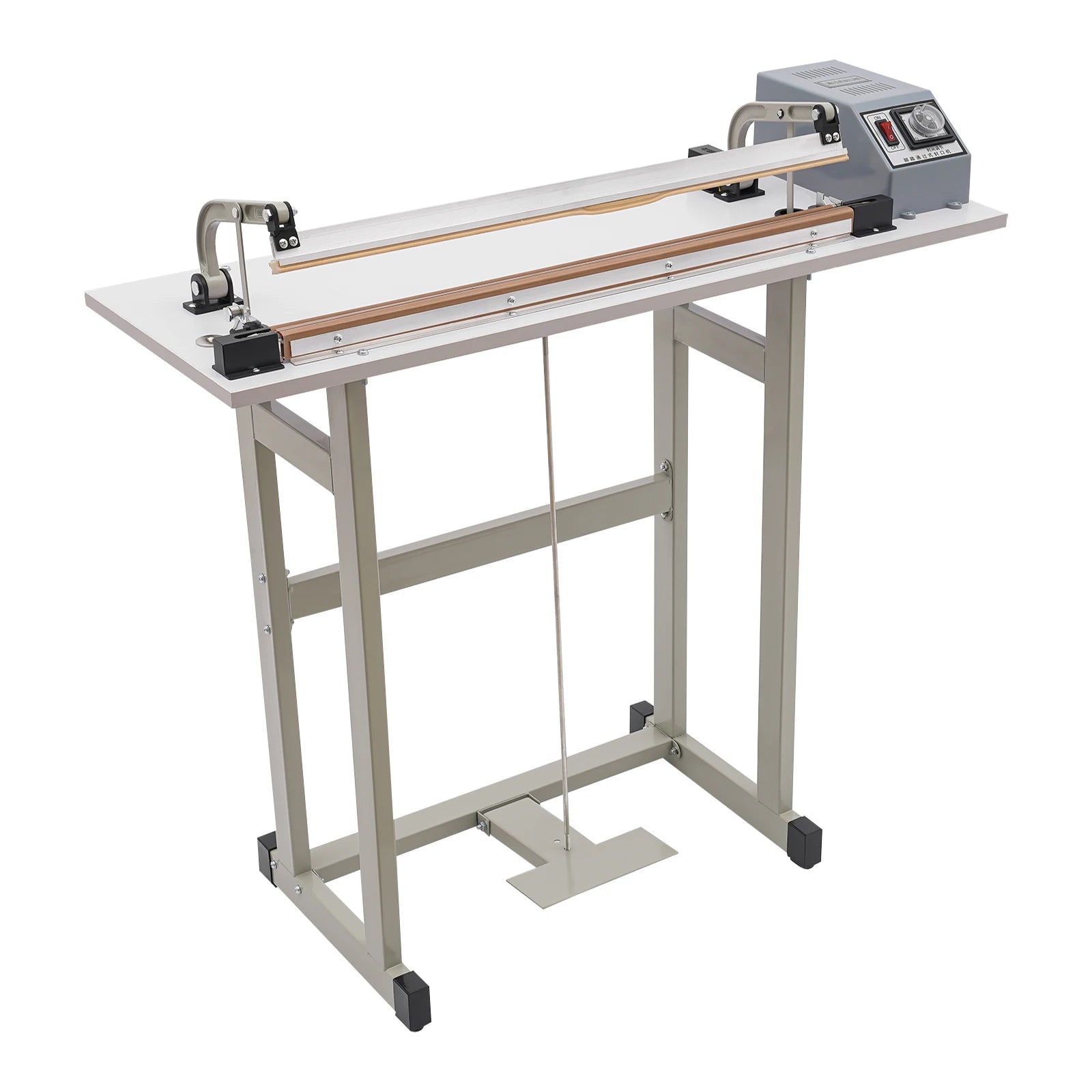

The 850W Heat Sealing Machine with Foot Pedal & Film Cutter is a commercial-grade impulse bag sealer designed for efficiently sealing plastic bags and film in retail, food packaging, warehouses, workshops, and manufacturing environments. Featuring foot-pedal operation, an integrated film cutter, adjustable heat settings (0–6), and 850W of sealing power, it allows hands-free operation and increased productivity compared with handheld sealers.

Key Features

850W High-Power Heating

• 850W impulse heating system provides fast, consistent sealing.
• Heats only during the sealing cycle, reducing standby energy use.
• Suitable for continuous daily packaging operations.

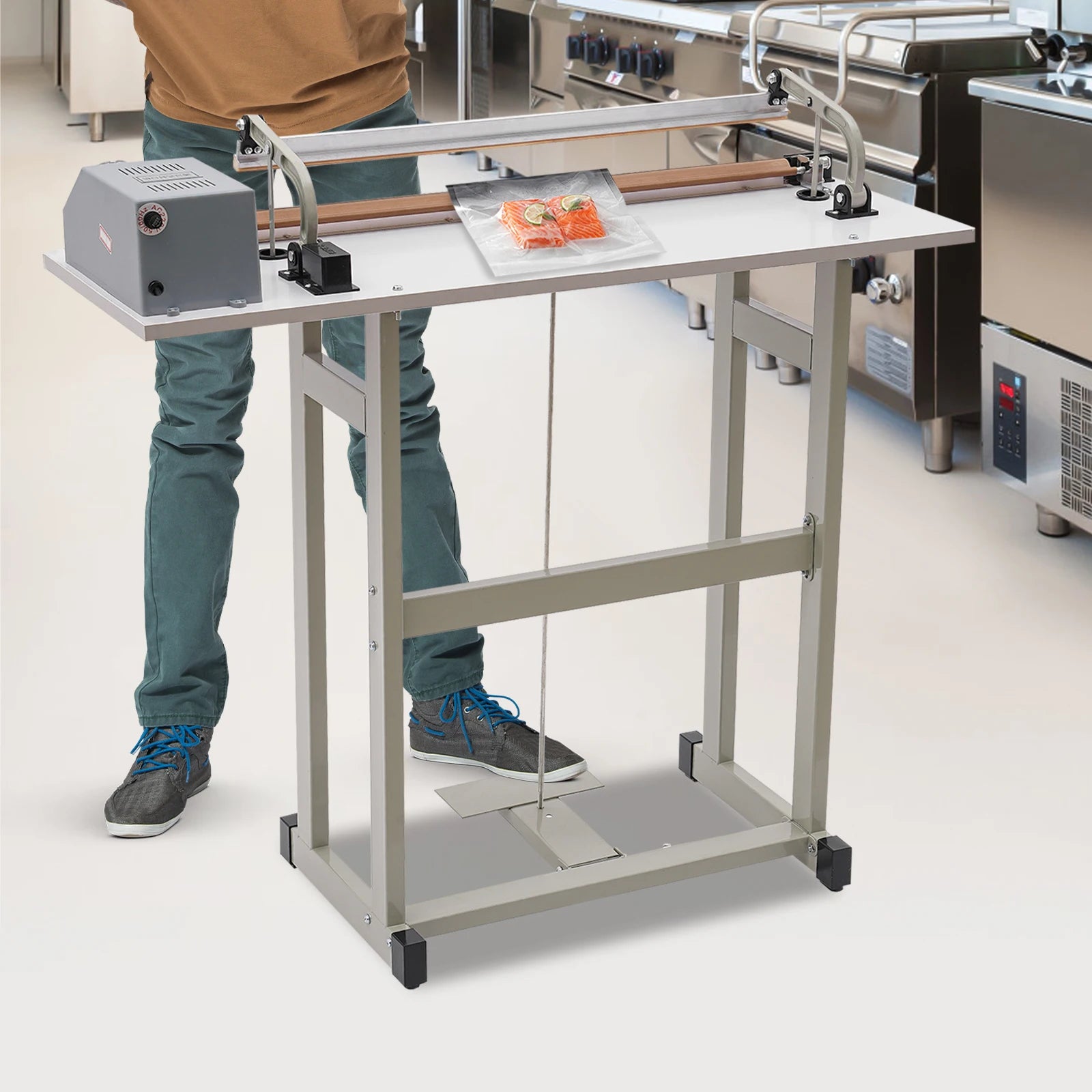

Foot Pedal Operation

• Foot pedal leaves both hands free to position products and bags.
• Improves speed and accuracy when sealing multiple packages.
• Reduces operator fatigue during repetitive work.

Adjustable Heat Settings

• 0–6 heat levels allow adjustment based on bag material and thickness.
• Helps achieve reliable seals on:
  • Thin polyethylene (PE)
  • Polypropylene (PP)
  • Laminated plastic films
  • Bubble bags
  • Foil-lined bags with heat-sealable inner layers

Built-In Film Cutter

• Integrated cutter trims excess material after sealing.
• Helps create cleaner-looking packages.
• Reduces the need for separate cutting tools.

Durable Metal Construction

• Heavy-duty steel frame designed for commercial environments.
• Built to withstand frequent operation.
• Stable base minimizes movement while sealing.

Typical Specifications

Feature	Specification
Product Type	Foot Pedal Impulse Heat Sealer
Power	850W
Operation	Foot Pedal
Heat Adjustment	0–6 Levels
Cutter	Built-In Film Cutter
Frame	Heavy-Duty Steel
Bag Materials	PE, PP, Laminated Films, Heat-Sealable Plastic
Power Supply	110V AC (US models)

Ideal Applications

Food Packaging

• Coffee
• Tea
• Candy
• Baked goods
• Dried fruit
• Spices
• Pet treats

Medical & Laboratory

• Medical supply bags
• Sterile packaging (where compatible materials are used)
• Sample storage

Electronics

• Electronic components
• Hardware
• Small parts
• Accessories

Commercial & Retail

• E-commerce packaging
• Warehouses
• Manufacturing
• Small businesses

Advantages

• ✅ Hands-free foot pedal operation
• ✅ Fast impulse heating
• ✅ Adjustable heat for different bag materials
• ✅ Integrated film cutter
• ✅ Heavy-duty commercial construction
• ✅ Efficient for repetitive packaging tasks
• ✅ Lower energy use than continuously heated sealers because it heats only during sealing

Adjustable Heating Time Gears: 0-6 Gears

Gross Weight: 11kg/ 24.25 lbs

Heating Time: 0.2-2.5 Seconds

Input Voltage: AC110V

Material: Metal, Composite Plate

Maximum Sealing Length: 58cm/22.83in

Model: 600

Plug Type: US Standard

Power: 850W

Power Source: Corded Electric

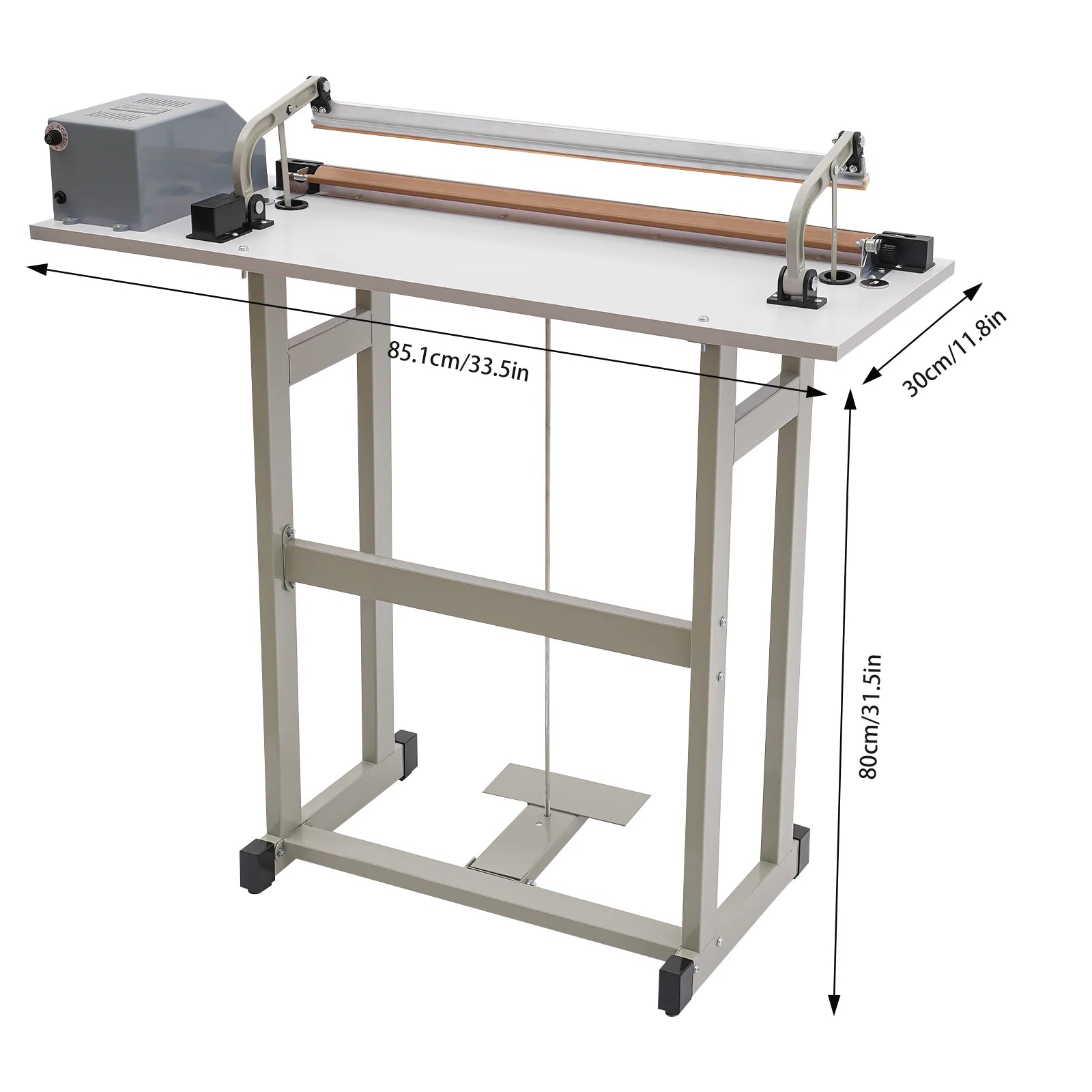

Product Size: 85.09*29.97*80.01cm/33.5*11.8*31.5in

Sealing Width: 0.6mm/0.0236in(Round Wire)

Transformer Type: Pure Copper Transformer
